About

Pim is a little "zen garden" for tinkering around, for my own personal use.

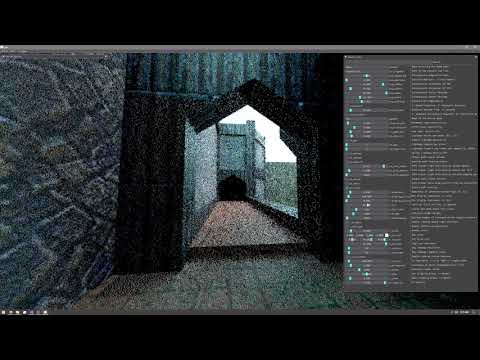

Video:

Dependencies

• Visual Studio
  • Visual C/C++ Toolset v141
  • Windows SDK 17763
  • MSBuild
• Vulkan SDK
  • Requires a Vulkan 1.2 compatible driver
  • Requires shaderc_shared.dll for runtime shader compilation (included in SDK)
  • VK_KHR_swapchain is the only mandatory extension
  • VK_NV_ray_tracing may become mandatory in the future
• PAK files
• Git Bash
  • Used for tool scripts and version control
• Optional: The soundtrack

Usage

Cloning

This repository uses submodules.

  git clone --recursive https://github.com/gheshu/pim.git

Pulling

  git pull
  git submodule update

Building

• Install Visual Studio
• Install the Vulkan SDK
• Install Git Bash
• Clone the repo recursively
• Execute build.bat (change generator to 'Visual Studio 16 2019' if you are using that)
• Execute run.bat

Keybinds

• F1: Toggle between UI mode and flycam mode
• F8: Toggle denoiser for path tracer
• F9: Toggle path tracer
• F10: Screenshot path tracer / denoiser output
• grave accent: Toggle console window
• A/D: left/right strafe in flycam mode
• W/S: forward/backward in flycam mode
• space/left shift: upward/downward in flycam mode
• mouse: yaw and pitch in flycam mode
• page up: increase path tracer resolution
• page down: reduce path tracer resolution

Commands

• cmds: lists all commands
• help: displays info about commands
• exec: executes a script file
• quit: exits the program
• mapload: loads a map by name, eg. mapload e1m1
• mapsave: saves the currently loaded map to disk
• screenshot: saves a screenshot
• loadtest: loads then unloads every map file
• wait: waits N frames before executing the next command
• cornell_box: loads a cornell box scene
• teleport: teleports the camera to the given xyz coordinates
• lookat: orients the camera to look at the given xyz coordinates
• pt_stddev: calculates the standard deviation of the path tracers luminance buffer
• pt_test: runs a path tracing test

Console Variables

See also: cvars.c

• con_logpath: path to the console log file
• in_pitchscale: pitch input sensitivity
• in_yawscale: yaw input sensitivity
• in_movescale: movement input sensitivity
• r_fov: vertical field of view, in degrees
• r_znear: near clipping plane, in meters
• r_zfar: far clipping plane, in meters
• r_whitepoint: luminance at which tonemapping will clip
• r_display_nits_min: Min display luminance, in nits
• r_display_nits_max: Max display luminance, in nits
• r_ui_nits: UI luminance, in nits
• r_maxdelqueue: Maximum number of released driver objects before force-finalizing
• r_scale: Render scale, path tracing only atm
• r_width: Unscaled render width
• r_height: Unscaled render height
• r_fpslimit: Limits fps when above this value
• r_bumpiness: Bumpiness of generated normal maps, requires map reload
• r_tex_custom: Enable loading custom textures
• r_brdflut_spf: Brdf LUT samples per frame
• pt_dist_meters: Path tracer light distribution meters per cell
• pt_trace: Enable path tracing
• pt_denoise: Denoise path tracing output
• pt_normal: Output path tracer normals
• pt_albedo: Output path tracer albedo
• r_refl_gen: Enable reflection generation
• r_sun_dir: Sun direction
• r_sun_lum: Sun luminance
• r_sun_res: Sky cubemap resolution
• r_sun_steps: Sky cubemap raymarch steps
• r_qlights: Enable loading quake light entities
• ui_opacity: UI opacity
• exp_standard: 1: Standard Calibration Exposure; 0: Saturation Based Exposure;
• exp_manual: 1: Manual Exposure; 0: Automatic Exposure
• exp_aperture: Exposure Aperture, in millimeters
• exp_shutter: Exposure Shutter Time, in seconds
• exp_adaptrate: Autoexposure Adaptation Rate
• exp_evoffset: Exposure EV compensation
• exp_evmin: Autoexposure Sensor Minimum
• exp_evmax: Autoexposure Sensor Maximum
• exp_cdfmin: Autoexposure Histogram Cdf Min
• exp_cdfmax: Autoexposure Histogram Cdf Max
• sky_rad_cr: Sky crust radius, kilometers
• sky_rad_at: Sky atmosphere relative radius, kilometers
• sky_rlh_mfp: Rayleigh mean free path, kilometers
• sky_rlh_sh: Rayleigh scale height, kilometers
• sky_mie_mfp: Mie mean free path, kilometers
• sky_mie_sh: Mie scale height, kilometers
• sky_mie_g: Mie mean scatter angle, cosine theta
• lm_upload: Upload the latest lightmap data to the GPU
• lm_gen: Progressively bake lightmaps every frame
• lm_density: Lightmap baking: texels per meter [0.1, 32]
• lm_timeslice: Lightmap baking: number of frames per sample
• lm_spp: Lightmap baking: samples per pixel
• fullscreen: Fullscreen windowing mode
