Implement the data structure of the CFG graph. (A03.T01) #1265
Description
A control flow graph is a graphical representation of all the paths that can be followed by a program during its execution. Its underlying data structure is a graph.

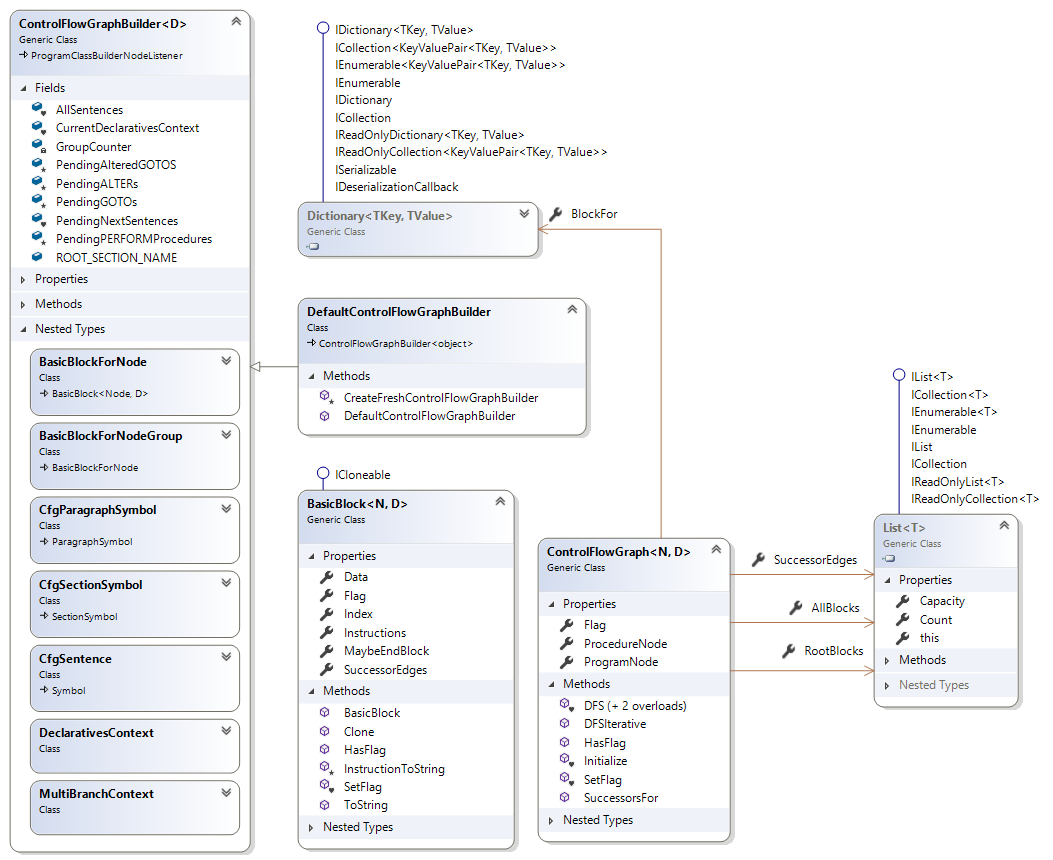

The following simplified class digram, shows the main classes used for representing a control flow graph.
This is a simple description of these classes.
| Class | Description |
|---|---|
| BasicBlock | A Generic class for representing a BasicBlock for a generic type of instructions and a generic type of data informlation. |
| ControlFlowGraph | A Generic class for representing a Control Flow Graph on generic BasicBlock . |
| ControlFlowGraphBuilder | Base class for a Control Flow Graph Builder for a TypeCobol Program. |
| DefaultControlFlowGraphBuilder | The default class for a TypeCobol Control Flow Graph Builder. |
| BasicBlockForNode | A specialization of the class BasicBlock for TypeCobol instruction nodes. |
| BasicBlockForNodeGroup | A specialization of the class BasicBlockForNode for representing a group of basic blocks used for gathering all basic blocks targeted by a PERFORM procedure instruction. |
| CfgSentence | This class is a specialization of the Symbol class for representing a COBOL sentence as a Symbol inside a Cobol Paragraph or a Cobol Section. |
| CfgParagraphSymbol | A specialization of the class ParagraphSymbol for representing a COBOL Paragraph in the CFG. It holds a list of all CfgSenetence instances inside the paragraph |
| CfgSection | This class is a specialization of the class SectionSymbol for representing a COBOL section. It holds a list of all COBOL sentences an paragraphs within the section |
| DeclarativeContext | This class represents a help context for building a CFG for a DECLARATIVE instruction. |
| MultiBranchContext | This class represents a help context for building a CFG for branching instructions like IF..THEN...ELSE or EVALUATE. |
