Predictive Transport Intelligence System
Real-time disruption monitoring + routing + lightweight forecasting which is built around a C++17 core.
Demos • Why • System Overview • Tech Stack • Quickstart • Modules • Roadmap
TG_3SIXO (Journey Radar / Travel Guardian 360) is a real-time transport platform that combines:
- official live transit feeds (GTFS Realtime),
- community + dispatcher reports, and
- a C++17 routing + prediction engine
…to forecast delays, recompute routes under incidents, and push proactive alerts to a live map UI.
It’s designed as a hackathon-style proof-of-concept that is fast, debuggable, and modular (C++ performance core + Python sidecars).
| Module | Purpose |
|---|---|
| 🧭 Routing Engine (C++) | Graph shortest-path routing (Dijkstra) with incident-aware live weight updates |
| ⚙️ TransitDNA Predictor | Lightweight forecasting from rolling disruption history (predict “likely +X min”) |
| 👥 Persona Journeys | Simulated commuter profiles (e.g., “Sarah”) for personalized delay impact |
| 🕒 Calendar Conflict Detection | Detect ETA clashes with user events from .ics calendar files |
| 🛰️ GTFS Live Sidecar (Python) | Fetches/normalizes live vehicle + trip updates and feeds the C++ backend |
| 🔄 SSE Streaming | Server-Sent Events push ETAs, incidents, and predictions to the frontend live |
| 🧰 User Reports + Dispatcher API (Python) | REST endpoints for crowdsourced incidents + verified operator input |
| 🎯 Proactive Alerts | “⚠ Likely +12 min delay” warnings before the delay is visible in typical apps |
Website (demos hub)
Krakow live bus map (video)
- Full doc:

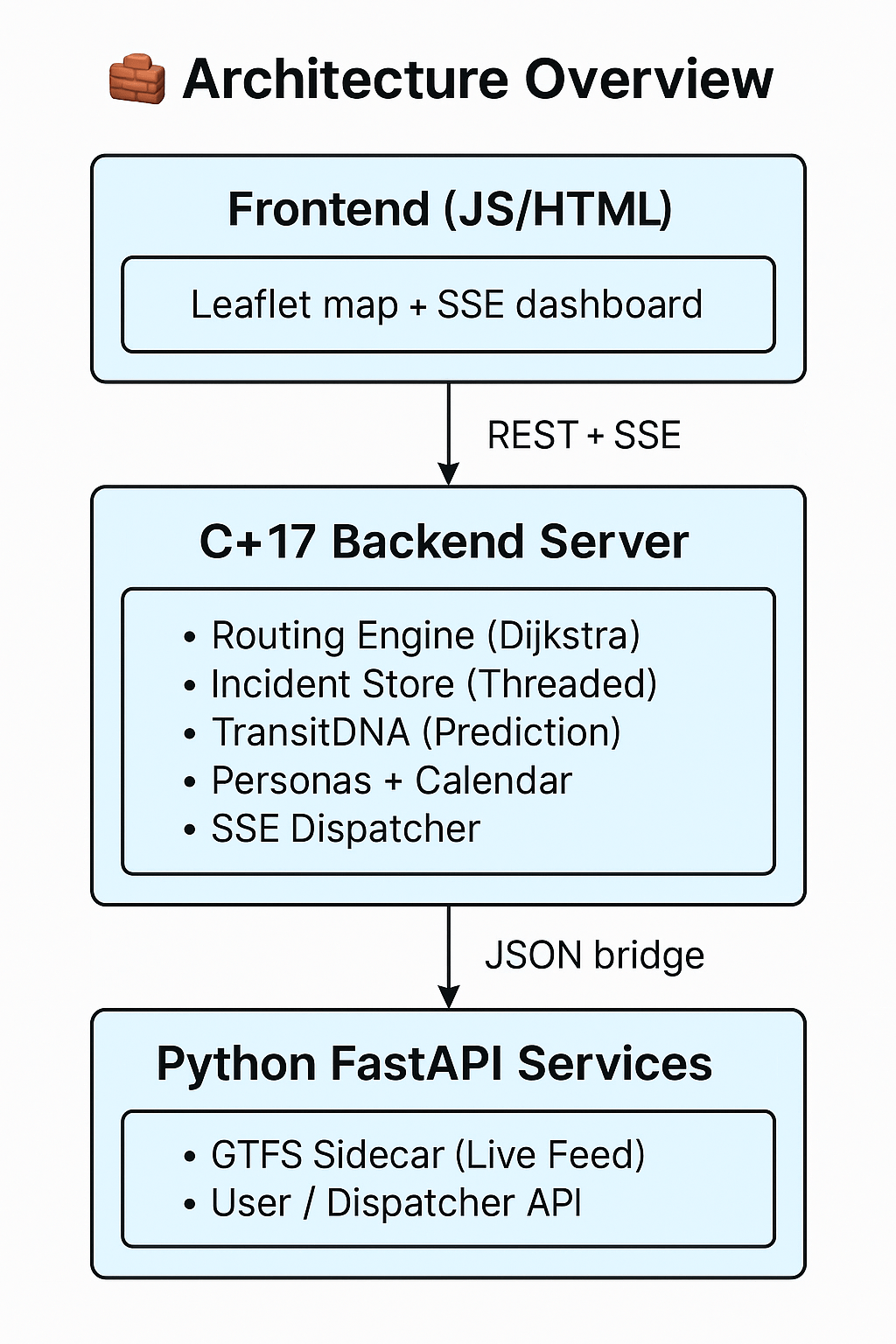

docs/Architecture.md(TODO: update path/name if different) - Diagram:
docs/Architecture-min.png
Most popular transit apps are reactive: they show delays after they happen and often can’t merge operator + community context.
Journey Radar aims to be predictive and explainable:
- predict delay likelihood from recent patterns,
- recompute routes instantly as incidents arrive,
- stream changes live to the UI,
- optionally simulate “personas” + calendar conflicts.
- Live data + reports stream into the backend
- TransitDNA updates a rolling model of recent disruption severity
- Routing Engine recomputes shortest path with incident-adjusted weights
- Frontend dashboard (Leaflet) shows:
- baseline vs adjusted route
- ETA and delay
- proactive warnings
- Personas + calendar flag real-world impact:
- “⚠ Meeting at 09:00 may conflict with ETA 09:10”
TransitDNA is intentionally lightweight and hackathon-friendly:
- rolling averages
- node/segment severity scores
- “recent history” heuristics for probability + delay windows
Example output:
- 96% chance of +12 min delay at Stop 4
Optional experiment:
- time-series model integration via Python (e.g., Amazon Chronos or similar)
Note: This is not a full ML product — it’s a proof-of-concept prediction layer designed to evolve.
| Layer | Technology |
|---|---|
| Core backend | C++17, cpp-httplib, nlohmann::json |
| Concurrency | std::thread, mutex, condition_variable |
| Prediction | TransitDNA heuristic engine (optional Python model integration) |
| APIs | REST + SSE, FastAPI sidecars |
| Frontend | Vanilla JS + Leaflet |
| Data | GTFS Realtime, .ics calendar files, user/dispatcher reports |
| Planned DB | SQLite → PostgreSQL/Timescale (roadmap) |
mkdir build
cd build
cmake ..
cmake --build .
./journey_radarServer default:
If you’re on Windows, use your usual CMake generator (MSVC/MinGW). The commands still apply via CLion or terminal.
Open:
frontend/index.html
The frontend connects to the backend via SSE (port 8080).
cd python_code
uvicorn gtfs_sidecar:app --port 9999
b) User reports / dispatcher API
bash
Copy code
cd python_code/UserAPI
python main.py
C++ Core (Performance-Critical) Route graph + Dijkstra Incident-weight adjustment SSE event stream Prediction integration (TransitDNA outputs) Python Sidecars (Replaceable / Iteration-Friendly) GTFS-RT ingestion & normalization Incident report endpoints Experimentation hooks for model pipelines
Problem in typical systems Journey Radar approach Delays appear after they happen Forecast likely delays from recent patterns Data silos (operator vs user) Merge GTFS + crowdsourced + dispatcher inputs No personalization Persona journeys simulate real commuter impact Limited integration surfaces REST + SSE built for dashboards + operator workflows
Lead Developer: Swastik — C++ Systems Engineer & Product Architect
Collaborators
Data & AI integration — Marvellous
Frontend design — Swastik, Thofeeq
Traffic data visualization API — Kubo
Project management — Binh
🏁 Roadmap Persist prediction + incident history (SQLite → Postgres/Timescale) Improve forecasting pipeline (Chronos/Prophet experiments) Mobile app + push notifications Reward system / gamified user submissions Operator dashboard mode (dispatcher tooling)
🛡️ License MIT License — free for educational and non-commercial use.
A standalone Streamlit app that shows live bus and tram positions using GTFS Realtime data.
Real-time tracking of buses/trams Vehicle delay display Color-coded markers: Green: on time / minor delay Red: delayed > 2 minutes Blue: early > 1 minute Gray: delay unavailable Interactive map via Folium
python -m venv venv
# Linux/Mac:
source venv/bin/activate
# Windows:
# .\venv\Scripts\activate
pip install -r requirements.txt
python -m streamlit run ./python_code/krakow_bus_live/app.py
SSL verification may be disabled due to certificate issues with the source endpoint.
Vehicle positions + trip updates are combined to compute delays.
Data refresh is cached (e.g., 60s) for performance
