Android_Review_2_app

Bottom Navigation Bar

1. add dependency

   // BottomNaviationUI
   implementation 'com.google.android.material:material:1.1.0'
   implementation 'androidx.legacy:legacy-support-v4:1.0.0'


2. add menu item for click bars & drawable/vectorXML for buttom icon & Fragements to change view from Mainpage.

   for Menu Items=>

          <?xml version="1.0" encoding="utf-8"?>
          <menu xmlns:android="http://schemas.android.com/apk/res/android">
              <item
                  android:id="@+id/home"
                  android:icon="@drawable/home"
                  android:title="Home" />

              <item
                  android:id="@+id/clean"
                  android:icon="@drawable/clean"
                  android:title="Attentions" />

              <item
                  android:id="@+id/chat"
                  android:icon="@drawable/coffee"
                  android:title="Info" />

              <item
                  android:id="@+id/contact"
                  android:icon="@drawable/contact"
                  android:title="Remote Care" />


          </menu>


   for Fragments=>

          wrapper in Framelayout, and inside view using RelativeLayout

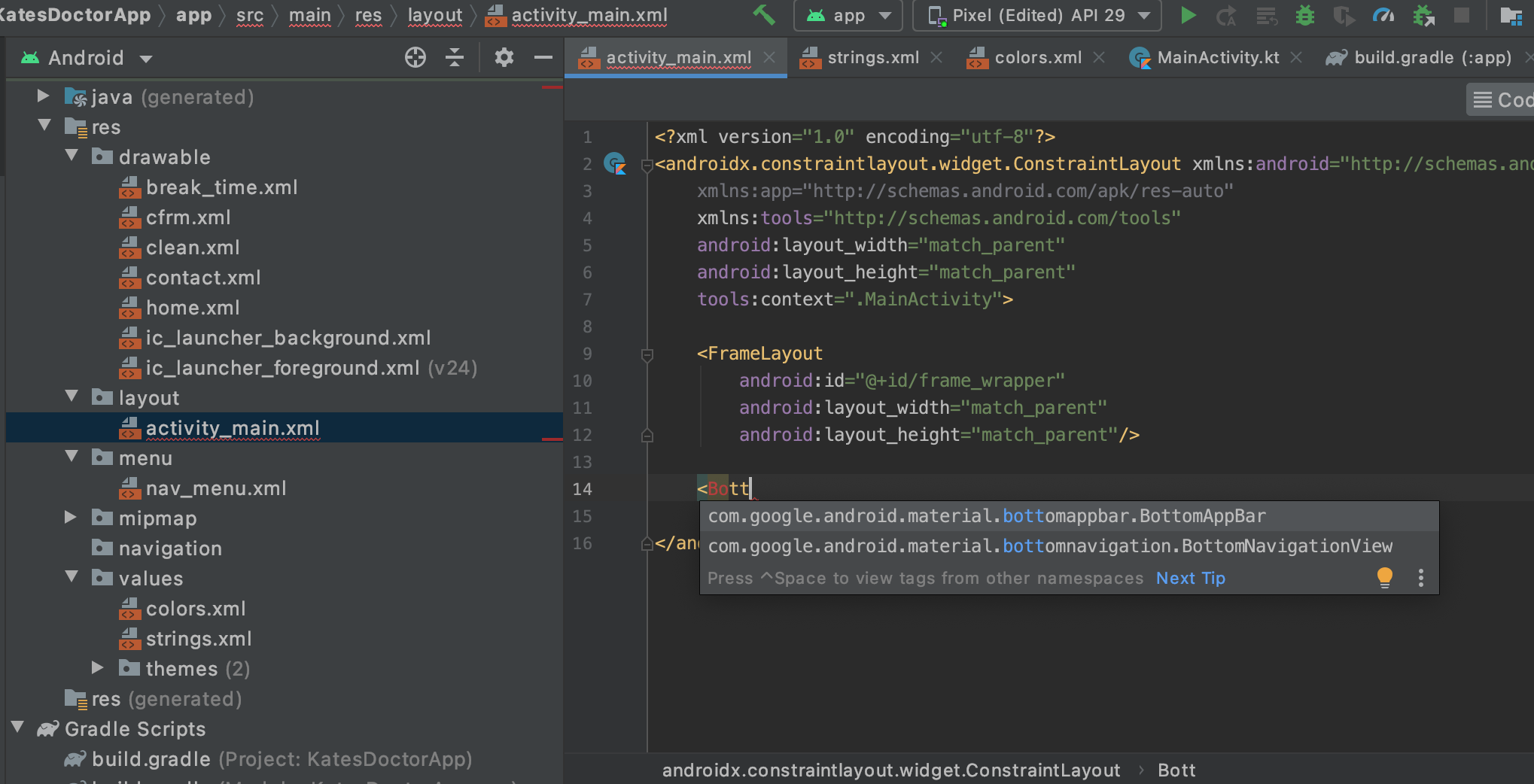

3. add frameLayout for different fragements to be inflatered & BottomNavigation Component for User to click inside Activity_Main.xml.



   <?xml version="1.0" encoding="utf-8"?>
   <androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
       xmlns:app="http://schemas.android.com/apk/res-auto"
       xmlns:tools="http://schemas.android.com/tools"
       android:layout_width="match_parent"
       android:layout_height="match_parent"
       tools:context=".MainActivity">

              <FrameLayout
                  android:id="@+id/frame_wrapper"
                  android:layout_width="match_parent"
                  android:layout_height="match_parent"
                  android:background="@color/wood"/>

              <com.google.android.material.bottomnavigation.BottomNavigationView
                  android:id="@+id/bottomNav"
                  android:layout_width="match_parent"
                  android:layout_height="wrap_content"
                  android:layout_marginTop="550dp"
                  android:background="?android:attr/windowBackground"
                  app:itemBackground="@color/apricot"
                  app:menu="@menu/nav_menu" />


   </androidx.constraintlayout.widget.ConstraintLayout>


4. init instance from fragment inside MainActivity class.

          val a = AFragment()


5. snippet hereby:

          super.onCreate(savedInstanceState)
                  setContentView(R.layout.activity_main)

                  initFragment(h)

                  bottomNav.setOnNavigationItemReselectedListener {

                      when(it.itemId){

                          // see item id in menu
                          // not drawable id
                          R.id.home -> initFragment(h)
                          R.id.clean -> initFragment(a)
                          R.id.chat -> initFragment(i)
                          R.id.contact -> initFragment(c)

                      }

                  }

              }

              // 初始的碎片畫面
              private fun initFragment(fragment: Fragment){

                  // to pass k/v pairs
                  //supportFragmentManager.getFragment()

                  supportFragmentManager.beginTransaction().apply {
                      replace(R.id.frame_wrapper, fragment)
                      commit()
                  }

              }


6. be careful that if you add modules for safe args, then downgrade the Gradle version.

7. be attention to add on utf-8 encode tag on the top of your vectorized drawable, otherwise you got build error for String--toooooo-Loooooong ~

8. for Safe Args:

   (1) at top level gradle

           buildscript {

              dependencies {
                  // 4.1.2 downgrade for safe-args to 3.6.4
                  classpath "com.android.tools.build:gradle:3.6.4"
                  classpath "org.jetbrains.kotlin:kotlin-gradle-plugin:$kotlin_version"

                  // for safe-args
                  classpath 'com.google.gms:google-services:4.3.4'

                  // safe-args => 2.3.3
                  classpath "androidx.navigation:navigation-safe-args-gradle-plugin:$nav_version"


   (2) at app level gradle

           plugins {

                  id 'androidx.navigation.safeargs.kotlin'
            }


ref: https://www.youtube.com/watch?v=fODp1hZxfng

      &

Material Design IO https://material.io/components/bottom-navigation/android#bottom-navigation-bar
