[BUG] There seems to be a problem while applying TLS.

[woowadragonchan]

Hi.
There is a problem while applying TLS.

Version : OpenSIPS 2.4.5
OS : Ubuntu 18.04.1 LTS

I compiled the proto_tls and tls_mgm modules in advance, and wrote the script as follows.

opensips.cfg

listen=tcp:$IP:$PORT1
listen=tls:$IP:$PORT2
...
loadmodule "proto_tls.so"
loadmodule "tls_mgm.so"
...
modparam("tls_mgm", "certificate", "/usr/local/etc/opensips/tls/rootCA/cacert.pem")
modparam("tls_mgm", "private_key", "/usr/local/etc/opensips/tls/rootCA/private/cakey.pem")
modparam("tls_mgm", "ca_list", "/usr/local/etc/opensips/tls/rootCA/cacert.pem")
modparam("tls_mgm", "ca_dir", "/usr/local/etc/opensips/tls/rootCA/")
...

creating the root certificate authority

command : opensipsctl tls rootCA

Enter PEM pass phrase: opensips
Verifying - Enter PEM pass phrase: opensips

Restart opensips......................

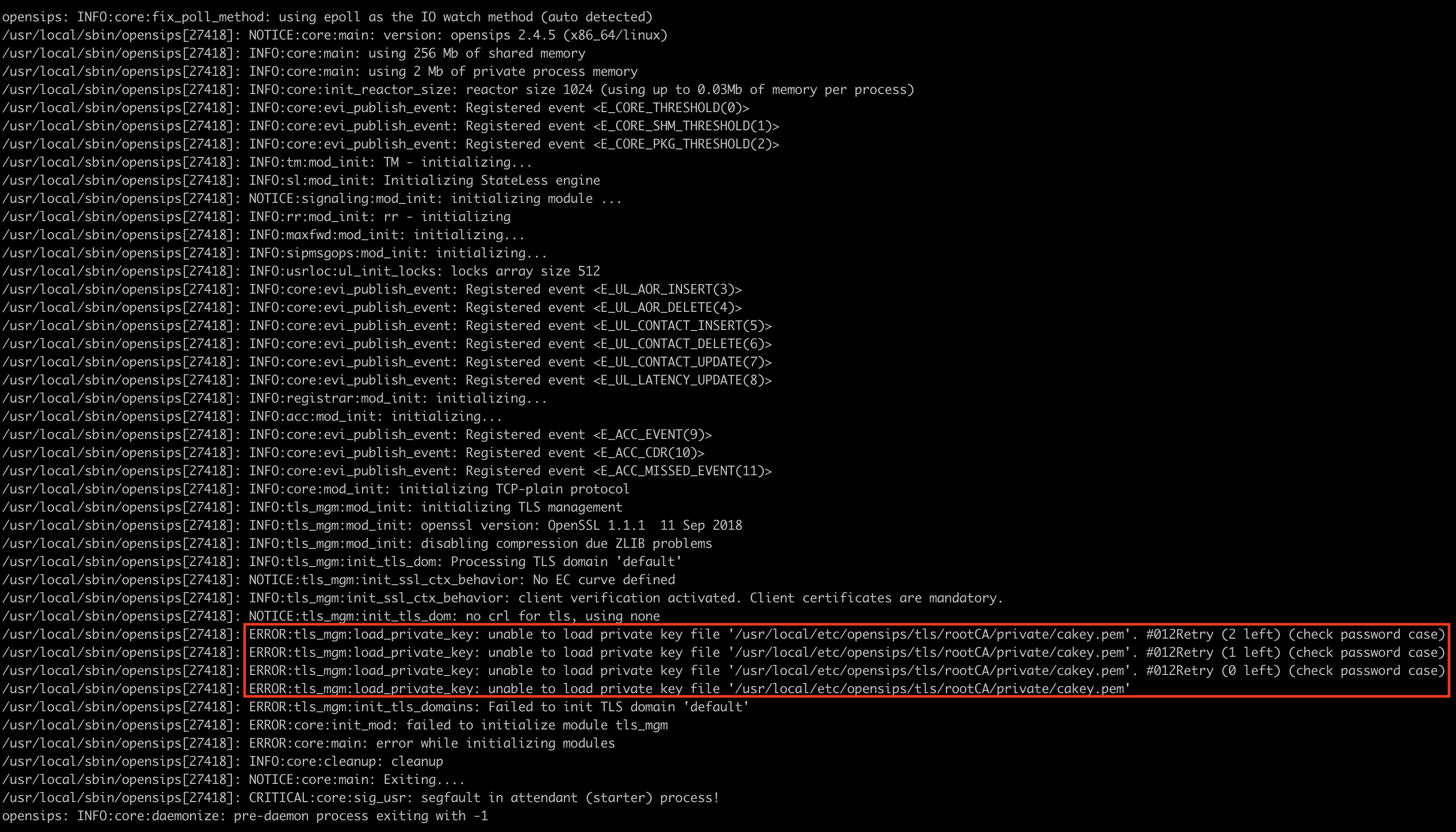

The error log is as follows

As mentioned above, the passphrase is opensips.
And I also checked the permissions of the folder and file on the private side.
Are there any incorrect or missing settings for private?
Ask for help.

[bogdan-iancu]

You should not use a pwd for the key, makes no when using the key for a service (opensips) that should be able to do self starting.

[woowadragonchan]

Great. I created the rootCA without pwd in the key, but this time a different error occurs.

A segmentation fault occurs as follows:

[rvlad-patrascu]

Can you post the backtrace from the core file?

[woowadragonchan]

A backtrace result when a segmentation fault occurs.

(gdb) bt full
#0  _IO_no_init (fp=fp@entry=0x7fffad86a3c0, flags=flags@entry=32768, orientation=orientation@entry=-1, wd=wd@entry=0x0, jmp=jmp@entry=0x0) at genops.c:591
No locals.
#1  0x00007fcb2a3d476f in _IO_vsscanf (string=0x562b374f2de4 "9", format=0x7fcb2a508204 "%hu%n:%hu%n:%hu%n", args=args@entry=0x7fffad86a4f0) at iovsscanf.c:38
        ret = <optimized out>
        sf = {_sbf = {_f = {_flags = 0, _IO_read_ptr = 0x0, _IO_read_end = 0x0, _IO_read_base = 0x0, _IO_write_base = 0x0, _IO_write_ptr = 0x0, _IO_write_end = 0x0,
              _IO_buf_base = 0x0, _IO_buf_end = 0x0, _IO_save_base = 0x0, _IO_backup_base = 0x0, _IO_save_end = 0x0, _markers = 0x0, _chain = 0x0, _fileno = 0, _flags2 = 0,
              _old_offset = 0, _cur_column = 0, _vtable_offset = 0 '\000', _shortbuf = "", _lock = 0x0, _offset = 0, _codecvt = 0x0, _wide_data = 0x0, _freeres_list = 0x0,
              _freeres_buf = 0x0, __pad5 = 0, _mode = 0, _unused2 = '\000' <repeats 19 times>}, vtable = 0x0}, _s = {_allocate_buffer = 0x0, _free_buffer = 0x0}}
#2  0x00007fcb2a3ce1a4 in __sscanf (s=s@entry=0x562b374f2de4 "9", format=format@entry=0x7fcb2a508204 "%hu%n:%hu%n:%hu%n") at sscanf.c:32
        arg = {{gp_offset = 16, fp_offset = 48, overflow_arg_area = 0x7fffad86a5d0, reg_save_area = 0x7fffad86a510}}
        done = <optimized out>
#3  0x00007fcb2a426696 in parse_offset (whichrule=0, tzp=0x7fffad86a5f8) at tzset.c:208
        tz = 0x562b374f2de4 "9"
        hh = 0
        mm = 0
        ss = 0
        consumed = 0
        sign = 1
        tz = <optimized out>
        sign = <optimized out>
        hh = <optimized out>
        mm = <optimized out>
        ss = <optimized out>
        consumed = <optimized out>
        __c = <optimized out>
#4  __tzset_parse_tz (tz=<optimized out>) at tzset.c:329
No locals.
#5  0x00007fcb2a428c60 in __tzfile_compute (timer=<optimized out>, use_localtime=use_localtime@entry=1, leap_correct=leap_correct@entry=0x7fffad86a6e0,
    leap_hit=leap_hit@entry=0x7fffad86a6dc, tp=tp@entry=0x7fffad86a740) at tzfile.c:684
        info = <optimized out>
        i = <optimized out>
        __PRETTY_FUNCTION__ = "__tzfile_compute"
#6  0x00007fcb2a42751e in __tz_convert (timer=timer@entry=0x7fffad86a728, use_localtime=use_localtime@entry=1, tp=tp@entry=0x7fffad86a740) at tzset.c:587
        leap_correction = 140736104671024
        leap_extra_secs = 32767
#7  0x00007fcb2a42457d in __localtime_r (t=t@entry=0x7fffad86a728, tp=tp@entry=0x7fffad86a740) at localtime.c:30
No locals.
#8  0x00007fcb2a46d4c3 in __GI___vsyslog_chk (ap=0x7fffad86a778, fmt=0x562b359796a0 "INFO:core:%s: process %d(%d) [%s] terminated, still waiting for %d more\n", flag=1,
    pri=<optimized out>) at ../misc/syslog.c:199
        buf = 0x0
        now_tm = {tm_sec = 0, tm_min = 0, tm_hour = 0, tm_mday = 0, tm_mon = 0, tm_year = 0, tm_wday = 0, tm_yday = 0, tm_isdst = 0, tm_gmtoff = 0, tm_zone = 0x0}
        fd = <optimized out>
        failbuf = "TUUU\000\000\000\000EXPF", '\000' <repeats 16 times>
        now = 1633615058
        f = 0x562b374ee6a0
        bufsize = 0
        msgoff = <optimized out>
        saved_errno = 4
        clarg = <optimized out>
        now_tm = <optimized out>
        now = <optimized out>
        fd = <optimized out>
        f = <optimized out>
        buf = <optimized out>
        bufsize = <optimized out>
        msgoff = <optimized out>
        saved_errno = <optimized out>
        failbuf = <optimized out>
        clarg = <optimized out>
        numbuf = <optimized out>
        nump = <optimized out>
---Type <return> to continue, or q <return> to quit---
        endp = <optimized out>
        pid = <optimized out>
        __result = <optimized out>
        iov = <optimized out>
        v = <optimized out>
        __clframe = <optimized out>
        __clframe = <optimized out>
        ignore1 = <optimized out>
        ignore2 = <optimized out>
        ignore3 = <optimized out>
        ignore = <optimized out>
#9  __syslog_chk (pri=<optimized out>, flag=1, fmt=0x562b359796a0 "INFO:core:%s: process %d(%d) [%s] terminated, still waiting for %d more\n") at ../misc/syslog.c:129
        ap = {{gp_offset = 24, fp_offset = 48, overflow_arg_area = 0x7fffad86a8e0, reg_save_area = 0x7fffad86a7f0}}
#10 0x0000562b3571e781 in syslog (__fmt=0x562b359796a0 "INFO:core:%s: process %d(%d) [%s] terminated, still waiting for %d more\n", __pri=<optimized out>)
    at /usr/include/x86_64-linux-gnu/bits/syslog.h:31
No locals.
#11 shutdown_opensips (status=0) at main.c:472
        proc = <optimized out>
        i = 500
        n = 13
        p = <optimized out>
        chld_status = 0
        __FUNCTION__ = "shutdown_opensips"
#12 0x0000562b357f9544 in handle_sigs () at main.c:525
        chld = <optimized out>
        chld_status = 0
        overall_status = 0
        i = <optimized out>
        do_exit = <optimized out>
        __FUNCTION__ = "handle_sigs"
#13 0x0000562b357273d0 in main_loop () at main.c:841
        startup_done = <optimized out>
        rc = <optimized out>
        chd_rank = 9
        startup_done = <optimized out>
        rc = <optimized out>
#14 main (argc=<optimized out>, argv=<optimized out>) at main.c:1439
        cfg_stream = <optimized out>
        c = <optimized out>
        r = <optimized out>
        tmp = 0xf0b5ff <error: Cannot access memory at address 0xf0b5ff>
        tmp_len = <optimized out>
        port = <optimized out>
        proto = <optimized out>
        protos_no = <optimized out>
        options = 0x562b35979cd8 "f:cCm:M:b:l:n:N:rRvdDFEVhw:t:u:g:P:G:W:o:"
        ret = -1
        seed = 1700281730
        rfd = <optimized out>
        __FUNCTION__ = "main"

[rvlad-patrascu]

Is there any other core file? This seems to only show a side effect of the actual crash that occurs during the shutdown sequence.

[woowadragonchan]

This is the core file when a segmentation fault occurs.
The log of the core file.

ELF Header:
  Magic:   7f 45 4c 46 02 01 01 00 00 00 00 00 00 00 00 00
  Class:                             ELF64
  Data:                              2's complement, little endian
  Version:                           1 (current)
  OS/ABI:                            UNIX - System V
  ABI Version:                       0
  Type:                              CORE (Core file)
  Machine:                           Advanced Micro Devices X86-64
  Version:                           0x1
  Entry point address:               0x0
  Start of program headers:          64 (bytes into file)
  Start of section headers:          275361352 (bytes into file)
  Flags:                             0x0
  Size of this header:               64 (bytes)
  Size of program headers:           56 (bytes)
  Number of program headers:         109
  Size of section headers:           64 (bytes)
  Number of section headers:         111
  Section header string table index: 110

Section Headers:
  [Nr] Name              Type            Address          Off    Size   ES Flg Lk Inf Al
  [ 0]                   NULL            0000000000000000 000000 000000 00      0   0  0
  [ 1] note0             NOTE            0000000000000000 001818 002614 00   A  0   0  1
  [ 2] load              PROGBITS        000055dca078c000 003e2c 001000 00   A  0   0  1
  [ 3] load              PROGBITS        000055dca078d000 004e2c 005000 00  WA  0   0  1
  [ 4] load              PROGBITS        000055dca0792000 009e2c 052000 00  WA  0   0  1
  [ 5] load              PROGBITS        000055dca0ac2000 05be2c 045000 00  WA  0   0  1
  [ 6] load              PROGBITS        000055dca0b07000 0a0e2c 017000 00  WA  0   0  1
  [ 7] load              PROGBITS        00007f4d4de08000 0b7e2c 001000 00   A  0   0  1
  [ 8] load              PROGBITS        00007f4d4de09000 0b8e2c 001000 00  WA  0   0  1
  [ 9] load              PROGBITS        00007f4d4e014000 0b9e2c 001000 00   A  0   0  1
  [10] load              PROGBITS        00007f4d4e015000 0bae2c 001000 00  WA  0   0  1
  [11] load              PROGBITS        00007f4d4e016000 0bbe2c 006000 00  WA  0   0  1
  [12] load              PROGBITS        00007f4d4e243000 0c1e2c 001000 00   A  0   0  1
  [13] load              PROGBITS        00007f4d4e244000 0c2e2c 002000 00  WA  0   0  1
  [14] load              PROGBITS        00007f4d4e246000 0c4e2c 002000 00  WA  0   0  1
  [15] load              PROGBITS        00007f4d4e459000 0c6e2c 001000 00   A  0   0  1
  [16] load              PROGBITS        00007f4d4e45a000 0c7e2c 001000 00  WA  0   0  1
  [17] load              PROGBITS        00007f4d4e670000 0c8e2c 001000 00   A  0   0  1
  [18] load              PROGBITS        00007f4d4e671000 0c9e2c 001000 00  WA  0   0  1
  [19] load              PROGBITS        00007f4d4e87d000 0cae2c 001000 00   A  0   0  1
  [20] load              PROGBITS        00007f4d4e87e000 0cbe2c 001000 00  WA  0   0  1
  [21] load              PROGBITS        00007f4d4ea8a000 0cce2c 001000 00   A  0   0  1
  [22] load              PROGBITS        00007f4d4ea8b000 0cde2c 001000 00  WA  0   0  1
  [23] load              PROGBITS        00007f4d4ec92000 0cee2c 001000 00   A  0   0  1
  [24] load              PROGBITS        00007f4d4ec93000 0cfe2c 001000 00  WA  0   0  1
  [25] load              PROGBITS        00007f4d4eeae000 0d0e2c 001000 00   A  0   0  1
  [26] load              PROGBITS        00007f4d4eeaf000 0d1e2c 001000 00  WA  0   0  1
  [27] load              PROGBITS        00007f4d4eeb0000 0d2e2c 010000 00  WA  0   0  1
  [28] load              PROGBITS        00007f4d4f0c2000 0e2e2c 001000 00   A  0   0  1
  [29] load              PROGBITS        00007f4d4f0c3000 0e3e2c 001000 00  WA  0   0  1
  [30] load              PROGBITS        00007f4d4f34e000 0e4e2c 001000 00   A  0   0  1
  [31] load              PROGBITS        00007f4d4f34f000 0e5e2c 002000 00  WA  0   0  1
  [32] load              PROGBITS        00007f4d4f351000 0e7e2c 001000 00  WA  0   0  1
  [33] load              PROGBITS        00007f4d4f557000 0e8e2c 001000 00   A  0   0  1
  [34] load              PROGBITS        00007f4d4f558000 0e9e2c 001000 00  WA  0   0  1
  [35] load              PROGBITS        00007f4d4f767000 0eae2c 001000 00   A  0   0  1
  [36] load              PROGBITS        00007f4d4f768000 0ebe2c 001000 00  WA  0   0  1
  [37] load              PROGBITS        00007f4d4fb05000 0ece2c 001000 00   A  0   0  1
  [38] load              PROGBITS        00007f4d4fb06000 0ede2c 001000 00  WA  0   0  1
  [39] load              PROGBITS        00007f4d4fd1d000 0eee2c 001000 00   A  0   0  1
  [40] load              PROGBITS        00007f4d4fd1e000 0efe2c 001000 00  WA  0   0  1
  [41] load              PROGBITS        00007f4d50098000 0f0e2c 00a000 00   A  0   0  1
  [42] load              PROGBITS        00007f4d500a2000 0fae2c 002000 00  WA  0   0  1
  [43] load              PROGBITS        00007f4d500a4000 0fce2c 004000 00  WA  0   0  1
  [44] load              PROGBITS        00007f4d502c3000 100e2c 001000 00   A  0   0  1
  [45] load              PROGBITS        00007f4d502c4000 101e2c 001000 00  WA  0   0  1
  [46] load              PROGBITS        00007f4d50801000 102e2c 004000 00   A  0   0  1
  [47] load              PROGBITS        00007f4d50805000 106e2c 072000 00  WA  0   0  1
  [48] load              PROGBITS        00007f4d50877000 178e2c 006000 00  WA  0   0  1
  [49] load              PROGBITS        00007f4d50a95000 17ee2c 001000 00   A  0   0  1
  [50] load              PROGBITS        00007f4d50a96000 17fe2c 001000 00  WA  0   0  1
  [51] load              PROGBITS        00007f4d50a97000 180e2c 010000 00  WA  0   0  1
  [52] load              PROGBITS        00007f4d50cca000 190e2c 001000 00   A  0   0  1
  [53] load              PROGBITS        00007f4d50ccb000 191e2c 001000 00  WA  0   0  1
  [54] load              PROGBITS        00007f4d50ccc000 192e2c 011000 00  WA  0   0  1
  [55] load              PROGBITS        00007f4d50ef6000 1a3e2c 001000 00   A  0   0  1
  [56] load              PROGBITS        00007f4d50ef7000 1a4e2c 001000 00  WA  0   0  1
  [57] load              PROGBITS        00007f4d50ef8000 1a5e2c 004000 00  WA  0   0  1
  [58] load              PROGBITS        00007f4d51396000 1a9e2c 02c000 00   A  0   0  1
  [59] load              PROGBITS        00007f4d513c2000 1d5e2c 002000 00  WA  0   0  1
  [60] load              PROGBITS        00007f4d513c4000 1d7e2c 003000 00  WA  0   0  1
  [61] load              PROGBITS        00007f4d51647000 1dae2c 009000 00   A  0   0  1
  [62] load              PROGBITS        00007f4d51650000 1e3e2c 004000 00  WA  0   0  1
  [63] load              PROGBITS        00007f4d5186e000 1e7e2c 001000 00   A  0   0  1
  [64] load              PROGBITS        00007f4d5186f000 1e8e2c 001000 00  WA  0   0  1
  [65] load              PROGBITS        00007f4d51870000 1e9e2c 010000 00  WA  0   0  1
  [66] load              PROGBITS        00007f4d51aa5000 1f9e2c 001000 00   A  0   0  1
  [67] load              PROGBITS        00007f4d51aa6000 1fae2c 001000 00  WA  0   0  1
  [68] load              PROGBITS        00007f4d51aa7000 1fbe2c 025000 00  WA  0   0  1
  [69] load              PROGBITS        00007f4d51ced000 220e2c 001000 00   A  0   0  1
  [70] load              PROGBITS        00007f4d51cee000 221e2c 001000 00  WA  0   0  1
  [71] load              PROGBITS        00007f4d51cef000 222e2c 004000 00  WA  0   0  1
  [72] load              PROGBITS        00007f4d51f3c000 226e2c 001000 00   A  0   0  1
  [73] load              PROGBITS        00007f4d51f3d000 227e2c 002000 00  WA  0   0  1
  [74] load              PROGBITS        00007f4d5214d000 229e2c 001000 00   A  0   0  1
  [75] load              PROGBITS        00007f4d5214e000 22ae2c 001000 00  WA  0   0  1
  [76] load              PROGBITS        00007f4d52361000 22be2c 001000 00   A  0   0  1
  [77] load              PROGBITS        00007f4d52362000 22ce2c 001000 00  WA  0   0  1
  [78] load              PROGBITS        00007f4d5257e000 22de2c 001000 00   A  0   0  1
  [79] load              PROGBITS        00007f4d5257f000 22ee2c 002000 00  WA  0   0  1
  [80] load              PROGBITS        00007f4d52784000 230e2c 001000 00   A  0   0  1
  [81] load              PROGBITS        00007f4d52785000 231e2c 001000 00  WA  0   0  1
  [82] load              PROGBITS        00007f4d52999000 232e2c 001000 00   A  0   0  1
  [83] load              PROGBITS        00007f4d5299a000 233e2c 001000 00  WA  0   0  1
  [84] load              PROGBITS        00007f4d52c28000 234e2c 001000 00   A  0   0  1
  [85] load              PROGBITS        00007f4d52c29000 235e2c 002000 00  WA  0   0  1
  [86] load              PROGBITS        00007f4d52c2b000 237e2c 015000 00  WA  0   0  1
  [87] load              PROGBITS        00007f4d52e45000 24ce2c 001000 00   A  0   0  1
  [88] load              PROGBITS        00007f4d52e46000 24de2c 001000 00  WA  0   0  1
  [89] load              PROGBITS        00007f4d53049000 24ee2c 001000 00   A  0   0  1
  [90] load              PROGBITS        00007f4d5304a000 24fe2c 001000 00  WA  0   0  1
  [91] load              PROGBITS        00007f4d5304b000 250e2c 10000000 00  WA  0   0  1
  [92] load              PROGBITS        00007f4d6304b000 10250e2c 201000 00  WA  0   0  1
  [93] load              PROGBITS        00007f4d6324c000 10451e2c 1e7000 00  AX  0   0  1
  [94] load              PROGBITS        00007f4d63633000 10638e2c 004000 00   A  0   0  1
  [95] load              PROGBITS        00007f4d63637000 1063ce2c 002000 00  WA  0   0  1
  [96] load              PROGBITS        00007f4d63639000 1063ee2c 004000 00  WA  0   0  1
  [97] load              PROGBITS        00007f4d63854000 10642e2c 001000 00   A  0   0  1
  [98] load              PROGBITS        00007f4d63855000 10643e2c 001000 00  WA  0   0  1
  [99] load              PROGBITS        00007f4d63856000 10644e2c 002000 00  WA  0   0  1
  [100] load              PROGBITS        00007f4d63a5a000 10646e2c 001000 00   A  0   0  1
  [101] load              PROGBITS        00007f4d63a5b000 10647e2c 001000 00  WA  0   0  1
  [102] load              PROGBITS        00007f4d63a5c000 10648e2c 027000 00  AX  0   0  1
  [103] load              PROGBITS        00007f4d63c76000 1066fe2c 005000 00  WA  0   0  1
  [104] load              PROGBITS        00007f4d63c83000 10674e2c 001000 00   A  0   0  1
  [105] load              PROGBITS        00007f4d63c84000 10675e2c 001000 00  WA  0   0  1
  [106] load              PROGBITS        00007f4d63c85000 10676e2c 001000 00  WA  0   0  1
  [107] load              PROGBITS        00007ffdb8c19000 10677e2c 021000 00  WA  0   0  1
  [108] load              PROGBITS        00007ffdb8d25000 10698e2c 001000 00  AX  0   0  1
  [109] load              PROGBITS        ffffffffff600000 10699e2c 001000 00  AX  0   0  1
  [110] .shstrtab         STRTAB          0000000000000000 1069ae2c 000016 00      0   0  1
Key to Flags:
  W (write), A (alloc), X (execute), M (merge), S (strings), I (info),
  L (link order), O (extra OS processing required), G (group), T (TLS),
  C (compressed), x (unknown), o (OS specific), E (exclude),
  l (large), p (processor specific)

There are no section groups in this file.

Program Headers:
  Type           Offset   VirtAddr           PhysAddr           FileSiz  MemSiz   Flg Align
  NOTE           0x001818 0x0000000000000000 0x0000000000000000 0x002614 0x000000 R   0x1
  LOAD           0x003e2c 0x000055dca078c000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x004e2c 0x000055dca078d000 0x0000000000000000 0x005000 0x005000 RW  0x1
  LOAD           0x009e2c 0x000055dca0792000 0x0000000000000000 0x052000 0x052000 RW  0x1
  LOAD           0x05be2c 0x000055dca0ac2000 0x0000000000000000 0x045000 0x045000 RW  0x1
  LOAD           0x0a0e2c 0x000055dca0b07000 0x0000000000000000 0x017000 0x017000 RW  0x1
  LOAD           0x0b7e2c 0x00007f4d4de08000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x0b8e2c 0x00007f4d4de09000 0x0000000000000000 0x001000 0x001000 RW  0x1
  LOAD           0x0b9e2c 0x00007f4d4e014000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x0bae2c 0x00007f4d4e015000 0x0000000000000000 0x001000 0x001000 RW  0x1
  LOAD           0x0bbe2c 0x00007f4d4e016000 0x0000000000000000 0x006000 0x006000 RW  0x1
  LOAD           0x0c1e2c 0x00007f4d4e243000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x0c2e2c 0x00007f4d4e244000 0x0000000000000000 0x002000 0x002000 RW  0x1
  LOAD           0x0c4e2c 0x00007f4d4e246000 0x0000000000000000 0x002000 0x002000 RW  0x1
  LOAD           0x0c6e2c 0x00007f4d4e459000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x0c7e2c 0x00007f4d4e45a000 0x0000000000000000 0x001000 0x001000 RW  0x1
  LOAD           0x0c8e2c 0x00007f4d4e670000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x0c9e2c 0x00007f4d4e671000 0x0000000000000000 0x001000 0x001000 RW  0x1
  LOAD           0x0cae2c 0x00007f4d4e87d000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x0cbe2c 0x00007f4d4e87e000 0x0000000000000000 0x001000 0x001000 RW  0x1
  LOAD           0x0cce2c 0x00007f4d4ea8a000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x0cde2c 0x00007f4d4ea8b000 0x0000000000000000 0x001000 0x001000 RW  0x1
  LOAD           0x0cee2c 0x00007f4d4ec92000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x0cfe2c 0x00007f4d4ec93000 0x0000000000000000 0x001000 0x001000 RW  0x1
  LOAD           0x0d0e2c 0x00007f4d4eeae000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x0d1e2c 0x00007f4d4eeaf000 0x0000000000000000 0x001000 0x001000 RW  0x1
  LOAD           0x0d2e2c 0x00007f4d4eeb0000 0x0000000000000000 0x010000 0x010000 RW  0x1
  LOAD           0x0e2e2c 0x00007f4d4f0c2000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x0e3e2c 0x00007f4d4f0c3000 0x0000000000000000 0x001000 0x001000 RW  0x1
  LOAD           0x0e4e2c 0x00007f4d4f34e000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x0e5e2c 0x00007f4d4f34f000 0x0000000000000000 0x002000 0x002000 RW  0x1
  LOAD           0x0e7e2c 0x00007f4d4f351000 0x0000000000000000 0x001000 0x001000 RW  0x1
  LOAD           0x0e8e2c 0x00007f4d4f557000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x0e9e2c 0x00007f4d4f558000 0x0000000000000000 0x001000 0x001000 RW  0x1
  LOAD           0x0eae2c 0x00007f4d4f767000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x0ebe2c 0x00007f4d4f768000 0x0000000000000000 0x001000 0x001000 RW  0x1
  LOAD           0x0ece2c 0x00007f4d4fb05000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x0ede2c 0x00007f4d4fb06000 0x0000000000000000 0x001000 0x001000 RW  0x1
  LOAD           0x0eee2c 0x00007f4d4fd1d000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x0efe2c 0x00007f4d4fd1e000 0x0000000000000000 0x001000 0x001000 RW  0x1
  LOAD           0x0f0e2c 0x00007f4d50098000 0x0000000000000000 0x00a000 0x00a000 R   0x1
  LOAD           0x0fae2c 0x00007f4d500a2000 0x0000000000000000 0x002000 0x002000 RW  0x1
  LOAD           0x0fce2c 0x00007f4d500a4000 0x0000000000000000 0x004000 0x004000 RW  0x1
  LOAD           0x100e2c 0x00007f4d502c3000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x101e2c 0x00007f4d502c4000 0x0000000000000000 0x001000 0x001000 RW  0x1
  LOAD           0x102e2c 0x00007f4d50801000 0x0000000000000000 0x004000 0x004000 R   0x1
  LOAD           0x106e2c 0x00007f4d50805000 0x0000000000000000 0x072000 0x072000 RW  0x1
  LOAD           0x178e2c 0x00007f4d50877000 0x0000000000000000 0x006000 0x006000 RW  0x1
  LOAD           0x17ee2c 0x00007f4d50a95000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x17fe2c 0x00007f4d50a96000 0x0000000000000000 0x001000 0x001000 RW  0x1
  LOAD           0x180e2c 0x00007f4d50a97000 0x0000000000000000 0x010000 0x010000 RW  0x1
  LOAD           0x190e2c 0x00007f4d50cca000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x191e2c 0x00007f4d50ccb000 0x0000000000000000 0x001000 0x001000 RW  0x1
  LOAD           0x192e2c 0x00007f4d50ccc000 0x0000000000000000 0x011000 0x011000 RW  0x1
  LOAD           0x1a3e2c 0x00007f4d50ef6000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x1a4e2c 0x00007f4d50ef7000 0x0000000000000000 0x001000 0x001000 RW  0x1
  LOAD           0x1a5e2c 0x00007f4d50ef8000 0x0000000000000000 0x004000 0x004000 RW  0x1
  LOAD           0x1a9e2c 0x00007f4d51396000 0x0000000000000000 0x02c000 0x02c000 R   0x1
  LOAD           0x1d5e2c 0x00007f4d513c2000 0x0000000000000000 0x002000 0x002000 RW  0x1
  LOAD           0x1d7e2c 0x00007f4d513c4000 0x0000000000000000 0x003000 0x003000 RW  0x1
  LOAD           0x1dae2c 0x00007f4d51647000 0x0000000000000000 0x009000 0x009000 R   0x1
  LOAD           0x1e3e2c 0x00007f4d51650000 0x0000000000000000 0x004000 0x004000 RW  0x1
  LOAD           0x1e7e2c 0x00007f4d5186e000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x1e8e2c 0x00007f4d5186f000 0x0000000000000000 0x001000 0x001000 RW  0x1
  LOAD           0x1e9e2c 0x00007f4d51870000 0x0000000000000000 0x010000 0x010000 RW  0x1
  LOAD           0x1f9e2c 0x00007f4d51aa5000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x1fae2c 0x00007f4d51aa6000 0x0000000000000000 0x001000 0x001000 RW  0x1
  LOAD           0x1fbe2c 0x00007f4d51aa7000 0x0000000000000000 0x025000 0x025000 RW  0x1
  LOAD           0x220e2c 0x00007f4d51ced000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x221e2c 0x00007f4d51cee000 0x0000000000000000 0x001000 0x001000 RW  0x1
  LOAD           0x222e2c 0x00007f4d51cef000 0x0000000000000000 0x004000 0x004000 RW  0x1
  LOAD           0x226e2c 0x00007f4d51f3c000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x227e2c 0x00007f4d51f3d000 0x0000000000000000 0x002000 0x002000 RW  0x1
  LOAD           0x229e2c 0x00007f4d5214d000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x22ae2c 0x00007f4d5214e000 0x0000000000000000 0x001000 0x001000 RW  0x1
  LOAD           0x22be2c 0x00007f4d52361000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x22ce2c 0x00007f4d52362000 0x0000000000000000 0x001000 0x001000 RW  0x1
  LOAD           0x22de2c 0x00007f4d5257e000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x22ee2c 0x00007f4d5257f000 0x0000000000000000 0x002000 0x002000 RW  0x1
  LOAD           0x230e2c 0x00007f4d52784000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x231e2c 0x00007f4d52785000 0x0000000000000000 0x001000 0x001000 RW  0x1
  LOAD           0x232e2c 0x00007f4d52999000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x233e2c 0x00007f4d5299a000 0x0000000000000000 0x001000 0x001000 RW  0x1
  LOAD           0x234e2c 0x00007f4d52c28000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x235e2c 0x00007f4d52c29000 0x0000000000000000 0x002000 0x002000 RW  0x1
  LOAD           0x237e2c 0x00007f4d52c2b000 0x0000000000000000 0x015000 0x015000 RW  0x1
  LOAD           0x24ce2c 0x00007f4d52e45000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x24de2c 0x00007f4d52e46000 0x0000000000000000 0x001000 0x001000 RW  0x1
  LOAD           0x24ee2c 0x00007f4d53049000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x24fe2c 0x00007f4d5304a000 0x0000000000000000 0x001000 0x001000 RW  0x1
  LOAD           0x250e2c 0x00007f4d5304b000 0x0000000000000000 0x10000000 0x10000000 RW  0x1
  LOAD           0x10250e2c 0x00007f4d6304b000 0x0000000000000000 0x201000 0x201000 RW  0x1
  LOAD           0x10451e2c 0x00007f4d6324c000 0x0000000000000000 0x1e7000 0x1e7000 R E 0x1
  LOAD           0x10638e2c 0x00007f4d63633000 0x0000000000000000 0x004000 0x004000 R   0x1
  LOAD           0x1063ce2c 0x00007f4d63637000 0x0000000000000000 0x002000 0x002000 RW  0x1
  LOAD           0x1063ee2c 0x00007f4d63639000 0x0000000000000000 0x004000 0x004000 RW  0x1
  LOAD           0x10642e2c 0x00007f4d63854000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x10643e2c 0x00007f4d63855000 0x0000000000000000 0x001000 0x001000 RW  0x1
  LOAD           0x10644e2c 0x00007f4d63856000 0x0000000000000000 0x002000 0x002000 RW  0x1
  LOAD           0x10646e2c 0x00007f4d63a5a000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x10647e2c 0x00007f4d63a5b000 0x0000000000000000 0x001000 0x001000 RW  0x1
  LOAD           0x10648e2c 0x00007f4d63a5c000 0x0000000000000000 0x027000 0x027000 R E 0x1
  LOAD           0x1066fe2c 0x00007f4d63c76000 0x0000000000000000 0x005000 0x005000 RW  0x1
  LOAD           0x10674e2c 0x00007f4d63c83000 0x0000000000000000 0x001000 0x001000 R   0x1
  LOAD           0x10675e2c 0x00007f4d63c84000 0x0000000000000000 0x001000 0x001000 RW  0x1
  LOAD           0x10676e2c 0x00007f4d63c85000 0x0000000000000000 0x001000 0x001000 RW  0x1
  LOAD           0x10677e2c 0x00007ffdb8c19000 0x0000000000000000 0x021000 0x021000 RW  0x1
  LOAD           0x10698e2c 0x00007ffdb8d25000 0x0000000000000000 0x001000 0x001000 R E 0x1
  LOAD           0x10699e2c 0xffffffffff600000 0x0000000000000000 0x001000 0x001000 R E 0x1

 Section to Segment mapping:
  Segment Sections...
   00
   01     load
   02     load
   03     load
   04     load
   05     load
   06     load
   07     load
   08     load
   09     load
   10     load
   11     load
   12     load
   13     load
   14     load
   15     load
   16     load
   17     load
   18     load
   19     load
   20     load
   21     load
   22     load
   23     load
   24     load
   25     load
   26     load
   27     load
   28     load
   29     load
   30     load
   31     load
   32     load
   33     load
   34     load
   35     load
   36     load
   37     load
   38     load
   39     load
   40     load
   41     load
   42     load
   43     load
   44     load
   45     load
   46     load
   47     load
   48     load
   49     load
   50     load
   51     load
   52     load
   53     load
   54     load
   55     load
   56     load
   57     load
   58     load
   59     load
   60     load
   61     load
   62     load
   63     load
   64     load
   65     load
   66     load
   67     load
   68     load
   69     load
   70     load
   71     load
   72     load
   73     load
   74     load
   75     load
   76     load
   77     load
   78     load
   79     load
   80     load
   81     load
   82     load
   83     load
   84     load
   85     load
   86     load
   87     load
   88     load
   89     load
   90     load
   91     load
   92     load
   93     load
   94     load
   95     load
   96     load
   97     load
   98     load
   99     load
   100     load
   101     load
   102     load
   103     load
   104     load
   105     load
   106     load
   107     load
   108     load

There is no dynamic section in this file.

There are no relocations in this file.

The decoding of unwind sections for machine type Advanced Micro Devices X86-64 is not currently supported.

No version information found in this file.

Displaying notes found at file offset 0x00001818 with length 0x00002614:
  Owner                 Data size	Description
  CORE                 0x00000088	NT_PRPSINFO (prpsinfo structure)
  CORE                 0x00000150	NT_PRSTATUS (prstatus structure)
  CORE                 0x00000200	NT_FPREGSET (floating point registers)
  LINUX                0x00000a88	NT_X86_XSTATE (x86 XSAVE extended state)	   description data: 7f 03 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ffffffa0 1f 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ffffffff ffffffff ffffffff ffffffff ffffffff ffffffff ffffffff ffffffff 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ffffffff ffffffff ffffffff ffffffff ffffffff ffffffff ffffffff ffffffff 6e 30 31 2d 63 6c 75 73 74 65 72 2e 63 6c 75 73 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 5a 5a 5a 5a 5a 5a 5a 5a 5a 5a 5a 5a 5a 5a 5a 5a 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ffffffff ffffffff ffffffff ffffffff ffffffff 00 ffffffff ffffffff ffffffff 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 fffffff1 07 4a ffffff8a 30 ffffffc6 6f 3a 26 ffffffb3 0a ffffffc2 ffffffa6 12 75 0b 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ffffffc2 0f 0e 0d 0c 0b 0a 09 08 07 06 05 04 03 02 01 00 4d ffffff94 ffffffa1 47 ffffffcb ffffffe8 04 00 00 00 00 00 00 00 00 00 4b ffffffa2 7b ffffffd2 70 2b ffffffda ffffffc5 14 ffffffc5 ffffffb2 ffffffae ffffff8b fffffff9 4c ffffff9e 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ffffffff 02 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ffffffff 02 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 54 55 55 55 00 00 00 00
  CORE                 0x00000080	NT_SIGINFO (siginfo_t data)
  CORE                 0x00000140	NT_AUXV (auxiliary vector)
  CORE                 0x00001568	NT_FILE (mapped files)	    Page size: 1
                 Start                 End         Page Offset
    0x000055dca078c000  0x000055dca078d000  0x00000000002ea000
        /usr/local/sbin/opensips
    0x000055dca078d000  0x000055dca0792000  0x00000000002eb000
        /usr/local/sbin/opensips
    0x00007f4d4de08000  0x00007f4d4de09000  0x0000000000005000
        /lib/x86_64-linux-gnu/libnss_dns-2.27.so
    0x00007f4d4de09000  0x00007f4d4de0a000  0x0000000000006000
        /lib/x86_64-linux-gnu/libnss_dns-2.27.so
    0x00007f4d4e014000  0x00007f4d4e015000  0x000000000000a000
        /lib/x86_64-linux-gnu/libnss_files-2.27.so
    0x00007f4d4e015000  0x00007f4d4e016000  0x000000000000b000
        /lib/x86_64-linux-gnu/libnss_files-2.27.so
    0x00007f4d4e243000  0x00007f4d4e244000  0x0000000000027000
        /usr/local/lib64/opensips/modules/tls_mgm.so
    0x00007f4d4e244000  0x00007f4d4e246000  0x0000000000028000
        /usr/local/lib64/opensips/modules/tls_mgm.so
    0x00007f4d4e459000  0x00007f4d4e45a000  0x0000000000011000
        /usr/local/lib64/opensips/modules/exec.so
    0x00007f4d4e45a000  0x00007f4d4e45b000  0x0000000000012000
        /usr/local/lib64/opensips/modules/exec.so
    0x00007f4d4e670000  0x00007f4d4e671000  0x0000000000015000
        /usr/local/lib64/opensips/modules/pike.so
    0x00007f4d4e671000  0x00007f4d4e672000  0x0000000000016000
        /usr/local/lib64/opensips/modules/pike.so
    0x00007f4d4e87d000  0x00007f4d4e87e000  0x000000000000b000
        /usr/lib/x86_64-linux-gnu/libhiredis.so.0.13
    0x00007f4d4e87e000  0x00007f4d4e87f000  0x000000000000c000
        /usr/lib/x86_64-linux-gnu/libhiredis.so.0.13
    0x00007f4d4ea8a000  0x00007f4d4ea8b000  0x000000000000b000
        /usr/local/lib64/opensips/modules/cachedb_redis.so
    0x00007f4d4ea8b000  0x00007f4d4ea8c000  0x000000000000c000
        /usr/local/lib64/opensips/modules/cachedb_redis.so
    0x00007f4d4ec92000  0x00007f4d4ec93000  0x0000000000006000
        /usr/local/lib64/opensips/modules/textops.so
    0x00007f4d4ec93000  0x00007f4d4ec94000  0x0000000000007000
        /usr/local/lib64/opensips/modules/textops.so
    0x00007f4d4eeae000  0x00007f4d4eeaf000  0x000000000001a000
        /usr/local/lib64/opensips/modules/nathelper.so
    0x00007f4d4eeaf000  0x00007f4d4eeb0000  0x000000000001b000
        /usr/local/lib64/opensips/modules/nathelper.so
    0x00007f4d4f0c2000  0x00007f4d4f0c3000  0x0000000000002000
        /usr/local/lib64/opensips/modules/options.so
    0x00007f4d4f0c3000  0x00007f4d4f0c4000  0x0000000000003000
        /usr/local/lib64/opensips/modules/options.so
    0x00007f4d4f34e000  0x00007f4d4f34f000  0x000000000008a000
        /usr/local/lib64/opensips/modules/dialog.so
    0x00007f4d4f34f000  0x00007f4d4f351000  0x000000000008b000
        /usr/local/lib64/opensips/modules/dialog.so
    0x00007f4d4f557000  0x00007f4d4f558000  0x0000000000005000
        /usr/local/lib64/opensips/modules/auth_db.so
    0x00007f4d4f558000  0x00007f4d4f559000  0x0000000000006000
        /usr/local/lib64/opensips/modules/auth_db.so
    0x00007f4d4f767000  0x00007f4d4f768000  0x000000000000e000
        /usr/local/lib64/opensips/modules/auth.so
    0x00007f4d4f768000  0x00007f4d4f769000  0x000000000000f000
        /usr/local/lib64/opensips/modules/auth.so
    0x00007f4d4fb05000  0x00007f4d4fb06000  0x000000000019c000
        /lib/x86_64-linux-gnu/libm-2.27.so
    0x00007f4d4fb06000  0x00007f4d4fb07000  0x000000000019d000
        /lib/x86_64-linux-gnu/libm-2.27.so
    0x00007f4d4fd1d000  0x00007f4d4fd1e000  0x0000000000016000
        /lib/x86_64-linux-gnu/libgcc_s.so.1
    0x00007f4d4fd1e000  0x00007f4d4fd1f000  0x0000000000017000
        /lib/x86_64-linux-gnu/libgcc_s.so.1
    0x00007f4d50098000  0x00007f4d500a2000  0x0000000000179000
        /usr/lib/x86_64-linux-gnu/libstdc++.so.6.0.25
    0x00007f4d500a2000  0x00007f4d500a4000  0x0000000000183000
        /usr/lib/x86_64-linux-gnu/libstdc++.so.6.0.25
    0x00007f4d502c3000  0x00007f4d502c4000  0x000000000001b000
        /lib/x86_64-linux-gnu/libz.so.1.2.11
    0x00007f4d502c4000  0x00007f4d502c5000  0x000000000001c000
        /lib/x86_64-linux-gnu/libz.so.1.2.11
    0x00007f4d50801000  0x00007f4d50805000  0x000000000033c000
        /usr/lib/x86_64-linux-gnu/libmysqlclient.so.20.3.22
    0x00007f4d50805000  0x00007f4d50877000  0x0000000000340000
        /usr/lib/x86_64-linux-gnu/libmysqlclient.so.20.3.22
    0x00007f4d50a95000  0x00007f4d50a96000  0x0000000000018000
        /usr/local/lib64/opensips/modules/db_mysql.so
    0x00007f4d50a96000  0x00007f4d50a97000  0x0000000000019000
        /usr/local/lib64/opensips/modules/db_mysql.so
    0x00007f4d50cca000  0x00007f4d50ccb000  0x0000000000023000
        /usr/local/lib64/opensips/modules/rtpengine.so
    0x00007f4d50ccb000  0x00007f4d50ccc000  0x0000000000024000
        /usr/local/lib64/opensips/modules/rtpengine.so
    0x00007f4d50ef6000  0x00007f4d50ef7000  0x0000000000019000
        /lib/x86_64-linux-gnu/libpthread-2.27.so
    0x00007f4d50ef7000  0x00007f4d50ef8000  0x000000000001a000
        /lib/x86_64-linux-gnu/libpthread-2.27.so
    0x00007f4d51396000  0x00007f4d513c2000  0x000000000029a000
        /usr/lib/x86_64-linux-gnu/libcrypto.so.1.1
    0x00007f4d513c2000  0x00007f4d513c4000  0x00000000002c6000
        /usr/lib/x86_64-linux-gnu/libcrypto.so.1.1
    0x00007f4d51647000  0x00007f4d51650000  0x0000000000080000
        /usr/lib/x86_64-linux-gnu/libssl.so.1.1
    0x00007f4d51650000  0x00007f4d51654000  0x0000000000089000
        /usr/lib/x86_64-linux-gnu/libssl.so.1.1
    0x00007f4d5186e000  0x00007f4d5186f000  0x000000000001a000
        /usr/local/lib64/opensips/modules/proto_tls.so
    0x00007f4d5186f000  0x00007f4d51870000  0x000000000001b000
        /usr/local/lib64/opensips/modules/proto_tls.so
    0x00007f4d51aa5000  0x00007f4d51aa6000  0x0000000000025000
        /usr/local/lib64/opensips/modules/acc.so
    0x00007f4d51aa6000  0x00007f4d51aa7000  0x0000000000026000
        /usr/local/lib64/opensips/modules/acc.so
    0x00007f4d51ced000  0x00007f4d51cee000  0x0000000000021000
        /usr/local/lib64/opensips/modules/registrar.so
    0x00007f4d51cee000  0x00007f4d51cef000  0x0000000000022000
        /usr/local/lib64/opensips/modules/registrar.so
    0x00007f4d51f3c000  0x00007f4d51f3d000  0x0000000000049000
        /usr/local/lib64/opensips/modules/usrloc.so
    0x00007f4d51f3d000  0x00007f4d51f3f000  0x000000000004a000
        /usr/local/lib64/opensips/modules/usrloc.so
    0x00007f4d5214d000  0x00007f4d5214e000  0x000000000000e000
        /usr/local/lib64/opensips/modules/uri.so
    0x00007f4d5214e000  0x00007f4d5214f000  0x000000000000f000
        /usr/local/lib64/opensips/modules/uri.so
    0x00007f4d52361000  0x00007f4d52362000  0x0000000000012000
        /usr/local/lib64/opensips/modules/mi_fifo.so
    0x00007f4d52362000  0x00007f4d52363000  0x0000000000013000
        /usr/local/lib64/opensips/modules/mi_fifo.so
    0x00007f4d5257e000  0x00007f4d5257f000  0x000000000001b000
        /usr/local/lib64/opensips/modules/sipmsgops.so
    0x00007f4d5257f000  0x00007f4d52581000  0x000000000001c000
        /usr/local/lib64/opensips/modules/sipmsgops.so
    0x00007f4d52784000  0x00007f4d52785000  0x0000000000003000
        /usr/local/lib64/opensips/modules/maxfwd.so
    0x00007f4d52785000  0x00007f4d52786000  0x0000000000004000
        /usr/local/lib64/opensips/modules/maxfwd.so
    0x00007f4d52999000  0x00007f4d5299a000  0x0000000000013000
        /usr/local/lib64/opensips/modules/rr.so
    0x00007f4d5299a000  0x00007f4d5299b000  0x0000000000014000
        /usr/local/lib64/opensips/modules/rr.so
    0x00007f4d52c28000  0x00007f4d52c29000  0x000000000008d000
        /usr/local/lib64/opensips/modules/tm.so
    0x00007f4d52c29000  0x00007f4d52c2b000  0x000000000008e000
        /usr/local/lib64/opensips/modules/tm.so
    0x00007f4d52e45000  0x00007f4d52e46000  0x0000000000005000
        /usr/local/lib64/opensips/modules/sl.so
    0x00007f4d52e46000  0x00007f4d52e47000  0x0000000000006000
        /usr/local/lib64/opensips/modules/sl.so
    0x00007f4d53049000  0x00007f4d5304a000  0x0000000000002000
        /usr/local/lib64/opensips/modules/signaling.so
    0x00007f4d5304a000  0x00007f4d5304b000  0x0000000000003000
        /usr/local/lib64/opensips/modules/signaling.so
    0x00007f4d5304b000  0x00007f4d6304b000  0x0000000000000000
        /dev/zero (deleted)
    0x00007f4d6324c000  0x00007f4d63433000  0x0000000000000000
        /lib/x86_64-linux-gnu/libc-2.27.so
    0x00007f4d63633000  0x00007f4d63637000  0x00000000001e7000
        /lib/x86_64-linux-gnu/libc-2.27.so
    0x00007f4d63637000  0x00007f4d63639000  0x00000000001eb000
        /lib/x86_64-linux-gnu/libc-2.27.so
    0x00007f4d63854000  0x00007f4d63855000  0x0000000000017000
        /lib/x86_64-linux-gnu/libresolv-2.27.so
    0x00007f4d63855000  0x00007f4d63856000  0x0000000000018000
        /lib/x86_64-linux-gnu/libresolv-2.27.so
    0x00007f4d63a5a000  0x00007f4d63a5b000  0x0000000000002000
        /lib/x86_64-linux-gnu/libdl-2.27.so
    0x00007f4d63a5b000  0x00007f4d63a5c000  0x0000000000003000
        /lib/x86_64-linux-gnu/libdl-2.27.so
    0x00007f4d63a5c000  0x00007f4d63a83000  0x0000000000000000
        /lib/x86_64-linux-gnu/ld-2.27.so
    0x00007f4d63c83000  0x00007f4d63c84000  0x0000000000027000
        /lib/x86_64-linux-gnu/ld-2.27.so
    0x00007f4d63c84000  0x00007f4d63c85000  0x0000000000028000
        /lib/x86_64-linux-gnu/ld-2.27.so

[woowadragonchan]

A segmentation fault is occurring when restarting the daemon via opensipsctl. (high probability)

[woowadragonchan]

Segmentation faults occur even when the daemon is stopped. Here is the backtrace result for this one.

(gdb) bt full
#0  ipc_send_rpc (dst_proc=5, rpc=0x55fe652b66b0 <rpc_process_terminate>, param=0x0) at ipc.c:187
No locals.
#1  0x000055fe651dd4b8 in shutdown_opensips (status=0) at main.c:448
        proc = <optimized out>
        i = 5
        n = 4
        p = <optimized out>
        chld_status = 0
        __FUNCTION__ = "shutdown_opensips"
#2  0x000055fe652b8544 in handle_sigs () at main.c:525
        chld = <optimized out>
        chld_status = 0
        overall_status = 0
        i = <optimized out>
        do_exit = <optimized out>
        __FUNCTION__ = "handle_sigs"
#3  0x000055fe651e63d0 in main_loop () at main.c:841
        startup_done = <optimized out>
        rc = <optimized out>
        chd_rank = 9
        startup_done = <optimized out>
        rc = <optimized out>
#4  main (argc=<optimized out>, argv=<optimized out>) at main.c:1439
        cfg_stream = <optimized out>
        c = <optimized out>
        r = <optimized out>
        tmp = 0xf0b5ff <error: Cannot access memory at address 0xf0b5ff>
        tmp_len = <optimized out>
        port = <optimized out>
        proto = <optimized out>
        protos_no = <optimized out>
        options = 0x55fe65438cd8 "f:cCm:M:b:l:n:N:rRvdDFEVhw:t:u:g:P:G:W:o:"
        ret = -1
        seed = 3737140082
        rfd = <optimized out>
        __FUNCTION__ = "main"

[woowadragonchan]

I looked into this issue in detail.

When restarting the opensips daemon, it seems that there is a problem with TLS related memory access, as it seems to succeed or fail intermittently.

I'm currently using version 2.4.5, and looking at the github 2.4 branch for this, there seems to be a modified commit version for this issue.
commit: 58f4297

Are they correct in this commit version?
Even if it is not this commit version, is there anything fixed in version 2.4.5 or higher related to this issue?

Please confirm. @bogdan-iancu @rvlad-patrascu

[github-actions]

Any updates here? No progress has been made in the last 15 days, marking as stale. Will close this issue if no further updates are made in the next 30 days.

[woowadragonchan]

It was a bug in version 2.4.5.
It was solved after updating to the latest version of 2.4.
