afpd: a stock config gets the documented 64K dircache

[andylemin]

Root cause

Two constants both mean "the dircache size default", and they drifted apart:

• DEFAULT_DIRCACHE_SIZE = 65536 in etc/afpd/dircache.h — what dircache_init() applies, and what the man page, the docker image, and the webmin module all document.
• DEFAULT_MAX_DIRCACHE_SIZE = 8192 in include/atalk/globals.h — what an unset dircache size actually resolves to in afp_config_parse().

Because 8192 is above the 1024 minimum, dircache_init() accepted it verbatim — so every stock configuration has been running an 8× smaller directory cache than documented. Explicit dircache size settings were never affected.

How the drift got here

when	commit	what happened
2012-02-17	6655a7d	volume loading moved to libatalk, bringing the config-side default constant (8192) with it — the documented default at the time
later	9aa8080	the dircache work raised the documented default to 65536 (man page and dircache.h), but the config-side constant in globals.h was not part of that change

Two constants meaning "the default" diverged, and nothing tied them together.

Defect → fix

defect	fix
stock config resolves 8192 while all documentation says 65536; nothing prevents the two constants drifting apart again	collapsed into a single DEFAULT_DIRCACHE_SIZE = 65536 in globals.h, which dircache.h already includes — one definition, nothing to drift
size-bounds behaviour was untestable (dircache_maxsize is a static set inside dircache_init(), which also builds live cache state)	resolution extracted into a pure dircache_resolve_size() helper; dircache_init() calls it
two stale comments describe the resolution as max(DEFAULT_DIRCACHE_SIZE, min(size, MAX_DIRCACHE_SIZE)) — never the actual algorithm — and reference a nonexistent DIRCACHE_FREE	comments now describe the real resolution (unset/below-min → default, in-range → round up to power of two, oversize → clamp); DIRCACHE_FREE_QUANTUM
webmin labels the option "(bytes)" though the unit is entries, and its form cap (2097152) exceeds MAX_DIRCACHE_SIZE (1048576)	label and cap corrected
the shutdown statistics lines print the configured cache maximum unit-less (config_max:), inviting the same bytes-vs-entries misreading	renamed to config_max_entries: in both the ARC and LRU lines; lantest only matches the line prefix, so nothing parses the old label; doc/developer/dircache.md field list and examples updated
doc/developer/dircache.md still described the dircache as "by default just 8192 entries" — the very stale default this PR fixes	reworded to the corrected 65536 default

Behaviour changes

• Stock install: 8K → 64K-entry dircache (roughly ~1.5 MB → ~12 MB under LRU at full occupancy).
• Explicit dircache size values: unchanged. Bounds unchanged: minimum 1024 (deliberately kept — the spectest CI legs run dircache size = 1024 to exercise cache exhaustion and eviction), maximum 1048576, in-range values still round up to the next power of two.
• The man page bounds line was already correct and is untouched.

Size resolution

requested dircache size	dircache_resolve_size() result
unset (≤ 0)	65536
1 – 1023	65536, with a warning
1024 – 1048576	rounded up to the next power of two
> 1048576	clamped to 1048576, with a warning

Testing

• New unit test utest_conf_dircache_resolve_size in test/afpd/subtests_conf.c: bounds matrix over the pure helper — -1 → 65536, 512 → 65536 (warn), 1024 → 1024, 100000 → 131072, 2000000 → 1048576 (clamp warn)
• meson test (Alpine container, CI build flags): 3/3 suites, 88 afpd subtests passed
• AFP spectest, ea=sys and ea=ad legs (single container, CI env including dircache size = 1024): both exit 0, zero failures

[andylemin]

augment review

[augmentcode]

Looks like you're out of credits for this review. Head to your account settings to top up and keep reviews running. https://app.augmentcode.com/account/subscription

[andylemin]

@rdmark ready for review

[sonarqubecloud]

Quality Gate passed

Issues
0 New issues
0 Accepted issues

Measures
0 Security Hotspots
0.0% Coverage on New Code
0.0% Duplication on New Code

See analysis details on SonarQube Cloud

[github-actions]

📊 Performance Dashboard

Commit: bbe6a6a7f8a3a468db2df05506166c3730c41e62

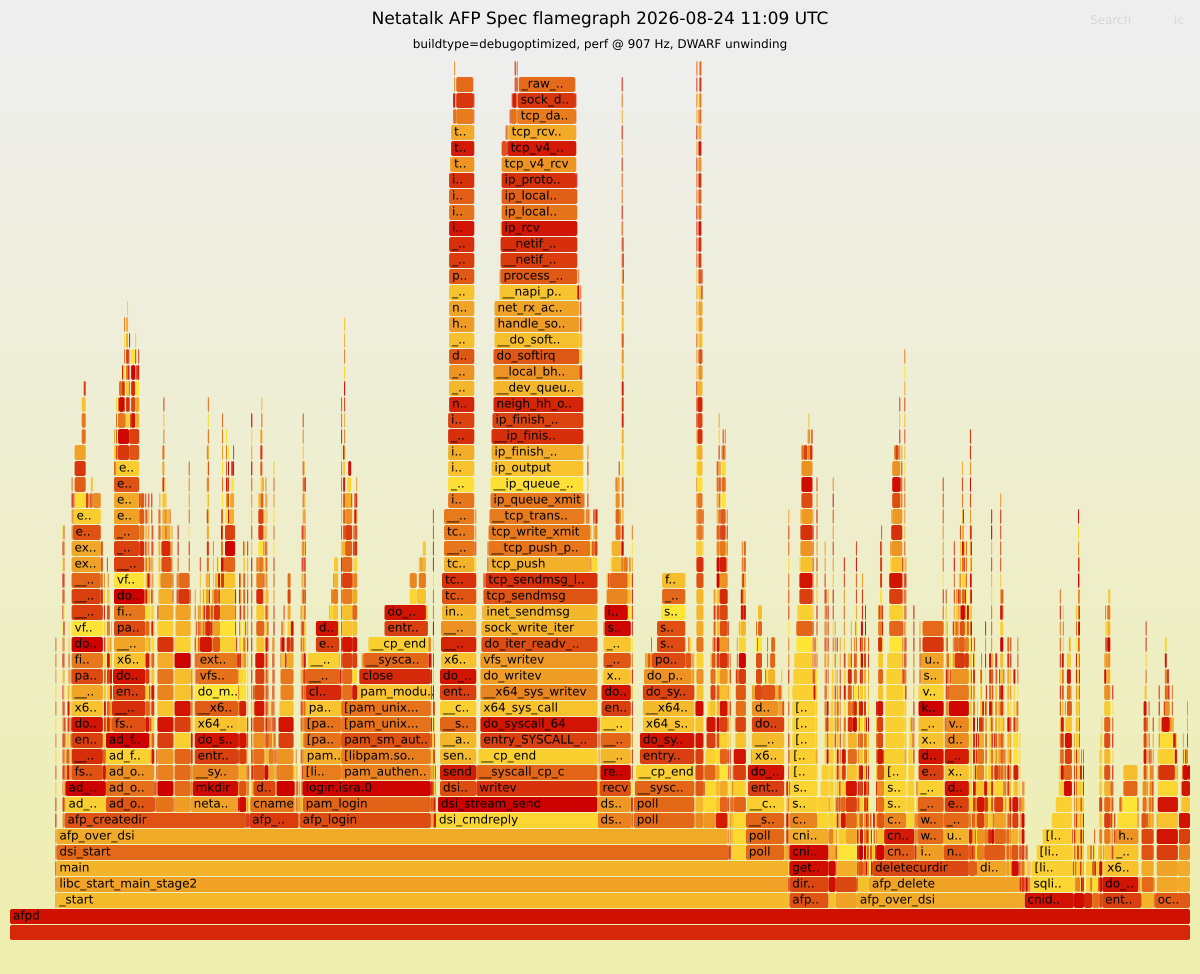

🔥 Spectest (AFP 3.4) - FlameGraph

Netatalk Code-time: 3.2% · Runtime: 59s · Stacks: 727

🔥 Click the preview to open the interactive flamegraph (zoom + search).

🔝 Top 10 leaf functions

Function	Samples
_raw_spin_unlock_irqrestore	147739690
do_syscall_64	72767310
[libsqlite3.so.3.53.4]	71664775
afpd	49614075
finish_task_switch.isra.0	46306470
__cp_end	42998865
_raw_spin_lock	18743095
perf_syscall_enter	16538025
__syscall_cp_c	15435490
__raw_callee_save___pv_queued_spin_unlock	14332955

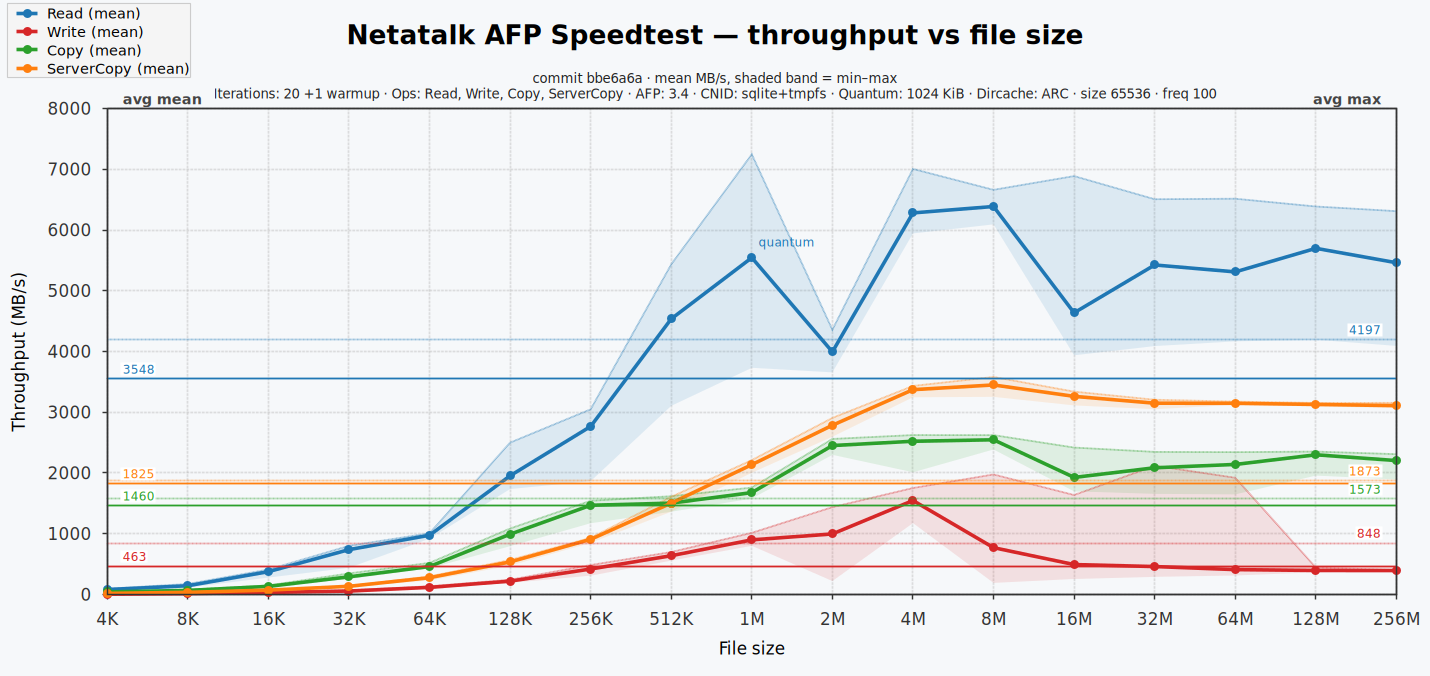

📈 Speedtest (AFP 3.4) - PerfGraph

Peak Read: 6387 MB/s (-11.7% vs hist avg 7233.9 MB/s; min 5963 / max 9526 over 26 PRs)
Peak Write: 1547 MB/s (+28.9% vs hist avg 1200.0 MB/s; min 225 / max 1897 over 26 PRs)

🔝 Throughputs per operation (vs. historical average)

Metric	Current (MB/s)	Cur Avg Δ%	Hist avg	Hist min	Hist max
Read peak mean	6387	-11.7%	7233.9	5963	9526
Read avg mean	3548	-15.6%	4204.6	3524	5393
Read avg max	4197	-9.5%	4636.9	3812	5932
Write peak mean	1547	+28.9%	1200.0	225	1897
Write avg mean	463	+14.6%	404.0	91	567
Write avg max	848	+17.3%	723.2	224	965
Copy peak mean	2547	-5.3%	2688.7	2294	3489
Copy avg mean	1460	-8.4%	1593.7	1360	2251
Copy avg max	1573	-9.8%	1743.5	1515	2448
ServerCopy peak mean	3449	-7.8%	3741.0	3055	5090
ServerCopy avg mean	1825	-6.7%	1956.8	1604	2700
ServerCopy avg max	1873	-7.9%	2033.2	1675	2773

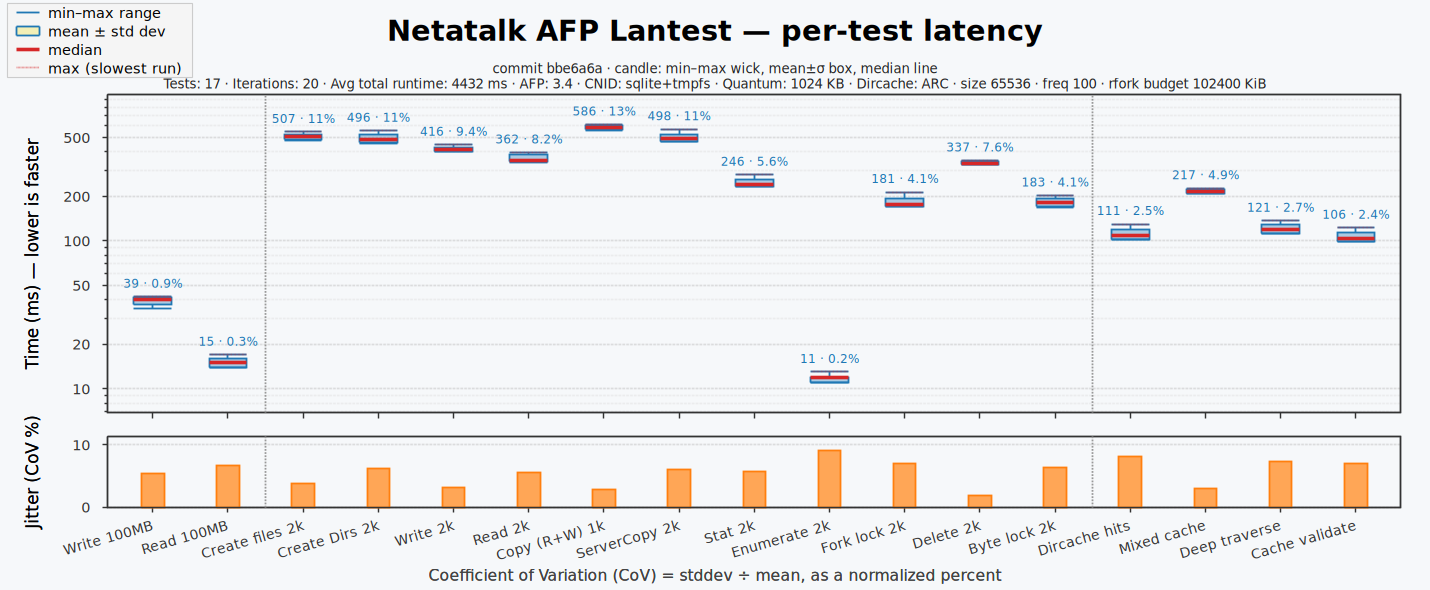

⏱️ Lantest (AFP 3.4) - LatencyGraph

Avg total runtime: 4432 ms (+3.5% vs hist avg 4282.9 ms; min 2412 / max 5208 over 26 PRs)
Avg time per AFP op: 89 µs (+3.6% vs hist avg 85.9 µs; min 48 / max 105 over 26 PRs)

🐢 All operations (avg runtime, in test order, vs. historical average)

Metric	Current (ms)	Cur Avg Δ%	Adj Δ%	Hist avg	Hist min	Hist max
Writing one large file	39	+7.4%	—	36.3	26	41
Reading one large file	15	-1.8%	—	15.3	12	18
Creating 2000 files	507	-1.9%	-13.5%	516.7	244	831
Create 2000 dirs tree (20×9×10)	496	-4.0%	-15.5%	516.4	284	796
Open, write 1024 bytes, close 2000 files	416	+12.3%	+0.7%	370.5	233	459
Open, read 1024 bytes, close 2000 files	362	+11.6%	+0.0%	324.4	209	408
Copying 1000 files client-side (R+W)	586	+4.9%	-6.7%	558.6	312	677
Copying 2000 files server-side	498	-5.5%	-17.1%	527.2	216	727
Stat (lookup+getparams) 2000 files	246	+11.8%	+0.2%	220.0	145	282
Enumerate dir with 2000 files	11	+29.4%	+17.8%	8.50	3	14
Lock then unlock 2000 open forks	181	+12.2%	+0.6%	161.3	118	199
Deleting 2000 files	337	-2.8%	-14.4%	346.7	149	447
Byte-range lock/unlock 2000 ranges in one fork	183	+10.8%	-0.8%	165.2	124	196
Directory cache hits (20 dirs x 100 files)	111	+13.4%	+1.8%	97.9	67	122
Mixed cache operations (create/stat/enum/delete) on 500 files	217	-0.9%	-12.5%	219.1	111	265
Deep path traversal (20 levels x 100 walks)	121	+16.0%	+4.5%	104.3	69	131
Cache validation (500 files x 4 lookups)	106	+12.3%	+0.7%	94.4	65	116

Run baseline: median op-test delta +11.6%, MAD 4.5%. Adj Δ% shifts each delta by the median; standouts ≥5% in bold. A large MAD means the run did not move uniformly — read the adjusted column with caution.
