Why does the renderer drop parts of lines with no error?

[sigilante]

Description of bug / unexpected behavior

I am constructing a Manim scene with manually aligned lines of text alternating between texttt lines and math lines. Parts of some lines of text are disappearing from the output.

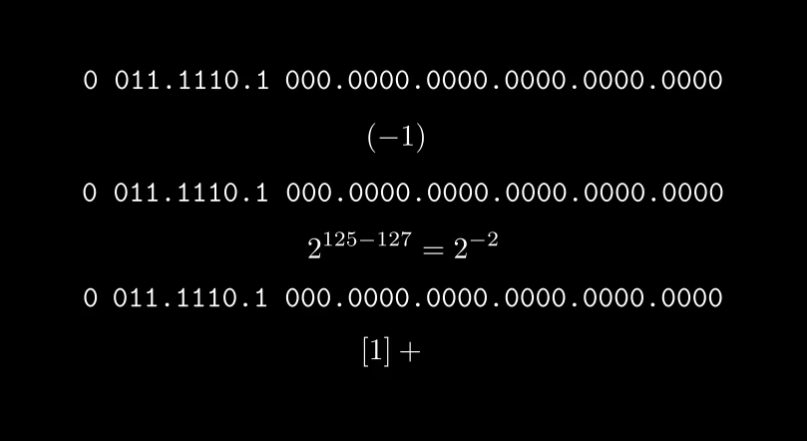

In particular, note that text1 and text3 do not appear although they are present in the VGroup. Experimentation shows that this is not a function of set_color so I suspect that the nested {{}} clauses are causing a problem, but only on those lines.

What is failing and how can I render these lines successfully?

Expected behavior

All text would appear.

How to reproduce the issue

Code for reproducing the problem

from manim import *

highlight = "#aa0000"
background = "#121214"

class MyTable(Scene):
    def construct(self):
        float1 = MathTex(
          r'\texttt{ {{0}}011.1110.1\;\,000.0000.0000.0000.0000.0000}'
        )
        float1[1].set_color(highlight)

        text1 = MathTex(
          r'(-1)^{ {{0}} } \;'
        )
        print(text1[0])
        print(text1[1])
        print(text1[2])
        text1[1].set_color(highlight)

        float2 = MathTex(
          r'\texttt{ 0 {{011.1110.1}} 000.0000.0000.0000.0000.0000 }'
        )
        float2[1].set_color(highlight)

        text2 = MathTex(
          r'2^{ {{125}}-127}=2^{-2}'
        )
        text2[1].set_color(highlight)
        print(text2[0])
        print(text2[1])
        print(text2[2])

        float3 = MathTex(
          r'\texttt{ 0\;\,011.1110.1 {{ 000.0000.0000.0000.0000.0000 }} }'
        )
        float3[1].set_color(highlight)

        text3 = MathTex(
          r'[1] + {{ 0 }} \;'
        )
        text3[1].set_color(highlight)
        print(text3[0])
        print(text3[1])

        lines = VGroup(float1, text1,
                       float2, text2,
                       float3, text3)
        lines.arrange(DOWN, buff=MED_LARGE_BUFF)

        self.play(Write(lines[0:2]))
        self.wait()
        self.play(Write(lines[2:4]))
        self.wait()
        self.play(Write(lines[4:6]))
        self.wait()
        self.play(FadeOut(lines[0:6]))
        self.wait()

Logs

Terminal output

My command line is manim -ql -p MyTable.py MyTable. No errors are indicated by the output.

Manim Community v0.17.0

SingleStringMathTex('(-1)^{ ')
SingleStringMathTex('0')
SingleStringMathTex(' }')
SingleStringMathTex('2^{ ')
SingleStringMathTex('125')
SingleStringMathTex('-127}=2^{-2}')
SingleStringMathTex('[1] + ')
SingleStringMathTex(' 0 ')
[12/02/22 16:10:50] INFO     Animation 0 : Partial movie file written in        scene_file_writer.py:527
                             '/home/neal/urbit/videos/media/videos/MyTable/480p
                             15/partial_movie_files/MyTable/4266129954_27101181
                             9_223132457.mp4'
                    INFO     Animation 1 : Partial movie file written in        scene_file_writer.py:527
                             '/home/neal/urbit/videos/media/videos/MyTable/480p
                             15/partial_movie_files/MyTable/1442284246_32996964
                             5_74768480.mp4'
(and so forth)
