Convex Hull Algorithm

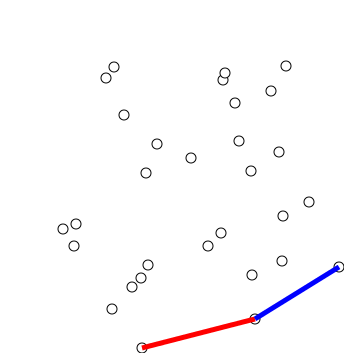

This program creates the convex hull from given set of points using Graham Scan algorithm. The algorithm works as on gif below:

By Shiyu Ji - Own work, CC BY-SA 4.0, https://commons.wikimedia.org/w/index.php?curid=54390512

About code

The custom Point struct which is used to store points, is implemented using templetes. The convex_hull::convexHull function which uses Points (vector of Point) as an argument was also made generic usig templates. So all the code is in include directory in header files.

The algorithm was implemented by mostly using iterators and functions from <algorithm> std library.

Build

To build the project use CMake:

mkdir build
cd build
cmake ..
make

Run

The application takes one optional argument, the filepath to the data file. If the path is not given the program will ask for filepath. One data file is included in data.txt.

# in build folder
./convex_hull [path_to_data]

Examples:

# Filepath not given as argument
./convex_hull
Filepath not given, please enter filepath: ../data/data.txt
Convex hull points: [(4, -1), (5, 3), (2, 3), (-1, 2), (1, 0)]

# Filepath given as argument
./convex_hull ../data/data.txt
Convex hull points: [(4, -1), (5, 3), (2, 3), (-1, 2), (1, 0)]
