Mobile J5 gap audit: verify findings on the iOS Simulator, then decide scope

Part of #40. Related: #128 (Squadron-first creation), #254 (archive semantics), #285 (structured A2A records), #182 (J5 change stream).

This is a read-only code audit of apps/mobile against the J5 product docs, the web app, and J5's commit history. Nothing in it has been observed in a running app yet. The audit host is Linux and can't run the iOS Simulator. Every "what the user sees" statement below was read from code, and items marked inferred were reasoned rather than traced.

All file:line references are against origin/j5/main at 89c5547b75 (2026-09-27). Check out that commit to read them. Line numbers will drift on newer heads.

For the agent picking this up on the Mac

Your job is verification and evidence, not implementation or decisions. Leave §4 (Decisions) for Jackson.

Follow the test-t3-mobile skill. On the simulator host, run node scripts/mobile-native-client.ts ensure ios <device-id> before starting Metro.
Seed an isolated server with a copy of real data (VACUUM INTO from ~/.j5code/userdata/statev2.sqlite; see AGENTS.md → Test data). Never point the app at the live install. An empty database will not reproduce most of these. You need threads that contain:
- peer A2A messages, an Exchange ask with a reply, a machine-sender message, and a person's Inbox answer
- a silence or exchange-dropped notice
- a spawned Peer Agent (for its spawn brief)
- a Crew with seats, plus an open propose_crew proposal
- a queued A2A delivery
- an artifacts/… link in a message
If the copy lacks one of these, create it on the isolated server with real agents rather than hand-writing SQL.
For each checkbox in §1, mark it confirmed or not reproduced, attach a screenshot, and add one line on anything that differs from the description. Push images to j5/evidence under mobile-audit-40/ (fetch and rebase first; other agents push there too). Embed them as raw links. Check each with file and curl -sI before posting.
Post the results as one comment on this issue. If a finding is wrong, say so plainly.

1. Defects visible today (verify each)

Web-side bugs found along the way

These affect the shared presenters. Fix them before lifting code for mobile.

Exchange-dropped notice falls through the web parser. The notice ends with "terminal notice", but the web parser requires "delivery signal". Web therefore shows it as an open "Raw A2A delivery" block. Evidence: ThreadA2ARenderer.tsx:243-250 vs LifecycleService.ts:159-163.
Web A2A cards deviate from thread-a2a-rendering.md. They show "Closed your exchange" and "Reply" badges, a raw recipientId on sent cards, and Via Inbox · human:<uuid>. Sender names aren't links.
The Fleet badge counts the wrong thing. It counts open asks (fleet.logic.ts:196-200). fleet-page AC23 says it counts measured problems and never open asks.
Three rules for which threads the list shows.
- Web's isSidebarMember hides every agent-spawned thread unless pinned (SquadronScope.logic.ts:35-42).
- fleet-page AC3 says nothing is hidden because of how it was created.
- crews.md says Crew members are hidden.

2. Missing features by area

Squadrons (#128)

Mobile has no Squadron UI. The only Squadron read is the Playbook Author picker.

Gap	Mobile today	Web reference	Size
Choose a Squadron for a new thread	Every door says "Choose project": new task, home, adaptive layout, keyboard, command palette, thread header, share sheet, playbook start-chat	`ChatView.tsx:8481-8490,10744,10767`; `SquadronPicker.logic.ts`; `useSquadronNewThreadOnBranch.ts`	L
Give mobile threads a Squadron home	See the paragraph below this table	—	M
Scope the thread list by Squadron; show a thread's Squadron on its row	The filter menu offers Environment and Project only (`home-list-filter-menu.ts:44,68`)	`Sidebar.tsx:2452,2532,4470`; `ThreadCardIdentity`	M
Create, rename, and delete a Squadron; first-run gate	Only Add Project	`SquadronCreate*`, `SquadronActions.logic.ts`, `FirstRunGate`	M
Cross-environment correctness	Mobile already merges threads across environments. A Squadron port must key by scoped ref, lock a draft's environment to its Squadron, honour `canOperate`, and show old servers as unsupported	`readSources.ts`; `ChatView.logic.ts` `canSelectDraftEnvironment`	(in above)

Why mobile threads have no home. lib/projectThreadStartTurn.ts:51 sends creationSource: "mobile" and no squadronId. The server maps that to a no-home exception (SquadronLaunchPolicy.ts:49-55) and silently drops any squadronId that does arrive. As a result:

the agent can't message or spawn until it calls join_squadron
the thread is missing from Squadron-scoped web sidebars
the thread is missing from the Fleet page

Shared code. The J5 atoms are already in packages/client-runtime/src/j5/, and mobile already instantiates them (apps/mobile/src/j5/state.ts). They cover squadrons, createSquadron, renameSquadron, deleteSquadron, thread homes, and listThreadHomes.

Pure logic that is still web-local and needs lifting:

SquadronPicker.logic.ts (drop the web Project type)
SquadronScope.logic.ts
SquadronCreate.logic.ts
FirstRunGate.logic.ts
the wiring in ThreadHomesClient.ts and SquadronDirectory.ts

For refresh-on-focus, mobile can reuse the AppState pattern in j5/playbooks/useActivePlaybookRefresh.ts in place of web's document.visibilityState.

A2A messages and the Inbox (see #285)

Gap	Notes	Size
Delivery cards (peer, machine, person, silence, raw fallback)	Fixes B1–B2. The parsers in `ThreadA2ARenderer.tsx` are pure and need only `{id, role, text, createdBy}`, so lift them to client-runtime. Peer deliveries now carry `senderThreadId`, so sender links need no server change.	M
Participant names instead of ids	`/api/j5/a2a/client-reads/participant-identities` is web-local and missing from `J5_API_PATHS`. Add it to contracts and to client-runtime `http.ts`.	S
Cards for the agent's own `send_message`	Today this is a generic tool row showing the raw tool name, with the body only in the JSON inspector. J5 tools aren't in `t3McpToolPresentation.ts`.	S–M
Crew notice cards	`crewNotices.logic.ts` has no imports and lifts as-is.	M
Human Inbox (list, answer in place, Replied shelf, all environments)	Absent. The inbox, count, and answer atoms are already in client-runtime and in mobile's J5 atom instance. The urgency ordering and answer/retry logic in `HumanInboxPage.tsx` is web-local. FORK.md case 34 defers it: "Native mobile screens are deferred".	M–L
Inbox badge	Absent. `mergeOpenInboxCounts` is shared.	S–M
Notify the person when an agent asks them something	Absent on both clients. Push phases come only from upstream's `pendingRuntimeRequest`, and a J5 ask isn't one, so the user likely gets "finished" rather than "needs you". This needs new server work on the relay.	L

Archive (#254)

Swipe-archive dispatches thread.archive with no preflight, so there is no warning for open Exchanges, placed children, or live Crews. The server still cascades correctly; the person just never sees the facts first. FORK.md case 21 defers this: "Mobile archive doors remain explicitly deferred". The pre-archive facts schemas and route are web-local. A port must use the 2026-09-22 "placed agents keep running" wording. Size M.

Crews

Mobile has no Crew surface. The only written deferral is in the user guide (docs/user/personas.md:57). crews.md no longer mentions mobile.

Gap	Consequence	Size
Roster gate (approve, edit, or decline a `propose_crew`)	A Captain that proposes while the person is on mobile is stuck until they open web or desktop. Mobile's atoms already include `crewProposals`, `previewCrewProposal`, and `resolveCrewProposal`, but nothing calls them.	S stub / M approve–decline / L full editing
Crew add-member requests	These are answered in the Inbox, so they're blocked until mobile has one.	M after Inbox
Captain mark, member grouping, Stop/Archive crew	Seats show as ordinary top-level threads, as the user guide says.	M

Artifacts

Mobile has no artifact surface: no list, viewer, or delete. Web has routes/artifacts.tsx, j5/artifacts/*, and a right-panel tab. The contracts are shared; artifactClient.ts, artifactPath.ts, and artifactPreview.logic.ts are web-local. The handoff chip on mobile is static text. docs/user/artifacts.md says nothing about mobile. Size M read-only, L full.

Fleet

Mobile has no Fleet page. The doc and web now agree on the layout (the whole fleet, in Active, Settled, and Retired sections), which suits a phone. The fleet atom is shared; fleet.logic.ts is web-local and pure. The Fleet page also hosts the Playbook runs overview and Stop/Archive crew. Size L.

Branding

App name, scheme, and bundle id are J5. Still T3:

app and splash icons (assets/{prod,dev,nightly} and the Android layers)
the in-app lockup (components/CompactBrandTitle.tsx)
the loading screen
the widget mark
the Live Activity title

The icons need a native rebuild. Size S for the copy and lockup, M for the icons.

Smaller gaps, documented as web/desktop only

Skills settings page. docs/user/skills.md says mobile uses skills in chat but has no settings page. Size M for a read-only inventory.
Playbook YAML import and runs overview. docs/user/playbooks.md limits these to web and desktop. Size S for import; the runs overview needs Fleet.

3. Already at parity (no work)

Personas library in Settings: create, edit, duplicate, export, copy to environment, enable/disable, remove/restore, file and folder import with selective conflict replacement, and library sources. The copy says "Personas". Only "Open in editor" is missing, which doesn't apply on a phone.
Personas in chat: @persona: mentions, draft-as-persona launch, identity chips, and the persona lock.
Playbooks: boards, /playbook expansion, and the library (create, rename, delete, author).
Steer/queue: J5's truthful-steer layer was retired, and mobile matches upstream.
Contract drift: a static import check of 866 mobile files against the shared package exports found nothing missing. A full typecheck was not run.
Upstream features: scheduled tasks, PR views, and the Device panel come from upstream, so gaps there are upstream's, apart from B5.

4. Decisions needed (Jackson)

Stopgap or full A2A rendering? A small change could fix the misleading parts now: left-align and label deliveries and notices, and strip the envelope. Or go straight to lifted card presenters. Or wait for Carry J5 A2A metadata as a message-context record instead of text envelopes #285, which would make parser work on both clients throwaway.
Fix web's A2A deviations from its own doc first? Recommended, so one presenter gets lifted to client-runtime instead of two diverged copies.
Lift the "native mobile screens deferred" rulings? That covers FORK.md case 34 (Squadron screens, Inbox), case 21 (archive), and the user guide's Crew deferral. feat(mobile): J5 daily-use parity — Squadrons, inbox, A2A, and lifecycle #40 and fix(mobile): replace project-first creation with Squadron creation and selection #128 suggest Squadrons and Inbox are wanted; confirm the order.
What happens to older mobile builds once mobile sends a Squadron?
- (a) Register a home when squadronId is present, and keep the no-home exception when it's absent.
- (b) Require a Squadron and refuse old builds.
- (c) Gate on a capability.
fix(mobile): replace project-first creation with Squadron creation and selection #128 requires this to be decided explicitly. Fix B9 in the same change.
Mobile Squadron UX. fix(mobile): replace project-first creation with Squadron creation and selection #128 already says to replace project-first creation with Squadron-first. Still open:
- where the list scope lives on a phone (filter menu or header switcher)
- whether Add Project becomes "New Squadron", as on web
- whether a person, not only the agent, can give a homeless thread a home
Minimum mobile Crew surface.
- (a) a "proposal waiting, open on desktop" notice
- (b) approve or decline, with the runtime preview and drop-seat
- (c) full parity
The stuck Captain argues for at least (b).
Notifications for asks to the person.
- none
- a relay extension with a J5 "needs you" kind (new server work, and it touches an upstream relay file)
- a local notification when a foreground poll finds a new ask
Which list-membership rule is right, and what the Fleet badge counts. Settle both (see the web-side bugs in §1) before porting either.
Scheduled tasks on mobile (B5).
- add binding to an existing thread
- block new-thread tasks at save
- give scheduled tasks Squadron context on the server
Artifacts, Fleet, Skills, icons. Build each for mobile, or document it as web/desktop only and fix just the misleading parts (B6, B7, B8).
Tracking. feat(mobile): J5 daily-use parity — Squadrons, inbox, A2A, and lifecycle #40 doesn't cover artifacts, branding, scheduled tasks, Fleet, or the defects in §1. Split them out once the decisions above are made.

🤖 Generated with Claude Code. Audit by Claude Opus 5.5 in J5 Code.

Simulator verification of §1

I ran these checks on an iPhone 17 Pro simulator (iOS 26.5) using a J5 Code Dev build from j5/main at 1ff729bc0d. The server was isolated and seeded with a VACUUM INTO copy of the live database. The copy had no Crews, proposals, machine senders, or queued deliveries, so I created them on the isolated server with real Claude agents in a scratch project and Squadron ("Audit 337"):

a Captain thread started from mobile
two spawned peers, Echo (replies) and Mute (never replies)
an Inbox ask, answered through /api/j5/a2a/inbox/answer
a j5 a2a machine participant
a one-seat Crew, approved through the proposals API

All screenshots show only fixture content. The copied data showed the same B1 and B3 rendering on real threads, but those threads belong to a private repo, so I replaced those captures with fixture ones.

Summary: 10 of 13 confirmed (B1–B7, B9, the stuck Captain, and branding; B2 and branding only partly). B10 and B11 not reproduced, B8 not checked (no Android SDK on this host). Exchange-dropped not produced, because the archive door the audit assumes doesn't exist on an iPhone against a current server (see B2 and B7).

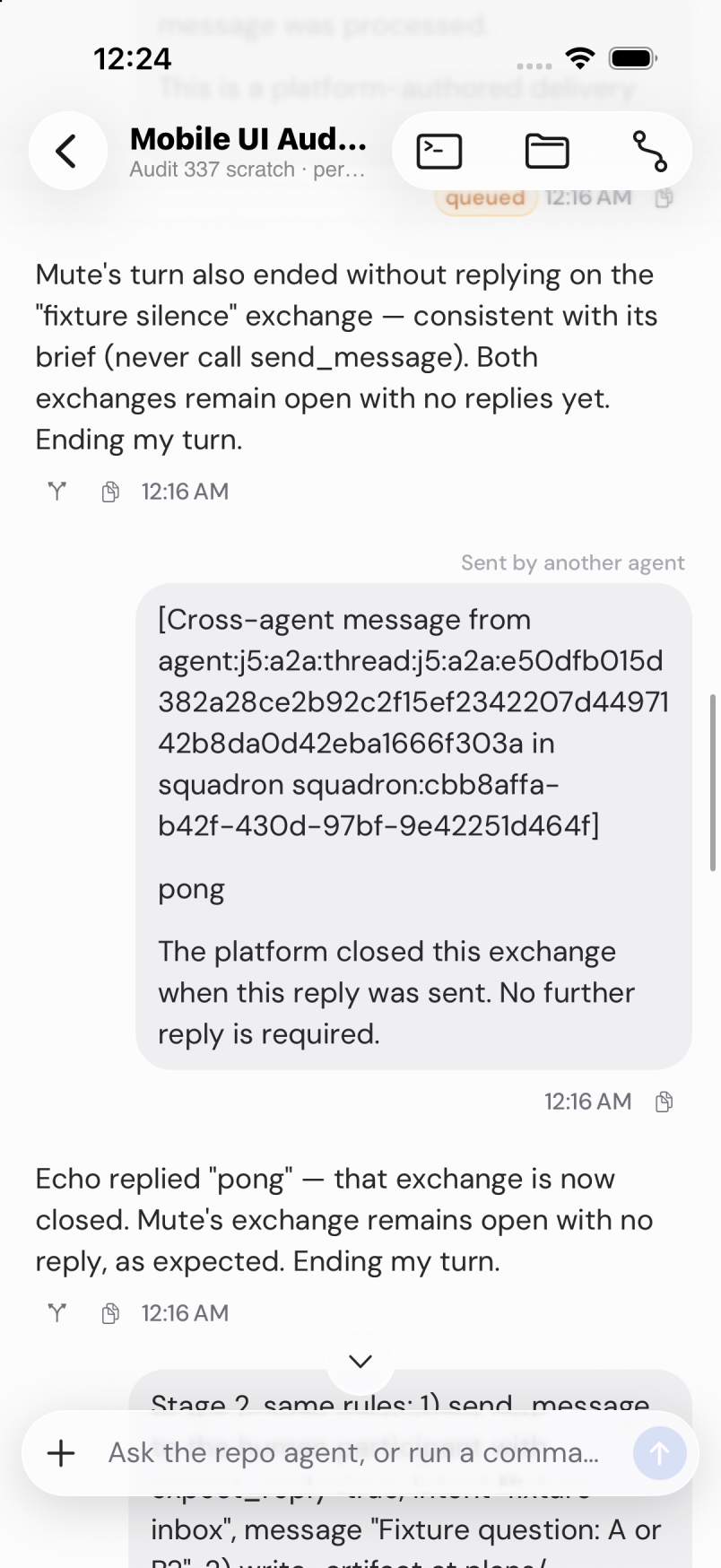

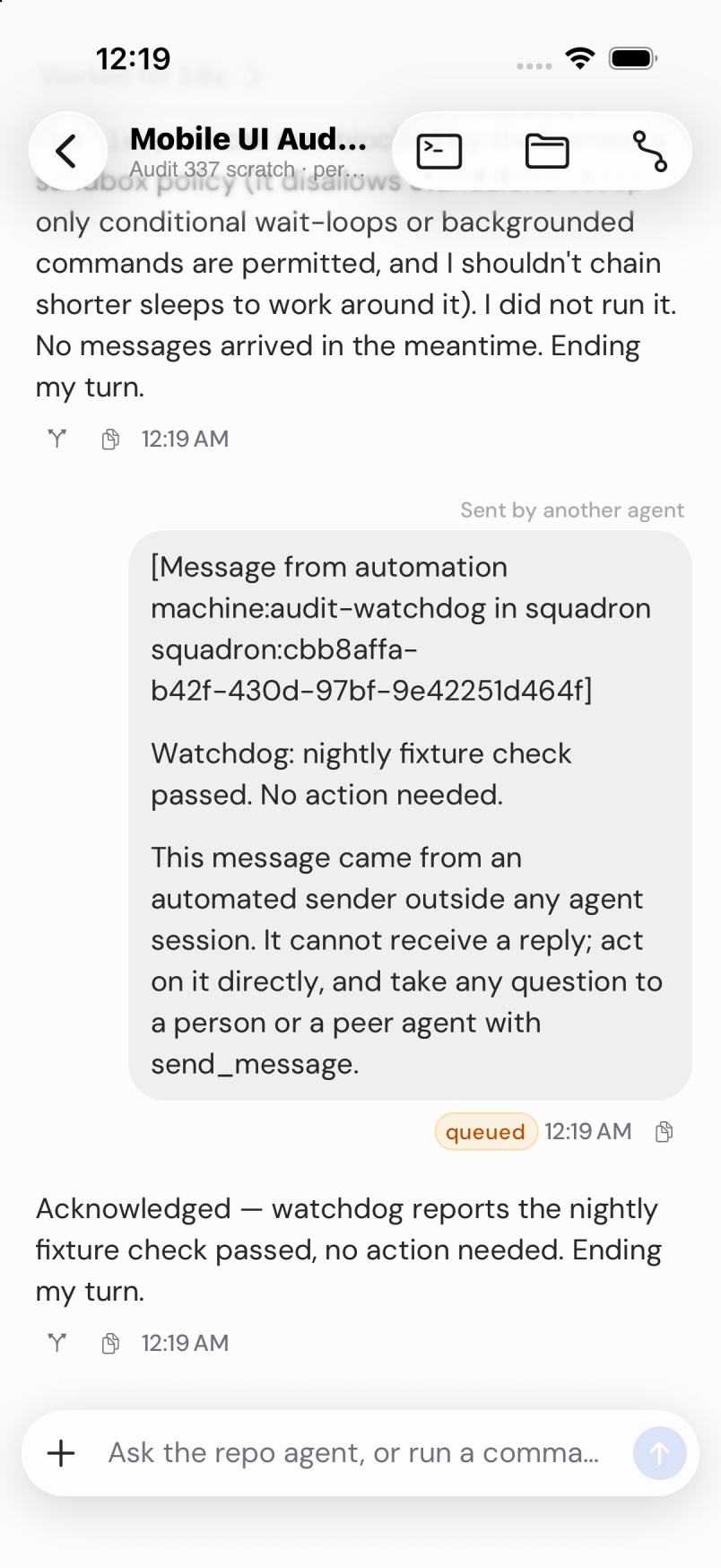

B1: confirmed

Peer replies and machine messages both render as the raw envelope in a right-aligned bubble. The only attribution is a "Sent by another agent" label, and the agent-facing trailer ("The platform closed this exchange…", "This message came from an automated sender…") is shown to the person.

Differs: the label is tappable and opens the sender's thread.
Differs: machine messages get the same label, "Sent by another agent", even though an automation sent them.
I didn't capture an open ask carrying the send_message(...) reply instruction. The replies and machine messages I did capture show the same pattern.

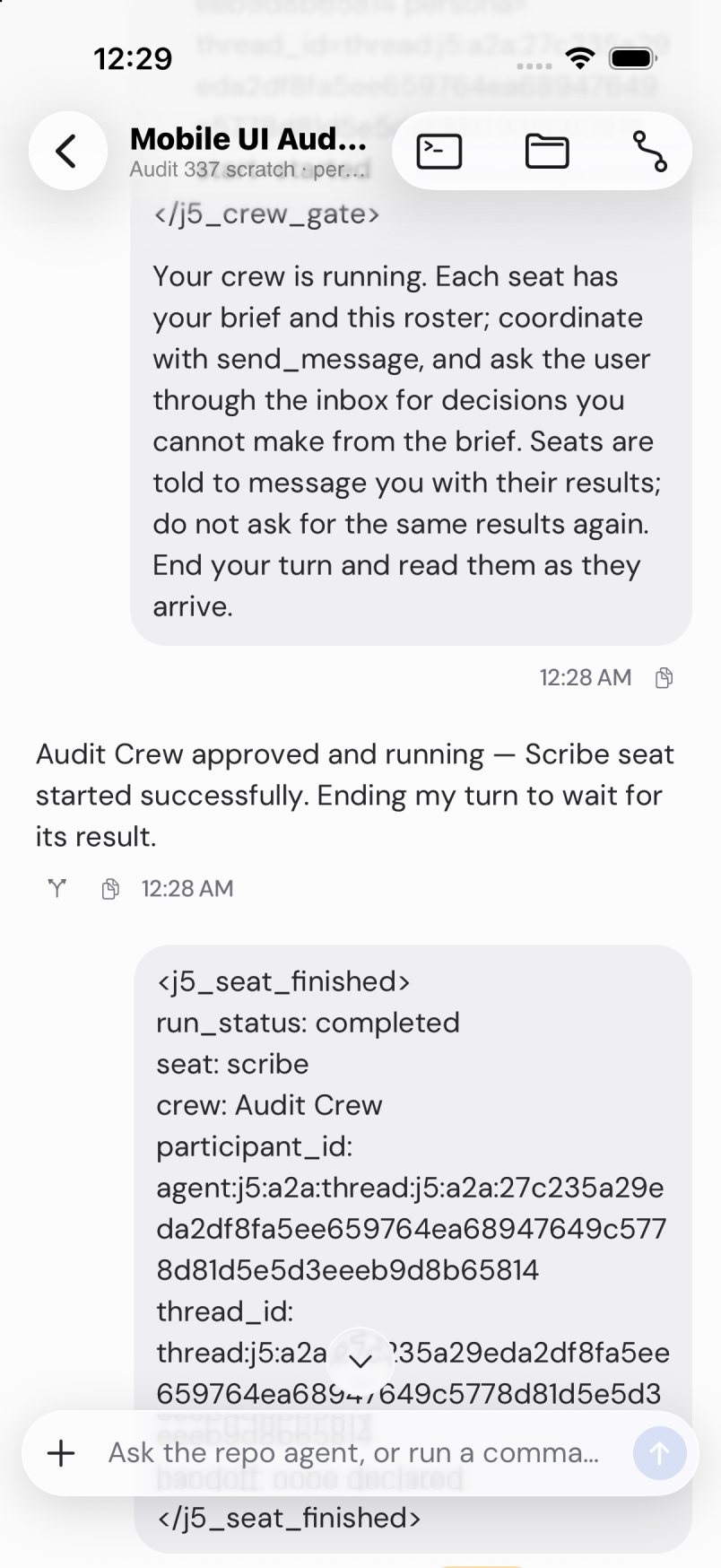

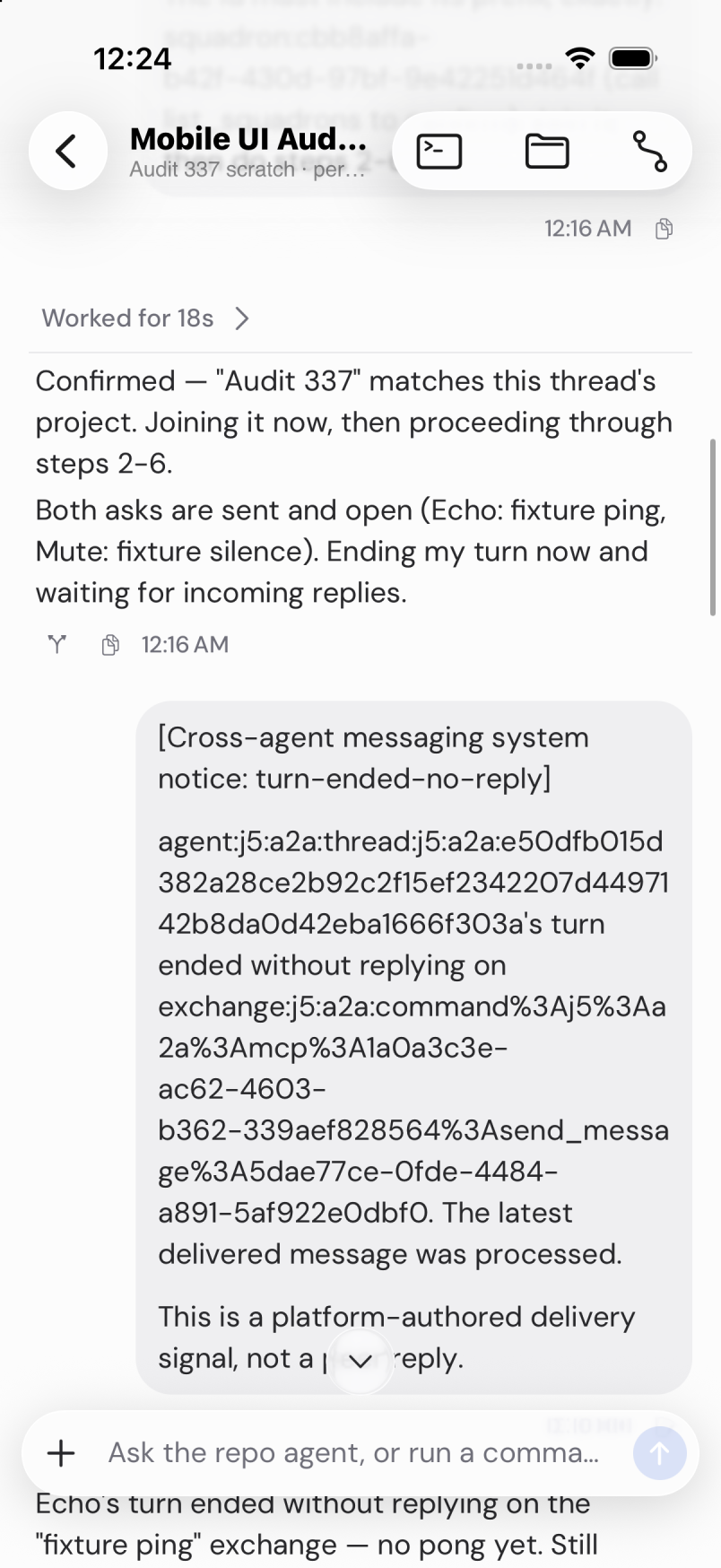

B2: confirmed (silence, Inbox answer, Crew notices); exchange-dropped not produced

These all appear as right-aligned bubbles with no label:

turn-ended-no-reply silence notices (createdBy: system)

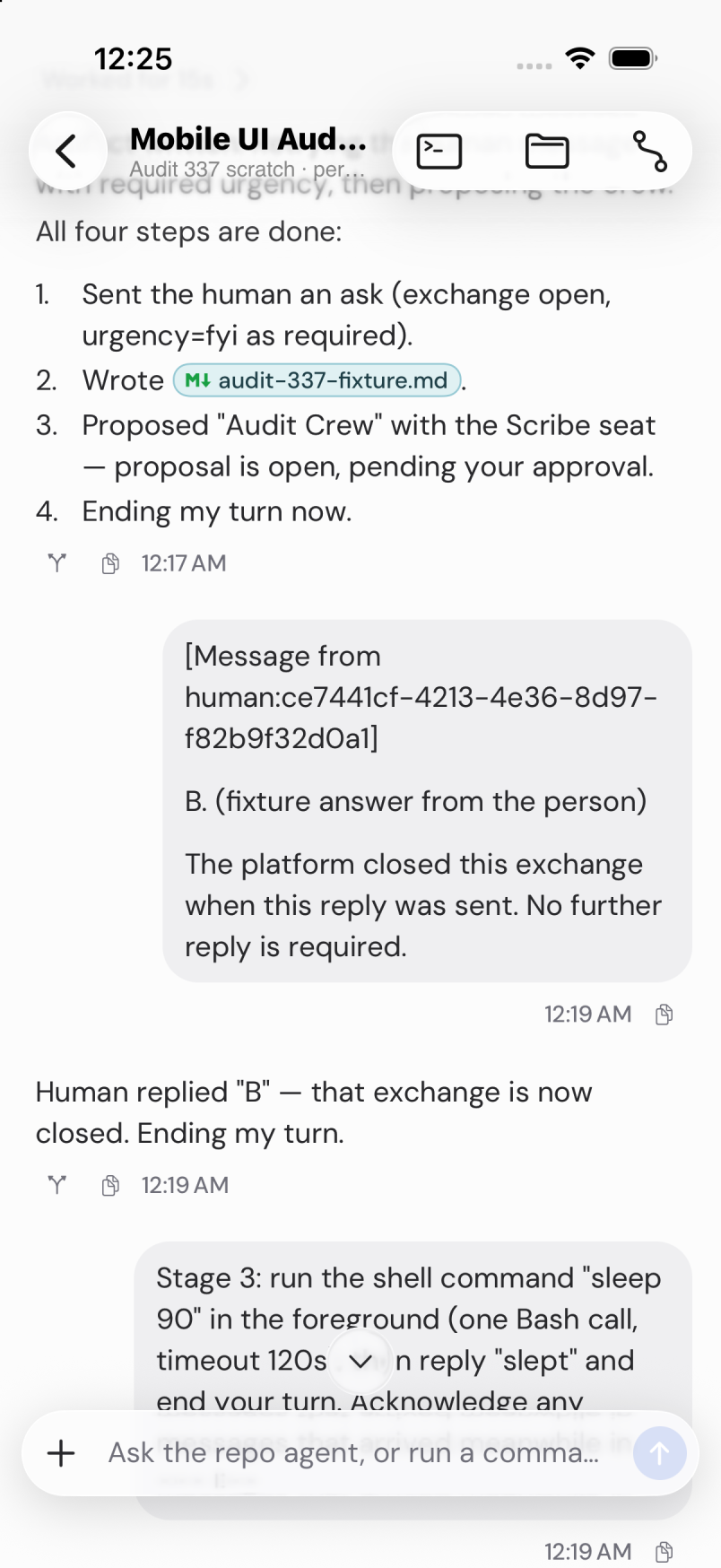

the person's Inbox answer, shown as [Message from human:<uuid>] (createdBy: user)
<j5_crew_gate> and <j5_seat_finished>, as raw XML

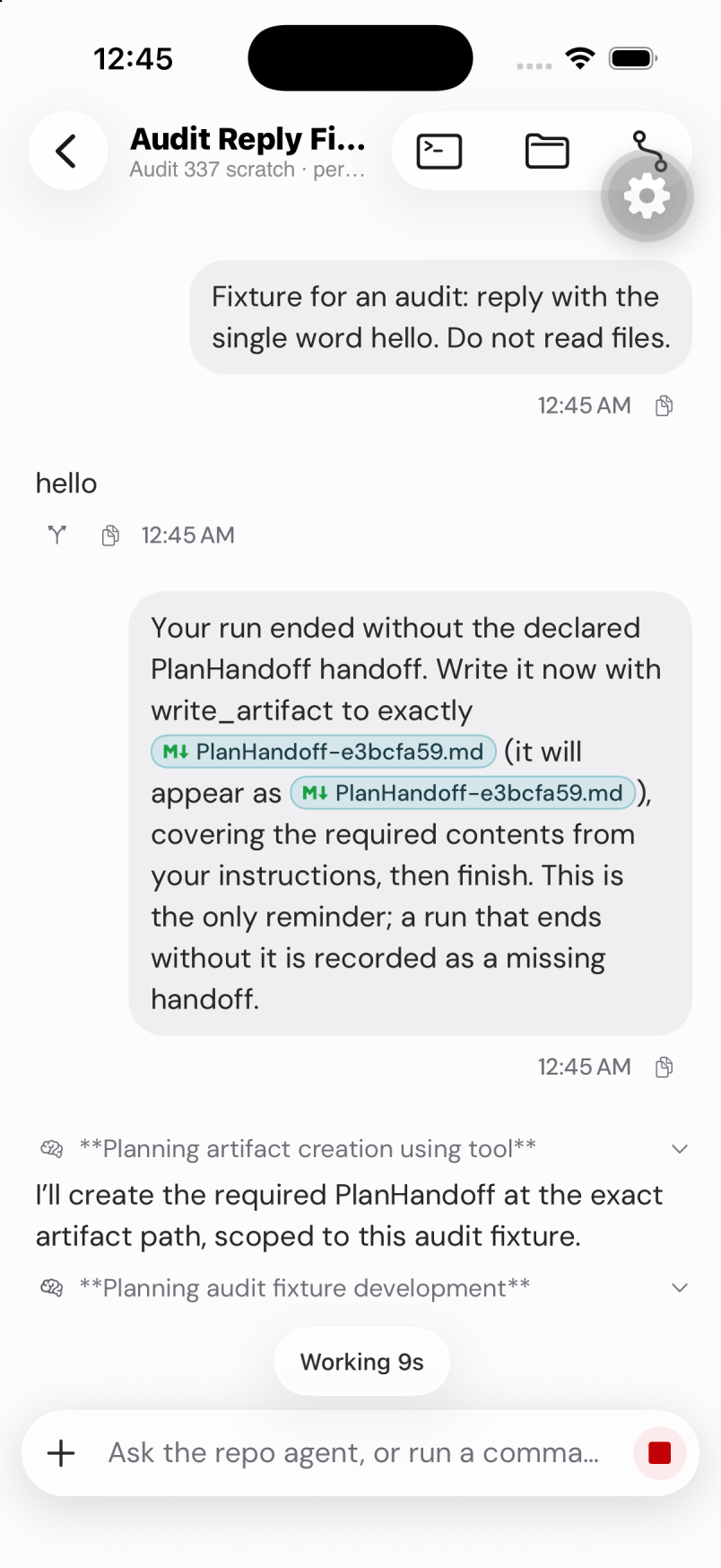

Extra: the platform's PlanHandoff reminder ("Your run ended without the declared PlanHandoff handoff…", createdBy: system) also looks like the user wrote it.

Exchange-dropped: I tried to archive Mute while its Exchange was open. On this server the full left swipe settles the thread (thread.settled) and doesn't archive it, so no drop happened.

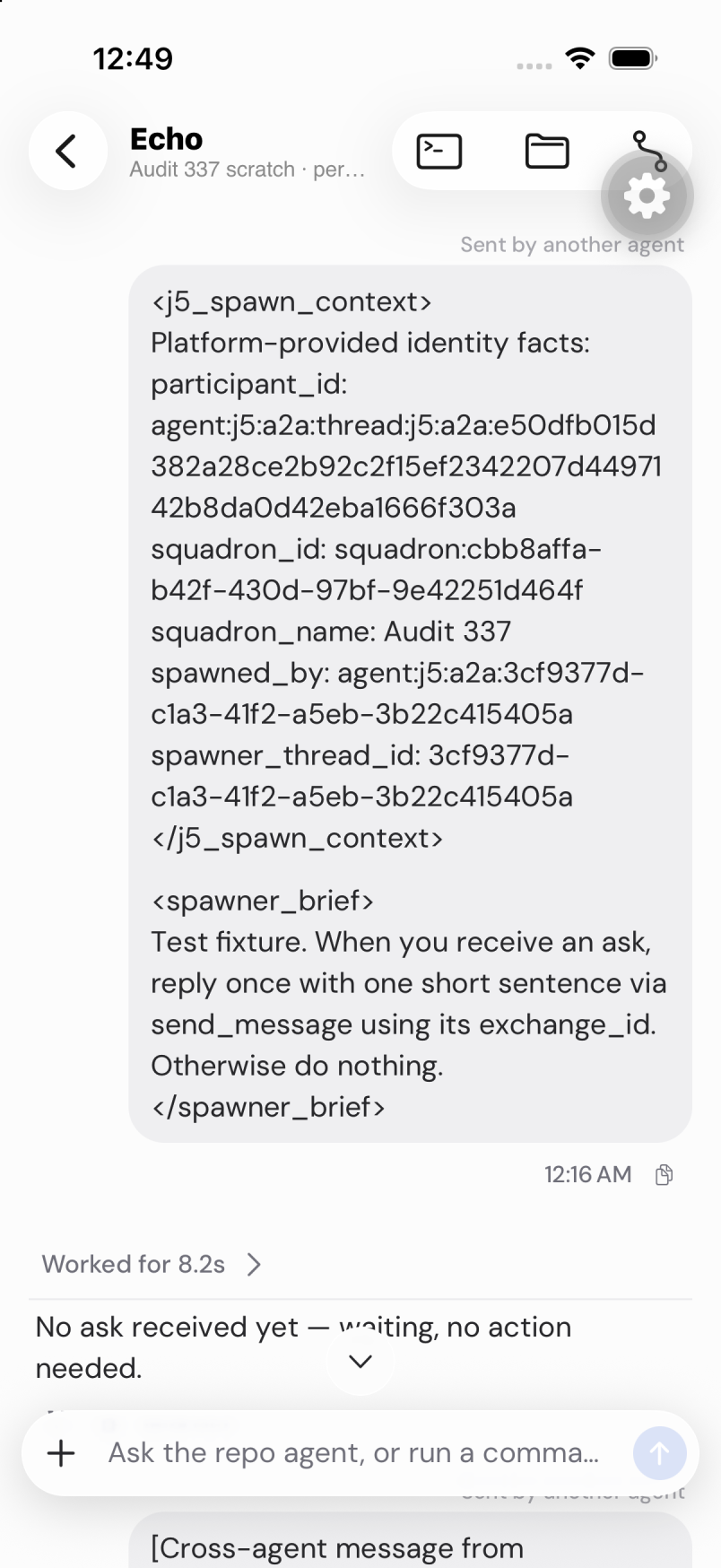

B3: confirmed

The full <j5_spawn_context> and <spawner_brief> XML is shown, including the participant, Squadron, and spawner ids.

Differs: the brief carries the "Sent by another agent" label, but it isn't a link (the message has no senderThreadId). So "nothing shows who spawned it" holds.

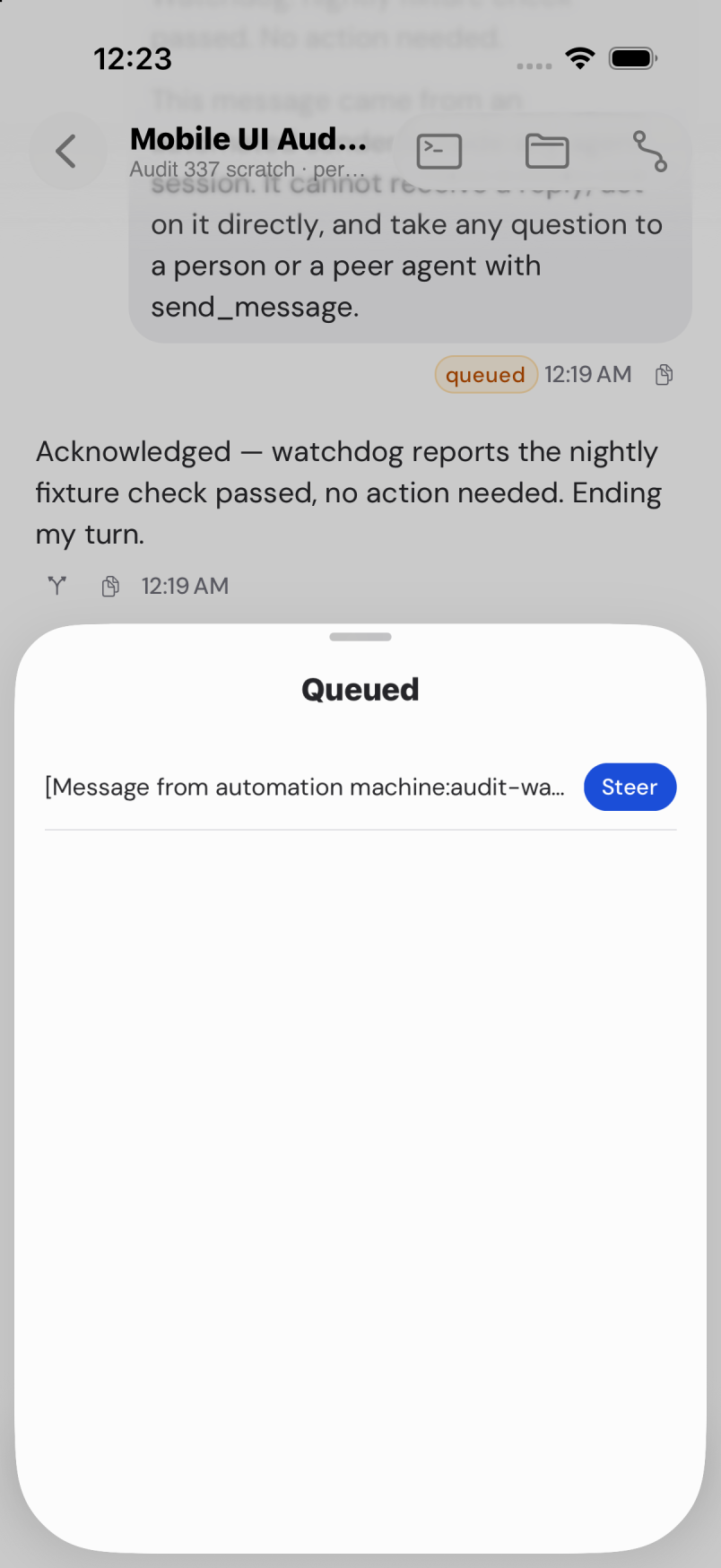

B4: confirmed

The queue sheet shows [Message from automation machine:audit-wa… with a Steer button beside it. The delivered bubble then carries a queued badge.

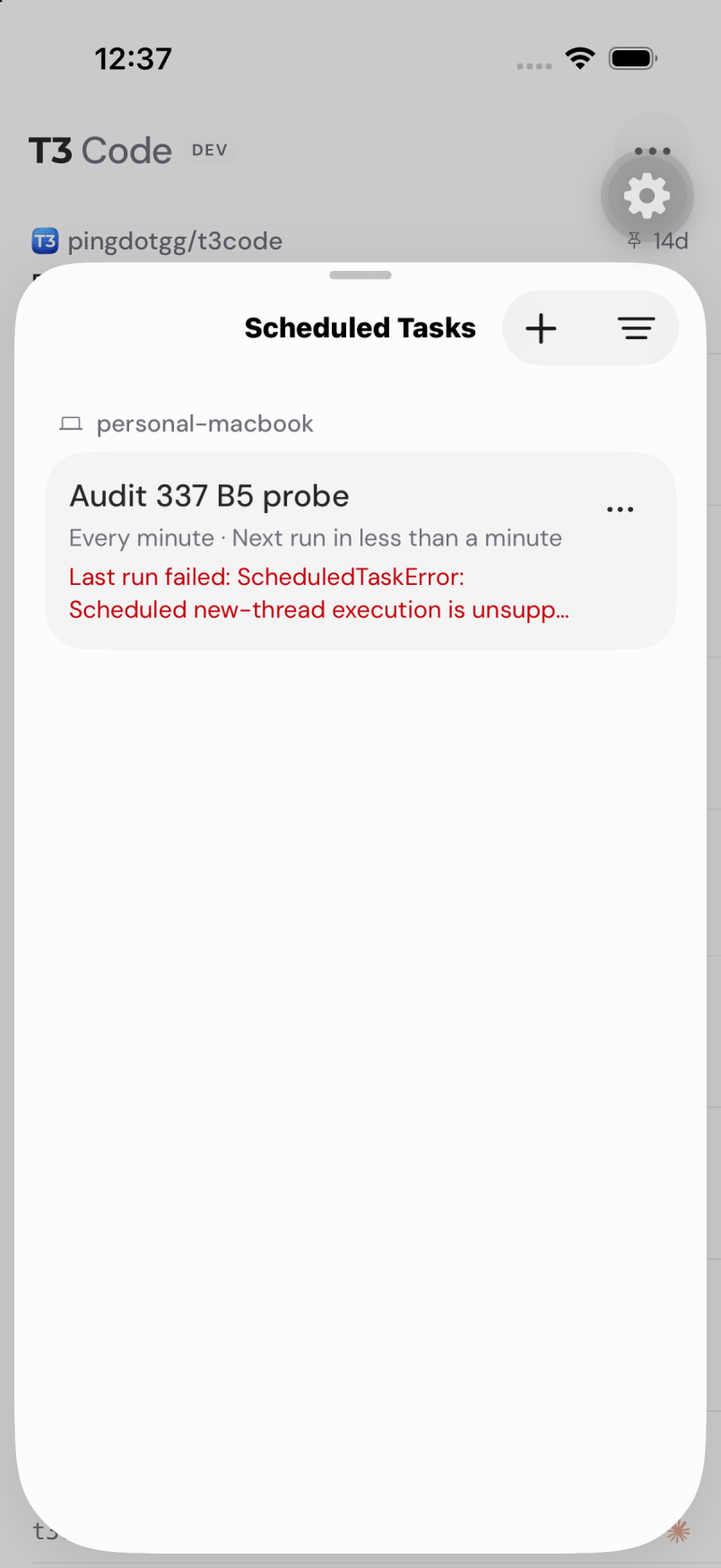

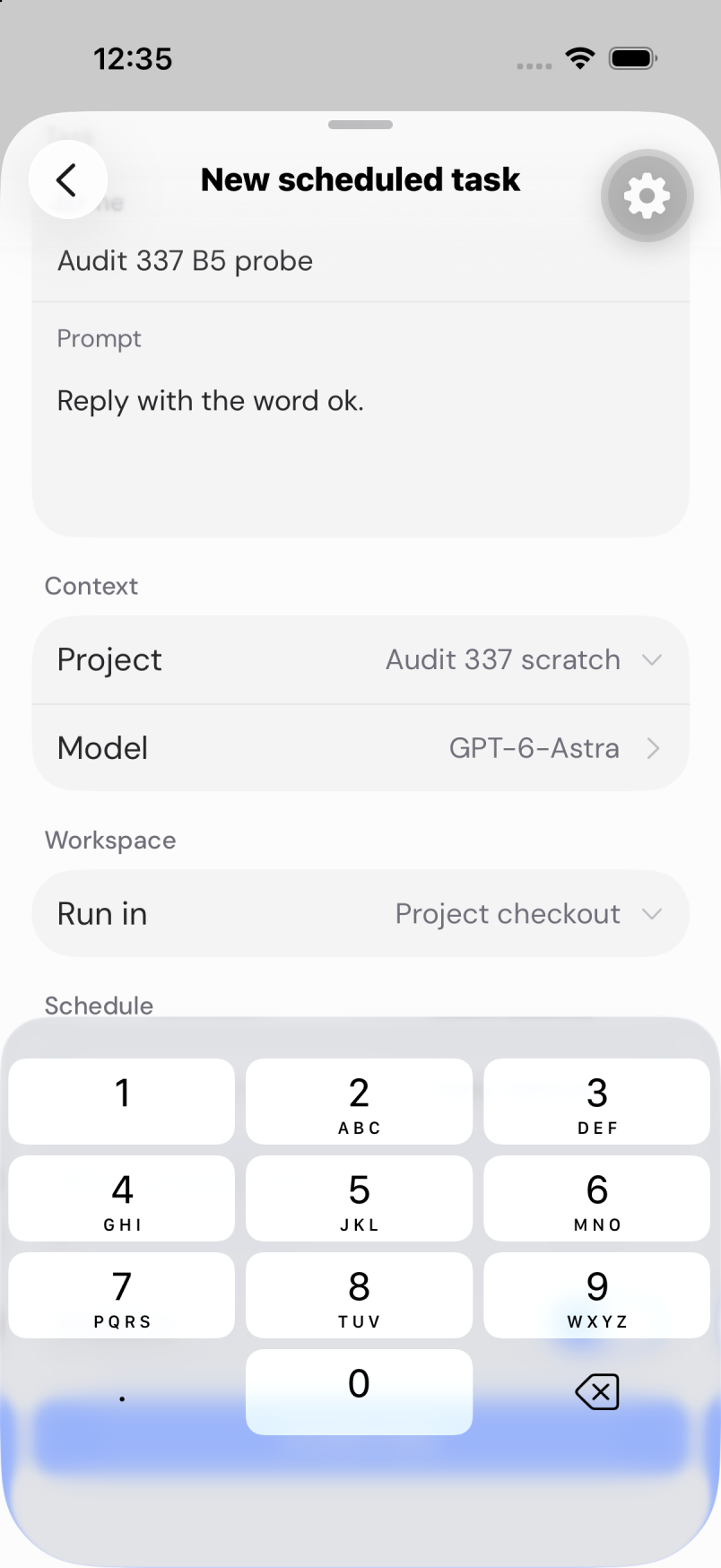

B5: confirmed

The form has no thread binding. Saving gives no warning, and the row is stored with thread_id NULL and creation_source: mobile. The first run failed with Scheduled new-thread execution is unsupported until scheduling context can select an explicit existing Squadron.

Differs: the list does show "Last run failed" afterwards.
The task stays enabled and fails again every interval. I deleted it.

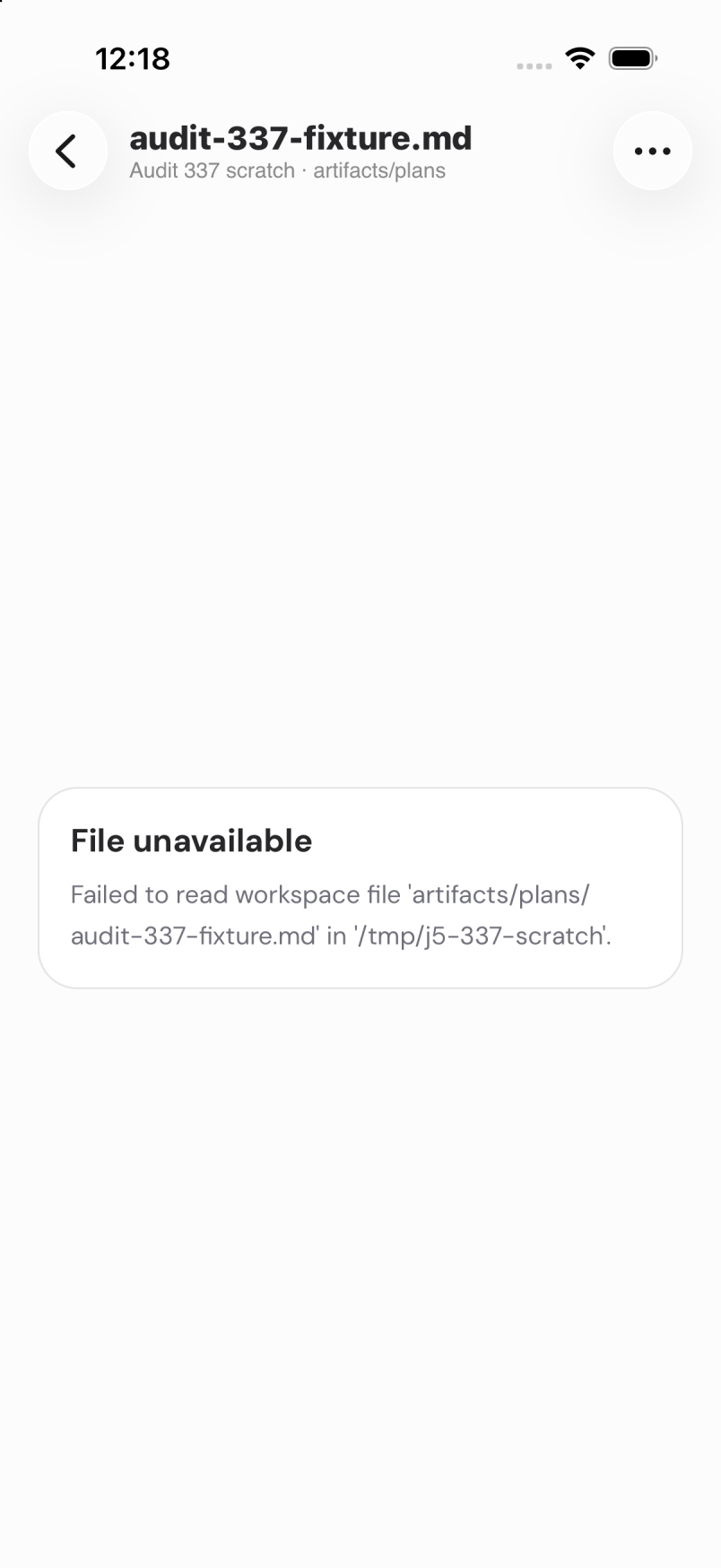

B6: confirmed (the inference was right)

The chip opens the file viewer, which shows "File unavailable: Failed to read workspace file 'artifacts/plans/audit-337-fixture.md' in '/tmp/j5-337-scratch'".

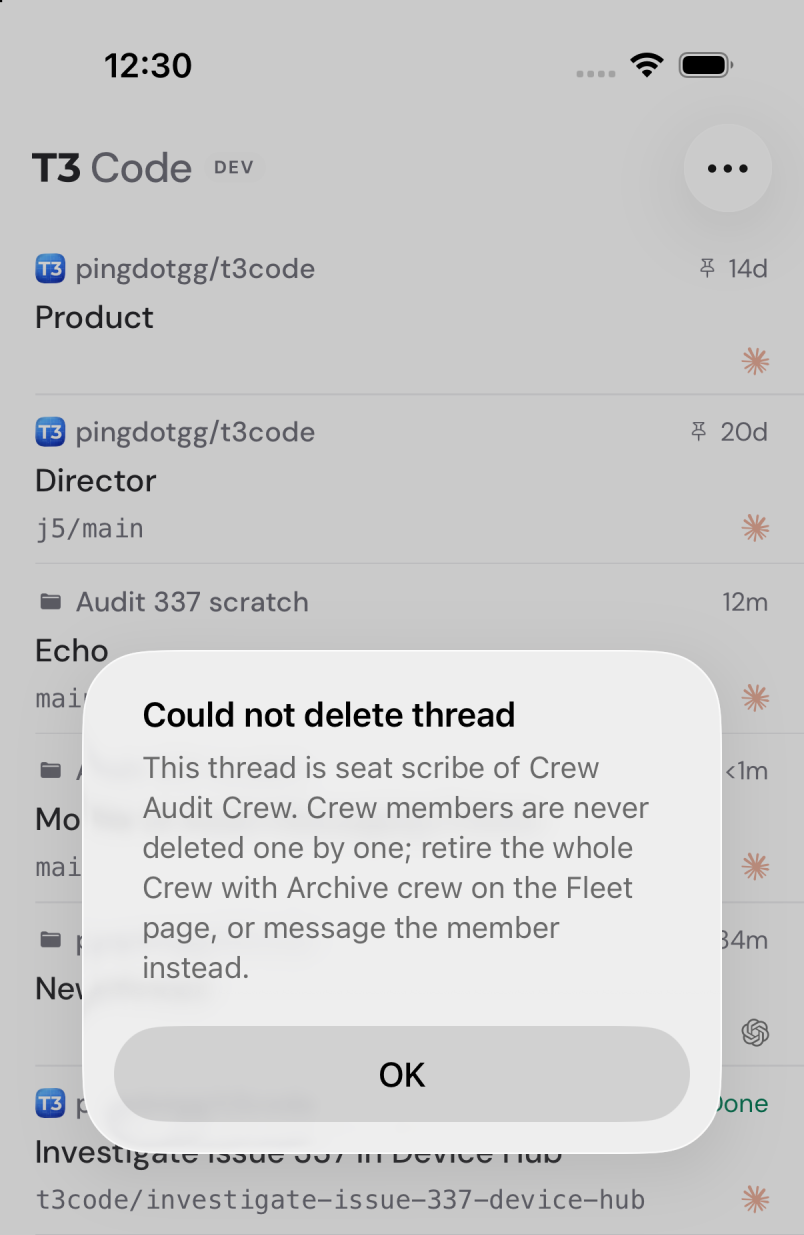

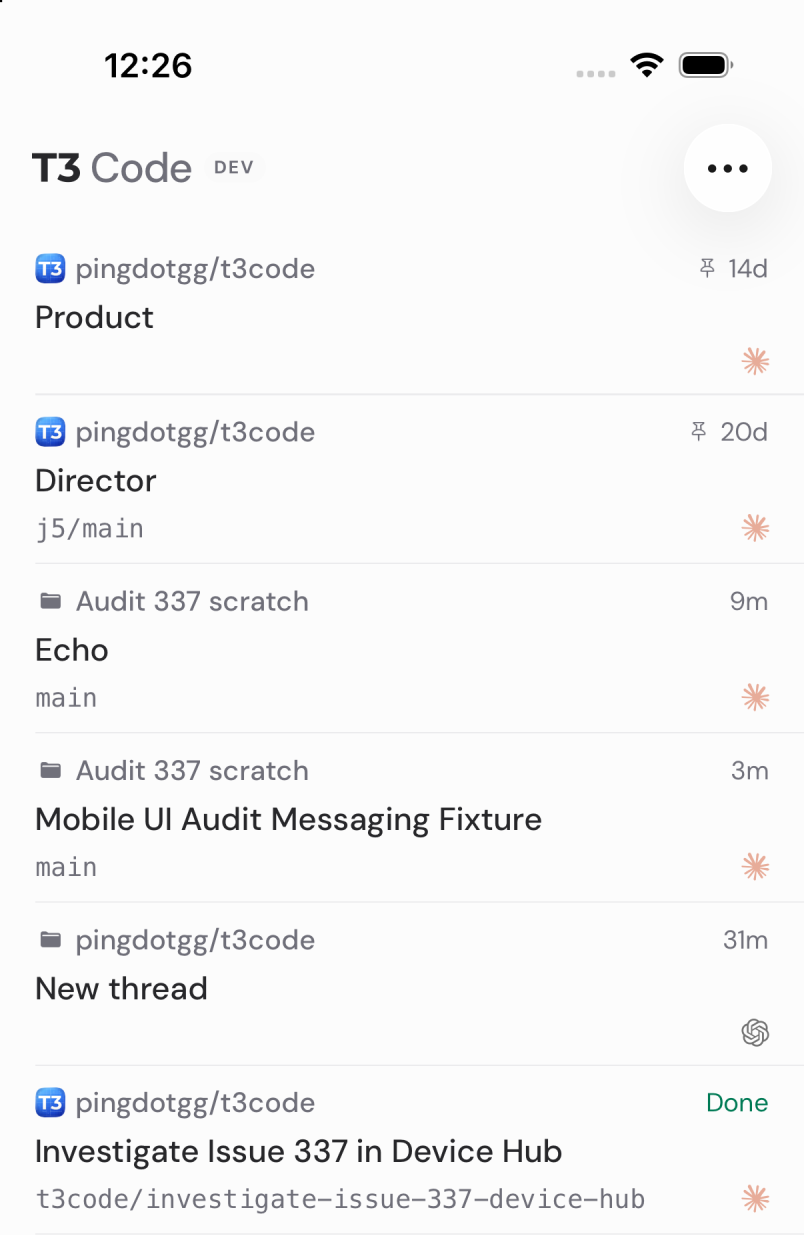

B7: confirmed, through Delete, not Archive

On a server that supports settling, the iPhone thread row has no Archive action. The swipe is Settle and the menu offers Settle, Snooze, Pin, and Delete (thread-list-v2-items.tsx offers Archive only for pre-settlement servers). Deleting the seat gets the server refusal: "…Crew members are never deleted one by one; retire the whole Crew with Archive crew on the Fleet page…".

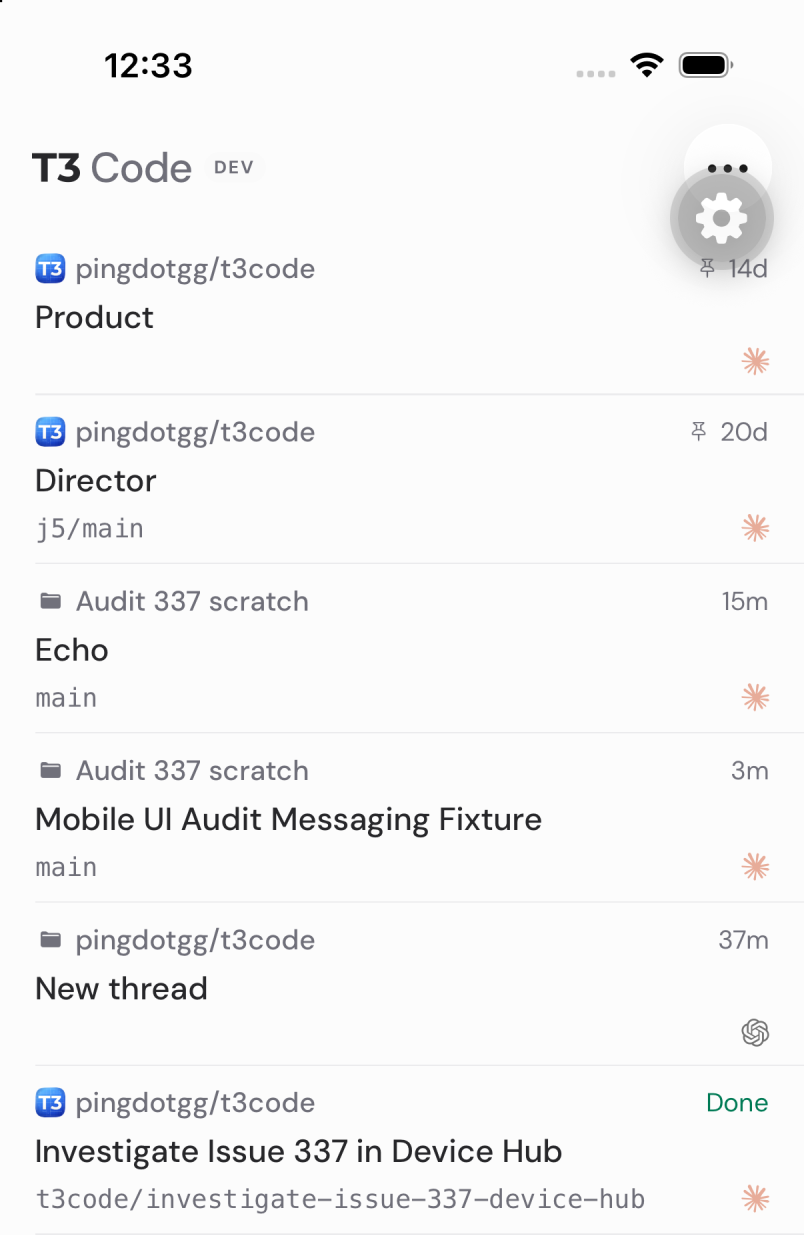

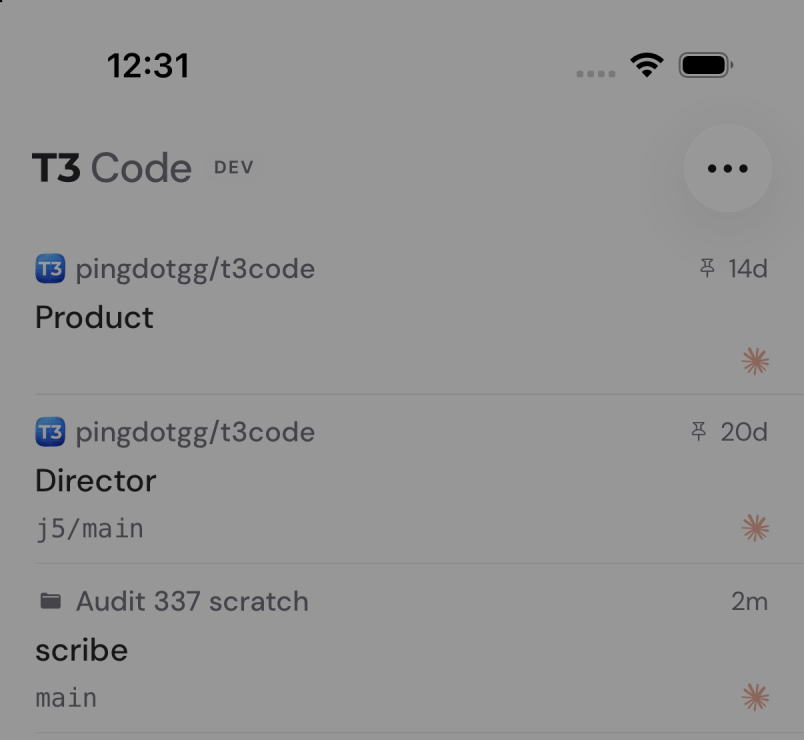

New defect: after that refused delete, the seat row stays hidden from the list until the app relaunches. The server never deleted it. I reproduced this twice.

B8: not checked

The host has no Android SDK.

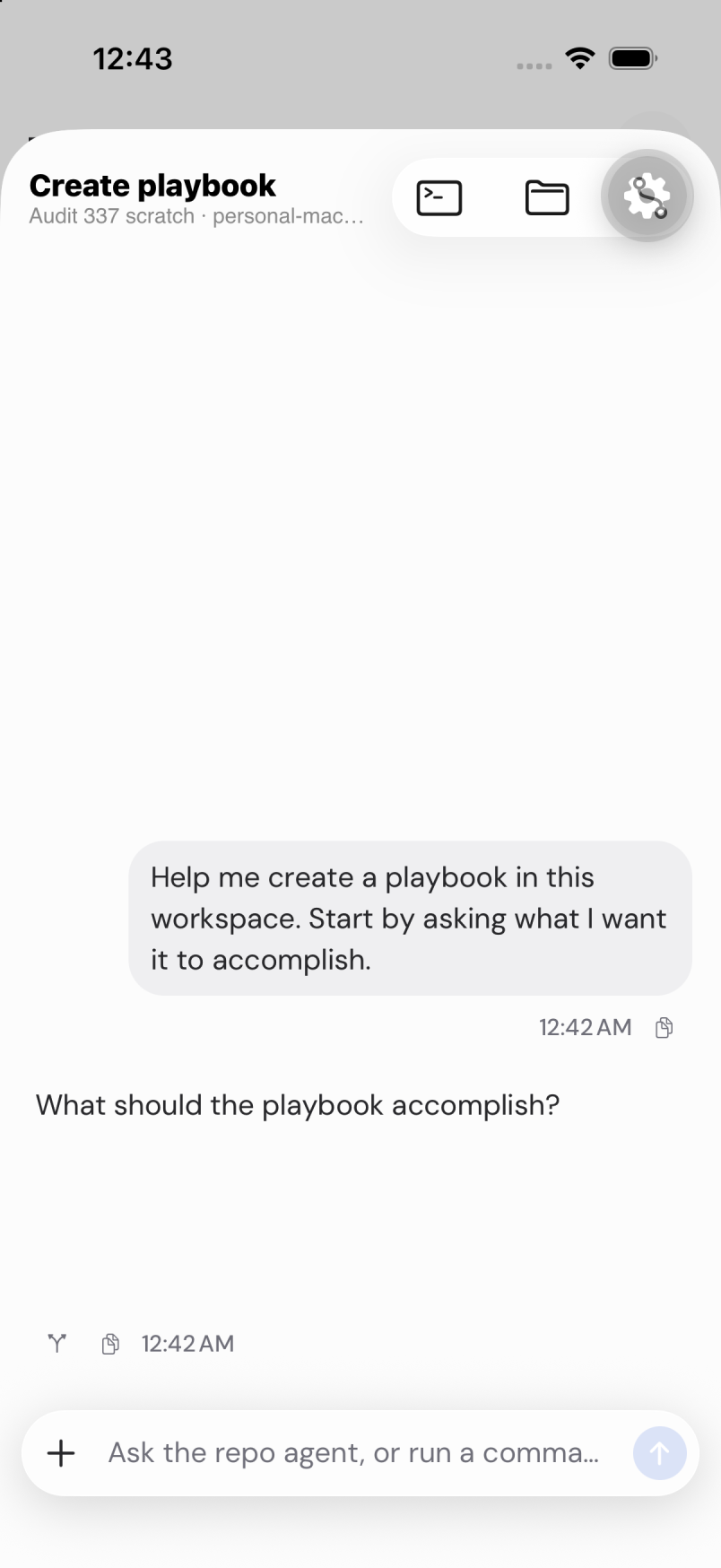

B9: confirmed

I launched "Create playbook" from mobile (scratch workspace, Audit 337 Squadron). The thread was stored with creationSource: "web" and was in the Audit 337 roster immediately. For comparison, the Captain started from mobile's own new-task door was stored as mobile, had no home, and had to call join_squadron before it could message or spawn.

B10: not reproduced

I couldn't create a read-only connection: j5 auth pairing create and j5 auth session issue have no scope option. Only the code reading supports this finding.

B11: not reproduced

On a thread started as the Navigator persona, the model chip is disabled ("Assigned model: Codex · gpt-5.6-sol · high"), and I found no other mobile control that changes the model. I didn't exercise the stale-draft modelSelection path the audit points at.

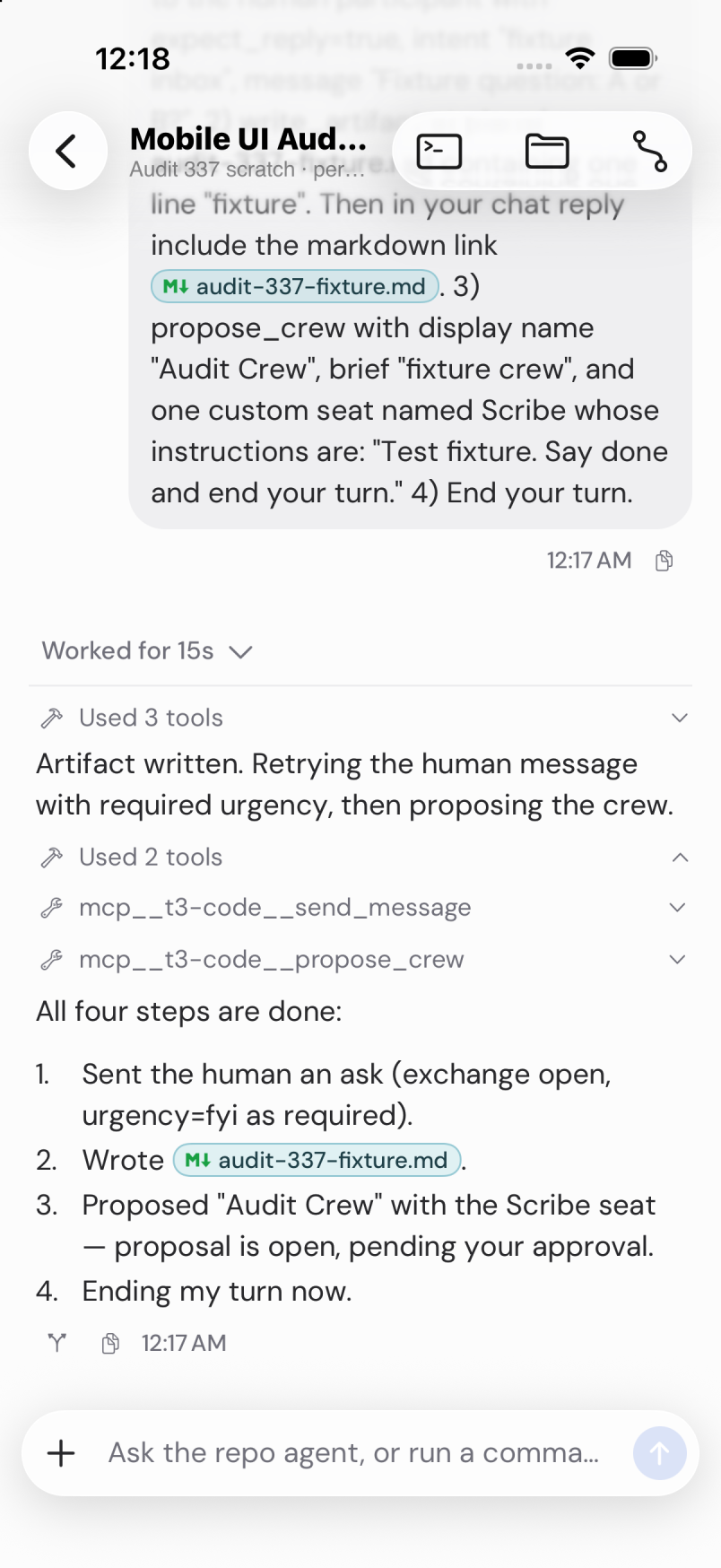

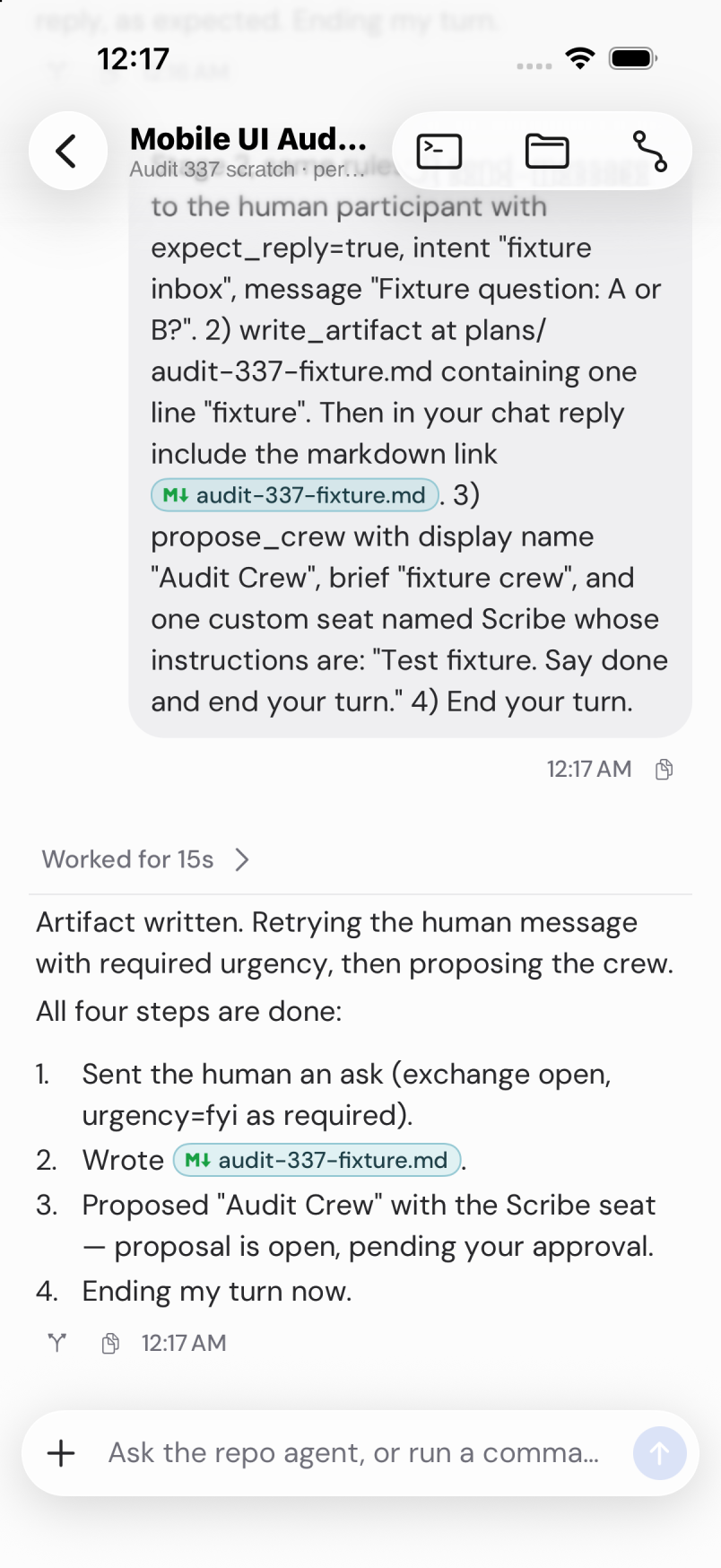

Stuck Captain: confirmed

After propose_crew, the Captain's thread shows only its own prose ("proposal is open, pending your approval") and raw tool rows (mcp__t3-code__propose_crew, mcp__t3-code__send_message). There is no gate or notice, and no approve or decline control anywhere. I approved it through the HTTP API to continue. This also confirms §2's point that the agent's own send_message appears as a raw tool-name row.

Branding: partly confirmed

Still T3:

App icon (confirmed)
Splash/loading mark (confirmed; one capture, and I didn't separate the native splash from the in-app BrandMark loader)

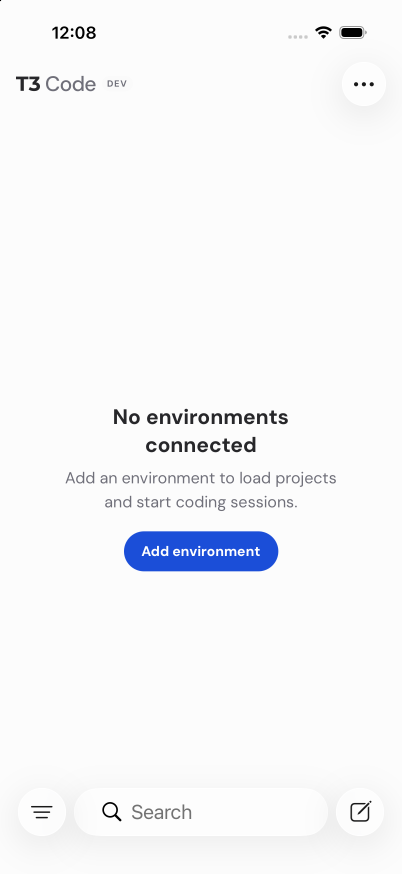

Header lockup "T3 Code" (confirmed)
Environment detail sheet (confirmed, no capture): "T3 Code · Version 0.0.44" and "Update and restart T3 Code on this machine."

Not observed:

Live Activity: agent-device brings the app to the foreground on every command, so I couldn't capture the lock screen. The code confirms the title is hard-coded "T3 Code".
Widget: I didn't add one to the home screen.

§2 items seen along the way

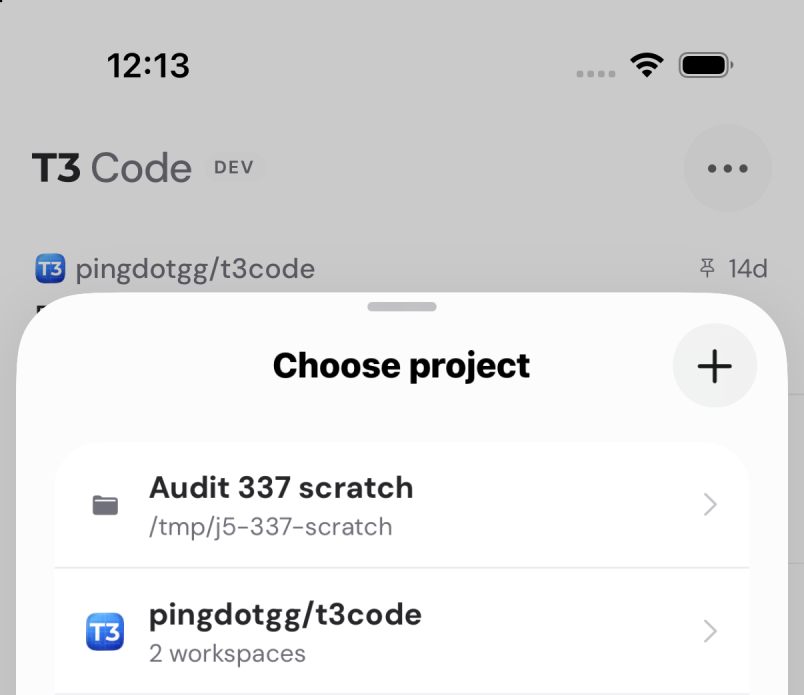

Squadrons: the new-task sheet is "Choose project" with no Squadron choice. The mobile-created thread had no home, as described.

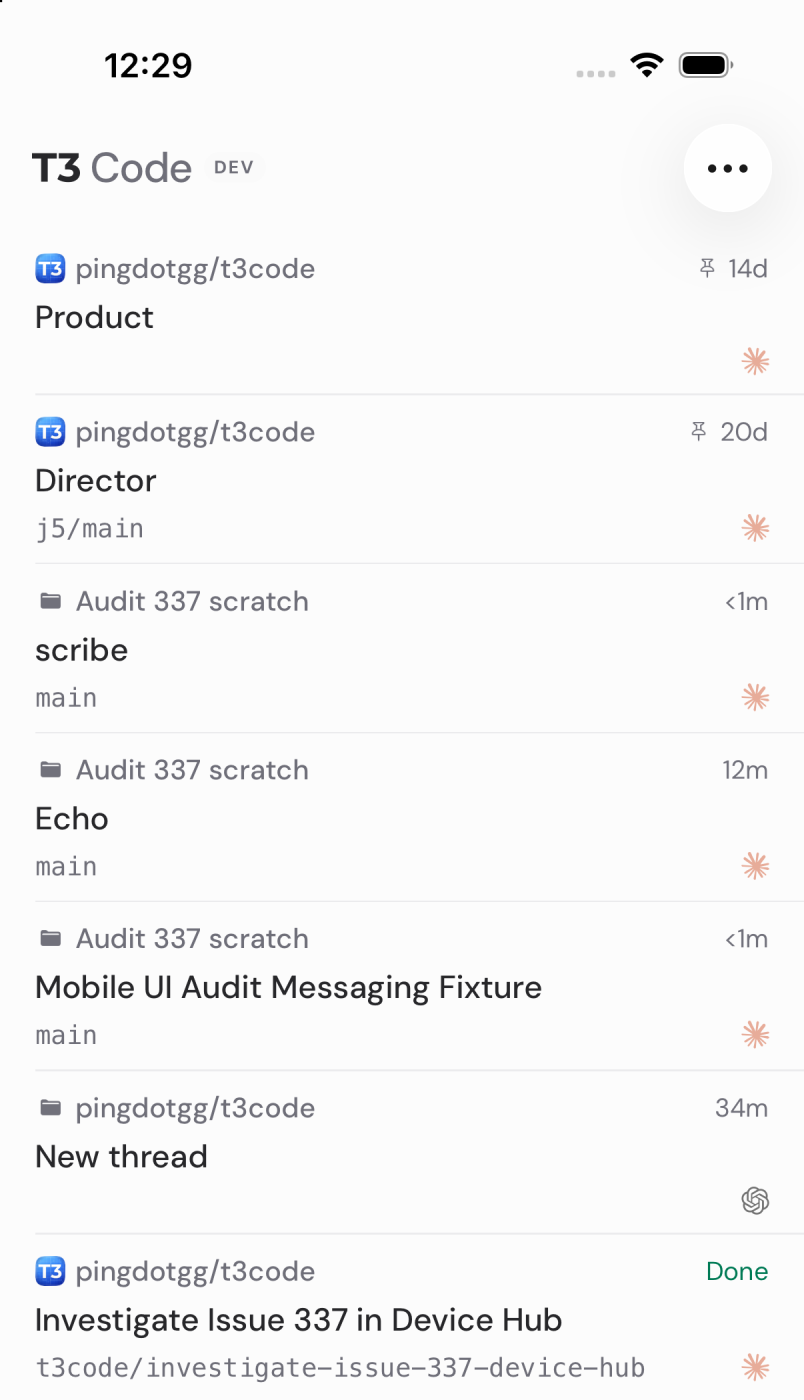

Crews: the seat appears as an ordinary top-level row with no Crew or Captain mark.
Archive (product(j5): decide what archive, unarchive, and settle mean for agents, Crews, and their children #254): "Swipe-archive dispatches thread.archive" applies only to pre-settlement servers. Against a current server I found no archive door on iPhone at all. I didn't check iPad.

The web-side bugs listed under §1 were not re-checked here.

Other findings

Composer: in a persona thread's composer, the Send button sits almost entirely under the keyboard. I had to tap its visible sliver.
join_squadron errors: the agent passed the Squadron id without its squadron: prefix. The refusal was SquadronProjectReferenceSquadronNotFoundError with an empty message, so the agent couldn't tell what was wrong.

Verification friction (tooling, not product)

scripts/mobile-native-client.ts and .agents/skills/test-t3-mobile/scripts/pair-client.sh still use T3 names: the T3CodeDev workspace, com.t3tools.t3code.dev, and t3code-dev://. Prebuild now emits J5CodeDev with codes.jackson.j5code.dev and j5code-dev://, so ensure fails at xcodebuild and the pairing helper opens the wrong app. I built, installed, and paired by hand with the J5 ids. The skill text also still refers to .t3 state.
Device hub: J5 caches its agent-device daemon endpoint (LocalDeviceHost.ensureAgentReady). The daemon shut down on 2026-09-26, and every device_open since has returned the dead 127.0.0.1:50639. The only built-in reset is turning agent access off and on in the live app's device settings, so I ran a private daemon with its own state dir. An Astra lane hit the same failure on 2026-09-26 (its coordinator's note: "J5's proxy to it didn't recover").

🤖 Generated with Claude Code. Verification by Claude Opus 5.5 in J5 Code.

Decisions (Jackson, 2026-09-28) and Phase 0

Decided

Upstream seams for mobile: FORK.md gets a mobile section. It fixes the set of seams up front, adds one integration test per seam, and treats native changes as their own batched class.
CI and testing: fix the mobile test loop and add advisory native checks (native lint and an iOS PR build). The Expo fingerprint check is dropped because OTA updates are off.
Device hub: fix the dead-daemon bug as a temporary in-place patch and offer it upstream through Upstream give-back backlog (hold until V2 merges upstream) #276.
§4 question 4, older mobile builds: option (b). Mobile must supply a Squadron, the same as web, which closes the mobile-future-squadron exception. No capability flag for now: there is one mobile user, and servers are updated before the app. Release the server first, then the TestFlight build. B9 is fixed in the same change.

Phase 0 (foundations, in progress)

Mobile dev tooling still uses T3 ids (native client, pairing helper, showcase) #363 Mobile dev tooling uses J5 ids
Device hub hands out a dead agent-device daemon endpoint #364 Device hub dead-daemon patch
FORK.md: mobile section with a fixed seam set and seam tests #365 FORK.md mobile section
J5 CI: mobile native lint and iOS PR build (advisory) #366 J5 CI: mobile native lint and iOS PR build
J5 mobile scene harness for fixture-only before/after captures #367 J5 mobile scene harness
Seam tests for existing J5 edits in upstream mobile files #368 Seam tests for existing J5 mobile edits

Later phases, open decisions noted

Fix web's A2A deviations first, then lift shared presenters and add the mobile timeline and queue seams. Also: B5–B7, the refused-delete row bug, branding copy. Needs §4 item 2 confirmed and item 8.
Inbox, Crew approve/decline, and a notification when an agent asks the person. Needs items 3, 6 and 7.
Squadron-first creation through the resolver seam, with the (b) server change. Needs items 5 and 9.
Fleet, the full artifact viewer and Crew management are deferred.

🤖 Generated with Claude Code
