I2PNet: End-to-end 2D-3D Registration between Image and LiDAR Point Cloud for Vehicle Localization

TRO 2025

Guangming Wang²*, Yu Zheng¹*, Yuxuan Wu¹, Yanfeng Guo⁴, Zhe Liu¹, Yixiang Zhu⁵, Wolfram Burgard³, Hesheng Wang¹†

² University of Cambridge, ¹ Shanghai Jiao Tong University, ³ University of Technology Nuremberg, ⁴ University of California, ⁵ Nanyang Technological University

Abstract

Robot localization using a built map is essential for a variety of tasks including accurate navigation and mobile manipulation. A popular approach to robot localization is based on image-to-point cloud registration, which combines illumination-invariant LiDAR-based mapping with economical image-based localization. However, the recent works for image-to-point cloud registration either divide the registration into separate modules or project the point cloud to the depth image to register the RGB and depth images. n this paper, we present I2PNet, a novel end-to-end 2D-3D registration network, which directly registers the raw 3D point cloud with the 2D RGB image using differential modules with a united target. The 2D-3D cost volume module for differential 2D-3D association is proposed to bridge feature extraction and pose regression. The soft point-to-pixel correspondence is implicitly constructed on the intrinsic-independent normalized plane in the 2D-3D cost volume module. Moreover, we introduce an outlier mask prediction module to filter the outliers in the 2D-3D association before pose regression. Furthermore, we propose the coarse-to-fine 2D-3D registration architecture to increase localization accuracy. Extensive localization experiments are conducted on the KITTI, nuScenes, M2DGR, Argoverse, Waymo, and Lyft5 datasets. The results demonstrate that I2PNet outperforms the state-of-the-art by a large margin and has a higher efficiency than the previous works. Moreover, we extend the application of I2PNet to the camera-LiDAR online calibration and demonstrate that I2PNet outperforms recent approaches on the online calibration task.

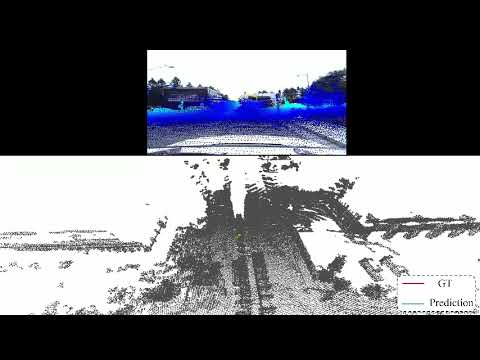

Demo Video

Environment Requirements

install required packages

pip install -r requirements.txt

install pointnet2

cd pointnet2
python setup.py install
cd ../

install projection-aware operators

cd src/projectPN/fused_conv_select
python setup.py install
cd ../../../

Data Preprocessing

KITTI Preprocessing

Download KITTI Odometry sequences and put the downloaded data in /dataset/data_odometry_velodyne and /dataset/data_odometry_color. The data should include the and Process the data sequentially as follows:

• For large-range localization, you are recommended to use the output path /dataset/data_odometry_velodyne_deepi2p_new:

  • For the calibration files, download the data_odometry_calib and put data_odometry_calib in /dataset/data_odometry_velodyne_deepi2p_new.
  • For the point cloud:

    cd ./data_preprocess
    python kitti_pc_bin_to_npy_with_downsample_sn.py --src $your_kitti_data_path$ --dst $your_output_path$
    cd ../

    If using the recommended path, the output will be put in /dataset/data_odometry_velodyne_deepi2p_new/data_odometry_velodyne_NWU/sequences/**/snr0.6/*.npy.
  • For the image:

    cd ./data_preprocess
    python kitti_png_to_npy.py --src $your_kitti_data_path$ --dst $your_output_path$
    cd ../

    If using the recommended path, the output will be put in /dataset/data_odometry_velodyne_deepi2p_new/data_odometry_color_npy/sequences/**/image_2/*.npy.
  • For the poses:

    cd ./data_preprocess
    python kitti_pose.py --src $your_kitti_data_path$ --dst $your_output_path$
    cd ../

    If using the recommended path, the output will be put in /dataset/data_odometry_velodyne_deepi2p_new/poses/**/*.npy.
  • Besides, since we also use /dataset/kitti_processed_DeepI2P in our dataloader, you should also create a symbol link

    ln -s /dataset/data_odometry_velodyne_deepi2p_new/ /dataset/kitti_processed_DeepI2P

    If you use another output path, you should modify the path in this command.

• For small-range localization, just run

  cd ./data_preprocess/CMRNet_script
  python kitti_maps_cmr.py --sequence 00 --kitti_folder ./KITTI_ODOMETRY/
  cd ../

  Note: please uncomment the range constraint at “# y \in [-10,10] x \in [-5,15]” in the kitti_maps_cmr.py code, and comment out lines at “# y \in [-25,25] x \in [-10,100]”

NuScenes Preprocessing

Download NuScenes Full dataset (v1.0) Dataset.

For large range localization, please download our filtered data list here, and put them under the nuScenes_datasplit folder.

For small range localization, process the data sequentially as follows:

python gen_maps_our.py \
    --voxel_size 0.1 \
    --nus_folder /dataset/nuScenes \
    --output_folder /dataset/nus_processed_CMRNet \
    --frame_skip 2 \
    --max_translation 5

Large-Range Localization

KITTI Dataset Training and evaluation

• Training

python train20v2learn_wandb_proj.py --gpu 3 --dataset kd_corr_nolidar --modelcfg config_proj_lidarcenter --network modellearn_proj_center --log_dir <LOG> --max_epoch 200 --debug --clip 10

• Evaluation

python evaluation_proj.py --dataset kd_corr_nolidar --modelcfg config_proj_lidarcenter --network modellearn_proj_center --log_dir <LOG>

For evaluation with multiple iterations (currently set to 6 iters):

python evaluation_proj.py --dataset kd_corr_nolidar --modelcfg config_proj_lidarcenter_iter --network modellearn_proj_center_iter --log_dir <LOG>

nuScenes

• Training

python train20v2learn_wandb_proj.py --gpu 3 --dataset nus_corr_nolidar --modelcfg config_proj_lidarcenter_nus --network modellearn_proj_center --log_dir <LOG> --max_epoch 200 --debug --clip 10

• Evaluation

python evaluation_proj.py --dataset nus_corr_nolidar --modelcfg config_proj_lidarcenter_nus --network modellearn_proj_center --log_dir <LOG>

Final Metrics

python evaluation_analysis.py --log_dir <LOG> --target <metrics_name_in_'info_test'>

Cross Dataset Validation

For cross dataset evaluation, you could simply change the dataset and modelcfg args to the according dataset. For example, for evaluation from KITTI Odometry to NuScenes dataset, run:

python evaluation_proj.py --dataset nus_corr_nolidar --modelcfg config_proj_lidarcenter_nus --network modellearn_proj_center --log_dir <Your_KITTI_training_LOG_dir>

Small-Range Localization

• Training

python train20v2learn_wandb.py --gpu 1 --dataset kd_cmr_snr --modelcfg config_lidarcenter --log_dir <LOG> --debug --clip 10

• Evaluation

python evaluation_cmr.py --dataset kd_cmr_snr --log_dir <LOG> --gpu 1

nuScenes

• Training

python train20v2learn_wandb.py --gpu 2 --dataset nus_cmr_snr --modelcfg config_lidarcenter --log_dir <LOG> --debug --clip 10

• Evaluation

python evaluation_cmr.py --dataset nus_cmr_snr --log_dir <LOG> --gpu 1

Final Metrics

python evaluation_cmrresult.py --log_dir <LOG>

Citation

@ARTICLE{wang2023end,
  author={Wang, Guangming and Zheng, Yu and Wu, Yuxuan and Guo, Yanfeng and Liu, Zhe and Zhu, Yixiang and Burgard, Wolfram and Wang, Hesheng},
  journal={IEEE Transactions on Robotics},
  title={End-to-End 2D-3D Registration Between Image and LiDAR Point Cloud for Vehicle Localization},
  year={2025},
  volume={41},
  number={},
  pages={4643-4662},
  doi={10.1109/TRO.2025.3588454}
  }

Acknowledgements

• Implementation of PointNet++ is based on Pointnet2_PyTorch.
• Implementation of data preprocessing inherited from CMRNet.
• Implementation of projection-aware operators from EfficientLO-Net.
