Time-Series-Data (QuantumLeap)

FIWARE Core Context Management License: MIT Support badge
JSON LD Documentation

This tutorial is an introduction to FIWARE QuantumLeap - a generic enabler which is used to persist context data into a CrateDB database. The tutorial activates the IoT sensors connected in the previous tutorial and persists measurements from those sensors into the database. To retrieve time-based aggregations of such data, users can either use QuantumLeap query API or connect directly to the CrateDB HTTP endpoint. Results are visualised on a graph or via the Grafana time series analytics tool.

The tutorial uses cUrl commands throughout, but is also available as Postman documentation

Run in Postman Open in Gitpod

  • このチュートリアルは日本語でもご覧いただけます。

Contents

Details

Persisting and Querying Time Series Data (CrateDB)

"Forever is composed of nows."

— Emily Dickinson

FIWARE QuantumLeap is an time-based data-persistence generic enabler created specifically to persist and query time-series database (currently CrateDB and TimescaleDB). The component can respond to NGSI-v2 or NGSI-LD subscriptions.

CrateDB is a distributed SQL DBMS designed for use with the internet of Things. It is capable of ingesting a large number of data points per second and can be queried in real-time. The database is designed for the execution of complex queries such as geospatial and time series data. Retrieval of this historic context data allows for the creation of graphs and dashboards displaying trends over time.

TimescaleDB scales PostgreSQL for time-series data via automatic partitioning across time and space (partitioning key), yet retains the standard PostgreSQL interface. In other words, TimescaleDB exposes what look like regular tables, but are actually only an abstraction (or a virtual view) of many individual tables comprising the actual data. In combination with PostGIS extension can support geo-timeseries.

Analyzing time series data

The appropriate use of time series data analysis will depend on your use case and the reliability of the data measurements you receive. Time series data analysis can be used to answer questions such as:

  • What was the maximum measurement of a device within a given time period?
  • What was the average measurement of a device within a given time period?
  • What was the sum of the measurements sent by a device within a given time period?

It can also be used to reduce the significance of each individual data point to exclude outliers by smoothing.

Grafana

Grafana is an open source software for time series analytics tool which will be used during this tutorial. It integrates with a variety of time-series databases including CrateDB and TimescaleDB. It is available licensed under the Apache License 2.0. More information can be found at https://grafana.com/.

Device Monitor

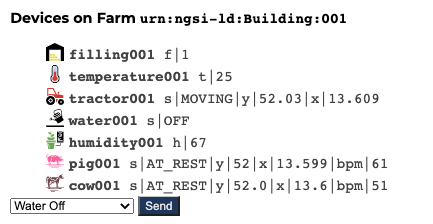

For the purpose of this tutorial, a series of dummy agricultural IoT devices have been created, which will be attached to the context broker. Details of the architecture and protocol used can be found in the IoT Sensors tutorial The state of each device can be seen on the UltraLight device monitor web page found at: http://localhost:3000/device/monitor

FIWARE Monitor

Device History

Once QuantumLeap has started aggregating data, the historical state of each device can be seen on the device history web page found at: http://localhost:3000/device/history/urn:ngsi-ld:Farm:001

Architecture

This application builds on the components and dummy IoT devices created in previous tutorials. It will use three FIWARE components: the Orion Context Broker, the IoT Agent for Ultralight 2.0, and QuantumLeap .

Therefore the overall architecture will consist of the following elements:

  • The FIWARE Generic Enablers:

  • A MongoDB database:

    • Used by the Orion Context Broker to hold context data information such as data entities, subscriptions and registrations
    • Used by the IoT Agent to hold device information such as device URLs and Keys

  • A CrateDB database:

    • Used as a data sink to hold time-based historical context data
    • offers an HTTP endpoint to interpret time-based data queries

  • An HTTP Web-Server which offers static @context files defining the context entities within the system.

  • The Tutorial Application does the following:

Since all interactions between the elements are initiated by HTTP requests, the entities can be containerized and run from exposed ports.

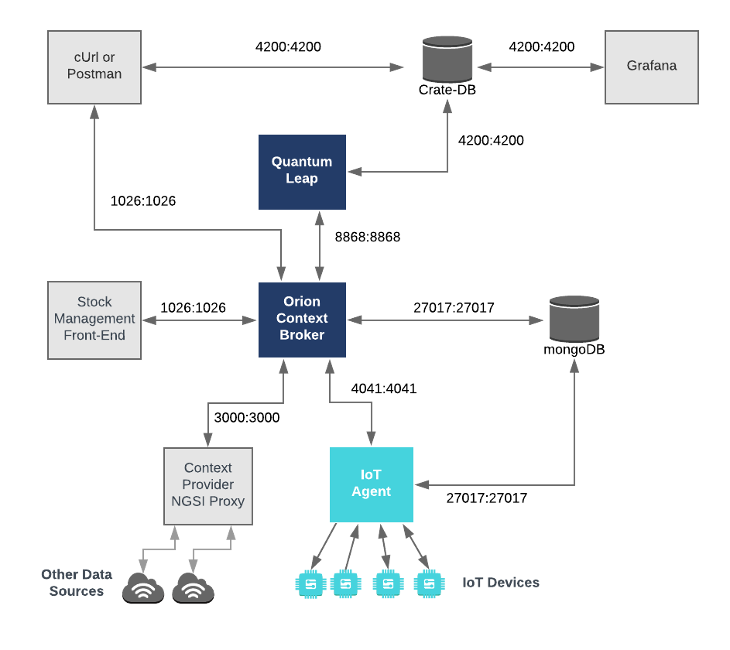

The overall architecture can be seen below:

Prerequisites

Docker and Docker Compose

To keep things simple all components will be run using Docker. Docker is a container technology which allows to different components isolated into their respective environments.

  • To install Docker on Windows follow the instructions here
  • To install Docker on Mac follow the instructions here
  • To install Docker on Linux follow the instructions here

Docker Compose is a tool for defining and running multi-container Docker applications. A series of YAML files are used to configure the required services for the application. This means all container services can be brought up in a single command. Docker Compose is installed by default as part of Docker for Windows and Docker for Mac, however Linux users will need to follow the instructions found here

You can check your current Docker and Docker Compose versions using the following commands:

docker-compose -v
docker version

Please ensure that you are using Docker version 24.0.x or higher and Docker Compose 2.24.x or higher and upgrade if necessary.

WSL

We will start up our services using a simple Bash script. Windows users should download the Windows Subsystem for Linux to provide a command-line functionality similar to a Linux distribution on Windows.

Start Up

Before you start, you should ensure that you have obtained or built the necessary Docker images locally. Please clone the repository and create the necessary images by running the commands as shown:

git clone https://github.com/FIWARE/tutorials.Time-Series-Data.git
cd tutorials.Time-Series-Data
git checkout NGSI-LD

./services create

Thereafter, all services can be initialized from the command-line by running the services Bash script provided within the repository:

./services [orion|scorpio|stellio]

Note

If you want to clean up and start over again you can do so with the following command:

./services stop

Connecting FIWARE to a CrateDB Database via QuantumLeap

In the configuration, QuantumLeap listens to NGSI LD notifications on port 8668 and persists historic context data to the CrateDB. CrateDB is accessible using port 4200 and can either be queried directly or attached to the Grafana analytics tool. The rest of the system providing the context data has been described in previous tutorials.

CrateDB Database Server Configuration

crate-db:
    image: crate:4.1.4
    hostname: crate-db
    ports:
        - "4200:4200"
        - "4300:4300"
    command:
        crate -Clicense.enterprise=false -Cauth.host_based.enabled=false  -Ccluster.name=democluster
        -Chttp.cors.enabled=true -Chttp.cors.allow-origin="*"
    environment:
        - CRATE_HEAP_SIZE=2g

If CrateDB exits immediately with a max virtual memory areas vm.max_map_count [65530] is too low, increase to at least [262144] error, this can be fixed by running the sudo sysctl -w vm.max_map_count=262144 command on the host machine. For further information look within the CrateDB documentation and Docker troubleshooting guide

QuantumLeap Configuration

quantumleap:
    image: smartsdk/quantumleap
    hostname: quantumleap
    ports:
        - "8668:8668"
    depends_on:
        - crate-db
    environment:
        - CRATE_HOST=crate-db

Grafana Configuration

grafana:
    image: grafana/grafana
    depends_on:
        - cratedb
    ports:
        - "3003:3000"
    environment:
        - GF_INSTALL_PLUGINS=orchestracities-map-panel,grafana-clock-panel,grafana-worldmap-panel

The quantumleap container is listening on one port:

  • The Operations for port for QuantumLeap - 8668 is where the service will be listening for notifications from the Orion context broker and where users can query data from.

The CRATE_HOST environment variable defines the location where the data will be persisted.

The cratedb container is listening on two ports:

  • The Admin UI is available on port 4200
  • The transport protocol is available on port 4300

The grafana container has connected up port 3000 internally with port 3003 externally. This is because the Grafana UI is usually available on port 3000, but this port has already been taken by the dummy devices UI so it has been shifted to another port. The Grafana Environment variables are described within their own documentation. The configuration ensures we will be able to connect to the CrateDB database later on in the tutorial. The configuration also imports a custom map plugin that helps you in displaying NGSI LD entities over a map.

Generating Context Data

For the purpose of this tutorial, we must be monitoring a system where the context is periodically being updated. The dummy IoT Sensors can be used to do this.

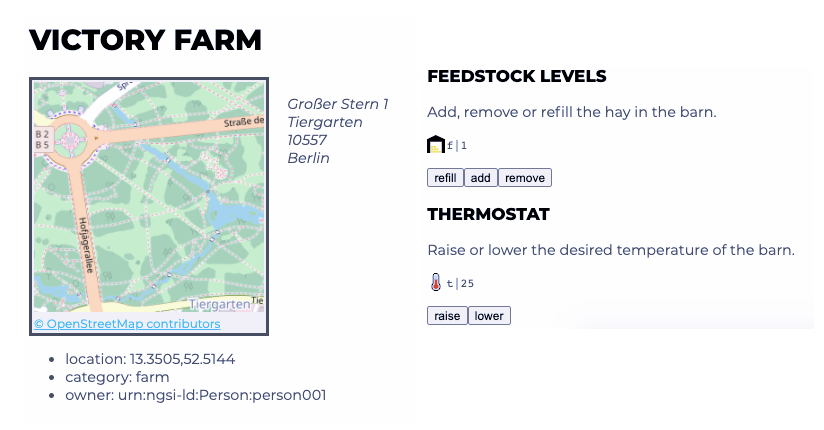

Details of various buildings around the farm can be found in the tutorial application. Open http://localhost:3000/building/farm/urn:ngsi-ld:Building:farm001 to display a building with an associated filling sensor and thermostat.

Open the device monitor page at http://localhost:3000/device/monitor, open the barn door and remove some hay from the barn. This can be done by selecting an appropriate command from the drop-down list and pressing the send button. The stream of measurements coming from the devices can then be seen on the same page.

Setting up Subscriptions

Once a dynamic context system is up and running, we need to inform QuantumLeap directly of changes in context. As expected, this is done using the subscription mechanism of the Orion Context Broker.

Subscriptions will be covered in the next subsections. More details about subscriptions can be found in previous tutorials or in the subscriptions section of QuantumLeap docs.

Aggregate Filling Events

The rate of change of the Filling Sensor is driven by events in the real-world. We need to receive every event to be able to aggregate the results.

This is done by making a POST request to the /ngsi-ld/v1/subscriptions/ endpoint of the Orion-LD Context Broker.

  • The NGSILD-Tenant headers is used to filter the subscription to only listen to measurements from the attached IoT Sensors
  • The entities type in the request body ensures that QuantumLeap will be informed of all FillingLevelSensor data changes.
  • The notification URL must match the exposed port.

With NGSI-LD the observedAt property-of-property holds the timestamp of the measure. Because the attribute being monitored contains this property-of-property, the time_index column within the CrateDB database will match the data found within the MongoDB database used by the Orion Context Broker rather than using the creation time of the record within the CrateDB itself.

1️⃣ Request:

curl -L -X POST 'http://localhost:1026/ngsi-ld/v1/subscriptions/' \
-H 'Content-Type: application/ld+json' \
-H 'NGSILD-Tenant: openiot' \
--data-raw '{
  "description": "Notify me of all feedstock changes",
  "type": "Subscription",
  "entities": [{"type": "FillingLevelSensor"}],
  "watchedAttributes": ["filling"],
  "notification": {
    "attributes": ["filling", "location"],
    "format": "normalized",
    "endpoint": {
      "uri": "http://quantumleap:8668/v2/notify",
      "accept": "application/json",
      "receiverInfo": [
        {
          "key": "fiware-service",
          "value": "openiot"
        }
      ]
    }
  },
   "@context": "http://context/user-context.jsonld"
}'

Sample GPS Readings

The heart rate and GPS reading of the Animal Collars on the animals on the farm are constantly changing, we only need to sample the values to be able to work out relevant statistics such as minimum and maximum values and rates of change.

This is done by making a POST request to the /ngsi-ld/v1/subscriptions/ endpoint of the Orion Context Broker and including the throttling attribute in the request body.

  • The NGSILD-Tenant headers is used to filter the subscription to only listen to measurements from the attached IoT Sensors
  • The entities type in the request body ensures that QuantumLeap will be informed of all Device data changes.
  • The notification URL must match the exposed port.
  • The throttling value defines the rate that changes are sampled.

2️⃣ Request:

curl -L -X POST 'http://localhost:1026/ngsi-ld/v1/subscriptions/' \
-H 'Content-Type: application/ld+json' \
-H 'NGSILD-Tenant: openiot' \
--data-raw '{
  "description": "Notify me of animal locations",
  "type": "Subscription",
  "entities": [{"type": "Device"}],
  "watchedAttributes": ["location", "status", "heartRate"],
  "notification": {
    "attributes": ["location", "status", "heartRate"],
    "format": "normalized",
    "endpoint": {
      "uri": "http://quantumleap:8668/v2/notify",
      "accept": "application/json",
      "receiverInfo": [
        {
          "key": "fiware-service",
          "value": "openiot"
        }
      ]
    }
  },
   "throttling": 10,
   "@context": "http://context/user-context.jsonld"
}'

Checking Subscriptions for QuantumLeap

Before anything, check the subscriptions you created in steps 1️⃣ and 2️⃣ are working (i.e., at least one notification for each was sent).

3️⃣ Request:

curl -X GET \
  'http://localhost:1026/ngsi-ld/v1/subscriptions/' \
  -H 'Link: <http://context/user-context.jsonld>; rel="http://www.w3.org/ns/json-ld#context"; type="application/ld+json"' \
  -H 'NGSILD-Tenant: openiot'

Response:

[
    {
        "id": "urn:ngsi-ld:Subscription:601157b4bc8ec912978db6e4",
        "type": "Subscription",
        "description": "Notify me of all feedstock changes",
        "entities": [
            {
                "type": "FillingLevelSensor"
            }
        ],
        "watchedAttributes": ["filling"],
        "notification": {
            "attributes": ["filling"],
            "format": "normalized",
            "endpoint": {
                "uri": "http://quantumleap:8668/v2/notify",
                "accept": "application/json",
                "receiverInfo": [
                    {
                        "key": "fiware-service",
                        "value": "openiot"
                    }
                ]
            }
        }
    },
    {
        "id": "urn:ngsi-ld:Subscription:601157e3bc8ec912978db6e5",
        "type": "Subscription",
        "description": "Notify me of animal locations",
        "entities": [
            {
                "type": "Device"
            }
        ],
        "watchedAttributes": ["location", "state", "heartRate"],
        "notification": {
            "attributes": ["location", "state", "heartRate"],
            "format": "normalized",
            "endpoint": {
                "uri": "http://quantumleap:8668/v2/notify",
                "accept": "application/json",
                "receiverInfo": [
                    {
                        "key": "fiware-service",
                        "value": "openiot"
                    }
                ]
            }
        },
        "throttling": 10
    }
]

Time Series Data Queries (QuantumLeap API)

QuantumLeap offers an API wrapping CrateDB backend so you can also perform multiple types of queries. The documentation of the API is here. Mind the versions. If you have access to your quantumleap container (e.g., it is running in localhost or port-forwarding to it), you can navigate its API via http://localhost:8668/v2/ui.

QuantumLeap API - List the first N Sampled Values

Now, to check QuantumLeap is persisting values, let's get started with our first query. This example shows the first 3 sampled filling values from urn:ngsi-ld:Device:filling001.

Note the use of the Fiware-Service header which is the NGSI-v2 equivalent of NGSILD-Tenant. These are required only when data are pushed to Orion using such headers (in multitenancy scenarios). Failing to align these headers will result in no data being returned.

4️⃣ Request:

curl -X GET \
  'http://localhost:8668/v2/entities/urn:ngsi-ld:Device:filling001/attrs/filling?limit=3' \
  -H 'Accept: application/json' \
  -H 'Fiware-Service: openiot'

Response:

{
    "data": {
        "attrName": "filling",
        "entityId": "urn:ngsi-ld:Device:filling001",
        "index": ["2018-10-29T14:27:26", "2018-10-29T14:27:28", "2018-10-29T14:27:29"],
        "values": [0.94, 0.87, 0.84]
    }
}

QuantumLeap API - List N Sampled Values at an Offset

This example shows the fourth, fifth and sixth sampled filling values of urn:ngsi-ld:Device:filling001.

5️⃣ Request:

curl -X GET \
  'http://localhost:8668/v2/entities/urn:ngsi-ld:Device:filling001/attrs/filling?offset=3&limit=3' \
  -H 'Accept: application/json' \
  -H 'Fiware-Service: openiot'

Response:

{
    "data": {
        "attrName": "filling",
        "entityId": "urn:ngsi-ld:Device:filling001",
        "index": ["2018-10-29T14:23:53.804000", "2018-10-29T14:23:54.812000", "2018-10-29T14:24:00.849000"],
        "values": [0.75, 0.63, 0.91]
    }
}

QuantumLeap API - List the latest N Sampled Values

This example shows the latest three sampled filling values from urn:ngsi-ld:Device:filling001.

6️⃣ Request:

curl -X GET \
  'http://localhost:8668/v2/entities/urn:ngsi-ld:Device:filling001/attrs/filling?lastN=3' \
  -H 'Accept: application/json' \
  -H 'Fiware-Service: openiot'

Response:

{
    "data": {
        "attrName": "filling",
        "entityId": "urn:ngsi-ld:Device:filling001",
        "index": ["2018-10-29T15:03:45.113000", "2018-10-29T15:03:46.118000", "2018-10-29T15:03:47.111000"],
        "values": [0.91, 0.67, 0.9]
    }
}

QuantumLeap API - List the Sum of values grouped by a time period

This example shows last 3 total filling values of urn:ngsi-ld:Device:filling001 over each minute.

You need QuantumLeap version >= 0.4.1. You can check your version with a simple GET like:

curl -X GET \
  'http://localhost:8668/version' \
  -H 'Accept: application/json'

7️⃣ Request:

curl -X GET \
  'http://localhost:8668/v2/entities/urn:ngsi-ld:Device:filling001/attrs/filling?aggrMethod=count&aggrPeriod=minute&lastN=3' \
  -H 'Accept: application/json' \
  -H 'Fiware-Service: openiot'

Response:

{
    "data": {
        "attrName": "filling",
        "entityId": "urn:ngsi-ld:Device:filling001",
        "index": ["2018-10-29T15:03:00.000000"],
        "values": [8]
    }
}

QuantumLeap API - List the Minimum Values grouped by a Time Period

This example shows minimum filling values from urn:ngsi-ld:Device:filling001 over each minute.

You need QuantumLeap version >= 0.4.1. You can check your version with a simple GET like:

curl -X GET \
  'http://localhost:8668/version' \
  -H 'Accept: application/json'

8️⃣ Request:

curl -X GET \
  'http://localhost:8668/v2/entities/urn:ngsi-ld:Device:filling001/attrs/filling?aggrMethod=min&aggrPeriod=minute&lastN=3' \
  -H 'Accept: application/json' \
  -H 'Fiware-Service: openiot'

Response:

{
    "data": {
        "attrName": "filling",
        "entityId": "urn:ngsi-ld:Device:filling001",
        "index": ["2018-10-29T15:03:00.000000", "2018-10-29T15:04:00.000000", "2018-10-29T15:05:00.000000"],
        "values": [0.63, 0.49, 0.03]
    }
}

QuantumLeap API - List the Maximum Value over a Time Period

This example shows maximum filling value of urn:ngsi-ld:Device:filling001 that occurred between from 2018-06-27T09:00:00 to 2018-06-30T23:59:59.

9️⃣ Request:

curl -X GET \
  'http://localhost:8668/v2/entities/urn:ngsi-ld:Device:filling001/attrs/filling?aggrMethod=max&fromDate=2018-06-27T09:00:00&toDate=2018-06-30T23:59:59' \
  -H 'Accept: application/json' \
  -H 'Fiware-Service: openiot'

Response:

{
    "data": {
        "attrName": "filling",
        "entityId": "urn:ngsi-ld:Device:filling001",
        "index": [],
        "values": [0.94]
    }
}

QuantumLeap API - List the latest N Sampled Values of Devices near a Point

This example shows the latest heart rate sampled heartRate values of animal that are within a 5 km radius from 52°31'04.8"N 13°21'25.2"E (Tiergarten, Berlin, Germany). If you have turned on any device the animals will wander around the Berlin Tiergarten and on the device monitor page, you should be able to see data for urn:ngsi-ld:Device:cow001 and urn:ngsi-ld:Device:pig001 .

Note

Geographical queries are only available starting from version 0.5 of QuantumLeap which implements the full set of queries detailed in the Geographical Queries section of the NGSI v2 specification.

1️⃣0️⃣ Request:

curl -X GET \
  'http://localhost:8668/v2/types/Device/attrs/heartRate?lastN=4&georel=near;maxDistance:5000&geometry=point&coords=52.518,13.357' \
  -H 'Accept: application/json' \
  -H 'Fiware-Service: openiot'

Response:

{
    "attrName": "heartRate",
    "entities": [
        {
            "entityId": "urn:ngsi-ld:Device:cow001",
            "index": ["2021-01-27T16:52:05.925+00:00", "2021-01-27T16:52:30.769+00:00"],
            "values": [53, 50]
        },
        {
            "entityId": "urn:ngsi-ld:Device:cow002",
            "index": ["2021-01-27T16:50:50.792+00:00"],
            "values": [53]
        },
        {
            "entityId": "urn:ngsi-ld:Device:cow004",
            "index": ["2021-01-27T16:51:55.798+00:00"],
            "values": [51]
        }
    ],
    "entityType": "Device"
}

QuantumLeap API - List the latest N Sampled Values of Devices in an Area

This example shows the latest four sampled filling values of filling sensors that are inside a square of side 200 m centered at 52°33'16.9"N 13°23'55.0"E (Bornholmer Straße 65, Berlin, Germany). Even if you have turned on all the filling sensors available on the device monitor page, you should only see data for urn:ngsi-ld:Device:filling001.

Note

Geographical queries are only available starting from version 0.5 of QuantumLeap which implements the full set of queries detailed in the Geographical Queries section of the NGSI v2 specification.

1️⃣1️⃣ Request:

curl -X GET \
  'http://localhost:8668/v2/types/Device/attrs/heartRate?lastN=4&georel=coveredBy&geometry=polygon&coords=52.5537,13.3996;52.5557,13.3996;52.5557,13.3976;52.5537,13.3976;52.5537,13.3996' \
  -H 'Accept: application/json' \
  -H 'Fiware-Service: openiot'

Response:

{
    "data": {
        "attrName": "bpm",
        "entities": [
            {
                "entityId": "urn:ngsi-ld:Device:cow001",
                "index": [
                    "2018-12-13T17:08:56.041",
                    "2018-12-13T17:09:55.976",
                    "2018-12-13T17:10:55.907",
                    "2018-12-13T17:11:55.833"
                ],
                "values": [65, 63, 63, 62]
            }
        ],
        "entityType": "Device"
    }
}

Time Series Data Queries (CrateDB API)

CrateDB offers an HTTP Endpoint that can be used to submit SQL queries. The endpoint is accessible under <servername:port>/_sql.

SQL statements are sent as the body of POST requests in JSON format, where the SQL statement is the value of the stmt attribute.

When to query CrateDB and when QuantumLeap?. As a rule of thumb, prefer working always with QuantumLeap for the following reasons:

  • Your experience will be closer to FIWARE NGSI APIs like Orion's.
  • Your application will not be tied to CrateDB's specifics nor QuantumLeap's implementation details, which could change and break your app.
  • QuantumLeap can be easily extended to other backends and your app will get compatibility for free.
  • If your deployment is distributed, you won't need to expose the ports of your database to the outside.

If your are sure your query is not supported by QuantumLeap, you may have to end up querying CrateDB, however, please open an issue in QuantumLeap's GitHub repository so the team is aware.

CrateDB API - Checking Data persistence

Another way to see if data are being persisted is to check if a table_schema has been created. This can be done by making a request to the CrateDB HTTP endpoint as shown:

1️⃣2️⃣ Request:

curl -iX POST \
  'http://localhost:4200/_sql' \
  -H 'Content-Type: application/json' \
  -d '{"stmt":"SHOW SCHEMAS"}'

Response:

{
    "cols": ["schema_name"],
    "rows": [["blob"], ["doc"], ["information_schema"], ["mtopeniot"], ["pg_catalog"], ["sys"]],
    "rowcount": 6,
    "duration": 20.3418
}

Schema names are formed with the mt prefix followed by NGSILD-Tenant header in lower case. The IoT Agent is forwarding measurements from the dummy IoT devices, with the NGSILD-Tenant header openiot. These are being persisted under the mtopeniot schema.

If the mtopeniot does not exist, then the subscription to QuantumLeap has not been set up correctly. Check that the subscription exists, and has been configured to send data to the correct location.

QuantumLeap will persist data into separate tables within the CrateDB database based on the entity type. Table names are formed with the et prefix and the entity type name in lowercase.

1️⃣3️⃣ Request:

curl -X POST \
  'http://localhost:4200/_sql' \
  -H 'Content-Type: application/json' \
  -d '{"stmt":"SHOW TABLES"}'

Response:

{
    "cols": ["table_schema", "table_name"],
    "rows": [
        ["mtopeniot", "etFillingLevelSensor"],
        ["mtopeniot", "etdevice"]
    ],
    "rowcount": 3,
    "duration": 14.2762
}

The response shows that both Filling Sensor data and Animal Collar Device data are being persisted in the database.

CrateDB API - List the first N Sampled Values

The SQL statement uses ORDER BY and LIMIT clauses to sort the data. More details can be found under within the CrateDB documentation

1️⃣4️⃣ Request:

curl -iX POST \
  'http://localhost:4200/_sql' \
  -H 'Content-Type: application/json' \
  -d '{"stmt":"SELECT * FROM mtopeniot.etFillingLevelSensor WHERE entity_id = '\''urn:ngsi-ld:Device:filling001'\'' ORDER BY time_index ASC LIMIT 3"}'

Response:

{
    "cols": ["entity_id", "entity_type", "fiware_servicepath", "filling", "time_index"],
    "rows": [
        ["urn:ngsi-ld:Device:filling001", "FillingLevelSensor", "/", 0.87, 1530262765000],
        ["urn:ngsi-ld:Device:filling001", "FillingLevelSensor", "/", 0.65, 1530262770000],
        ["urn:ngsi-ld:Device:filling001", "FillingLevelSensor", "/", 0.6, 1530262775000]
    ],
    "rowcount": 3,
    "duration": 21.8338
}

CrateDB API - List N Sampled Values at an Offset

The SQL statement uses an OFFSET clause to retrieve the required rows. More details can be found under within the CrateDB documentation.

1️⃣5️⃣ Request:

curl -iX POST \
  'http://localhost:4200/_sql' \
  -H 'Content-Type: application/json' \
  -d '{"stmt":"SELECT * FROM mtopeniot.etFillingLevelSensor WHERE entity_id = '\''urn:ngsi-ld:Device:filling001'\'' order by time_index ASC LIMIT 3 OFFSET 3"}'

Response:

{
    "cols": ["filling", "entity_id", "entity_type", "fiware_servicepath", "time_index"],
    "rows": [
        [0.75, "urn:ngsi-ld:Device:filling001", "FillingLevelSensor", "/", 1530262791452],
        [0.63, "urn:ngsi-ld:Device:filling001", "FillingLevelSensor", "/", 1530262792469],
        [0.5, "urn:ngsi-ld:Device:filling001", "FillingLevelSensor", "/", 1530262793472]
    ],
    "rowcount": 3,
    "duration": 54.215
}

CrateDB API - List the latest N Sampled Values

The SQL statement uses an ORDER BY ... DESC clause combined with a LIMIT clause to retrieve the last N rows. More details can be found under within the CrateDB documentation.

1️⃣6️⃣ Request:

curl -iX POST \
  'http://localhost:4200/_sql' \
  -H 'Content-Type: application/json' \
  -d '{"stmt":"SELECT * FROM mtopeniot.etFillingLevelSensor WHERE entity_id = '\''urn:ngsi-ld:Device:filling001'\''  ORDER BY time_index DESC LIMIT 3"}'

Response:

{
    "cols": ["filling", "entity_id", "entity_type", "fiware_servicepath", "time_index"],
    "rows": [
        [0.51, "urn:ngsi-ld:Device:filling001", "FillingLevelSensor", "/", 1530263896550],
        [0.43, "urn:ngsi-ld:Device:filling001", "FillingLevelSensor", "/", 1530263894491],
        [0.4, "urn:ngsi-ld:Device:filling001", "FillingLevelSensor", "/", 1530263892483]
    ],
    "rowcount": 3,
    "duration": 18.591
}

CrateDB API - List the Sum of values grouped by a time period

The SQL statement uses a SUM function and GROUP BY clause to retrieve the relevant data. CrateDB offers a range of Date-Time Functions to truncate and convert the timestamps into data which can be grouped.

1️⃣7️⃣ Request:

curl -iX POST \
  'http://localhost:4200/_sql' \
  -H 'Content-Type: application/json' \
  -d '{"stmt":"SELECT DATE_FORMAT (DATE_TRUNC ('\''minute'\'', time_index)) AS minute, SUM (filling) AS sum FROM mtopeniot.etFillingLevelSensor WHERE entity_id = '\''urn:ngsi-ld:Device:filling001'\'' GROUP BY minute LIMIT 3"}'

Response:

{
    "cols": ["minute", "sum"],
    "rows": [
        ["2018-06-29T09:17:00.000000Z", 4.37],
        ["2018-06-29T09:34:00.000000Z", 6.23],
        ["2018-06-29T09:08:00.000000Z", 6.51],
        ["2018-06-29T09:40:00.000000Z", 3],
        ...etc
    ],
    "rowcount": 42,
    "duration": 22.9832
}

CrateDB API - List the Minimum Values grouped by a Time Period

The SQL statement uses a MIN function and GROUP BY clause to retrieve the relevant data. CrateDB offers a range of Date-Time Functions to truncate and convert the timestamps into data which can be grouped.

1️⃣8️⃣ Request:

curl -iX POST \
  'http://localhost:4200/_sql' \
  -H 'Content-Type: application/json' \
  -d '{"stmt":"SELECT DATE_FORMAT (DATE_TRUNC ('\''minute'\'', time_index)) AS minute, MIN (filling) AS min FROM mtopeniot.etFillingLevelSensor WHERE entity_id = '\''urn:ngsi-ld:Device:filling001'\'' GROUP BY minute"}'

Response:

{
    "cols": ["minute", "min"],
    "rows": [
        ["2018-06-29T09:34:00.000000Z", 0.5],
        ["2018-06-29T09:17:00.000000Z", 0.04],
        ["2018-06-29T09:40:00.000000Z", 0.33],
        ["2018-06-29T09:08:00.000000Z", 0.44],
        ...etc
    ],
    "rowcount": 40,
    "duration": 13.1854
}

CrateDB API - List the Maximum Value over a Time Period

The SQL statement uses a MAX function and a WHERE clause to retrieve the relevant data. CrateDB offers a range of Aggregate Functions to aggregate data in different ways.

1️⃣9️⃣ Request:

curl -iX POST \
  'http://localhost:4200/_sql' \
  -H 'Content-Type: application/json' \
  -d '{"stmt":"SELECT MAX(filling) AS max FROM mtopeniot.etFillingLevelSensor WHERE entity_id = '\''urn:ngsi-ld:Device:filling001'\'' and time_index >= '\''2018-06-27T09:00:00'\'' and time_index < '\''2018-06-30T23:59:59'\''"}'

Response:

{
    "cols": ["max"],
    "rows": [[1]],
    "rowcount": 1,
    "duration": 26.7215
}

Accessing Time Series Data Programmatically

Once the JSON response for a specified time series has been retrieved, displaying the raw data is of little use to an end user. It must be manipulated to be displayed in a bar chart, line graph or table listing. This is not within the domain of QuantumLeap as it not a graphical tool, but can be delegated to a mashup or dashboard component such as Wirecloud or Knowage.

It can also be retrieved and displayed using a third-party graphing tool appropriate to your coding environment - for example chartjs. An example of this can be found within the history controller in the Git Repository.

The basic processing consists of two-step - retrieval and attribute mapping, sample code can be seen below:

function readCrateSensorfilling(id, aggMethod) {
    return new Promise(function (resolve, reject) {
        const sqlStatement =
            "SELECT DATE_FORMAT (DATE_TRUNC ('minute', time_index)) AS minute, " +
            aggMethod +
            "(filling) AS " +
            aggMethod +
            " FROM mtopeniot.etFillingLevelSensor WHERE entity_id = 'urn:ngsi-ld:Device:" +
            id +
            "' GROUP BY minute ORDER BY minute";
        const options = {
            method: "POST",
            url: crateUrl,
            headers: { "Content-Type": "application/json" },
            body: { stmt: sqlStatement },
            json: true,
        };
        request(options, (error, response, body) => {
            return error ? reject(error) : resolve(body);
        });
    });
}
function crateToTimeSeries(crateResponse, aggMethod, hexColor) {
    const data = [];
    const labels = [];
    const color = [];

    if (crateResponse && crateResponse.rows && crateResponse.rows.length > 0) {
        _.forEach(crateResponse.rows, (element) => {
            const date = moment(element[0]);
            data.push({ t: date, y: element[1] });
            labels.push(date.format("HH:mm"));
            color.push(hexColor);
        });
    }

    return {
        labels,
        data,
        color,
    };
}

The modified data is then passed to the frontend to be processed by the third-party graphing tool. The result is shown here: http://localhost:3000/device/history/urn:ngsi-ld:Farm:001.

Displaying CrateDB data as a Grafana Dashboard

CrateDB has been chosen as the time-series data sink for QuantumLeap, because, among many other benefits, it integrates seamlessly with the Grafana time series analytics tool. Grafana can be used to display the aggregated sensor data - a full tutorial on building dashboards can be found here. The simplified instructions below summarize how to connect and display a graph of the FillingLevelSensor filling data.

Logging in

The docker-compose file has started an instance of the Grafana UI listening on port 3003, so the login page can be found at: http://localhost:3003/login. The default username is admin and the default password is admin.

Configuring a Data Source

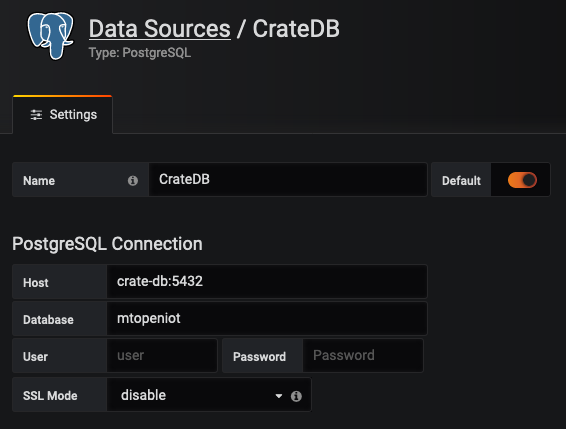

After logging in, a PostgreSQL datasource must be set up at http://localhost:3003/datasources with the following values:

  • Name CrateDB
  • Host crate-db:5432
  • Database mtopeniot
  • User crate
  • SSL Mode disable

Click on the Save and test button and make sure it says Database Connection OK.

Configuring a Dashboard

Configuring a Dashboard

To display a new dashboard, you can either click the + button and select Dashboard or go directly to http://localhost:3003/dashboard/new?orgId=1. Thereafter, click Add Query.

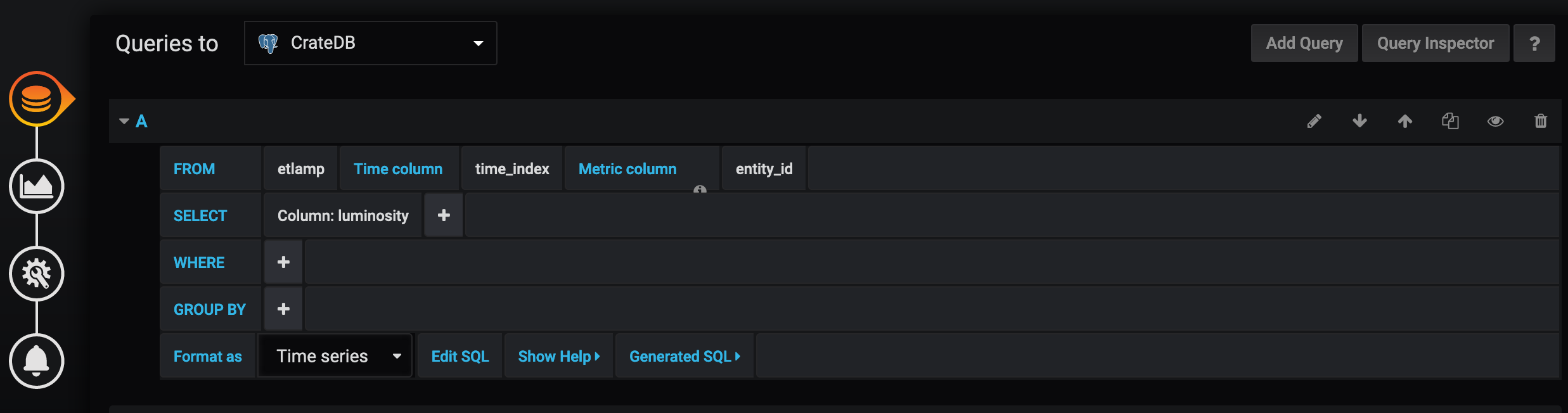

The following values in bold text need to be placed in the graphing wizard:

  • Queries to CrateDB (the previously created Data Source).
  • FROM etFillingLevelSensor.
  • Time column time_index.
  • Metric column entity_id.
  • Select value column:filling.

Then click on ESC on your keyboard and you will see a dashboard including the graph you created.

The click on the Add Panel button and select Choose Visualisation and pick Orchestra Cities Map.

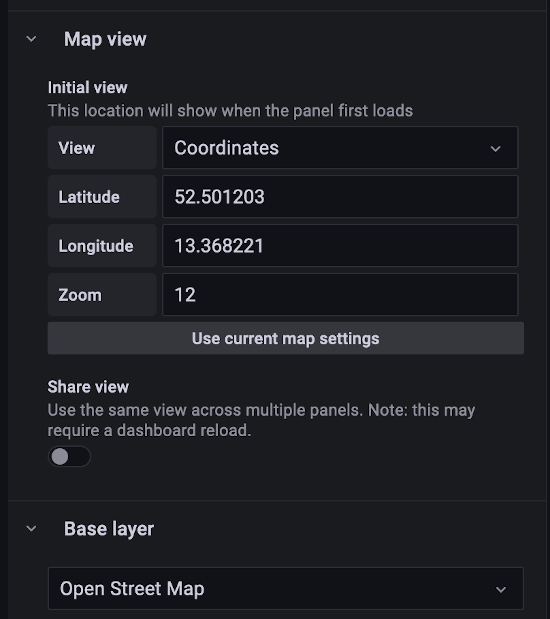

In the map view options set the following values:

  • View: coordinates.
  • Latitude: 52.5012.
  • Longitude: 13.3682.
  • Initial Zoom: 12.

In the base layer options set the following values:

  • Layer: Open Street Map.

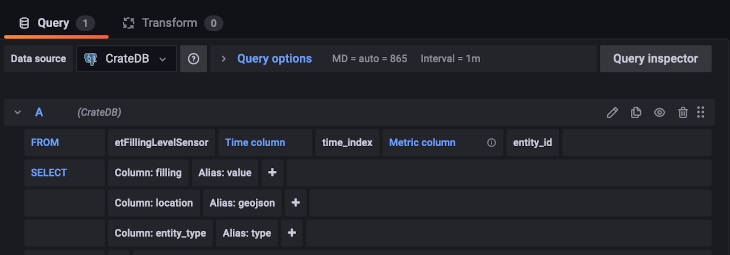

Click on Queries tab on the left and set as follows:

  • Format as: Table.
  • FROM etFillingLevelSensor.
  • Time column time_index.
  • Metric column entity_id.
  • Select value:
    • column:filling alias:value.
    • column:location alias:geojson.
    • column:entity_type alias:type.

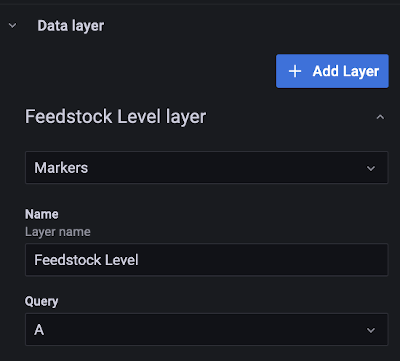

Within the Orchestra Cities Map Click on Data Layer tab on the left and set as follows:

  • Markers
  • Name: Feedstock Level
  • Query: A

The final result can be seen below:

Next Steps

Want to learn how to add more complexity to your application by adding advanced features? You can find out by reading the other tutorials in this series

License

MIT © 2018-2025 FIWARE Foundation e.V.

About

📘 FIWARE 304: Querying Time Series Data (QuantumLeap)

quantumleap.readthedocs.io/en/latest/

Topics

tutorial contextual-data historical-data fiware timeseries-database crate-db fiware-quantum-leap

Resources

Readme

License

MIT license
Activity
Custom properties

Stars

16 stars

Watchers

11 watching

Forks

19 forks
Report repository

Contributors 9

Languages
