Render Tree and Terrain verbatim against fixture data #9
Description
Activity
Resolution
Both scenes render this repo's citymap inside the T3 web app and visibly match a live

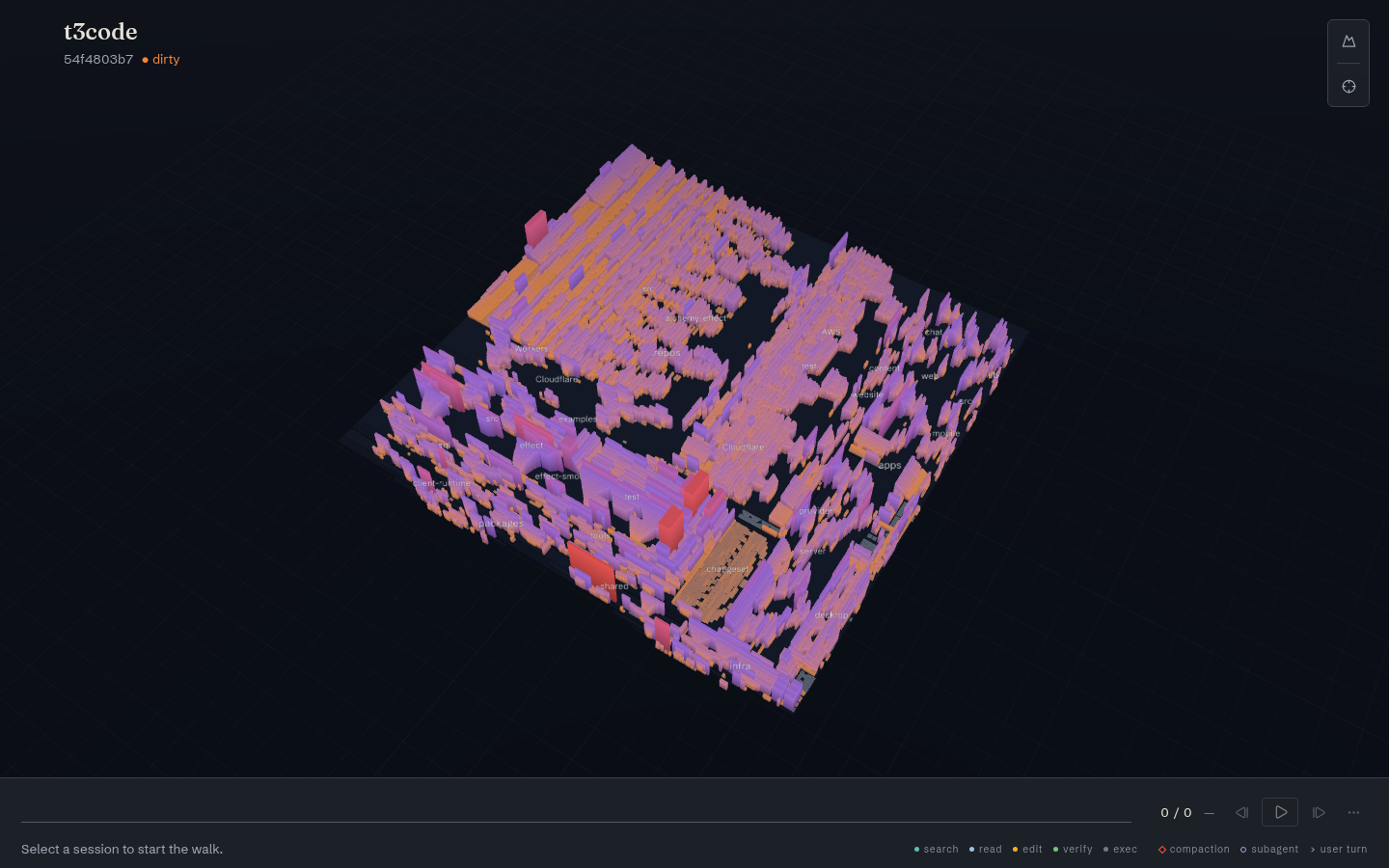

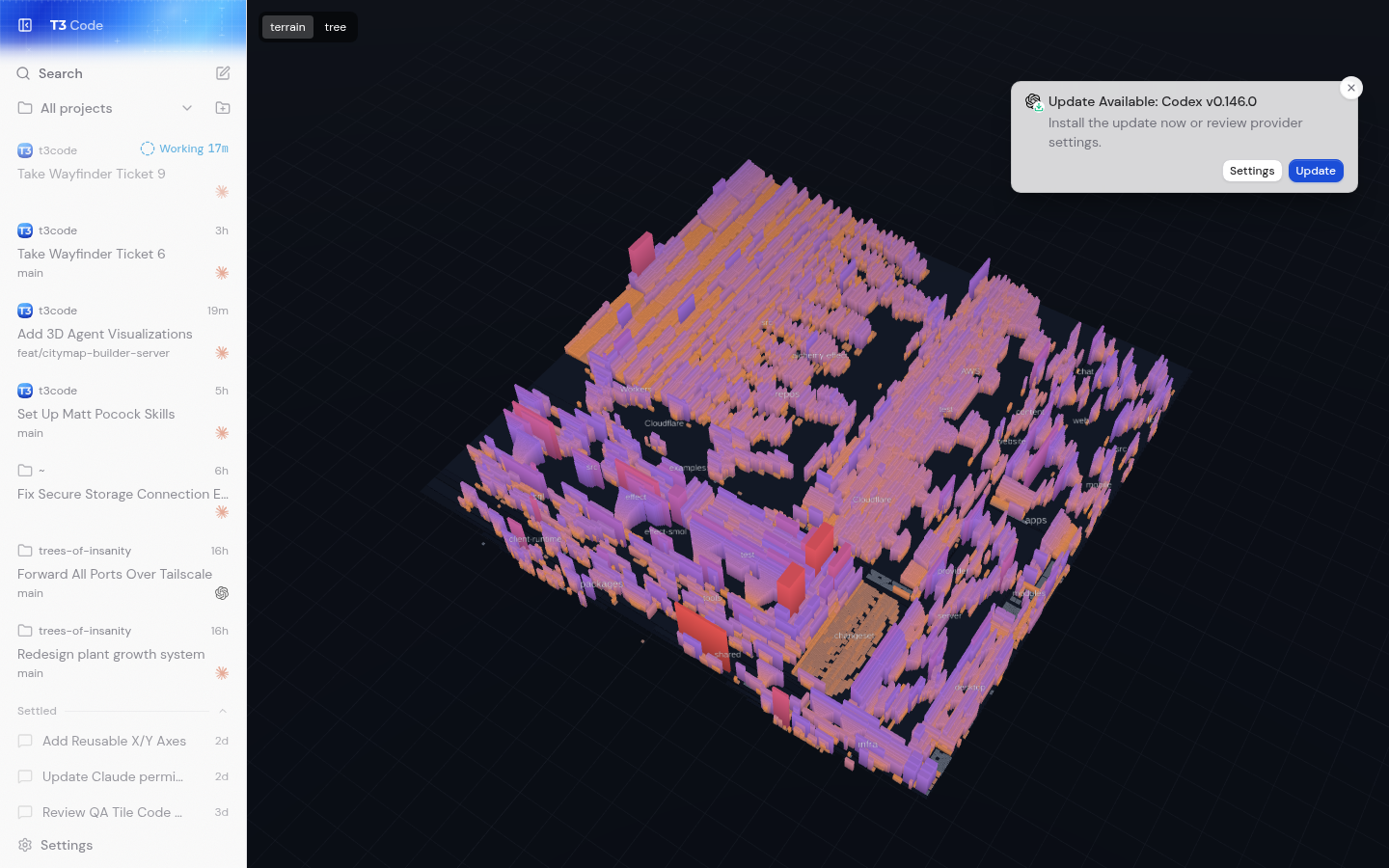

mindwalk servereference. Landed on branchfeat/3d-scenes-verbatim.T3 web app mindwalk reference ( ?map=1)Terrain

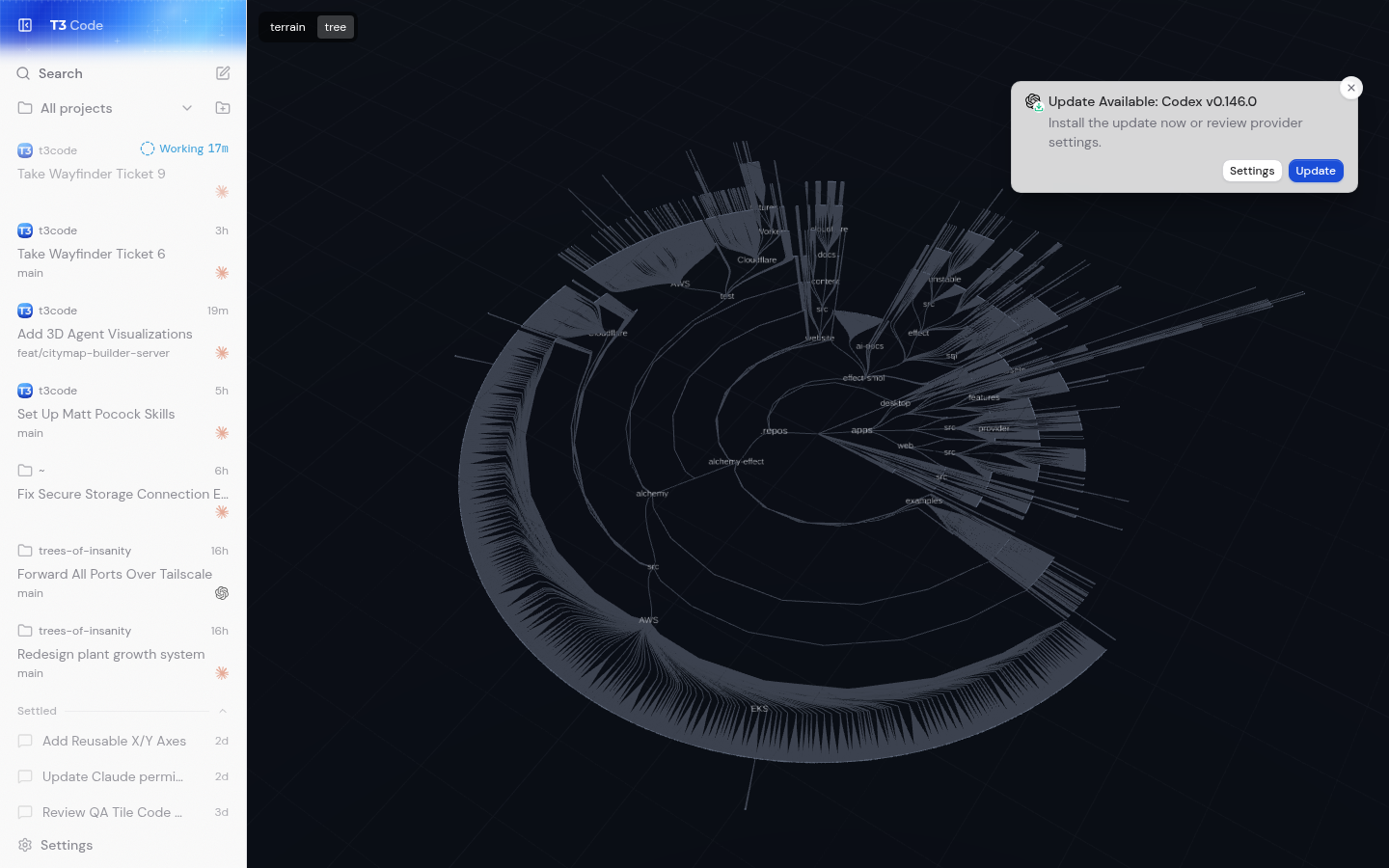

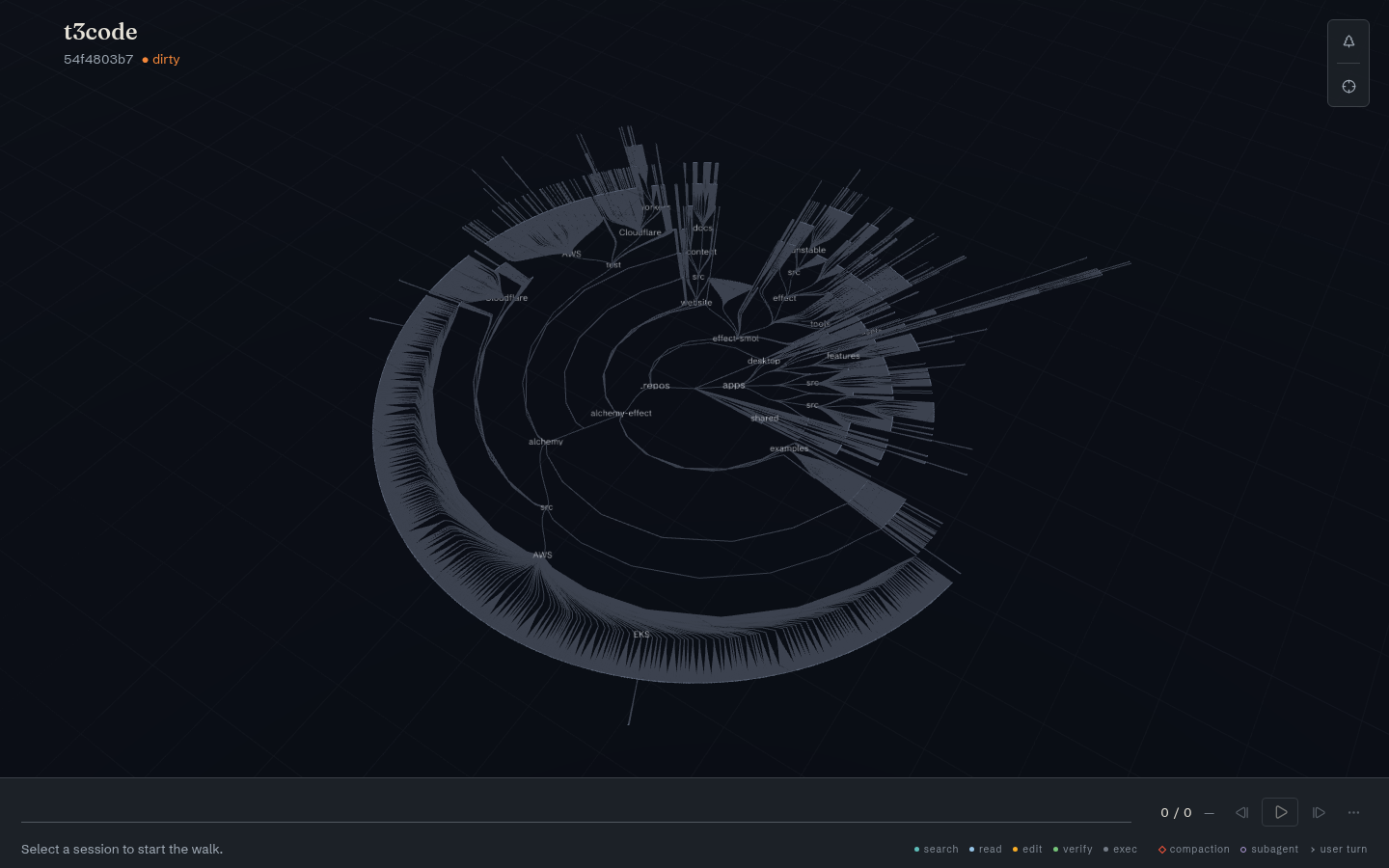

Tree
Same structure, palette, labels, and camera behavior in both views. The T3 side has no HUD, timeline, or repo header — that chrome is Restyle the ported UI to T3 conventions scope.
What landed
- Copy —
scene/(all seven files),playback/(both files), andtypes.tsintoapps/web/src/mindwalk/, preserving relative structure so imports survived unchanged. MIT attribution inapps/web/THIRD_PARTY_NOTICES.mdplus a provenance README in the directory.App.tsx,state/,api/, andstyles.csswere not copied, per the ticket. - Deviations from verbatim (all behavior-preserving): ~20 non-null assertions and 2 casts forced by this repo's
noUncheckedIndexedAccess+exactOptionalPropertyTypes(mindwalk compiles without either), and the repo's pre-commitvp fmtautoformat. Everything erases at runtime. - Deps —
three@^0.182.0(mindwalk's exact minor) +@types/three. - Harness — a throwaway
/mindwalk-3d?threadId=<id>route. React.lazy splits three.js and the scenes into their own chunk; the citymap comes fromGET /api/citymap/threads/:threadIdviaPrimaryEnvironmentHttpClient. No trace yet, so playback is permanently empty and CityScene runslocHeights— exactly mindwalk's?map=1static-map mode, which is also what the reference screenshots use. - Two load-bearing CSS rules (
.city-scenefill,.scene-tipchip) copied into a scopedharness.css; the 2,452-linestyles.cssstays untouched for Restyle the ported UI to T3 conventions #10.
Surprise worth recording
The map's standing decision said "three.js + react-three-fiber", but mindwalk does not use react-three-fiber — its scenes are plain three.js components driving their own
requestAnimationFrameloops (auto-rotate, damping, label easing). So no r3f was added, and theframeloop="demand"constraint doesn't map onto anything as-is. Of the three charting constraints: lazy chunk done, the other two now mean pausing mindwalk's own rAF loops when the tab is hidden or the surface inactive — sharpened in the map's fog.Verification notes
- Verified via Playwright headless Chromium against a
vp run dev --home-dir .t3stack seeded with a snapshot of real userdata (the t3-code preview MCP surface was down; snapshot/evaluate failed even onabout:blank). - Thread used: one rooted at
/home/dylank/Projects/t3code, so both sides mapped the identical tree. pnpm typecheckclean inapps/web.
- Copy —
Part of #1
Question
Get mindwalk's two scenes rendering inside
apps/webagainst fixture data, before any adaptation. This is the known-good baseline everything else is judged against.Copy near-verbatim from
.repos/mindwalk/web/src, under the MIT notice:scene/—CityScene.tsx(638),TreeScene.tsx(656),treeLayout.ts(169),sceneUtils.ts(144),dirLabels.ts(145),trail.ts(79),textures.ts(60)playback/—reducer.ts,recorder.ts(251 total)types.ts(271)Do not copy
App.tsx(876),state/(123), orapi/(74) — that is mindwalk's shell talking to its Go server, and T3 has its own. Do not copystyles.csswholesale; styling is the next ticket.Why verbatim. This code is where mistranslation renders almost right — squarified rect math, instanced-mesh buffer indexing, coordinate conventions, colour-space handling. Those cost days to bisect. A mistranslated shell just fails to compile.
Set-up constraints from charting: three.js + react-three-fiber, lazy-loaded as its own chunk,
frameloop="demand"by default with a continuous loop only while playback runs. There are no 3D dependencies in the repo today, so this ticket adds them.Reference to compare against: a local
mindwalk serverenders the same repo. Compare screenshot by screenshot — Tree and Terrain both, they have equal billing. Fixture data can come fromGET /api/sessions/<key>/citymapand/traceon that instance, or from the citymap service once it lands.Resolved when both views render this repo's citymap in T3's web app and visibly match the reference.
