ReportRunner
Download the latest ReportRunner.exe here
- It's a single EXE, no installation or unzip operation of 40+ binaries is required.
- Works with AQTS 2017.3-onwards.
- Run a report from the command line.
- Uses standard process exit codes. 0 for success, 1 for errors.
- Supports the common command line options syntax used by many free Aquatic Informatics tools.
- Logs its output to the standard log location of
%ProgramData%\Aquatic Informatics\AQUARIUS\Logs\ReportRunner.log - Works equally well from CMD.EXE, bash, or Powershell.
- Consumes the clipboard JSON from the Report app
- Uses reasonable defaults when it can
- Command-line parameters get merged with anything retrieved from JSON
- Perform time-series identifier => unique ID lookups automatically. You can specify either the unique ID directly or an identifier in "Parameter.Label@Location" syntax.
- Specify report output type (including plot pdf, plot png, pdf, csv, and hopefully xml dataset one day)
- Optionally wait for the report request to complete
- Optionally download the generated file
- Many arguments can be figured out from context.
-TimeSeries="Stage.Label@Location"and"Stage.Label@Location"mean the same thing.
Commands:
- List => lists all installed reports
- CreateTemplate => saves a JSON of a report's parameter list
- Run => queues the report request. Optionally wait until complete
Versions of ReportRunner.exe before 2018.3 were much more limited in functionality.
- Previous version were distributed as a
ReportRunner.ziparchive, containing 40+ files. This archive needed to be unzipped and deployed somewhere. The new version is single EXE, which can be run from any folder. - Command lines which worked with older versions of
ReportRunnercontinue to work, so the new ReportRunner is a drop-in replacement.
Run AQTS report requests from the command-line.
usage: ReportRunner [-option=value] [@optionsFile] [command] [timeSeriesIdentifier] [template.json] [output.pdf|csv] [relativeTime]
Supported -option=value settings (/option=value works too):
======================== Server credentials
-Server AQTS server name [default: localhost]
-Username AQTS user name [default: admin]
-Password AQTS password [default: admin]
======================== Report parameters, which override any values loaded from JSON
-ReportType The report output type.
-ReportName The name of AQTS report. Use the /Command=List option to list the installed reports.
-Locale The locale of the generated report [default: en]
-RelativeTimeRange Sets the relative time range for the report
-UtcOffset Set the UTC Offset used in report requests. Defaults to the UTC offset of the first time-series.
-IsTransient Set to false to keep the report permanently. Uses the JSON template value, if present, otherwise defaults to true.
-TimeSeries Sets a time-series identifier report parameter
-LocationInput Sets a location input report parameter
-Tags Sets a report tag. See below for details.
======================== Useful side-effects
-Command The command to perform. One of List, CreateTemplate, Run. [default: Run]
-JsonTemplate The report template saved as JSON
-SaveOutputFile Save the generated report to this file
-WaitForComplete When True, wait for the generated report to complete [default: False]
-RemoveDuplicateReports When True, deletes any generated reports with the same ReportTitle. [default: True for permanent reports]
======================== Compatibility options. Prefer using other options describe above.
-ParametersFilePath Compatibility alias for /JsonTemplate= option
-Login Compatibility alias for /Username= and /Password= options
-LogFileName Compatibility alias (no longer has any effect)
Use the @optionsFile syntax to read more options from a file.
Each line in the file is treated as a command line option.
Blank lines and leading/trailing whitespace is ignored.
Comment lines begin with a # or // marker.
Relative Time Range Syntax: <type>[/<value>][/<unit>][/<value2>]
<type> - One of LatestComplete, MostRecent, WaterYear, Year, Month, Day, DateRange, EntireRecord.
<value> - Required for all types except EntireRecord. Usually an integer, but could be an ISO-8601 timestamp.
<unit> - Required for all types except EntireRecord and DateRange. One of None, WaterYears, Years, Months, Days.
<value2> - Optional secondary value, an ISO-8601 timestamp. Only used for DateRange type.
Ex. /RelativeTimeRange=MostRecent/2/Days - The most recent 2 days
/RelativeTimeRange=DateRange/2017-04-01T00:00:00Z/2017-04-02T00:00:00Z - All of April 1st, 2017
/RelativeTimeRange=DateRange/2017-05-01/2017-05-31 - All of May 2017
UTC Offsets can be +HH:MM, -HH:MM, or ISO 8601 durations (Ex. PT2H or -PT3H30M).
Tag Syntax: The /Tags= option can be specified multiple times.
/Tags=TagName - Specify a simple tag by name.
/Tags=PicklistTag:Value - Specify a picklist tag by name, colon, and value.
/Tags= - An empty value clears all exist tags from the request.
Unknown /name=value options not listed above will be treated as report parameters.
Command-line parameters will override JSON template parameters of the same name.
This is the main use case for ReportRunner.exe.
AQTS 2019.3 ships with ReportRunner.exe installed on the server at this default path:
%ProgramFiles%\Aquatic Informatics\AQUARIUS Server\ReportPluginPackages\ReportRunner.exe.
You can also download ReportRunner.exe from AI Source and run it from any Windows computer on your network.
Scheduling a report to be generated periodically involves three steps:
- Create a JSON report template with all the settings required to create the report (outlined below)
- Having
ReportRunner.exeinstalled on a system somewhere on your network (it can be run from the app server, or from another Windows computer on your network) - Using a standard scheduling tool (like Windows Task Scheduler) to run
ReportRunner.exewith the JSON template and any other command line options.
Successful scheduling of report requests will require an understanding of the ReportRunner.exe command-line options.
ReportRunner.exe uses the common command line options syntax used by many free Aquatic Informatics tools.
Integrators are strongly encouraged to use the @filename.ext approach to store all the command-line options in a text file, to simplify the command-line signature and to document why special options are used.
This example makes a few assumptions:
- Runs on the AQTS app server, since
ReportRunner.exeis included with the server installation from AQTS 2019.3 onwards. - A new directory has been created at
C:\Reportsto contain both JSON report templates and@options.txtcommand-line text files. - A JSON report template for the daily mean of the last 3 months has been saved to
C:\Reports\DailyMeanLast3Months.json - A command line options text file to invoke the report has been saved to
C:\Reports\DailyMeanLast3Months.txt
We'll schedule this report to run every morning at 7 AM local time, using the Windows Task Scheduler:

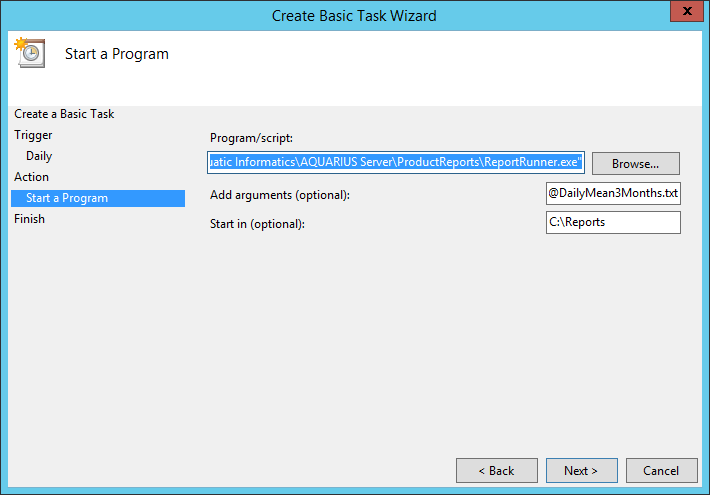

- Click Start -> All Programs -> Accessories -> System Tools -> Task Scheduler
- From the Action menu on the right, Select Create Basic Task. Give the task a name, select a Daily trigger, and enter 07:00 AM as the desired start time.
- For Action, select Start a Program.
- For Program/scipt, click the Browse button, and select the location of `ReportRunner.exe'.
- For Add arguments, enter
@DailyMeanLast3Months.txt(there should be no space between the@sign and the filename) - For Start in:, enter
C:\Reportsas the default working directory. - Click Next, then Finish.
The C:\Reports\DailyMeanLast3Months.txt file can be as simple as these 7 lines:
# Specify the AQTS credentials used to run the report
/Server=localhost
/Username=myaccount
/Password=mysekret
# The JSON report template is in the same folder as this text file.
DailyMeanLast3Months.json
Note that each time this task is run, a report request will be queued asynchronously, but the task will exit before the report is actually generated (usually within a few seconds).
Any report which can be run from the Report browser app can also be run from the command line using ReportRunner.exe.
The basic workflow to create the report template is:
- Log into Springboard
- Launch the Report app in a new browser tab
- Tweak the report request parameters (title, description, date ranges, output format, etc) until the generated report matches your needs.
- Once you are satisfied with the resulting report, then create a JSON template containing all the current report request settings.
Saving the JSON template is currently an awkward set of 7 steps. Sorry about that.
It should be a simple button click that immediately downloads a JSON file to your browser, but right now it is currently a multi-step sequence documented below. Hopefully this clunky experience will be improved in a future AQTS release.

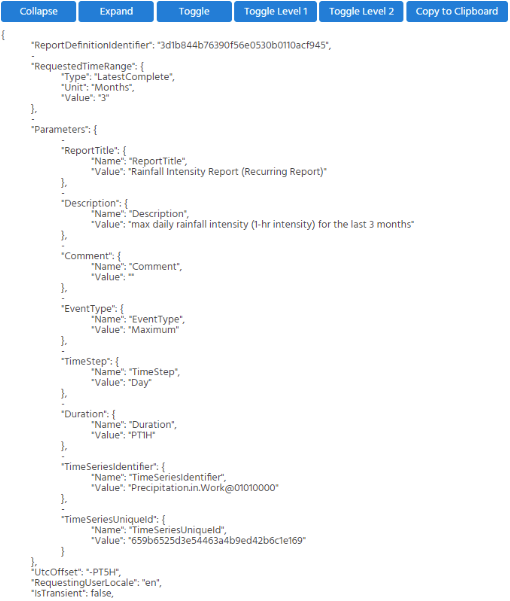

The new page will show all of the report settings in a structured text display.
Note: This structured text looks suspiciously like JSON, but it actually isn't valid JSON. If you try to select this text using your mouse, it will contain extra "+" and "-" characters which aren't valid JSON. So instead, proceed to step 2.

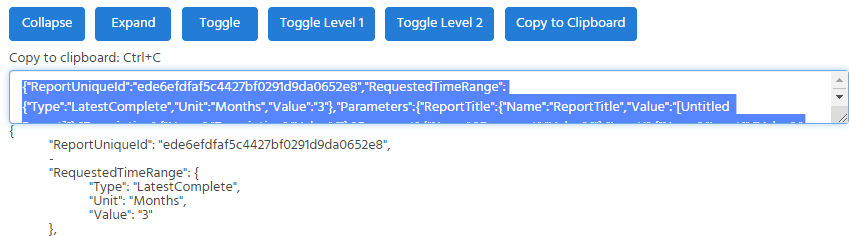

The revealed window will contain all the settings as valid JSON, and the entire JSON text payload will already be selected.
Typing Ctrl-C will copy the JSON payload to the clipboard
We need to paste the clipboard contents into a simple text document.
Use an editor that works on plain text files, like Notepad, Notepad++, or Visual Studio Code.
Don't use a rich text editor like Microsoft Word or WordPad, since those editors will add extra characters that aren't valid for JSON documents.
Ctrl-V will paste the JSON payload from step 3 into the blank text document.

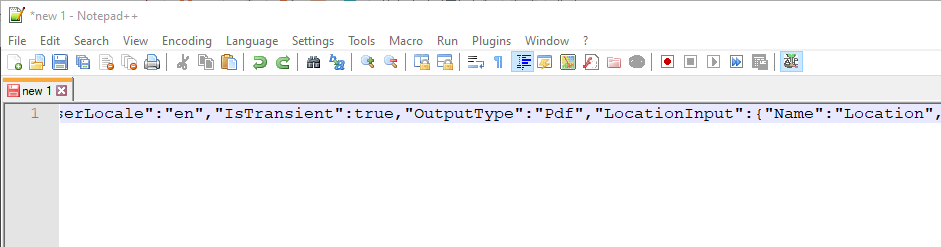

The JSON payload is formatted as a single, very long line.
This is totally fine, it is valid JSON. You could just save the JSON as-is.
But the single line format it is very hard for humans to read and reason about.
Many text editors like Notepad++ or Visual Studio Code will have options to quickly reformat JSON documents.
- Notepad++ -
CtrlShiftAltM - VSCode -
ShiftAltF
Save the text file with a ".json" file extension.
This example was a Computation Chain report for the last 3 months of data, so a good filename might be ComputationChainLast3Months.json.
Using a ".json" file extension will allow ReportRunner to assume that the file is a JSON report template.
This is like previous versions of ReportRunner.exe. It simply queues a report request from a JSON file stored locally. It does not wait for the report to actually be generated.
C:\> ReportRunner.exe /server=doug-vm2012r2 WindRose.json
15:10:10.831 INFO - Connected to http://doug-vm2012r2/AQUARIUS/Publish/v2 (2018.1.95.0)
15:10:10.849 INFO - Loading JSON report template 'WindRose.json' ...
15:10:11.064 INFO - Queued report job 181356 without waiting for report to complete.Note that since the template filename ends with ".json", ReportRunner figured out that you meant /JsonTemplate=WindRose.json and saved you a bit of typing.
Now add a PDF filename to the command line, and the tool will wait for the report to be generated and will download the PDF to the given filename.
C:\> ReportRunner.exe /server=doug-vm2012r2 WindRose.json rose.pdf
15:16:05.614 INFO - Connected to http://doug-vm2012r2/AQUARIUS/Publish/v2 (2018.1.95.0)
15:16:05.632 INFO - Loading JSON report template 'WindRose.json' ...
15:16:05.819 INFO - Waiting for report job Id=181357 ...
15:16:18.962 INFO - Report job 181357 completed in 13.1 seconds.
15:16:19.373 INFO - Saved 476.5 KB to 'rose.pdf'.If the report supports CSV output, you can save a CSV file too.
This is one of the more powerful use cases for ReportRunner.
- Use the Report app to tweak all the report parameters until your report output is to your satisfaction.
- Click the "View all settings used by this report" link and download the settings as a JSON template.
- Run ReportRunner with that template, and just override a few parameters (like the time-series or the date range) on the command line.
$ ./ReportRunner.exe -server=doug-vm2012r2 WindRose.json rose.pdf "Wind Dir.Work@01372058" "Wind Vel.Work@01372058" -ReportTitle="Wind rose for 01372058"
14:39:00.486 INFO - Connected to http://doug-vm2012r2/AQUARIUS/Publish/v2 (2018.2.100.0)
14:39:00.505 INFO - Loading JSON report template 'WindRose.json' ...
14:39:00.760 INFO - Waiting for report job Id=182811 ...
14:39:09.407 INFO - Report job 182811 completed in 8.6 seconds.
14:39:09.501 INFO - Saved 477.54 KB to 'rose.pdf'.
14:39:09.520 INFO - Deleted transient reportIn this example, ReportRunner saves you a few more keystrokes, by recognizing the <Parameter>.<Label>@<LocationIdentifier> syntax in context, so you don't need to provide the /TimeSeries= prefix.
$ ./ReportRunner.exe -server=doug-vm2012r2 list
15:02:49.469 INFO - Connected to http://doug-vm2012r2/AQUARIUS/Publish/v2 (2018.1.95.0)
15:02:49.547 INFO - There are 7 reports installed.
15:02:49.548 INFO - ReportName='Change List Report' OutputTypes=Pdf
15:02:49.549 INFO - ReportName='Computation Chain' OutputTypes=Pdf,Csv,PlotPdf,PlotPng
15:02:49.549 INFO - ReportName='Daily Mean by Year' OutputTypes=Pdf
15:02:49.551 INFO - ReportName='Event Analysis' OutputTypes=Pdf,Csv
15:02:49.552 INFO - ReportName='Intensity Analysis' OutputTypes=Pdf,Csv
15:02:49.552 INFO - ReportName='Profile Plot' OutputTypes=Pdf
15:02:49.553 INFO - ReportName='Wind Rose' OutputTypes=PdfReportRunner recognizes the command keywords List, CreateTemplate, and Run without needing the /Command= prefix, to save you a few keystrokes.
When the /ReportName=xxx option is used, the name should match a name from /Command=LIST output.
Many report names contain a space, so they will need to be quoted if specified on the command line, but can be unquoted if used from an an @options.txt file. See the common command line options section for details.
$ ./ReportRunner.exe -server=doug-vm2012r2 -ReportName="Change List Report" CreateTemplate -JsonTemplate=ChangeList.json
15:20:25.356 INFO - Connected to http://doug-vm2012r2/AQUARIUS/Publish/v2 (2018.1.95.0)
15:20:25.507 INFO - Loaded report definition for 'Change List Report'
15:20:25.509 INFO - Overriding template IsTransient=False with True
15:20:25.510 INFO - Overriding template RequestingUserLocale='' with 'en'
15:20:25.510 INFO - Overriding template OutputType=Unknown with Pdf
15:20:25.513 INFO - Creating 'ChangeList.json'.The JSON template generated will contain all the default parameter values.
ReportRunner.exe -ReportName="Daily Statistic by Year" -RelativeTimeRange="MostRecent/2/Years" -Statistic="Sum" -DataCoverageThresholdPercent=80 -ReportTitle="Daily Statistic by Year" -Description="Daily Sum" -TimeSeries=5fbf488c53314175bd7aee442810e591
ReportRunner.exe -ReportName="Double Mass Plot" -RelativeTimeRange="MostRecent/20/Years" -PlotType=DoubleMass -IntervalCount="1" -IntervalUnit=Month -ReportTitle="Double Mass" -Description="Most Recent 20 years" 5fbf488c53314175bd7aee442810e591 29ad1f3d40b844d9826edcc640a2afee
