STM32: can_api.c files factorization #3737

bcostm · 2017-02-10T10:03:48Z

Description

This PR factorize the can_api.c files which were present in all TARGET_STM32Fx folders.

Changes:

A single can_api.c file is present in TARGET_STM folder. Common to all STM32 targets.
The specific part (mainly defines) are placed in new can_device.h files in TARGET_STM32Fx folders.

This will also update the can_filter function for all STM32 devices. It has been done previously only for F0 devices (PR #2988)

Status

READY

Migrations

If this PR changes any APIs or behaviors, give a short description of what API users should do when this PR is merged.

NO

Related PRs

#2988

Todos

[ ] Verify the can_filter function on other STM32 devices that F0 ones.

CC @martinjaeger @mgiaco

LMESTM

LGTM

LMESTM · 2017-02-10T14:18:29Z

targets/TARGET_STM/can_api.c

could we use
#if defined(TARGET_STM32F0)
..
#else

rather than the family list ?
Or maybe a specific property name that can be defined in can_device.h files ?
In case a new family is added, this would not require a change here.

Good idea. I'll put a "#else" instead of this big list.

sg- · 2017-02-13T16:36:49Z

If Travis doesn't merge with master you'll need to rebase this to get the fix that had to do with USB and STM folder renames.

bridadan · 2017-02-14T20:08:21Z

retest uvisor

bcostm · 2017-02-15T09:01:15Z

Rebased.

0xc0170 · 2017-02-15T11:16:28Z

/morph test-nightly

mbed-bot · 2017-02-15T11:32:03Z

Result: FAILURE

Your command has finished executing! Here's what you wrote!

/morph test-nightly

Output

mbed Build Number: 1597

Build failed!

0xc0170 · 2017-02-15T11:54:26Z

NUCLEO_F207ZG fails, all 3 toolchains:

05:25:49         [DEBUG] Errors: Error: L6200E: Symbol can_filter multiply defined (by can_api.o and can_api.o).
05:25:49         [DEBUG] Errors: Error: L6200E: Symbol can_free multiply defined (by can_api.o and can_api.o).
05:25:49         [DEBUG] Errors: Error: L6200E: Symbol can_frequency multiply defined (by can_api.o and can_api.o).
05:25:49         [DEBUG] Errors: Error: L6200E: Symbol can_init multiply defined (by can_api.o and can_api.o).
05:25:49         [DEBUG] Errors: Error: L6200E: Symbol can_irq_free multiply defined (by can_api.o and can_api.o).
05:25:49         [DEBUG] Errors: Error: L6200E: Symbol can_irq_init multiply defined (by can_api.o and can_api.o).
05:25:49         [DEBUG] Errors: Error: L6200E: Symbol can_irq_set multiply defined (by can_api.o and can_api.o).
05:25:49         [DEBUG] Errors: Error: L6200E: Symbol can_mode multiply defined (by can_api.o and can_api.o).
05:25:49         [DEBUG] Errors: Error: L6200E: Symbol can_monitor multiply defined (by can_api.o and can_api.o).
05:25:49         [DEBUG] Errors: Error: L6200E: Symbol can_rderror multiply defined (by can_api.o and can_api.o).
05:25:49         [DEBUG] Errors: Error: L6200E: Symbol can_read multiply defined (by can_api.o and can_api.o).
05:25:49         [DEBUG] Errors: Error: L6200E: Symbol can_reset multiply defined (by can_api.o and can_api.o).
05:25:49         [DEBUG] Errors: Error: L6200E: Symbol can_tderror multiply defined (by can_api.o and can_api.o).
05:25:49         [DEBUG] Errors: Error: L6200E: Symbol can_write multiply defined (by can_api.o and can_api.o).
05:25:49         [DEBUG] Errors: Error: L6200E: Symbol CAN1_RX0_IRQHandler multiply defined (by can_api.o and can_api.o).
05:25:49         [DEBUG] Errors: Error: L6200E: Symbol CAN1_SCE_IRQHandler multiply defined (by can_api.o and can_api.o).
05:25:49         [DEBUG] Errors: Error: L6200E: Symbol CAN1_TX_IRQHandler multiply defined (by can_api.o and can_api.o).
05:25:49         [DEBUG] Errors: Error: L6200E: Symbol CAN2_RX0_IRQHandler multiply defined (by can_api.o and can_api.o).
05:25:49         [DEBUG] Errors: Error: L6200E: Symbol CAN2_SCE_IRQHandler multiply defined (by can_api.o and can_api.o).
05:25:49         [DEBUG] Errors: Error: L6200E: Symbol CAN2_TX_IRQHandler multiply defined (by can_api.o and can_api.o).
05:25:49         [DEBUG] Errors: Error: L6200E: Symbol __asm___9_can_api_c_can_init____REV16 multiply defined (by can_api.o and can_api.o).
05:25:49         [DEBUG] Errors: Error: L6200E: Symbol __asm___9_can_api_c_can_init____REVSH multiply defined (by can_api.o and can_api.o).
05:25:49         [DEBUG] Errors: Error: L6200E: Symbol __asm___9_can_api_c_can_init____RRX multiply defined (by can_api.o and can_api.o).
05:25:49         [DEBUG] Errors: Not enough information to list the image map.
05:25:49         [DEBUG] Errors: Finished: 1 information, 0 warning and 23 error messages.

bridadan · 2017-02-15T16:01:33Z

Hi @bcostm, you can also view detailed results by clicking on the mbed Build Number: 1597 link in the mbed-bot's last comment.

bcostm · 2017-02-16T09:12:37Z

I have removed the can_api.c file which was still present in the TARGET_STM32F2 folder. I think this is the root cause of this error. But I don't understand why I don't have this error myself when I build this target ? This is why I didn't see it before. I rebased again also.

bridadan · 2017-02-16T14:56:33Z

/morph test-nightly

mbed-bot · 2017-02-16T17:25:56Z

Result: SUCCESS

Your command has finished executing! Here's what you wrote!

/morph test-nightly

Output

mbed Build Number: 1612

All builds and test passed!

svogl · 2017-02-20T09:26:35Z

Hi all,
I'd really be in favor of merging this; we've a small bugfix here for can_write: the current implementation does not handle the case when no tx mailbox is available.

I can supply a patch for this PR or issue a separate one, whatever's less work.
Best
S

0xc0170 · 2017-02-20T09:46:12Z

I'd really be in favor of merging this; we've a small bugfix here for can_write: the current implementation does not handle the case when no tx mailbox is available.

@svogl Please send separate patch

0xc0170 · 2017-02-20T09:49:17Z

targets/TARGET_STM/can_api.c

Can you please fix formatting { as it was?

I am confused now. I thought the correct coding style was to have the { at the end of the function name ?

No, it is not. There are still some leftovers in the code base, we are trying to fix those.

Create can_device.h files to define specific code for the STM32 family

@mgiaco

Now MBED_A27/A28 tests are OK again. Problem seen also by @mgiaco and discussed in PR 2988.

Change also the coding style for the "{".

…d now)

This reverts commit 32b801b.

bridadan · 2017-02-20T18:48:13Z

retest uvisor

bridadan · 2017-02-20T19:16:56Z

/morph test

mbed-bot · 2017-02-21T00:38:04Z

Result: SUCCESS

Your command has finished executing! Here's what you wrote!

/morph test

Output

mbed Build Number: 1661

All builds and test passed!

svogl · 2017-02-22T08:15:10Z

Cool,
@0xc0170 when will 5.4.0 be released? I'll have to wait to apply our fixes until then.

Lynda96 · 2022-03-22T15:24:09Z

Hi

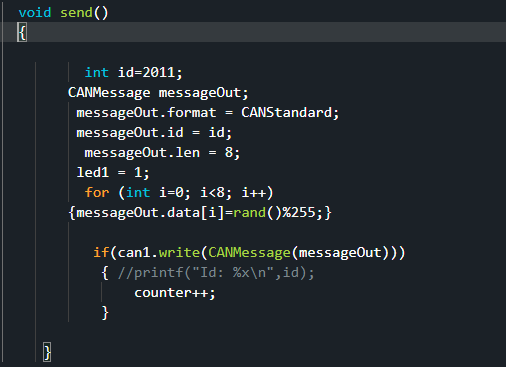

I am working on CAN bus with NUCLEO BOARD ,so I am coding with mbed studio , I am just doing a loop test (send data from CAN1TD and receive it from CAN2RD with the same board ) this is the code that I have tested

it works with frame standard but if i change the format on Extended , it doesn't work , what should you ?

bcostm force-pushed the dev_can_factorization branch from 410b13b to 3bcd827 Compare February 10, 2017 10:11

LMESTM reviewed Feb 10, 2017

View reviewed changes

sg- added the needs: CI label Feb 13, 2017

bcostm force-pushed the dev_can_factorization branch from 2b089e1 to d1911db Compare February 15, 2017 08:59

0xc0170 added needs: work and removed needs: CI labels Feb 15, 2017

bridadan added needs: review and removed needs: work labels Feb 16, 2017

0xc0170 requested changes Feb 20, 2017

View reviewed changes

0xc0170 added needs: work and removed needs: review labels Feb 20, 2017

bcostm added 7 commits February 20, 2017 11:19

Initial commit: copy can_api.c from F0 target

45c7e0d

Add F1 differences.

311648a

Create can_device.h files to define specific code for the STM32 family

Remove can_api.c file for F1 targets

5fa0c4e

Add F2 differences. Mainly add support for CAN2 instance.

1f47619

Add can_device.h for F2 targets

0fd596e

Add F3 differences.

b6b2167

Add support to F4 targets.

0c4688e

bcostm added 7 commits February 20, 2017 11:19

Add support to F7 targets.

caef97c

Add support to L4 targets.

f527ff9

F103 devices: Set CAN_RD pins in Input mode instead of A/F Push-Pull

8568b40

Now MBED_A27/A28 tests are OK again. Problem seen also by @mgiaco and discussed in PR 2988.

Add a #else to cover default STM32 devices for the IRQHandler functions.

eec6e10

Change also the coding style for the "{".

Coding style

32b801b

Remove can_api.c file present in TARGET_STM32F2 folder (no more neede…

02653ad

…d now)

Revert "Coding style"

30565cb

This reverts commit 32b801b.

bcostm force-pushed the dev_can_factorization branch from a8b6d2a to 30565cb Compare February 20, 2017 10:44

bridadan added needs: CI and removed needs: work labels Feb 20, 2017

jeromecoutant mentioned this pull request Feb 21, 2017

STM32 incoming CAN message wrong type and format #3792

Closed

0xc0170 approved these changes Feb 21, 2017

View reviewed changes

0xc0170 added ready for merge release-version: 5.4.0 and removed needs: CI labels Feb 21, 2017

sg- merged commit a8a31da into ARMmbed:master Feb 22, 2017

sg- removed the ready for merge label Feb 22, 2017

bcostm mentioned this pull request Feb 23, 2017

STM32F103 Nucleo CAN init hangs #3826

Closed

bcostm deleted the dev_can_factorization branch February 27, 2017 07:39
