WebLog-Based-Anormaly-Detection Using Linux CLI

Linux(Ubuntu 20.04) CLI를 활용한 Weblog Analysis

Data

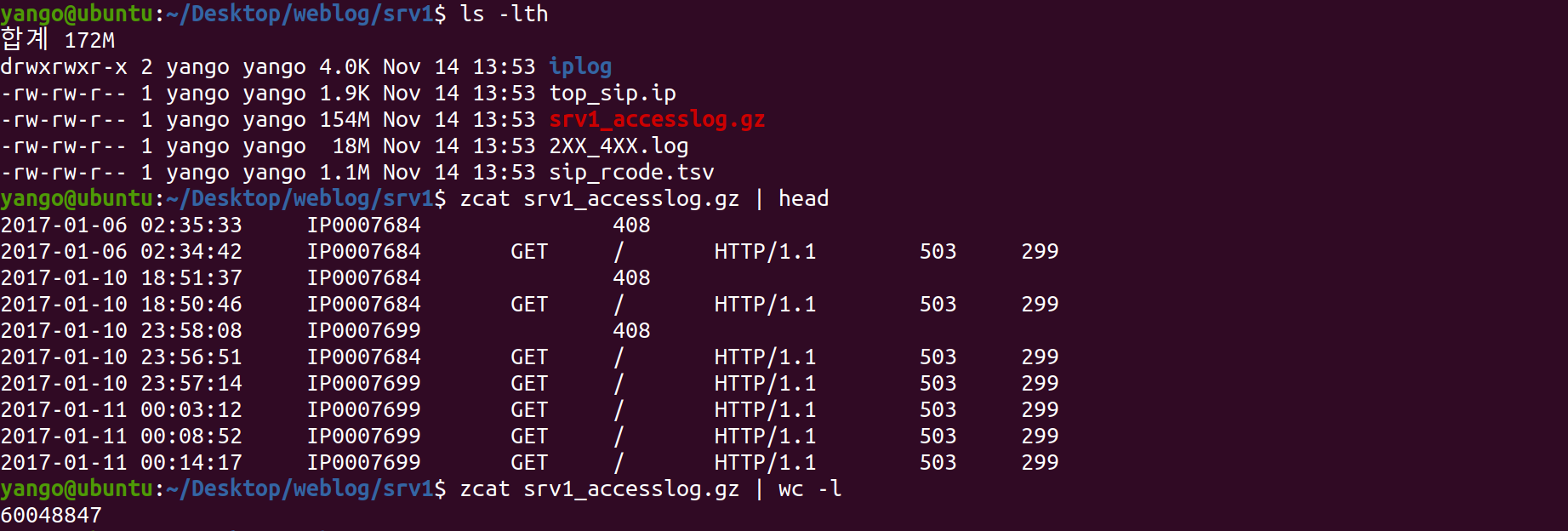

• Datetime / SIP / Method / Payload / Version / ResponseCode / ResponseByte

• about 154MB, 60 million Line of Session data included

1. Connection based Analysis

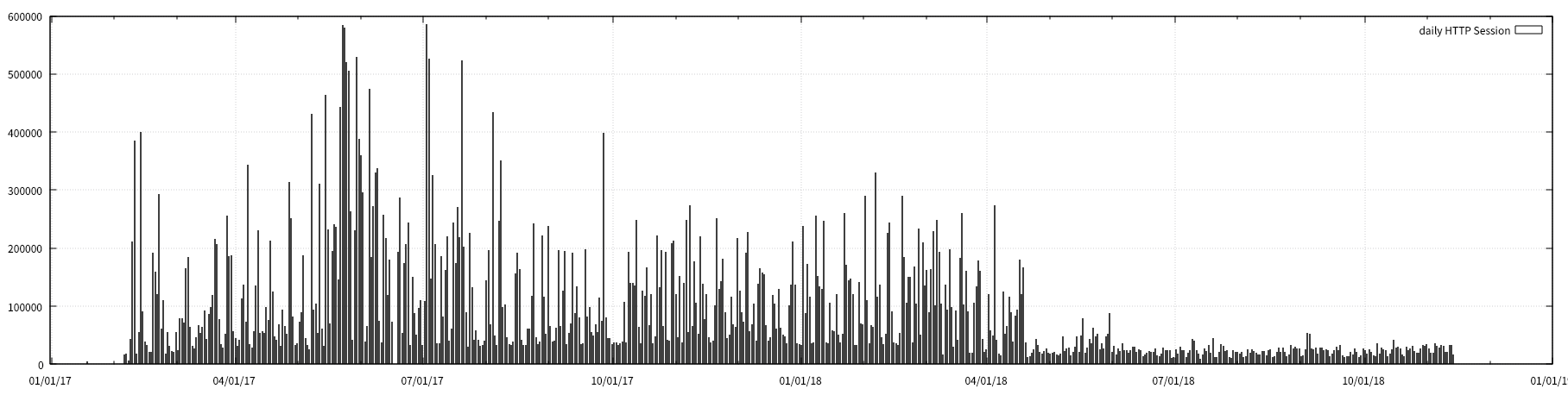

cat srv1_access_daily.tsv | feedgnuplot --domain --timefmt "%Y-%m-%d" --with "boxes lt -1" --legend 0 "daily HTTP Session"

SIP connection

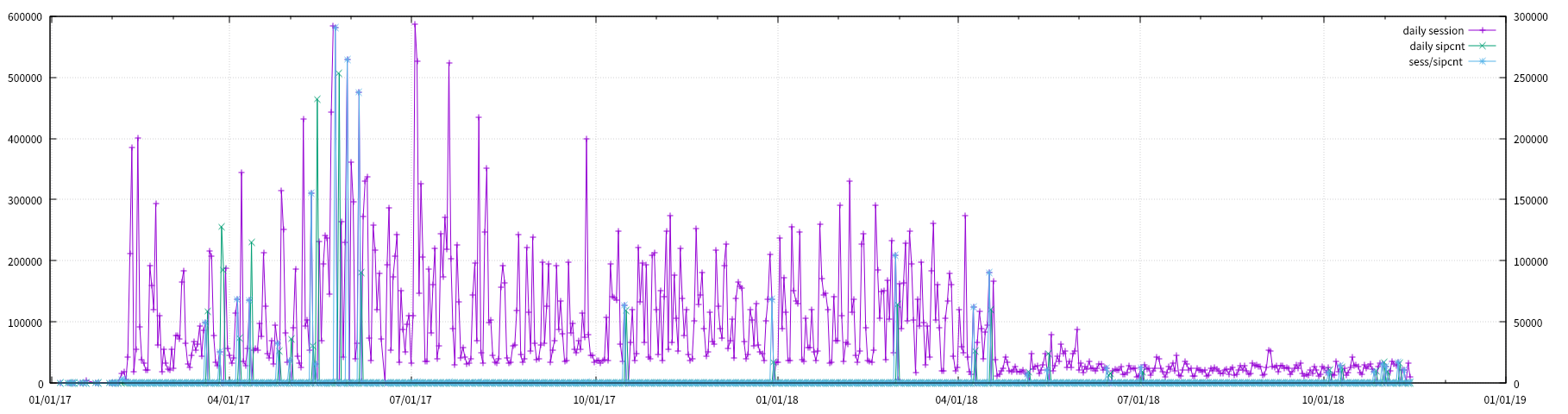

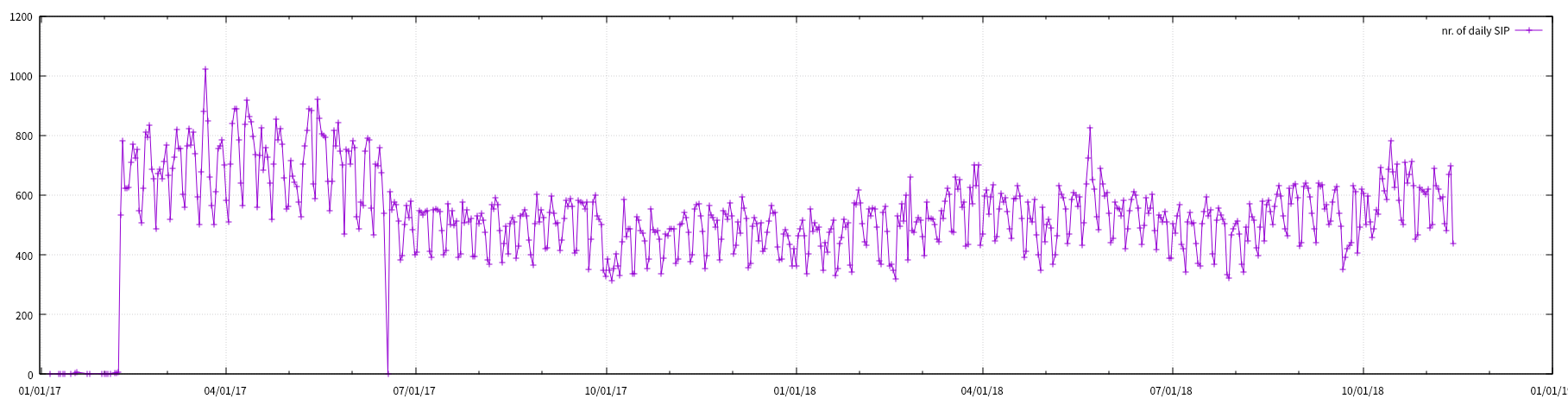

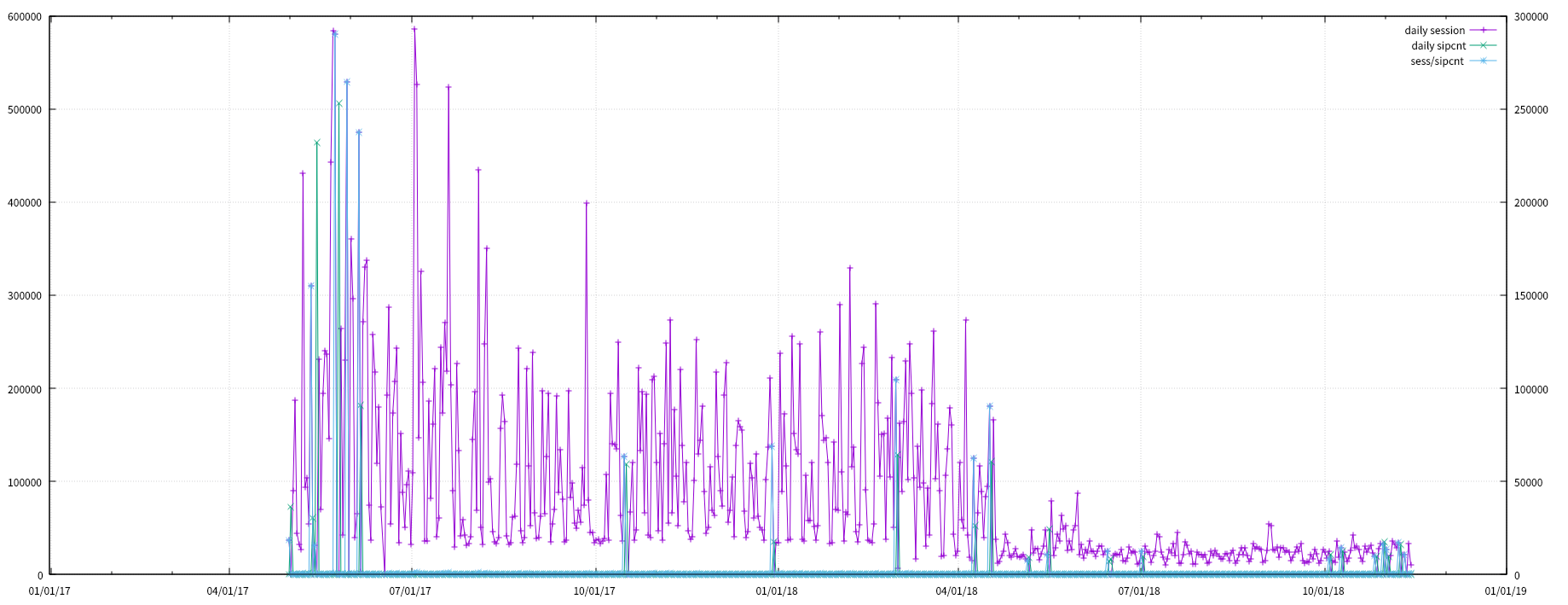

• Daliy SESSION, SIPCNT, SESS/SIPCNT visulization

• Boxplot

• SIP COUNT > 100, Top SEESSION / SIPCOUNT

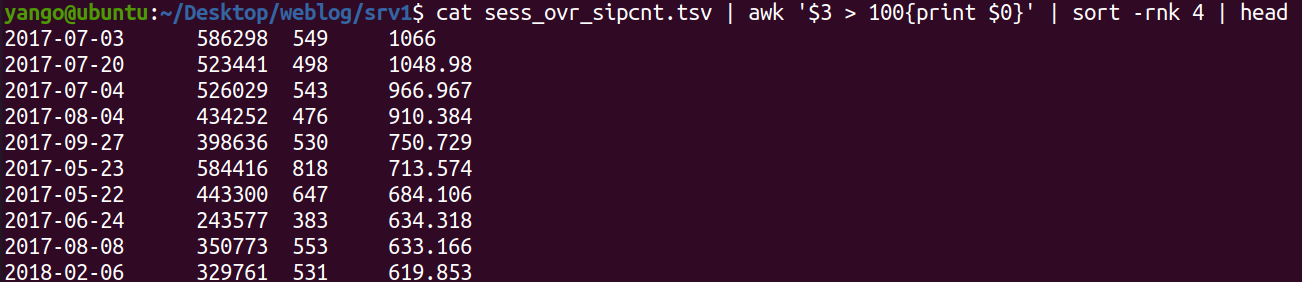

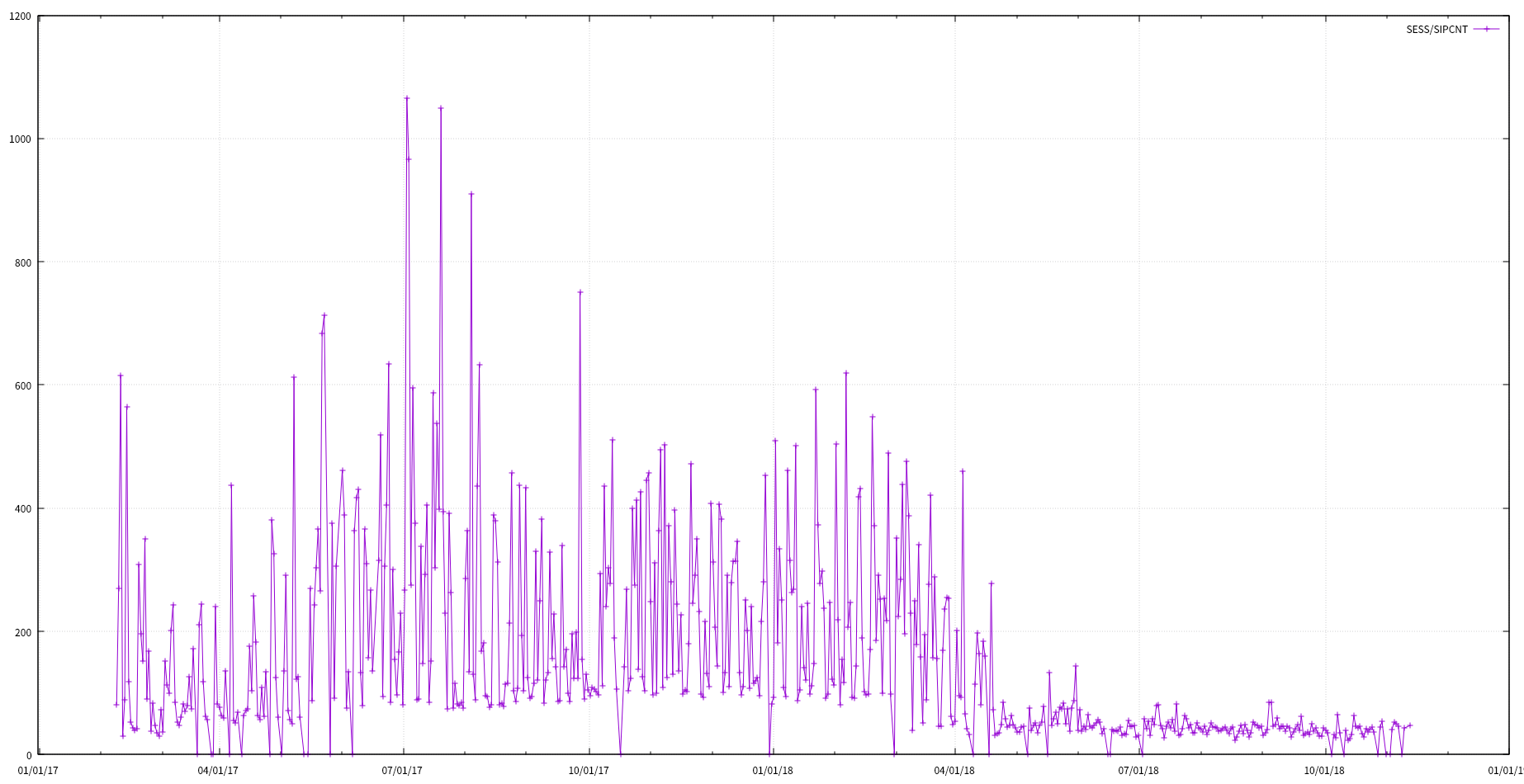

cat sess_ovr_sipcnt.tsv | awk '$3 > 100{print $0}' | awk '{print $1 "\t" $4}' | feedgnuplot --domain --timefmt '%Y-%m-%d' --lines --points --legend 0 "SESS/SIPCNT"

• upper 400
• SESS.CIPCNT > 400 인 일자를 ddos_event.tsv로 생성

for d in $(cat ddos_event.tsv | awk '{print $1}')
do

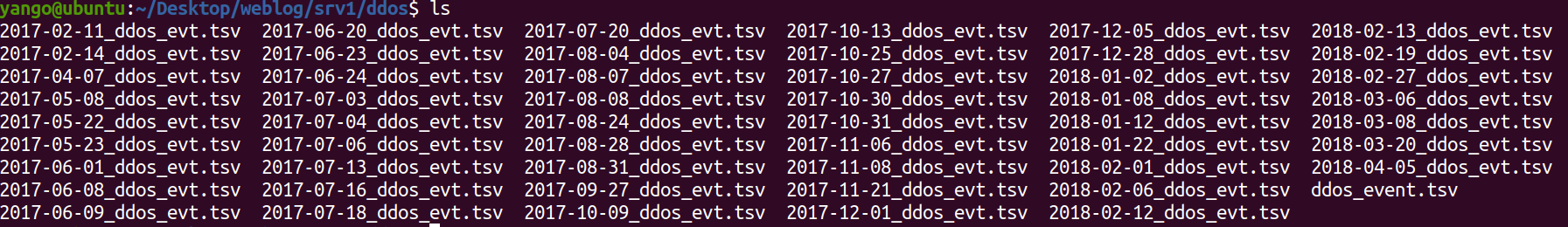

zcat ../srv1_accesslog.gz | awk '$1==date{print $0}' date=$d > $DATE"_ddos_evt.tsv"
done

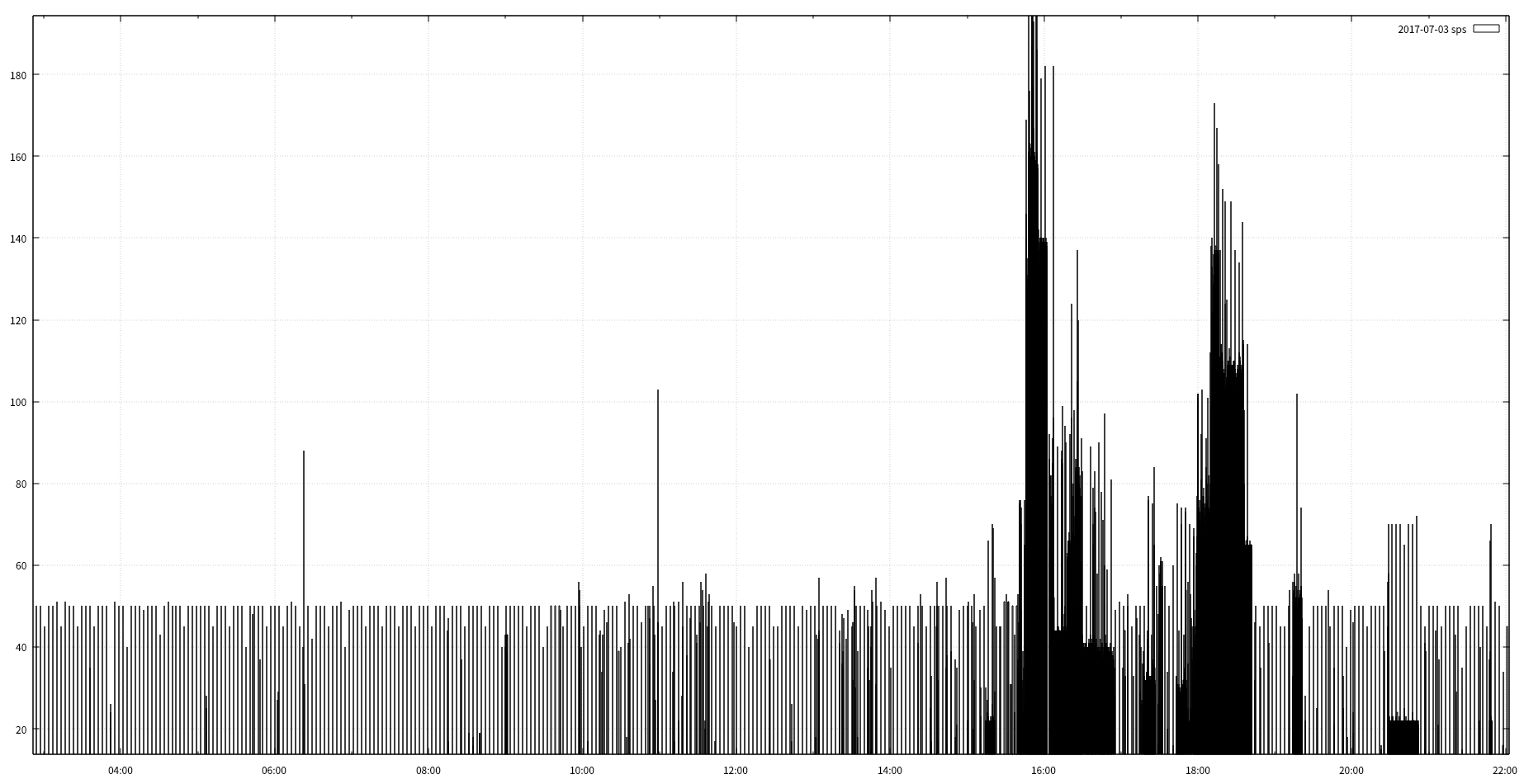

• zcat 2017-07-03_ddos_evt.tsv.gz | awk '{print $2}' | sort | uniq -c | awk '{print $2 "\t" $1}' | feedgnuplot --domain --timefmt "%H:%M:%S" --with 'boxes lt -1' --legend 0 "2017-07-03 sps"

• zcat 2017-07-03_ddos_evt.tsv.gz | awk '{print $2 "\t" $3}' | sort -u | awk '{print $1}' | sort | uniq -c | awk '{print $2 "\t" $1}' > 2017-07-03.sipsec.tsv

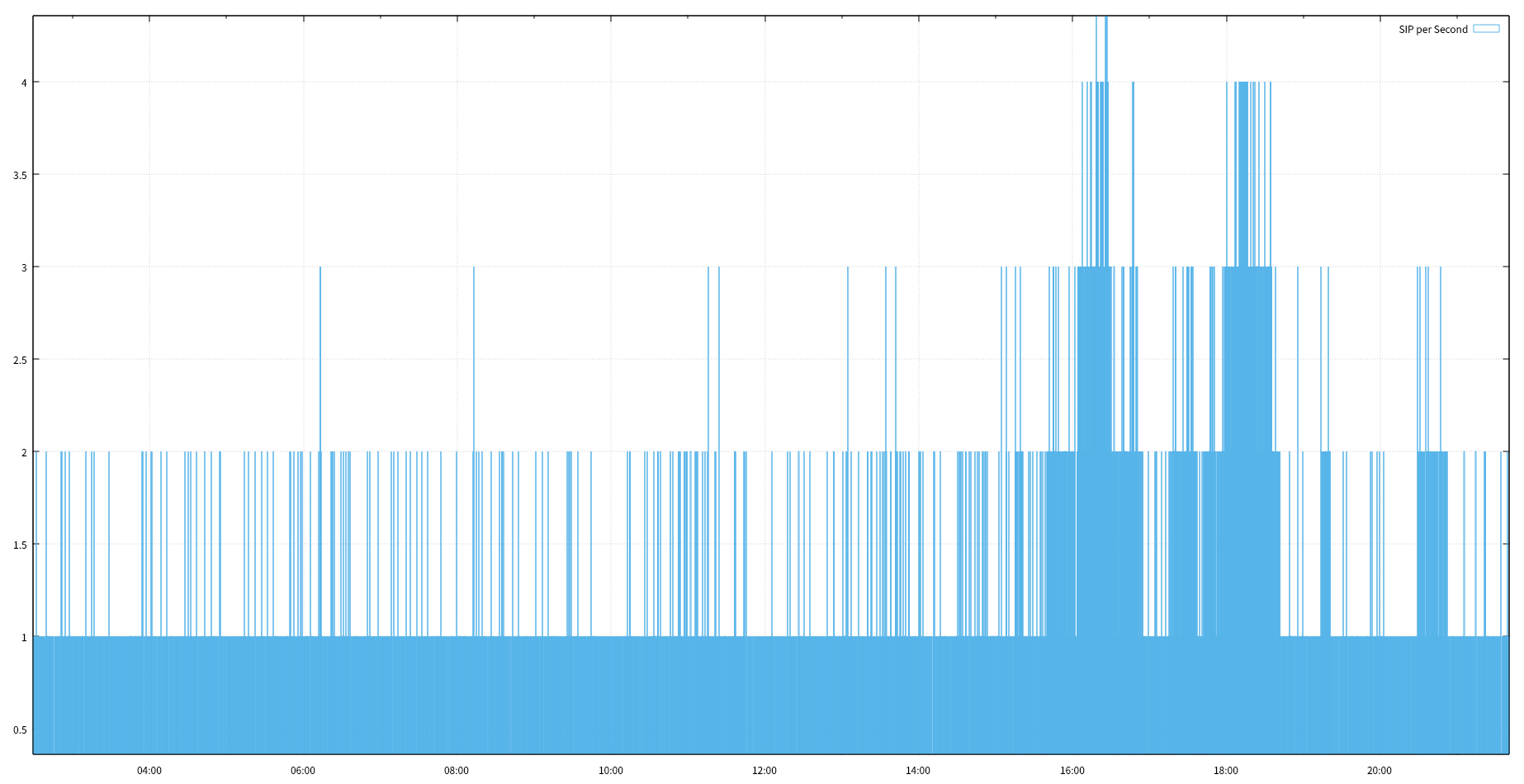

• cat 2017-07-03.sipsec.tsv | feedgnuplot --domain --timefmt "%H:%M:%S" --with 'boxes lt 3' --legend 0 "SIP per Second"

  • SIP PER SECOND

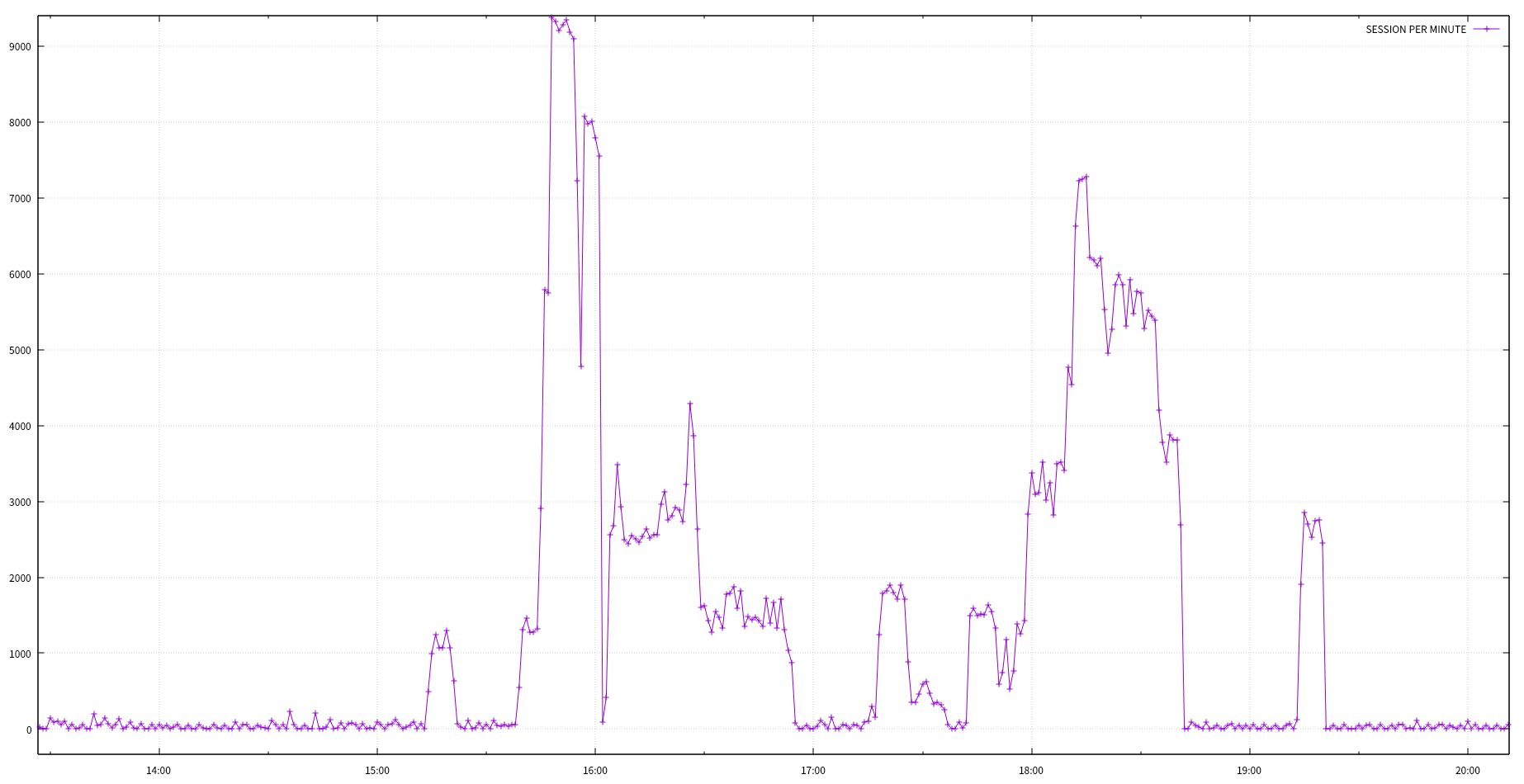

• cat spm.tsv | feedgnuplot --domain --timefmt "%H:%M" --lines --points --legend 0 "SESSION PER MINUTE"

  • SESSION PER MINUTE

  for m in $(cat min)
  do
  TS=$m
  SPM=$(cat spm.tsv | awk '$1==min{print $2}' min=$m)
  SIP=$(cat sipmain.tsv | awk '$1==min{print $2}' min=$m)
  echo $TS $SPM $SIP
  done | awk '{print $0 "\t" ($2+1)/($3+1)}' > ddos_min.tsv

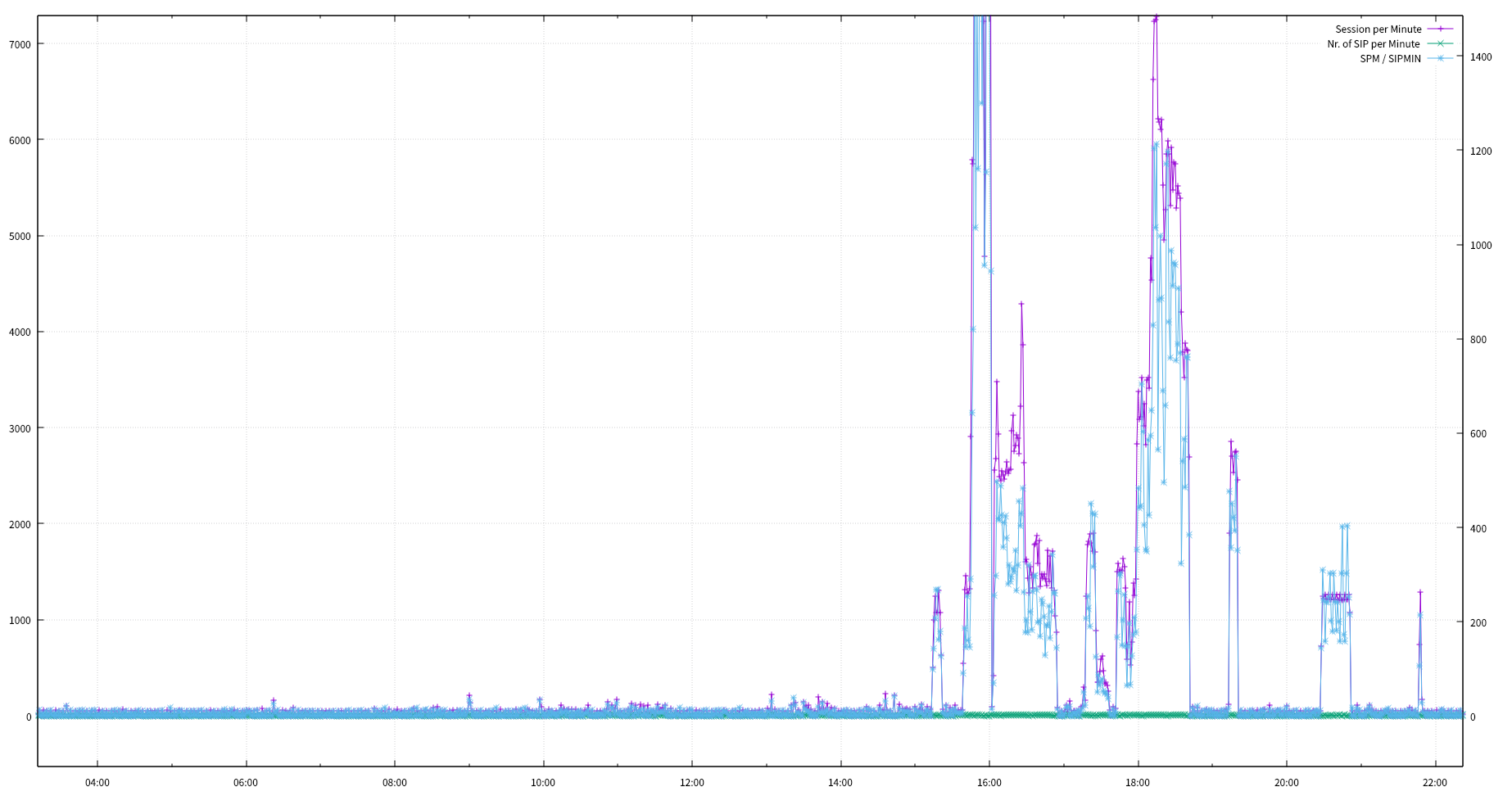

• cat ddos_min.tsv | feedgnuplot --domain --timefmt "%H:%M" --lines --points --y2 2 --legend 0 "Session per Minute" --legend 1 "Nr. of SIP per Minute" --legend 2 "SPM / SIPMIN"
  • 2017-07-03 15:00 ~ 19:00 / 20:30 ~ 21:00

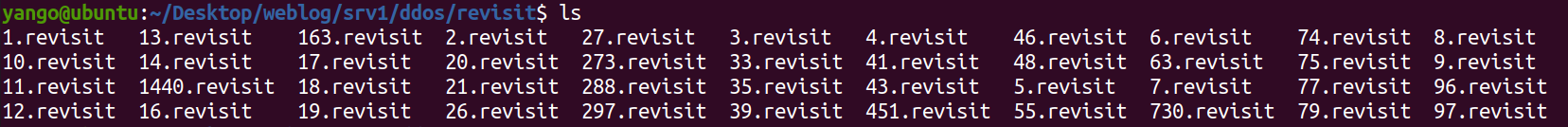

• Revisiting attack IP

  cat ts_min_sip | awk '{print $2}' | sort | uniq -c | while read line
  do
  IP=$(echo $line | awk '{print $2}')
  FN=$(echo $line | awk '{print $1 ".revisit"}')
  echo $IP >> $FN
  done




  zcat 2017-07-03_ddos_evt.tsv.gz | awk '{print $3}' | sort | uniq -c | sort -rn | head
  200465 IP0041058
  118835 IP0040986
   70076 IP0001113
   68682 IP0040922
   29853 IP0084544
   22450 IP1062364
   18371 IP0000782
   17692 IP0001719
   11529 IP0173656
    7691 IP0001227

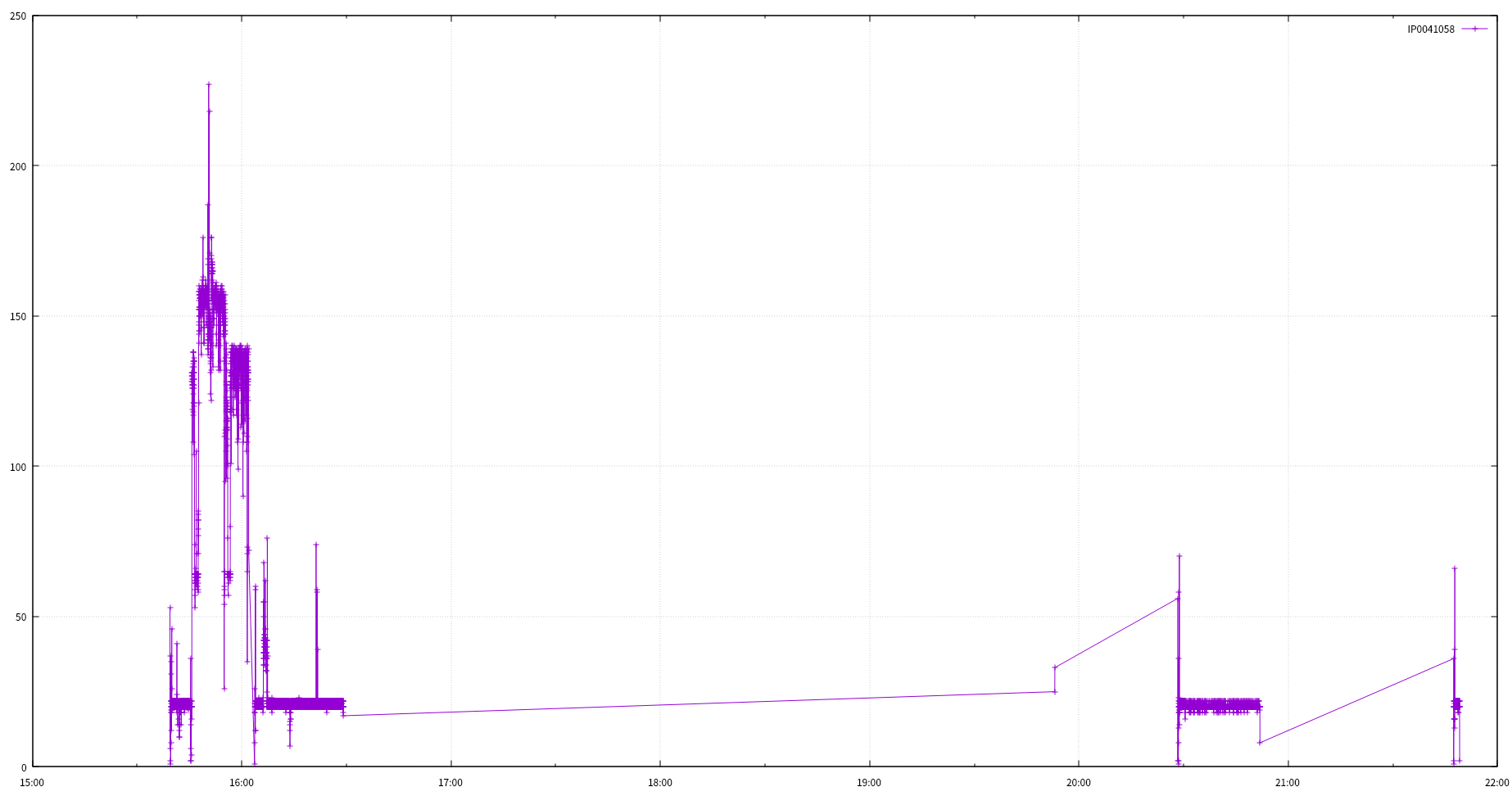

  • IP0041058
  • IP0040986

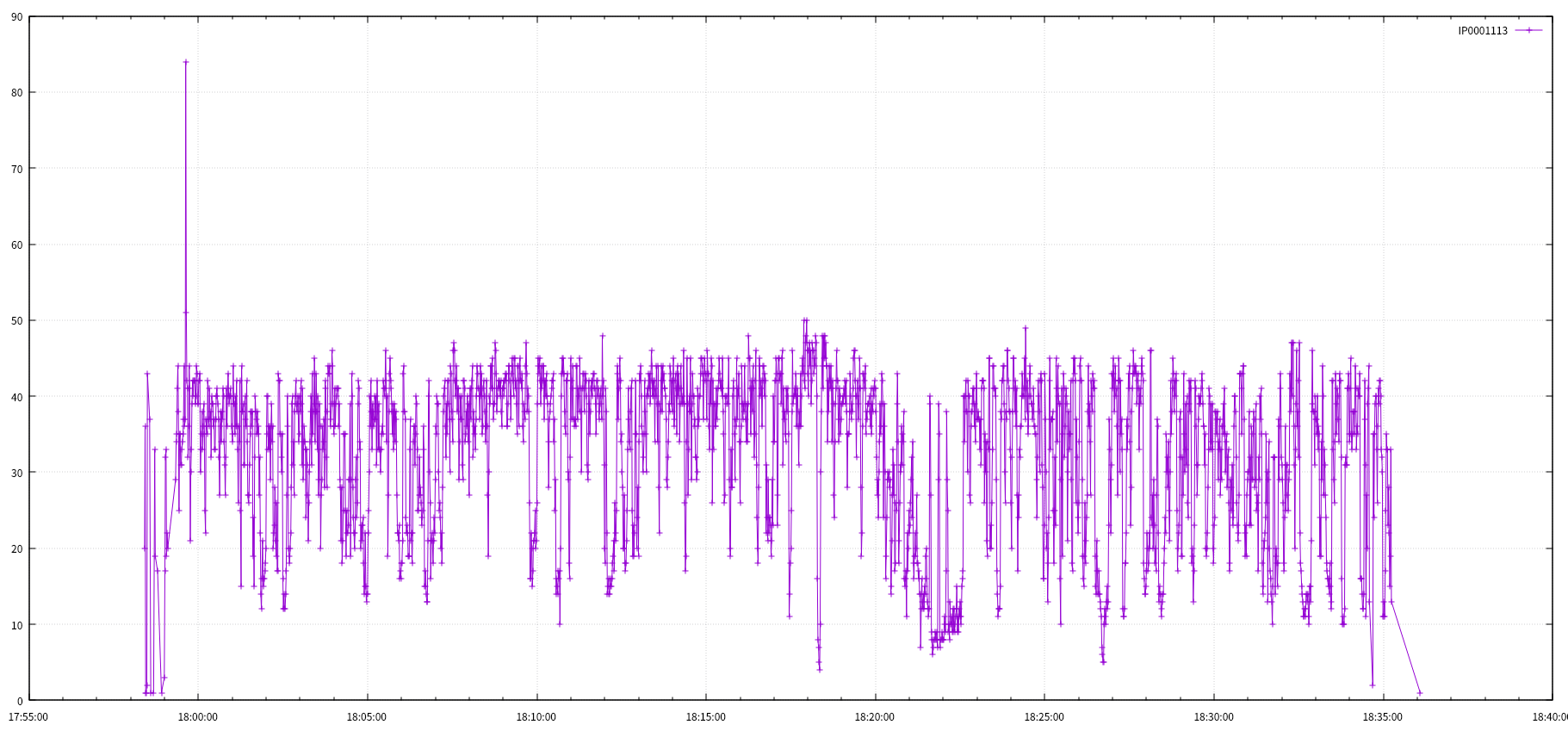

  • IP0001113
  • IP0040922

  DDoS IP discovered.

2. Response Code Based Analysis

Response code 400~

zcat srv1_accesslog.gz | awk '$7~/^[12345]/{print $1 "\t" $7}'|sort | uniq -c | awk '{print $2 "\t" $3 "\t" $1}' |
awk '{if ($2 >= "400" && $2 < 500) print ($0)} > 400_rcode.tsv

cat 400_rcode.tsv | sort -rnk 3 | head | awk '{print $3}'|head
13851
13574
5228
3583
3166
3109
2976
2760
2698
2665

• Response code 4XX record visualization

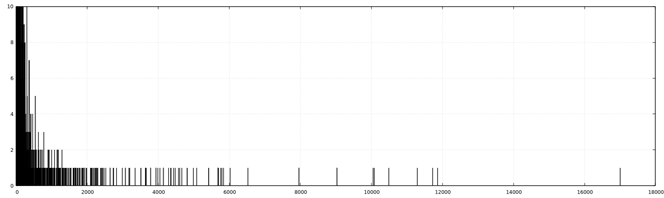

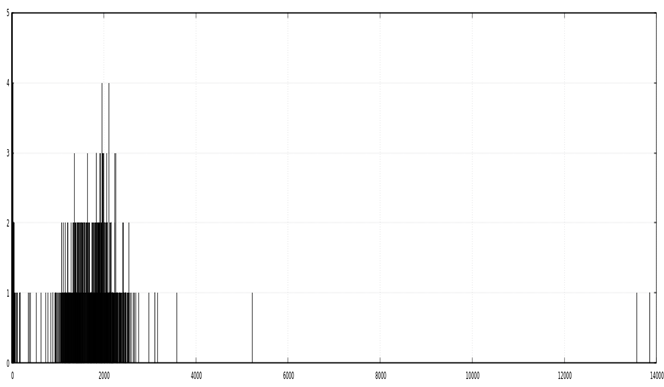

cat 400_r_code.tsv | sort -rnk 3 | awk ‘{print $3}’ | feedgnuplot –histogram 0 –ymax 5

cat 400_rcode.tsv | sort -rnk 3 | awk '{print $1 "\t" $3}' | feedgnuplot --domain --timefmt '%Y-%m-%d' --points

• Response Code 4XX SIP

zcat srv1_accesslog.gz | awk '$7~/^[12345]/{print $3 "\t" $7}'|sort | uniq -c | awk '{print $2 "\t" $3 "\t" $1}' | awk '{if ($2 >=400 && $2 < 500) print $0}' > sip_rcode.tsv

cat sip_rcode.tsv | sort -rnk 3 | head
IP1093735	404	17010
IP0053005	404	11867
IP0008180	404	11730
IP0013767	404	11297
IP0099074	404	10495
IP0002194	404	10088
IP1056836	404	10049
IP1086971	404	9032
IP1087023	404	7962
IP1056822	404	6520

• 4XX

cat sip_rcode.tsv | sort -rnk 3 | head -100 > top_sip.ip

for ip in $(cat top_sip.ip)
> do

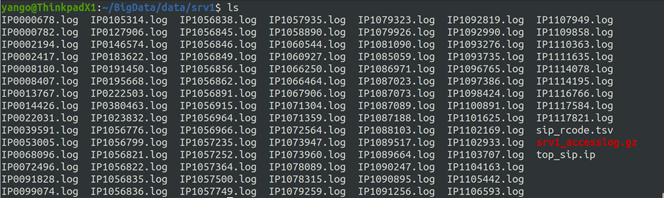

> zcat srv1_accesslog.gz | awk '$3==sip{print $0}' sip=$ip > $ip".log"
> done

cat IP* | awk '$7!=""{print $1 "\t" $7}' | awk '{if (($2 >= 200 && $2 < 300) || ($2 >= 400 && $2 < 500)) print $0}' > 2XX_4XX.log
cat 2XX_4XX.log |awk '{print $1 "\t" (int($2/200)-int($2/400)) "\t" int($2/400)}' | awk '$1==prv{r2+=$2;r4+=$3;next}{print prv "\t" r2 "\t" r4; prv=$1;r2=$2; r4=$3}' |

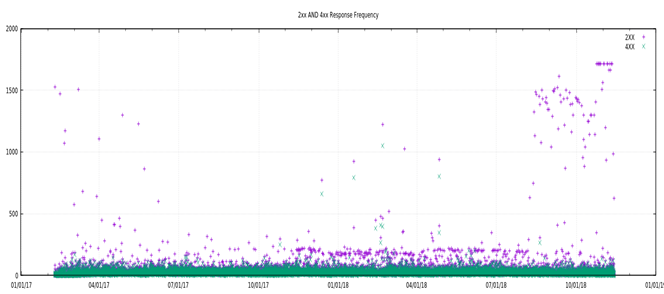

feedgnuplot --domain --points  --timefmt "%Y-%m-%d" --title "2xx AND 4xx Response Frequency" --legend 0 "2XX" --legend 1 "4XX"

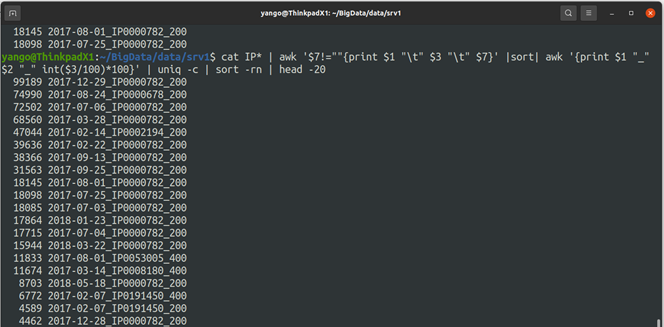

cat IP* | awk '$7!=""{print $1 "\t" $3 "\t" $7}' |sort| awk '{print $1 "_" $2 "_" int($3/100)*100}' | uniq -c | sort -rn | head -20

IP0008180 and IP0053005 400 Response code

• IP0053005

cat IP0053005.log | awk '$7!=""{print $1 "\t" $7}' | sort | awk '{print $1 "\t" int(($2)/100)*100}' |
awk '{print $1 "\t" int($2/200)-int($2/400) "\t" int($2/300) "\t" int($2/400) "\t" int($2/500)}'|
awk '$1==prv{r2+=$2;r3+=$3;r4+=$4;r5+=$5;next}{print prv "\t" r2 "\t" r3 "\t" r4 "\t" r5; prv=$1;r2=$2;r3=$3; r4=$4;r5=$5}'

		 	200	300 400	500
2017-07-04	58	3	3	0
2017-08-01	13664	11944	11837	4
2017-09-21	63	4	4	0
2017-10-10	44	2	2	0
2017-10-11	318	21	20	1
2017-10-13	3	2	2	0
2017-10-20	36	8	3	0
2018-01-03	80	2	1	0

• IP0008180

cat IP0008180.log | awk '$7!=""{print $1 "\t" $7}' | sort | awk '{print $1 "\t" int(($2)/100)*100}' |
awk '{print $1 "\t" int($2/200)-int($2/400) "\t" int($2/300) "\t" int($2/400) "\t" int($2/500)}'|
awk '$1==prv{r2+=$2;r3+=$3;r4+=$4;r5+=$5;next}{print prv "\t" r2 "\t" r3 "\t" r4 "\t" r5; prv=$1;r2=$2;r3=$3; r4=$4;r5=$5}'

			200	300	400	500
2017-03-13	270	74	28	0
2017-03-14	12688	11837	11680	6
