hs-uix

Production-ready UI components for HubSpot UI Extensions. Built entirely on HubSpot's native primitives — no custom HTML, no CSS, no iframes.

Install

npm install hs-uix

import { DataTable } from "hs-uix/datatable";
import { FormBuilder } from "hs-uix/form";
import { Feed } from "hs-uix/feed";
import { Calendar } from "hs-uix/calendar";
import {
  Icon,
  AutoStatusTag,
  AutoTag,
  CrmLookupSelect,
  KeyValueList,
  SectionHeader,
  CollectionToolbar,
} from "hs-uix/common-components";
import { CrmDataTable, CrmKanban, formatCurrency, formatDate } from "hs-uix/utils";

// or import everything from the root
import { DataTable, FormBuilder, Kanban, Feed, Calendar, Icon } from "hs-uix";

Requires react >= 18.0.0 and @hubspot/ui-extensions >= 0.14.0 as peer dependencies (already present in any HubSpot UI Extensions project).

Components

Component	Description	Docs
DataTable	Filterable, sortable, paginated table with auto-sized columns, inline editing, row grouping, and more	Full documentation
FormBuilder	Declarative, config-driven form with validation, multi-step wizards, and 20+ field types	Full documentation
Kanban	Stage-based board with filters, sort, headline metrics, card action bars, and DataTable-parity card field config	Full documentation
Feed	Activity feed / timeline with a standard item shape, date grouping, load-more pagination, and HubSpot-native item regions	Full documentation
Calendar	Presentational month/week/day/agenda calendar with search, filters, date navigation, event overlays, and experimental Gantt view	Full documentation
Common Components	Thin visual wrappers and shared collection primitives — `Icon`, `AutoTag`, `AutoStatusTag`, `AvatarStack`, `CrmLookupSelect`, `CollectionToolbar`, `CollectionFilterControl`, `CollectionSortSelect`, `CollectionCount`, and more	Full documentation
CRM data	`CrmDataTable` / `CrmKanban` — batch-fetching, client-side-paginating CRM table & board, plus the `useCrmSearch*` hooks behind them	Full documentation
Utils	Pure helpers for formatting, options, HubSpot value guards, tag-variant inference, collection filtering/searching, and active-filter chips	Full documentation

DataTable

A drop-in table component for HubSpot UI Extensions. Define your columns, pass your data, and you get search, filtering, sorting, pagination, inline editing, row grouping, and auto-sized columns out of the box.

Quick Start

import { DataTable } from "hs-uix/datatable";
import { AutoStatusTag, AutoTag, KeyValueList, SectionHeader } from "hs-uix/common-components";
import { formatCurrency, formatDate } from "hs-uix/utils";

const COLUMNS = [
  { field: "name", label: "Company", sortable: true, renderCell: (val) => val },
  { field: "status", label: "Status", renderCell: (val) => <AutoStatusTag value={val} /> },
  { field: "segment", label: "Segment", renderCell: (val) => <AutoTag value={val} /> },
  { field: "amount", label: "Amount", sortable: true, renderCell: (val) => formatCurrency(val) },
  { field: "closeDate", label: "Close Date", renderCell: (val) => formatDate(val) },
];

<DataTable data={deals} columns={COLUMNS} searchFields={["name"]} pageSize={10} />

<SectionHeader
  title="Deal Summary"
  description="A compact summary block using common components."
/>

<KeyValueList
  items={[
    { label: "Open deals", value: 12 },
    { label: "Pipeline", value: formatCurrency(245000) },
  ]}
/>

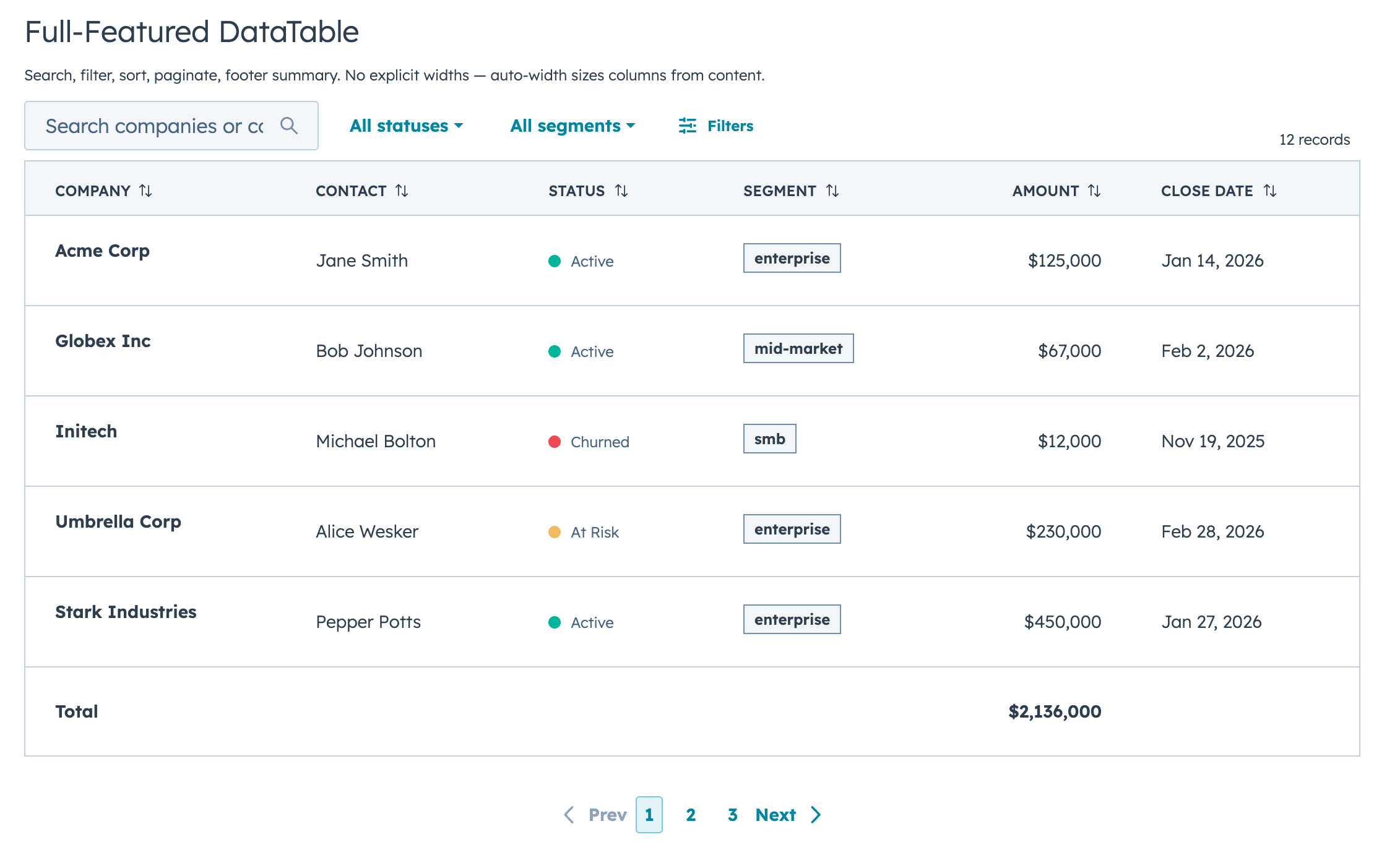

That's a searchable, sortable, paginated table with auto-sized columns in 5 lines of config.

Features

Full-text search with optional fuzzy matching via Fuse.js
Select, multi-select, and date range filters with active badges and clear/reset controls
Click-to-sort headers with three-state cycling
Client-side or server-side pagination
Collapsible row groups with per-column aggregation
Row selection with bulk action bar
Per-row actions via rowActions
Two edit modes (discrete click-to-edit and inline always-visible) supporting 12 input types with validation
Auto-width column sizing based on data analysis
Column-level footer for totals rows
Works with useAssociations for live CRM data
Server-side mode with loading/error states, search debounce, and unified onParamsChange callback

Highlights

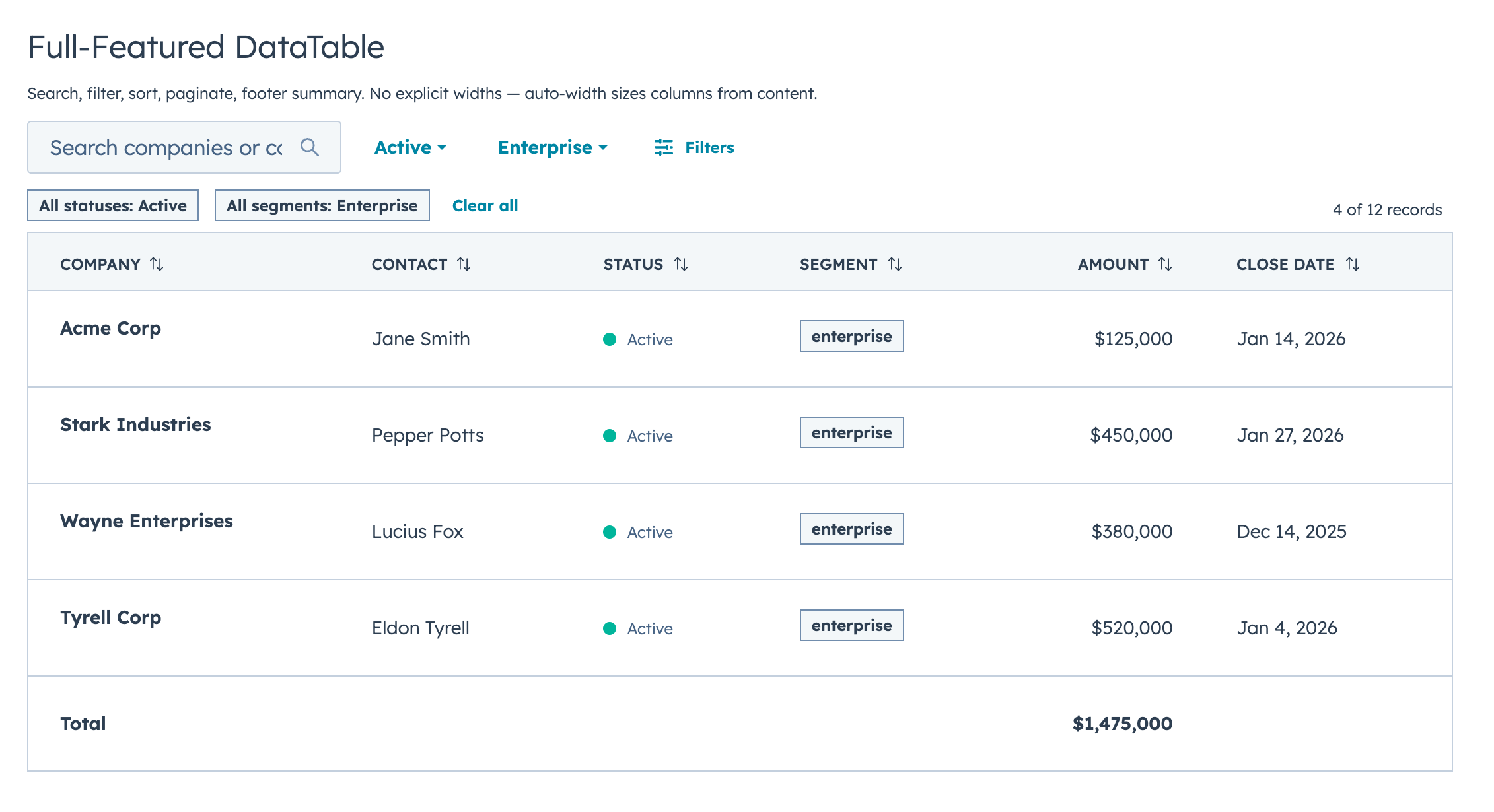

Filters & Footer Totals

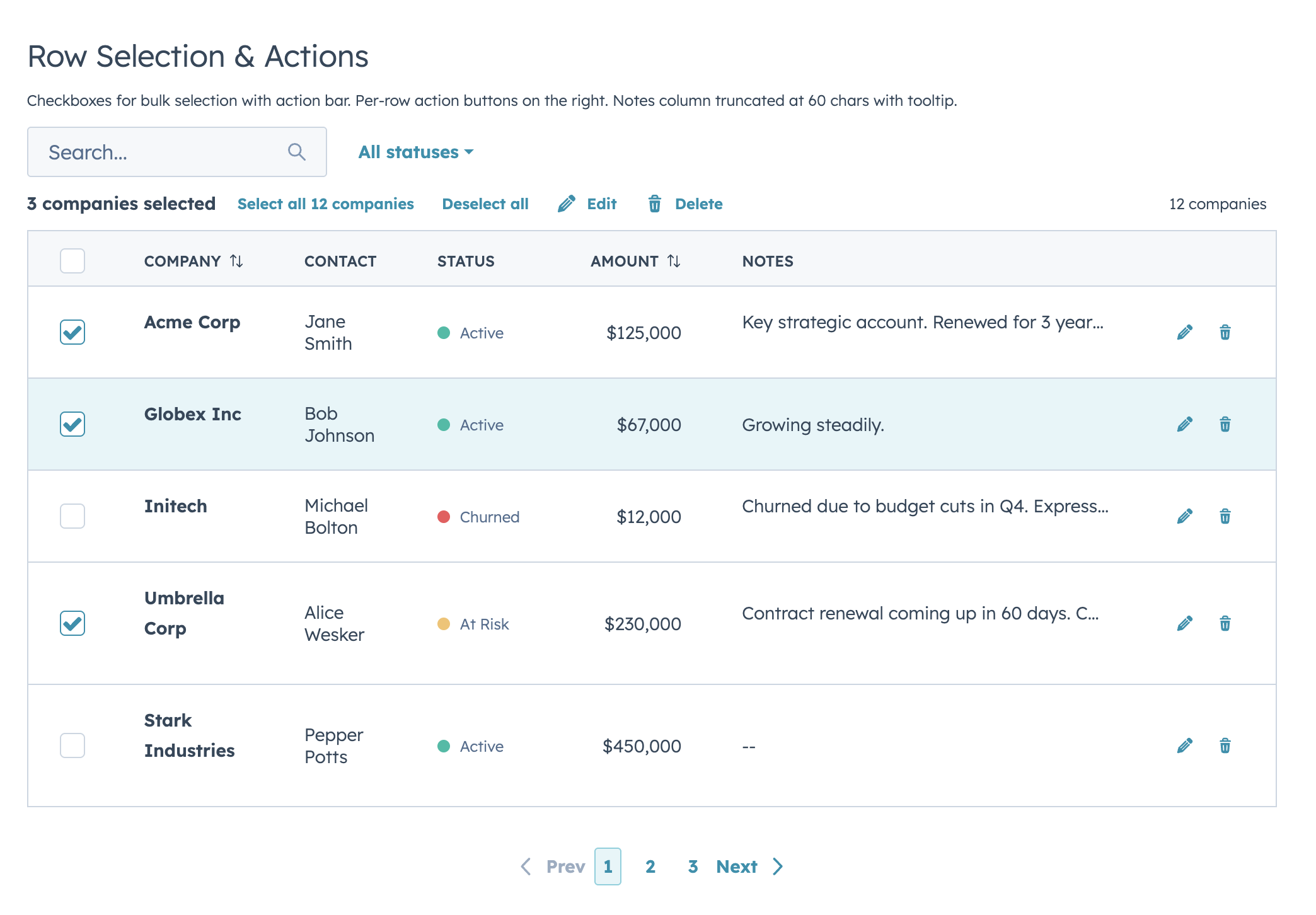

Row Selection & Bulk Actions

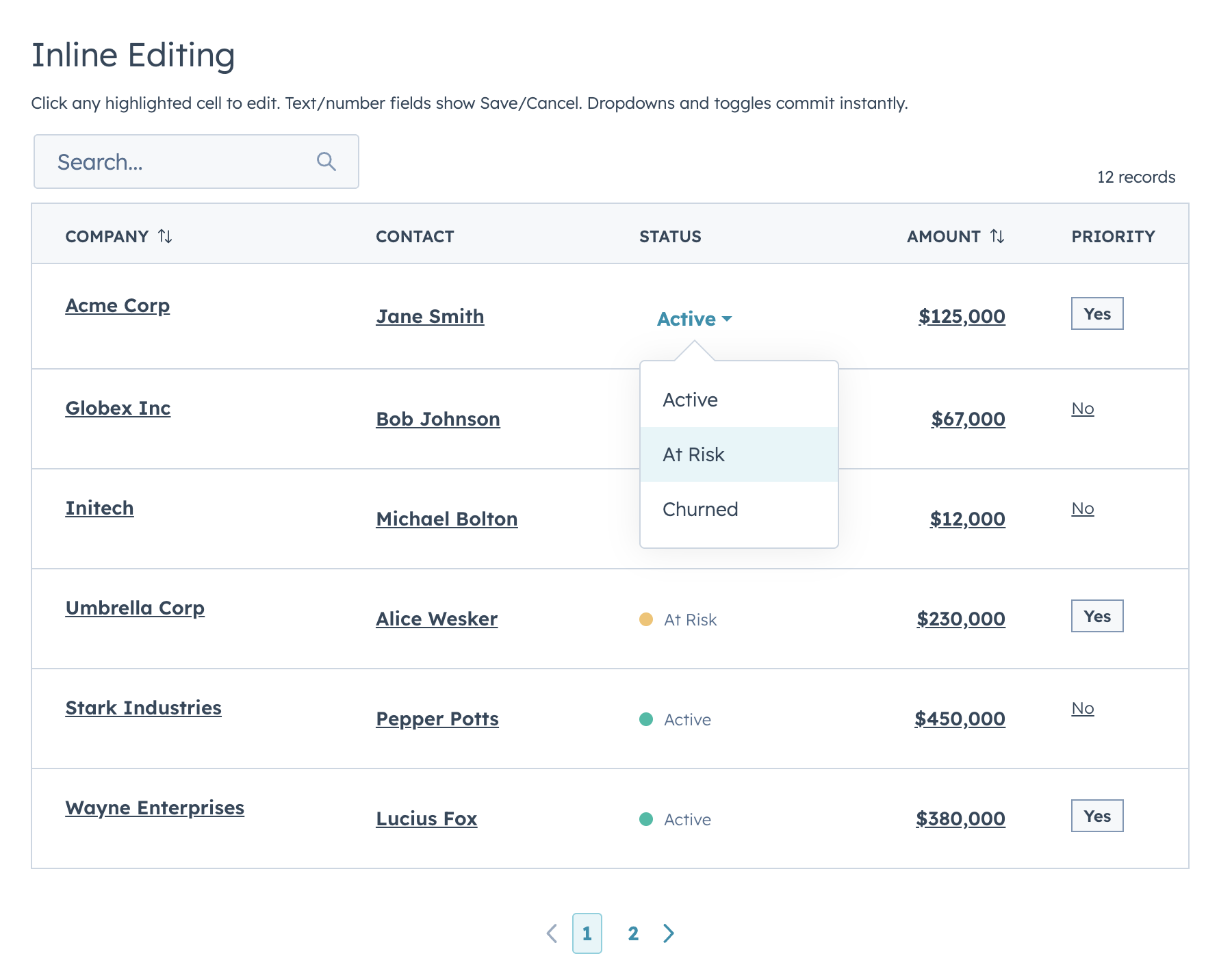

Inline Editing

Two edit modes: discrete (click-to-edit, default) and inline (always-visible inputs). Supports text, textarea, number, currency, stepper, select, multiselect, date, time, datetime, toggle, and checkbox.

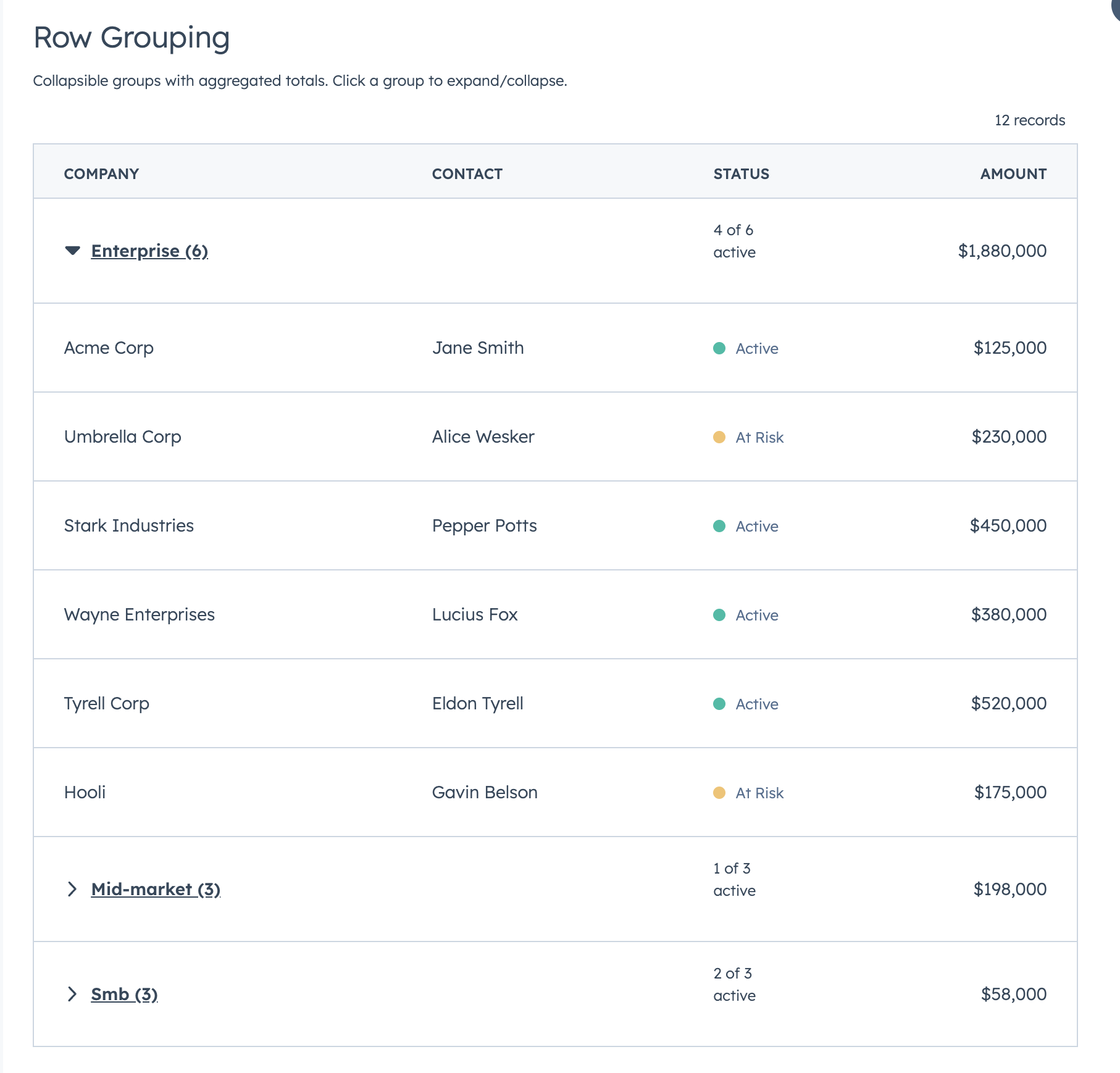

Row Grouping

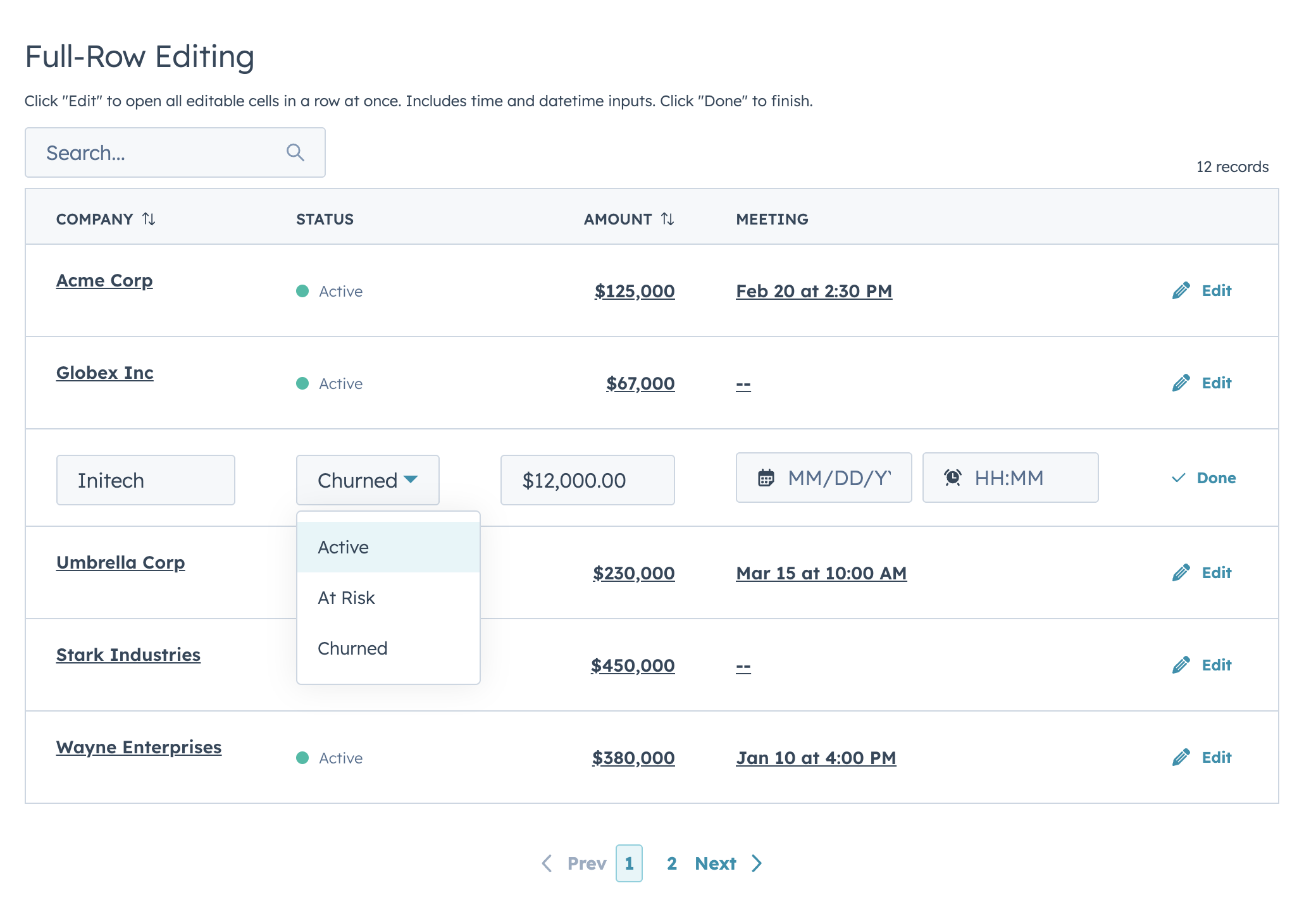

Full-Row Editing

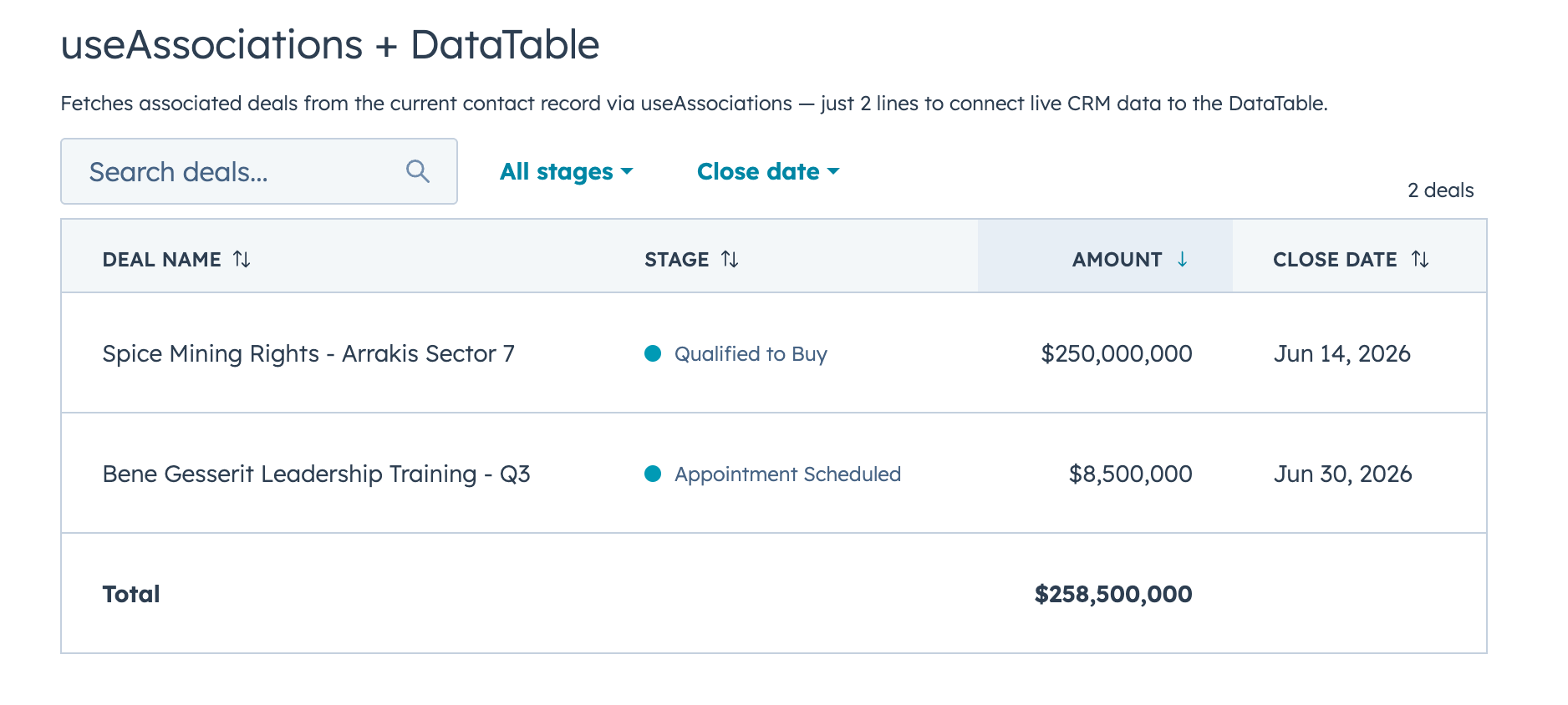

useAssociations

Connect live CRM data (contacts, deals, tickets, etc.) to a DataTable with useAssociations from @hubspot/ui-extensions/crm.

FormBuilder

Declarative, config-driven forms for HubSpot UI Extensions. Define fields as data, get a complete form with validation, layout, multi-step wizards, and full HubSpot component integration.

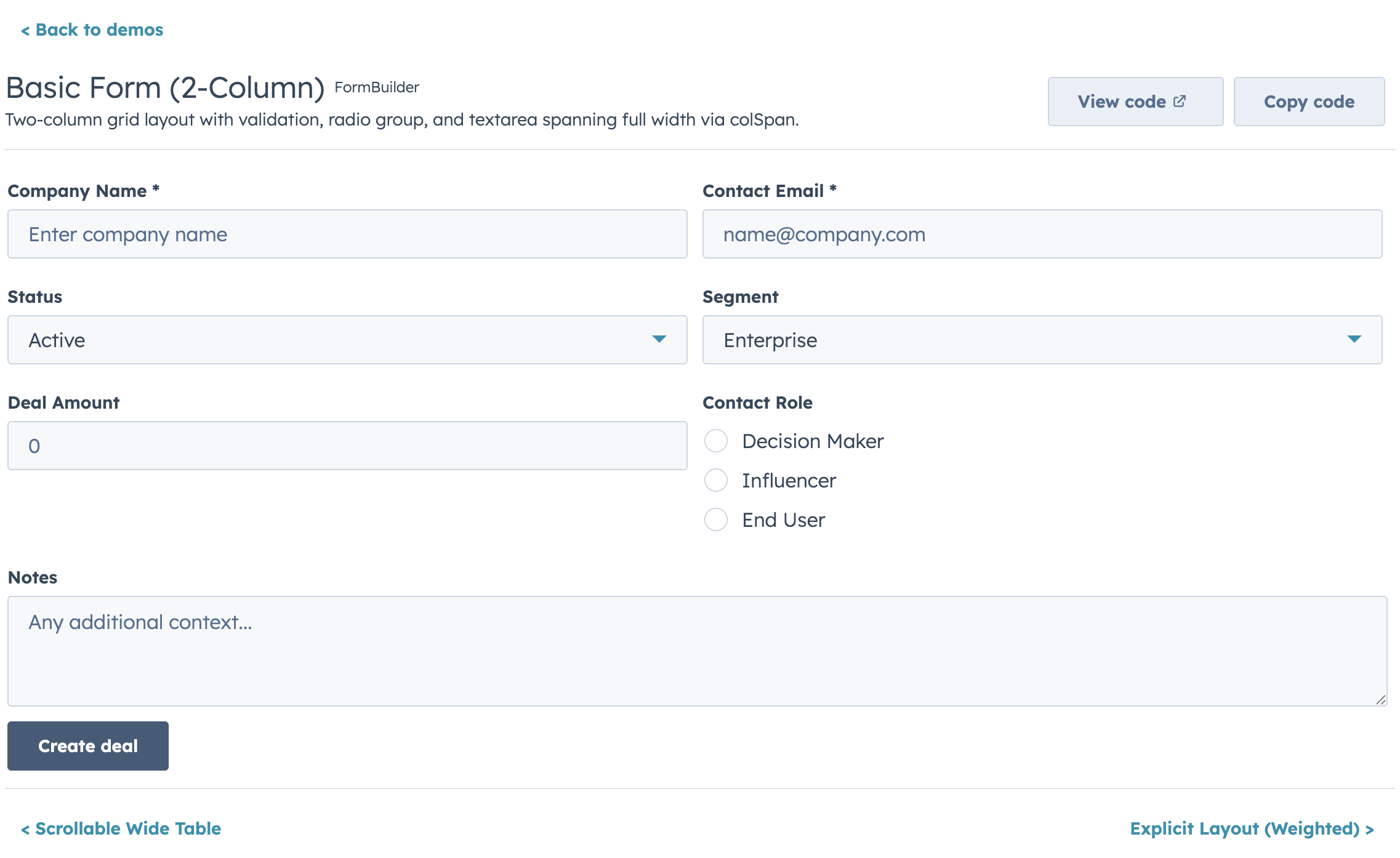

Quick Start

import { FormBuilder } from "hs-uix/form";

const fields = [
  { name: "firstName", type: "text", label: "First name", required: true },
  { name: "lastName", type: "text", label: "Last name", required: true },
  { name: "email", type: "text", label: "Email", pattern: /^[^\s@]+@[^\s@]+$/, patternMessage: "Enter a valid email" },
];

<FormBuilder
  columns={2}
  fields={fields}
  onSubmit={(values) => console.log(values)}
/>

Features

20+ field types mapping to native HubSpot components (text, number, select, date, toggle, repeater, crmPropertyList, and more)
Four layout modes: fixed columns, responsive AutoGrid, explicit row layout, and legacy half-width
Built-in validation chain: required, pattern, length/range, custom sync, and custom async with loading indicators
Conditional visibility and dependent property grouping
Multi-step wizards with per-step validation
Repeater fields for dynamic add/remove rows
Accordion sections and field group dividers
Custom field type plugin registry
Controlled and uncontrolled modes
Ref API for imperative access (submit, validate, reset, getValues, setFieldValue, etc.)
Submit lifecycle hooks (transformValues, onBeforeSubmit, onSubmitSuccess, onSubmitError)
Auto-save, dirty tracking, read-only mode, and form-level alerts

Highlights

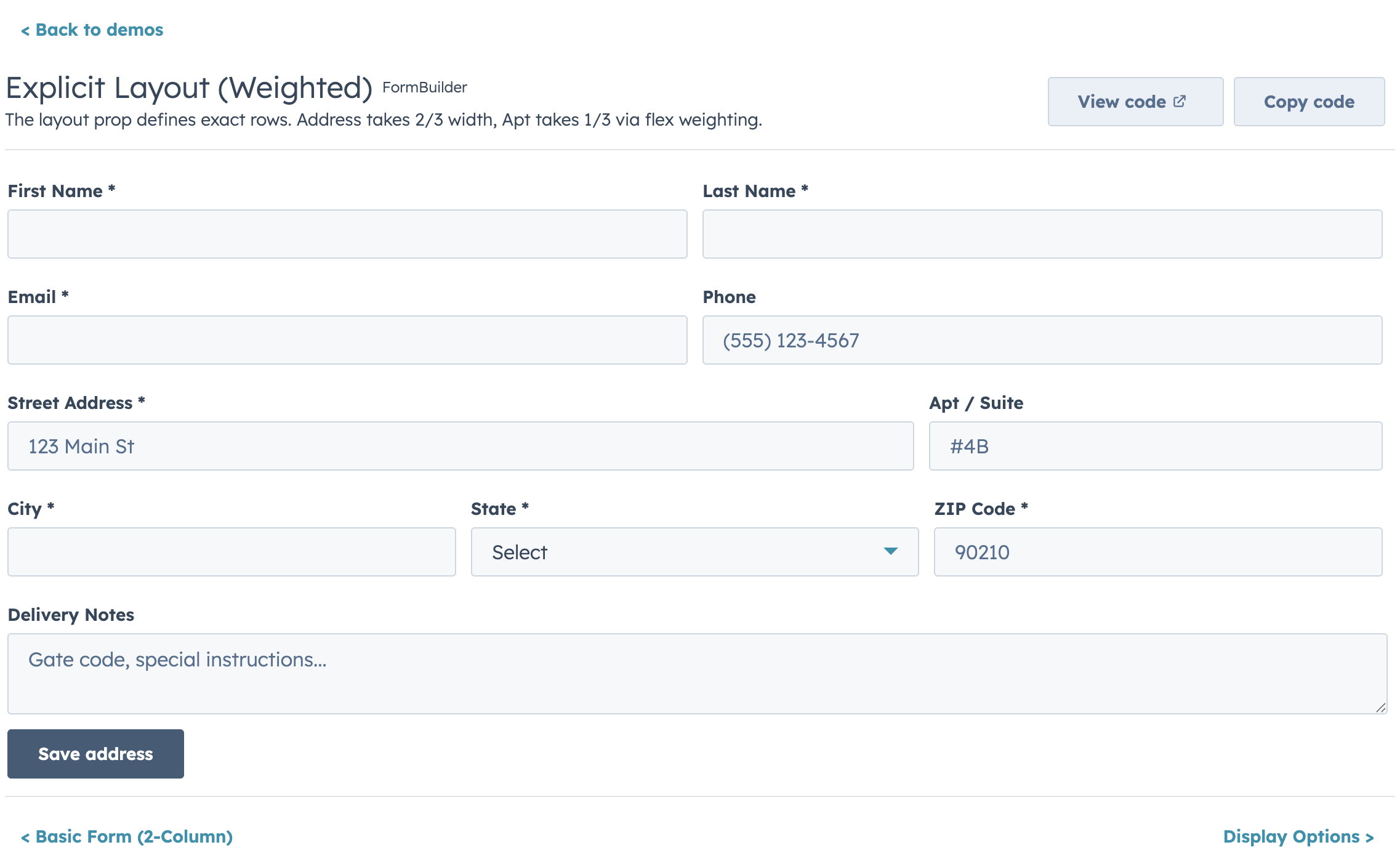

Layout

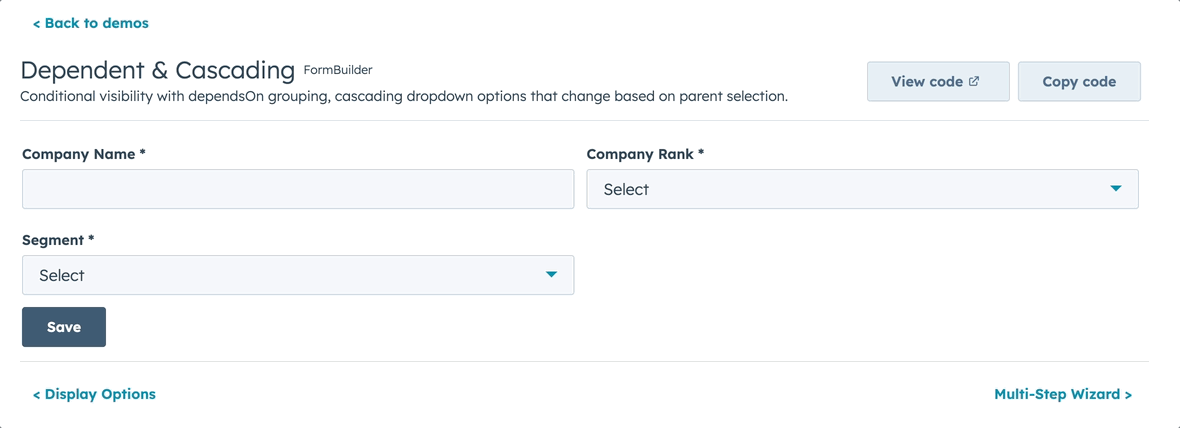

Conditional Visibility & Dependent Properties

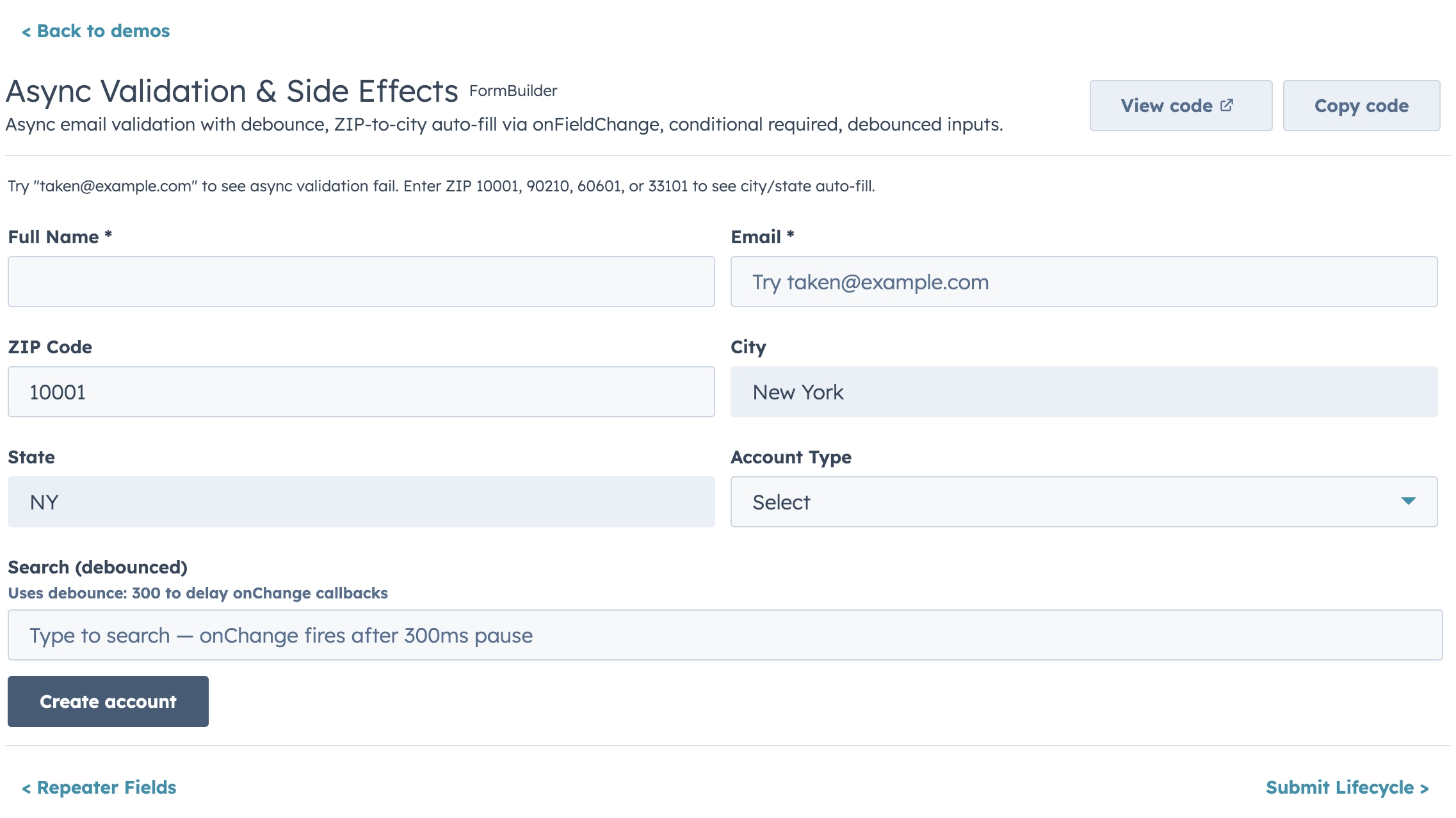

Async Validation

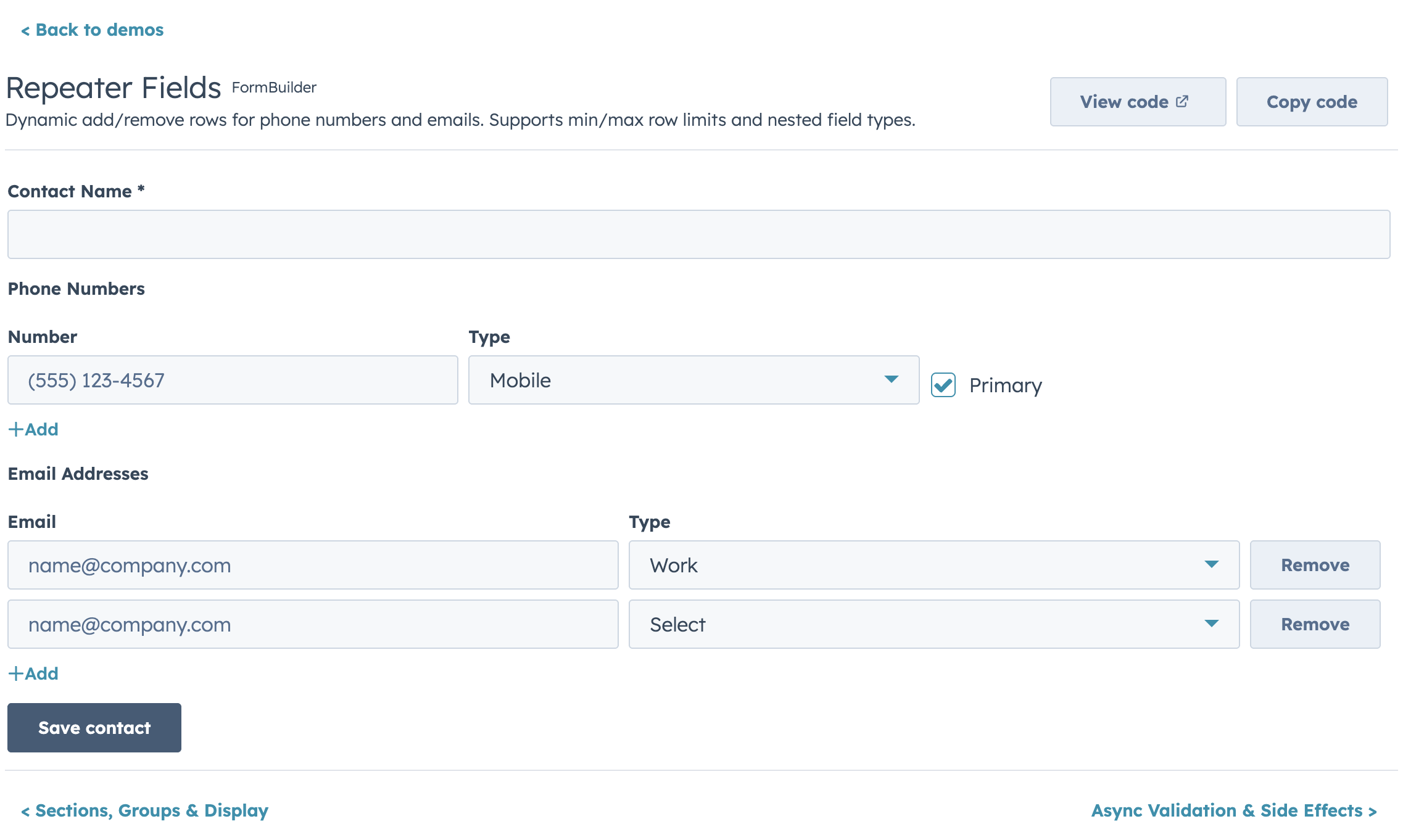

Repeater Fields

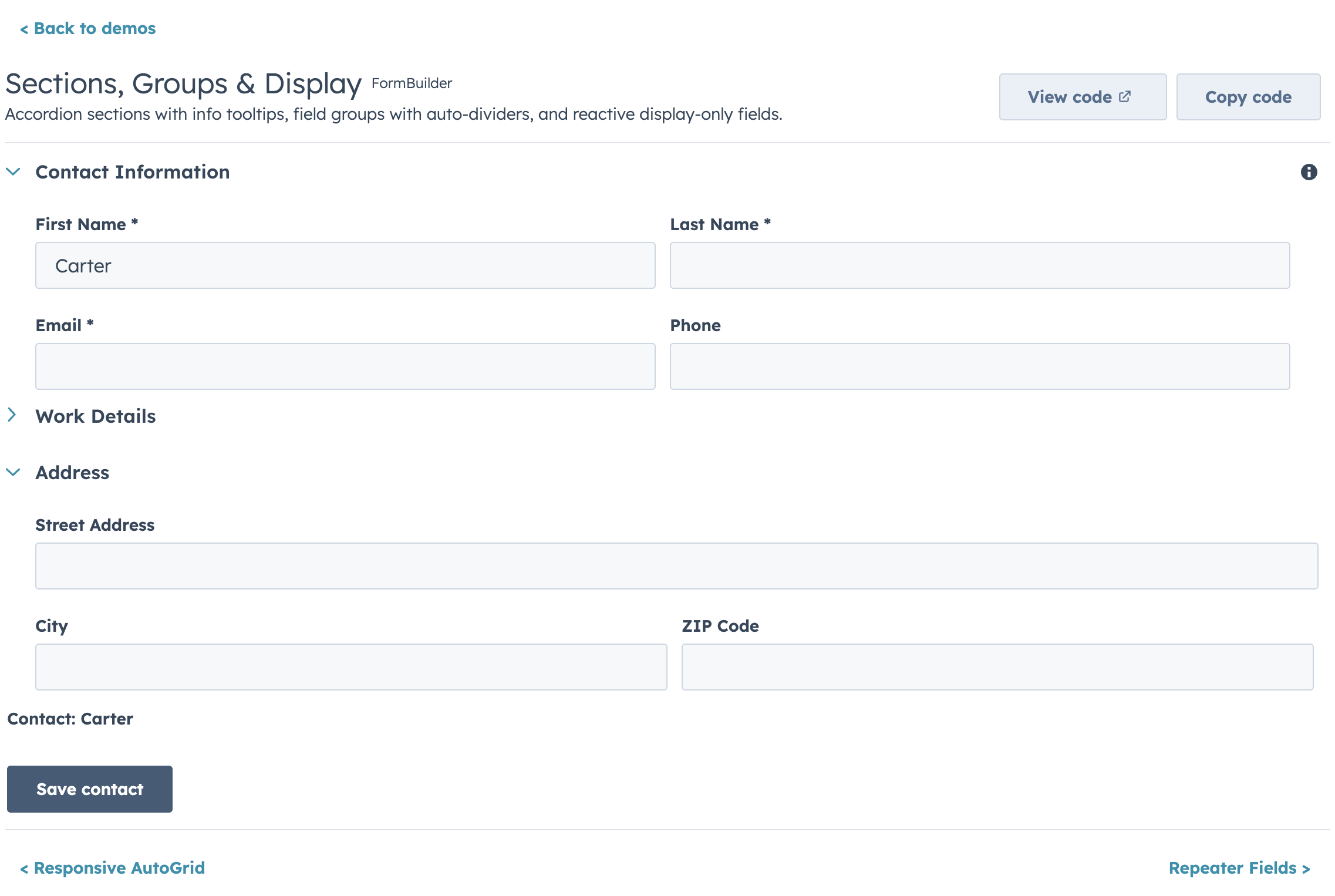

Sections & Groups

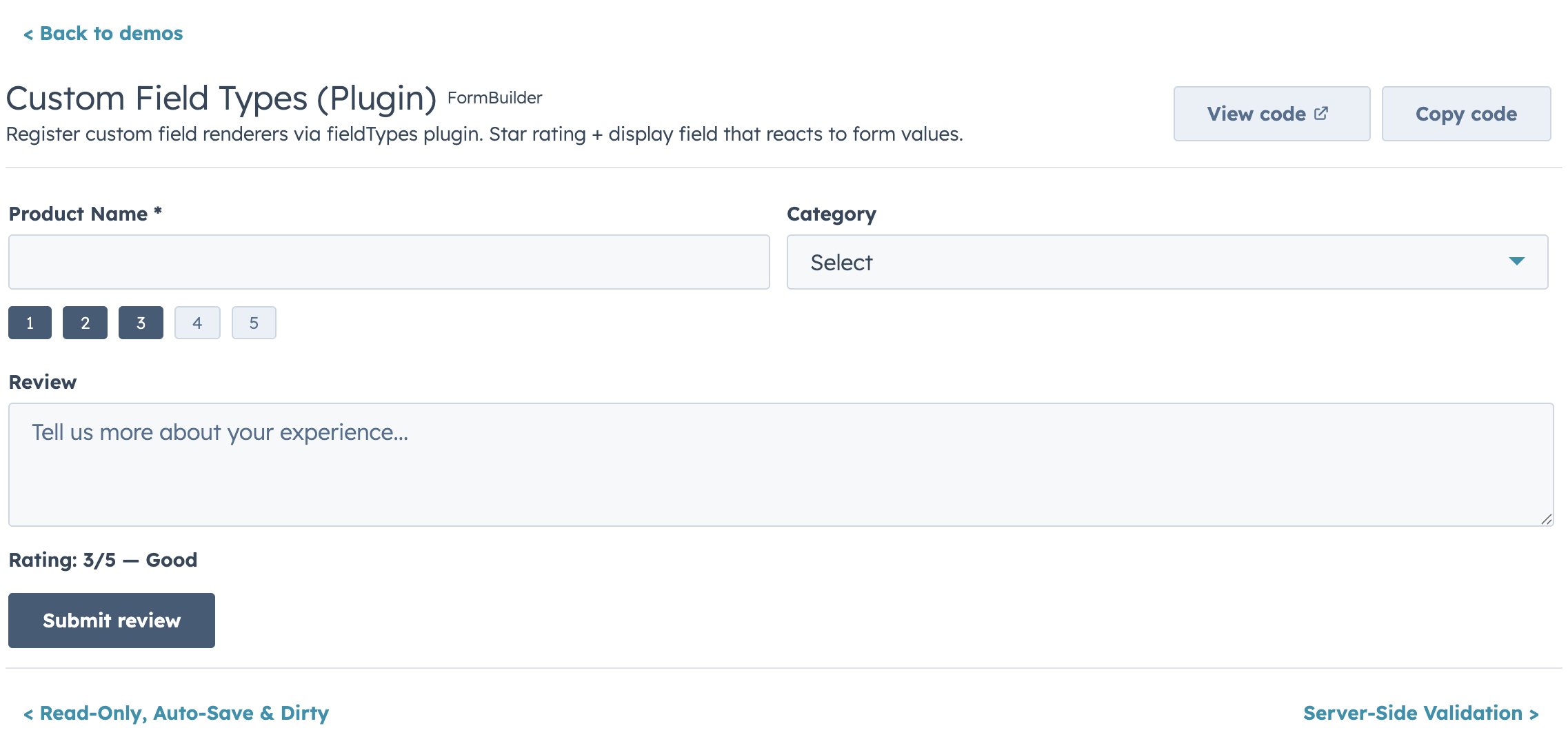

Custom Field Types

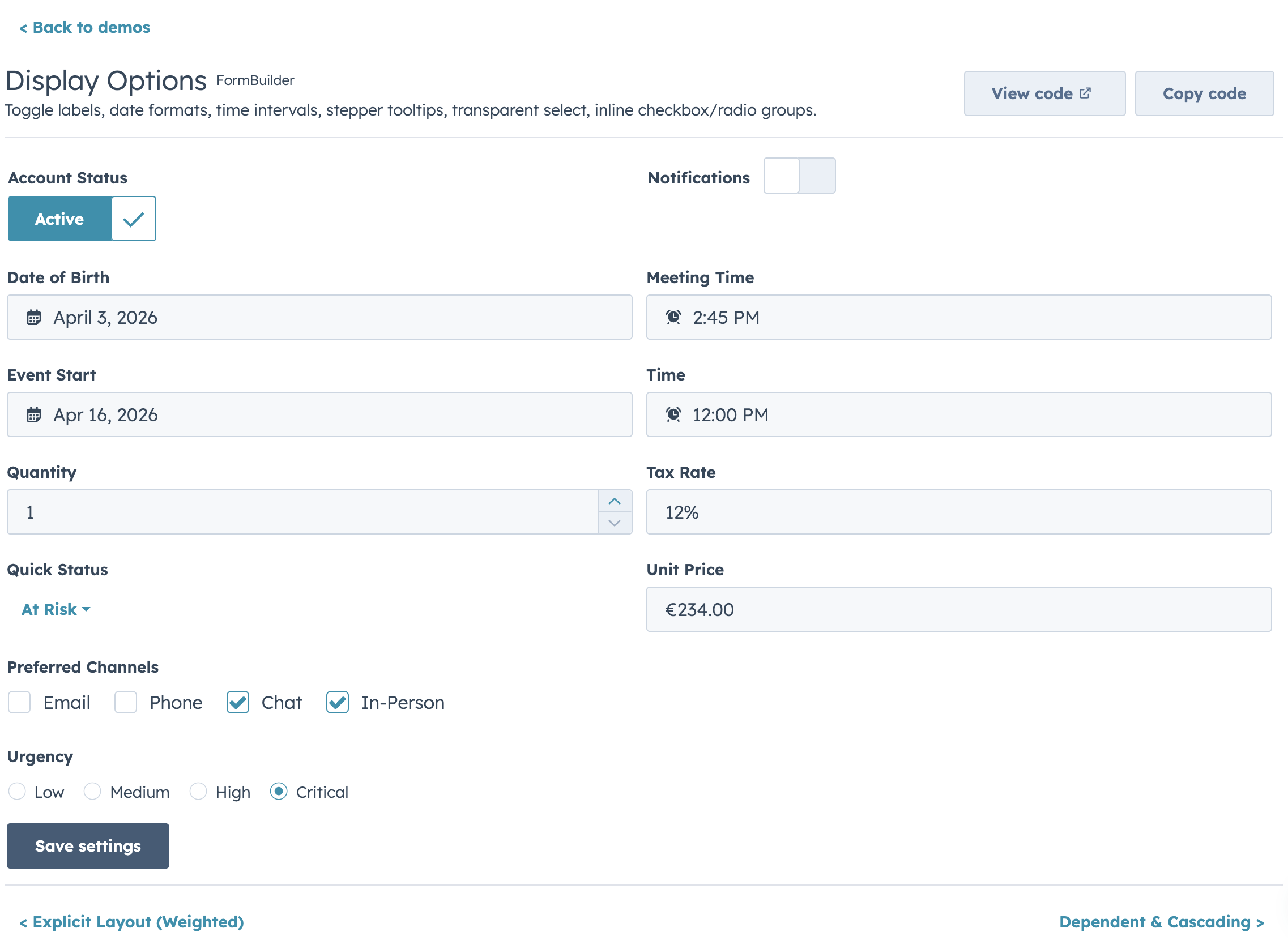

Display Options

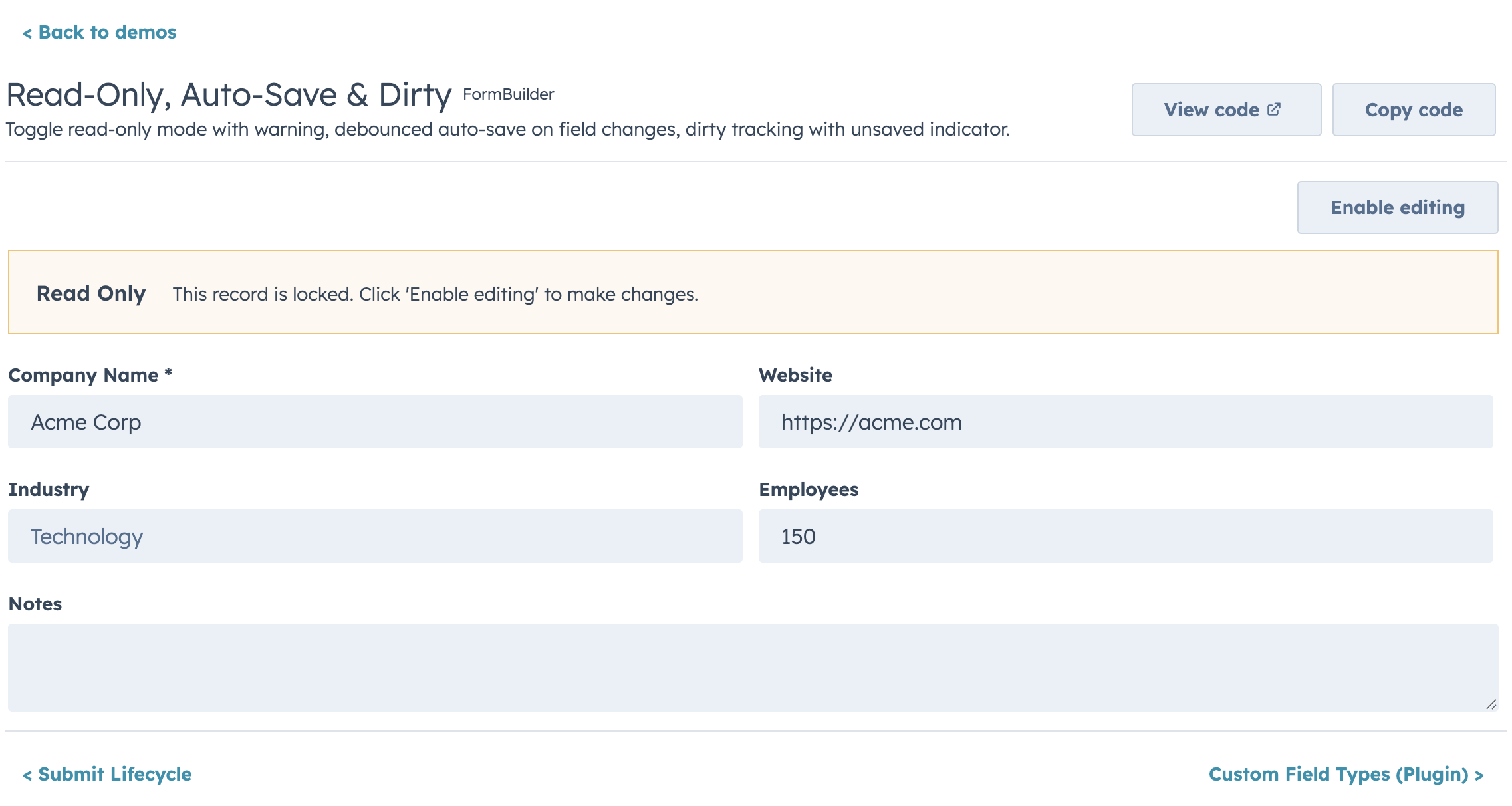

Read-Only Mode

Kanban

A stage-based board view that shares DataTable's config vocabulary (cardFields ≈ columns, filters, sort, selection) so you can offer users a table-or-board toggle without rewriting the data layer. Drag-and-drop isn't available inside HubSpot UI Extensions, so stage changes happen through an inline Select (or menu) on each card.

Quick Start

import { Kanban } from "hs-uix/kanban";
import { AutoTag } from "hs-uix/common-components";
import { formatCurrencyCompact, formatDate } from "hs-uix/utils";

const STAGES = [
  { value: "qualified",     label: "Qualified",      variant: "info" },
  { value: "proposal",      label: "Proposal",       variant: "info" },
  { value: "negotiation",   label: "Negotiation",    variant: "warning" },
  { value: "closed_won",    label: "Closed Won",     variant: "success", terminal: true },
  { value: "closed_lost",   label: "Closed Lost",    variant: "default", terminal: true },
];

const CARD_FIELDS = [
  { field: "name",      placement: "title" },
  { field: "company",   placement: "subtitle" },
  { field: "amount",    placement: "meta",   render: (val) => formatCurrencyCompact(val) },
  { field: "segment",   placement: "body",   render: (val) => <AutoTag value={val} /> },
  { field: "closeDate", placement: "footer", render: (val) => formatDate(val) },
];

<Kanban
  data={deals}
  stages={STAGES}
  groupBy="stage"
  cardFields={CARD_FIELDS}
  onStageChange={(row, newStage) => updateDealStage(row.id, newStage)}
/>

Features

Stage-based columns with variant-colored headers (success / warning / info / default), collapse-to-rail, and stage-level count badges
cardFields with placement (title / subtitle / meta / body / footer) — same render/truncate/visible hooks as DataTable columns
Filters and sort with the same config shape as DataTable (select, multiselect, dateRange)
Headline metrics rendered above the board (deal totals, weighted pipeline, win rate) via a metrics prop
Stage transition prompts — async confirmation or extra-property capture before committing a stage change, declared per-stage via stage.onEnterRequired.render
Selection bar + card actions for bulk moves, deletes, or custom handlers (KanbanCardActions)
Empty / loading / error render slots that mirror DataTable's override API
Paired view adapters — use deriveCardFieldsFromColumns from hs-uix/utils to project a DataTable columns config into Kanban cardFields with a single function call

Highlights

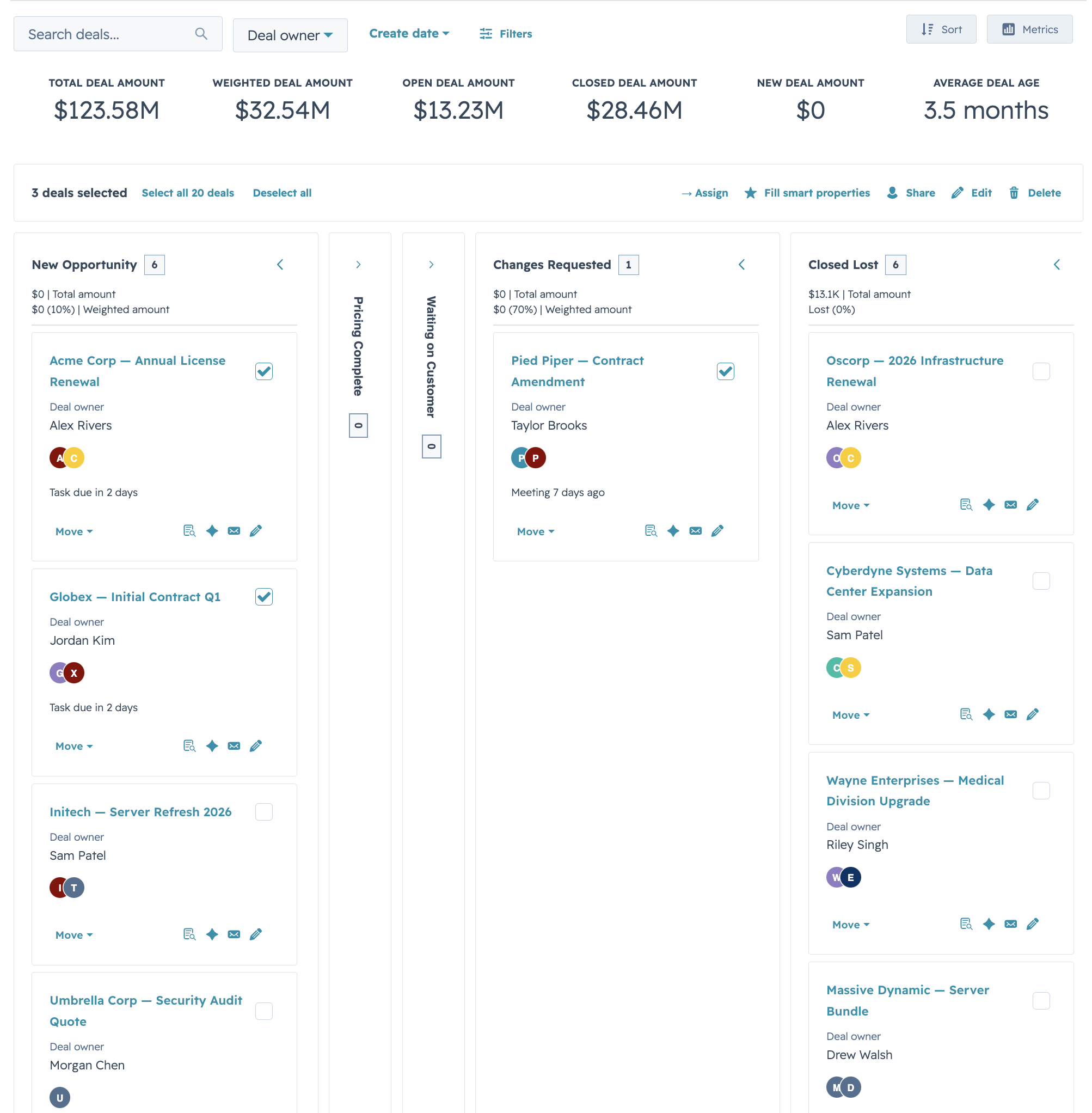

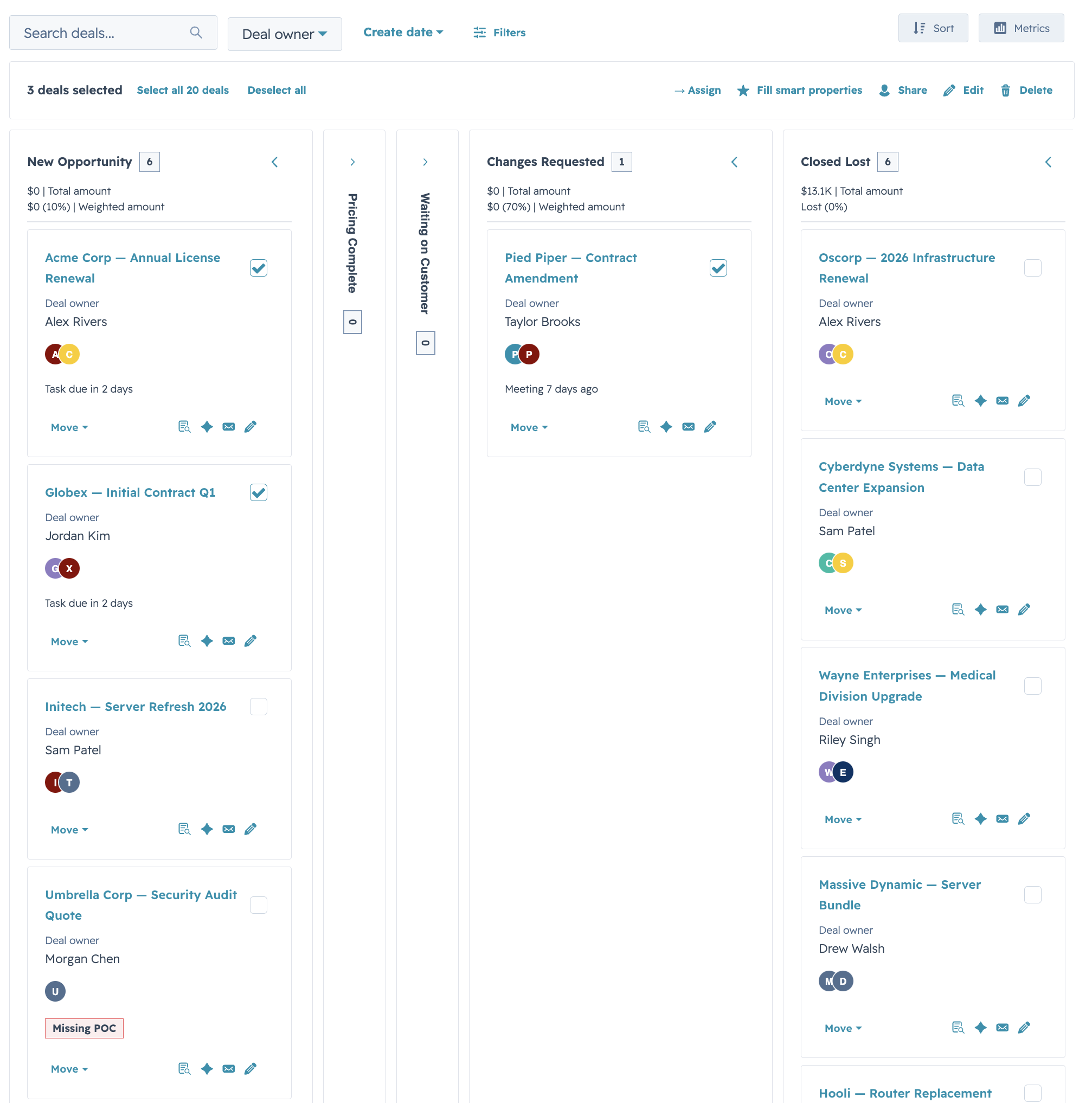

HubSpot Deals preset

Drop-in preset shaped like HubSpot's native deals pipeline: stage-variant headers, per-stage amount totals in the header metric, and an avatar-stack footer row. Hide the summary row with showMetrics={false} for dashboards that already surface totals elsewhere.

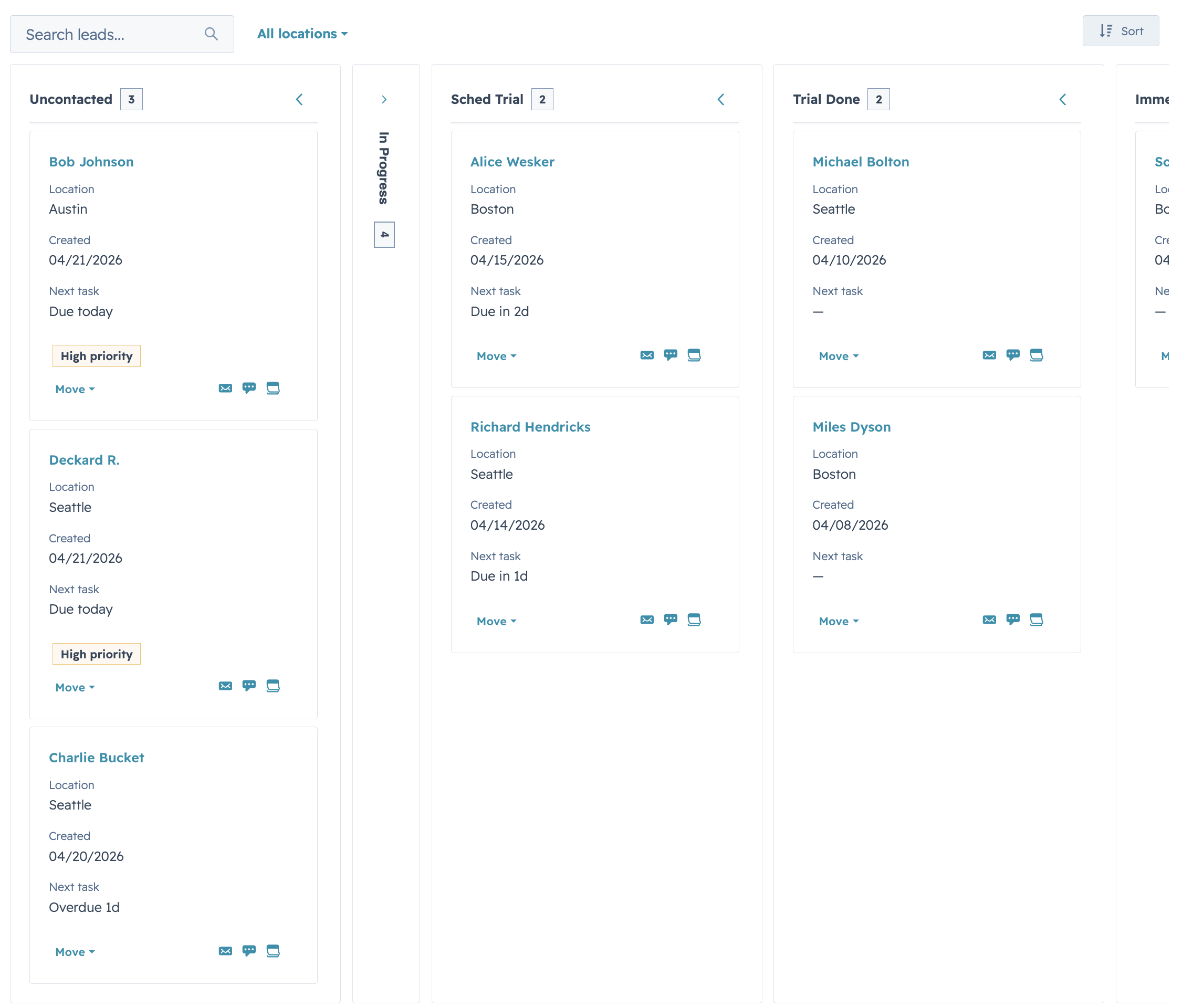

Compact lead board

cardDensity="compact" with trimmed cardFields for high-volume boards (leads, tickets, tasks) where you want to fit 8-12 cards per column on a typical viewport without horizontal scrolling.

Load-more & stage controls

Per-stage pagination via an onLoadMore handler and stageMeta.hasMore, plus inline Select stage controls on each card (stageControl="select"). Switch to "menu" for action-menu style transitions, or "none" for read-only boards.

Common Components

Thin, composable visual wrappers built on HubSpot's native primitives — the reusable pieces that show up across DataTable rows, FormBuilder cells, and Kanban cards. Use them to skip rewriting the same status-tag / avatar-stack / label-value block on every surface.

Quick Start

import {
  AutoStatusTag,
  AutoTag,
  AvatarStack,
  SectionHeader,
  KeyValueList,
  StyledText,
  HS_DATE_PRESETS,
} from "hs-uix/common-components";
import { formatCurrency } from "hs-uix/utils";

<SectionHeader
  title="Deal Summary"
  description="A compact summary block using common components."
/>

<KeyValueList
  items={[
    { label: "Status", value: <AutoStatusTag value="At risk" /> },
    { label: "Segment", value: <AutoTag value="Enterprise" /> },
    { label: "Owners", value: <AvatarStack items={["AR", "JK", "SP", "MB", "LM"]} maxVisible={4} /> },
    { label: "Pipeline", value: formatCurrency(245000) },
  ]}
/>

What's inside

Icon — a superset of HubSpot's native <Icon>: custom glyphs, any CSS color, and pixel sizes, delegating to the native component whenever the request is natively expressible
AutoStatusTag — StatusTag with variant inferred from the value (Active → success, At risk → warning, Failed → danger, etc.)
AutoTag — Tag with the same inference, for non-status labels
AvatarStack — overlapping circular avatars as a single SVG (letters, image URLs, or mixed); +N overflow chip past maxVisible
CrmLookupSelect — CRM-backed Select / MultiSelect with live, debounced search
SectionHeader — title + optional description + actions slot
KeyValueList — vertical list of label/value rows via DescriptionList
StyledText — SVG-rendered text with rotation, custom color, and pill backgrounds for cases native <Text> can't express

Plus low-level builders (makeAvatarStackDataUri, makeStyledTextDataUri) that return { src, width, height } for composing into larger SVGs, and style constants (HS_FONT_FAMILY, HS_TEXT_COLOR, HS_SUBTLE_BG, HS_MUTED_TEXT, HS_NEUTRAL_CHIP) that mirror HubSpot's native CSS — so custom SVGs sit alongside the rest of the UI without a color mismatch.

Highlights

AutoTag & AutoStatusTag

Pass a free-form status string and get a properly-colored tag back. Matching is case-insensitive and tolerates underscores / dashes / phrases ("in_progress", "on hold", "at-risk" all resolve). Override via overrides={{ "Processing": "warning" }} and fallback="info" for values that don't match built-in heuristics.

AvatarStack

Overlapping avatars rendered as a single SVG via <Image>. T-shirt sizing (xs → xl) or a raw pixel number. Letters auto-color from the built-in palette; image URLs get circular-clipped. Extras past maxVisible collapse into a neutral +N chip.

Icon

A superset of HubSpot's native <Icon>. When the request is natively expressible (a whitelisted name, a semantic color, an sm/md/lg size) it delegates to the real <Icon> — keeping auto-sizing, color="inherit", and screen-reader semantics. Otherwise it renders a registered SVG glyph as a data-URI <Image>, lifting all three native limits: custom/unregistered glyphs (~248 bundled in ICONS), any CSS color, and xs–xl tokens or a pixel size. Add your own glyphs via svgToIconEntry, or build a data URI directly with makeIconDataUri.

CrmLookupSelect

Point it at a CRM objectType + properties and get a debounced Select / MultiSelect that searches the first pageLength CRM matches as the user types. Picked options stay valid after results change, loadingOption shows during the debounce window, and noResultsOption only appears once a query settles — no "no results" flash mid-type. For custom lookup UIs that need native cursor controls, useCrmSearchOptions exposes pagination / hasMore.

SectionHeader & KeyValueList

Pair SectionHeader (title / description / action slot) with KeyValueList (DescriptionList rows) for compact summary panels. direction="column" on the list switches to stacked label-on-top rows.

StyledText

Reach for StyledText when native <Text> can't do what you need: vertical rail labels (orientation="vertical-down"), HubSpot-style pill badges (background={{ preset: "tag" }}), or a specific glyph color. Plain horizontal preset: "tag" usage renders through native HubSpot Tag; rotated/custom tag cases still use the SVG fallback. Use native <Text> anywhere copy-paste matters.

HS_DATE_PRESETS

HubSpot's native quick-date preset list (Today, Last 7 days, This quarter, …) as a ready-to-use options array for DataTable / Kanban select filters. Values are stable identifiers ("today", "7d", "this_quarter") — translate to date bounds via filterFn or server-side in onFilterChange.

Utils

Pure helper functions for formatting values, building option arrays, detecting HubSpot-shaped date/time objects, and inferring tag variants from raw data. Zero side effects, no JSX — drop them into renderCell, sortComparator, or a server handler.

Quick Start

import {
  formatCurrency,
  formatCurrencyCompact,
  formatDate,
  formatDateTime,
  formatPercentage,
  buildOptions,
  findOptionLabel,
  getAutoTagVariant,
  createStatusTagSortComparator,
  sumBy,
} from "hs-uix/utils";

formatCurrency(1234.56);              // → "$1,235"
formatCurrencyCompact(123_580_000);   // → "$123.6M"
formatDate("2026-04-15");             // → "Apr 15, 2026"
formatPercentage(0.1567);             // → "16%"

const statusOptions = buildOptions(
  [{ name: "Open", id: "o" }, { name: "Closed", id: "c" }],
  { labelKey: "name", valueKey: "id" },
);
findOptionLabel(statusOptions, "o"); // → "Open"

getAutoTagVariant("At risk");         // → "warning"
sumBy(deals, "amount");               // → total

What's inside

formatters.js — locale-aware Intl-based number / currency / date / percentage formatters. Every formatter accepts a trailing options object that spreads into the underlying Intl call, so anything Intl.NumberFormat supports (narrow symbol, specific fraction digits, grouping) is reachable without a new helper.
options.js — buildOptions(items, opts?) to shape raw arrays into { label, value } for HubSpot Select / MultiSelect; findOptionLabel(options, value, fallback?) for the reverse lookup.
hubspotValues.js — type guards for HubSpot's DateInput / TimeInput / DateTimeInput value shapes (isDateValueObject, isTimeValueObject, isDateTimeValueObject). Use in filterFn or sortComparator to distinguish a HubSpot date-object from a raw string/Date.
tagVariants.js — heuristic mappers from free-form status strings to semantic tag variants (getAutoTagVariant, getAutoStatusTagVariant, getAutoTagDisplayValue) plus createStatusTagSortComparator for DataTable columns grouped by color, then alphabetical within each color.
collections.js — sumBy(items, keyOrFn) for total / weighted-total rows, safe against null / missing values.

Highlights

Formatters

formatCurrency(9500, { currency: "EUR" });            // → "€9,500"
formatCurrencyCompact(4160);                          // → "$4.2K"
formatDate(Date.now(), { month: "numeric" });         // → "4/15/2026"
formatDateTime("2026-04-15T14:30:00Z");               // → "Apr 15, 2026, 9:30 AM" (local)
formatPercentage(0.1567, { maximumFractionDigits: 1 });// → "15.6%"

Every formatter treats null / undefined as safe — formatCurrency(null) → "$0", formatDate(null) → "" — so they're safe to drop into cells rendering partially-loaded data.

Tag Variants

The same inference that powers AutoTag / AutoStatusTag, exposed as plain functions for use in custom cells and sort comparators. Default ordering: success → warning → danger/error → info → default; override via variantOrder on createStatusTagSortComparator.

Options & HubSpot Value Guards

Build select options from CRM records, resolve labels back to values, and detect HubSpot's structured date/time value objects in one import — no more ad-hoc .map(r => ({ label: r.name, value: r.id })) at every call site.

Migrating from `@hs-uix/datatable` or `@hs-uix/form`

Both packages have been merged into hs-uix. Update your imports:

- import { DataTable } from "@hs-uix/datatable";
+ import { DataTable } from "hs-uix/datatable";

- import { FormBuilder } from "@hs-uix/form";
+ import { FormBuilder } from "hs-uix/form";

npm uninstall @hs-uix/datatable @hs-uix/form
npm install hs-uix

License

MIT

Name		Name	Last commit message	Last commit date
Latest commit History 80 Commits
docs		docs
examples/crm-search		examples/crm-search
scripts		scripts
src		src
.gitignore		.gitignore
CHANGELOG.md		CHANGELOG.md
README.md		README.md
RELEASING.md		RELEASING.md
ROADMAP.md		ROADMAP.md
calendar.d.ts		calendar.d.ts
common-components.d.ts		common-components.d.ts
datatable.d.ts		datatable.d.ts
feed.d.ts		feed.d.ts
form.d.ts		form.d.ts
index.d.ts		index.d.ts
kanban.d.ts		kanban.d.ts
package-lock.json		package-lock.json
package.json		package.json
release.md		release.md
tsup.config.js		tsup.config.js
utils.d.ts		utils.d.ts
vitest.config.js		vitest.config.js

Folders and files

Latest commit

History

Repository files navigation

hs-uix

Install

Components

DataTable

Quick Start

Features

Highlights

Filters & Footer Totals

Row Selection & Bulk Actions

Inline Editing

Row Grouping

Full-Row Editing

useAssociations

FormBuilder

Quick Start

Features

Highlights

Layout

Conditional Visibility & Dependent Properties

Async Validation

Repeater Fields

Sections & Groups

Custom Field Types

Display Options

Read-Only Mode

Kanban

Quick Start

Features

Highlights

HubSpot Deals preset

Compact lead board

Load-more & stage controls

Common Components

Quick Start

What's inside

Highlights

AutoTag & AutoStatusTag

AvatarStack

Icon

CrmLookupSelect

SectionHeader & KeyValueList

StyledText

HS_DATE_PRESETS

Utils

Quick Start

What's inside

Highlights

Formatters

Tag Variants

Options & HubSpot Value Guards

Migrating from @hs-uix/datatable or @hs-uix/form

License

About

Topics

Resources

Uh oh!

Stars

Watchers

Forks

Releases 27

Packages 0

Uh oh!

Contributors

Uh oh!

Languages

Migrating from `@hs-uix/datatable` or `@hs-uix/form`

Packages
