Weighted density

[teunbrand]

This PR aims to fix #4176.

It adds the wdensity computed variable, which is the density times the sum of weights.
If weights are absent, this reduces to the same as the count computed variable.

An example:

devtools::load_all("~/packages/ggplot2/")
#> ℹ Loading ggplot2

set.seed(42)
df <- data.frame(x = rnorm(100), y = abs(rnorm(100)), type = c(1, 5))

p <- ggplot(df, aes(x, colour = factor(type)))

# Weights are pointless here because they are by group
p + geom_density(aes(weight = type, y = after_stat(count)))

# Less pointless weights

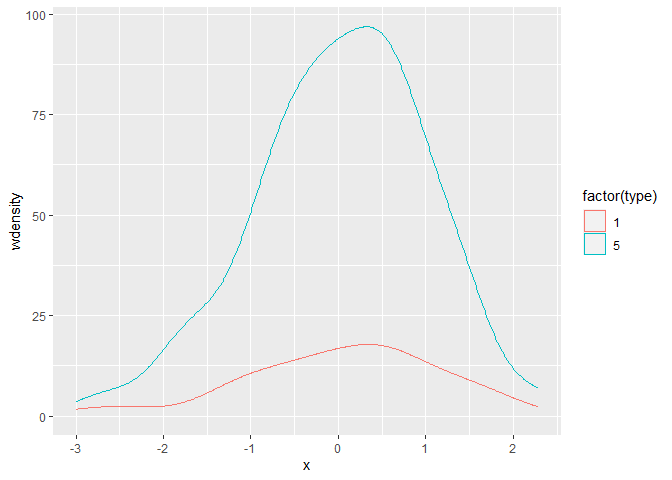

p + geom_density(aes(weight = type, y = after_stat(wdensity)))

^{Created on 2023-03-30 with reprex v2.0.2}

[thomasp85]

I'm fine with this, but looping in @clauswilke as he seemed to have more opinions on design in the issue thread

[clauswilke]

I have two relatively minor comments (see code annotations) and one bigger one. The bigger one is: Have you checked how the weights interact with the density reflection when there are bounds imposed? Is there anything that needs to be done or are things behaving as expected. I'm not sure I remember what the density reflection does, so it may well be that everything is correct as is, just wanted to be certain.

[clauswilke]

The function fit_data_to_bounds() checks for division by zero but here you're not doing that. I think in weird corner cases with zero weights this could give you different results depending on whether a point is inside the bounds or not.

[teunbrand]

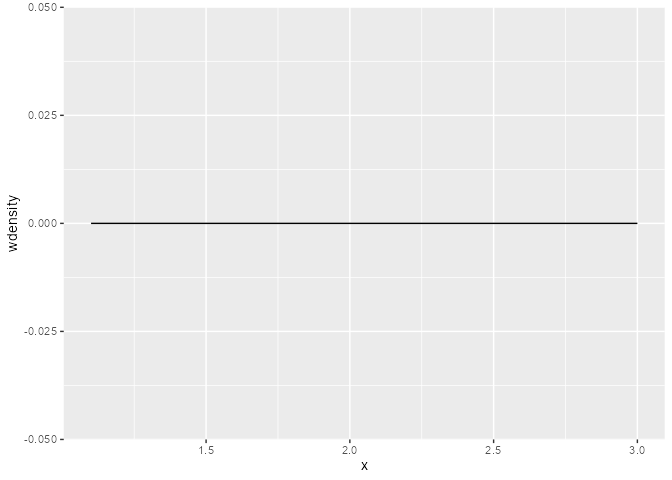

I've been trying to come up with examples that should be valid, but aren't, but I'm not having an easy time of it. If you censor a non-zero weight and are left with all zero weights, the weighted density should reflect that and show a flat line. Currently, it does this, but also passes on a warning from stats::density():

devtools::load_all("~/packages/ggplot2/")
#> ℹ Loading ggplot2
df <- data.frame(x = 1:3)

ggplot(df, aes(x)) +
  geom_density(aes(weight = c(1, 0, 0), y = after_stat(wdensity)),
               bounds = c(1.1, Inf))
#> Warning: Some data points are outside of `bounds`. Removing them.
#> Warning in density.default(x, weights = w, bw = bw, adjust = adjust, kernel =
#> kernel, : sum(weights) != 1 -- will not get true density

^{Created on 2023-04-11 with reprex v2.0.2}

I'm wondering if there is something to be improved here.

[clauswilke]

Ok. As far as I'm concerned you can handle it however you see fit, I just wanted to call out the inconsistency.

[teunbrand]

Boundary inflection should work as intended. In the inflected layer (solid line), the two peaks should have equal height because the inflected left bit has half the weight that gets doubled through inflection. This works similar to regular after_stat(density) but the between-group difference in weight should be apparent by the reddish line running half as high as the blueish line.

devtools::load_all("~/packages/ggplot2/")
#> ℹ Loading ggplot2

df <- data.frame(x = c(1, 5, 1, 5),
                 group = c("A", "A", "B", "B"),
                 weight = c(1, 2, 2, 4))

ggplot(df, aes(x, colour = group)) +
  geom_density(aes(weight = weight, y = after_stat(wdensity)),
               bounds = c(1, Inf)) +
  geom_density(aes(weight = weight, y = after_stat(wdensity)),
               linetype = "dotted") +
  xlim(-2, 8)

^{Created on 2023-04-11 with reprex v2.0.2}

[thomasp85]

LGTM
