add explicit parsing option to labels in coord_sf()

[clauswilke]

Thanks to @slowkow's work on label parsing, I can now see how to make parsing of labels configurable in coord_sf(). With this PR, labels are only autoparsed if they were actually generated by sf::st_graticule(). Otherwise, they only get parsed if explicitly requested in coord_sf().

[clauswilke]

Examples:

library(sf)
#> Linking to GEOS 3.6.1, GDAL 2.1.3, proj.4 4.9.3
library(ggplot2)

nc <- st_read(system.file("gpkg/nc.gpkg", package="sf"))
#> Reading layer `nc.gpkg' from data source `/Library/Frameworks/R.framework/Versions/3.5/Resources/library/sf/gpkg/nc.gpkg' using driver `GPKG'
#> Simple feature collection with 100 features and 14 fields
#> geometry type:  MULTIPOLYGON
#> dimension:      XY
#> bbox:           xmin: -84.32385 ymin: 33.88199 xmax: -75.45698 ymax: 36.58965
#> epsg (SRID):    4267
#> proj4string:    +proj=longlat +datum=NAD27 +no_defs

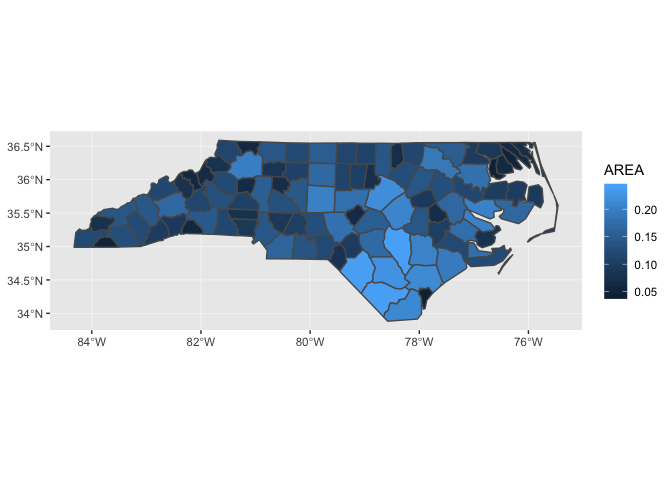

# default labels are parsed when needed
p_nc <- ggplot() +
  geom_sf(aes(fill = AREA), data=nc)
p_nc

p_polygon <- ggplot(sf::st_polygon(list(matrix(1e6*c(1, 2, 3, 1, 1, 3, 2, 1), ncol = 2)))) +
  geom_sf(size = 3, fill = 'pink')
p_polygon

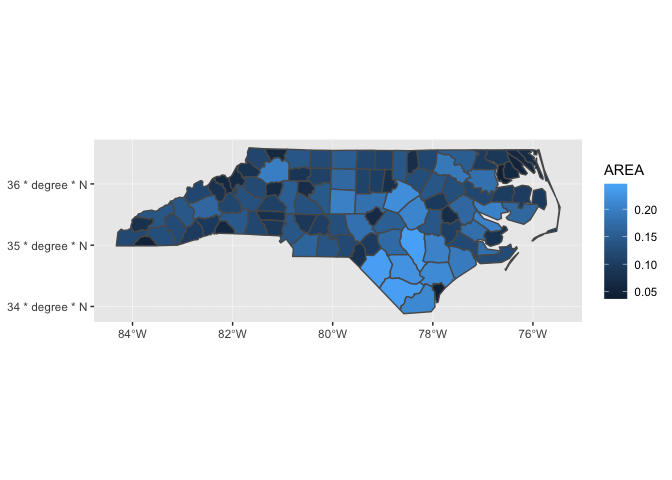

# explicitly supplied labels are not parsed by default
p_nc +
  scale_y_continuous(
    breaks = c(34, 35, 36),
    labels = c("34 * degree * N", "35 * degree * N", "36 * degree * N")
  )

# but parsing can be turned on
p_nc +
  coord_sf(parse_N_labels = TRUE) +
  scale_y_continuous(
    breaks = c(34, 35, 36),
    labels = c("34 * degree * N", "35 * degree * N", "36 * degree * N")
  )

# parsing doesn't need to be turned on if labels are provided in parsed format

# labeling function
pow10_format <- function(x) scales::math_format()(signif(log10(x), 3))
p_polygon +
  scale_x_continuous(labels = pow10_format) +
  scale_y_continuous(labels = pow10_format)

# explicit
p_polygon +
  scale_x_continuous(
    breaks = c(1e6, 2e6, 3e6),
    labels = parse(text = c("10^6", "2 %*% 10^6", "3 %*% 10^6"))
  )

Created on 2018-09-04 by the reprex package (v0.2.0).

[hadley]

Can we just have the user pass expressions as labels rather than making this an option?

[hadley]

Implementation seems fine, but I'd like to make sure we don't introduce arguments that we don't have to walk back later. OTOH, I don't want this to block the release, so if I stop responding feel free to go ahead and merge.

[clauswilke]

We can remove the parameters. My first iteration of the code couldn't handle expressions, so the parameters were needed, but then I realized I could support expressions directly. I'll remove these parameters. It would be easy to add them back in later if we feel we need that option.

[clauswilke]

@hadley If you have a moment, could you look this over one more time? The two main changes I made are:

1. I removed the parameters in coord_sf(). They are not needed.
2. I treat factors like character vectors but treat all other non-character objects as things that should be parsed before drawing. As a result, the following variable types are all handled correctly: character vectors, factors, expression objects, lists containing expression objects. But some other variable type could cause unexpected results. Is this a problem? Is there some type of object that users would expect to behave like character vectors but that is neither a character vector nor a factor? (Note: functions are also handled correctly.)

[hadley]

I think even handling factors is going above and beyond what's necessary. LGTM

[hadley]

Could this just be needs_parsing[graticule$type == "E"] <- is.character(x_labels) || is.factor(x_labels) ?

[clauswilke]

It needs a not in front, but otherwise yes, thanks!
