ggplot2:::contour_breaks makes one bin less than expected

[tjebo]

Likely related, yet not quite the same: #3824

Following up on this Stackoverflow thread: https://stackoverflow.com/questions/61817440/follow-up-to-stat-contour-2d-bins-interpretation?noredirect=1#comment109350645_61817440

A previous version of ggplot2 3.2.1 seemed to have worked as expected with the correct number of bins.

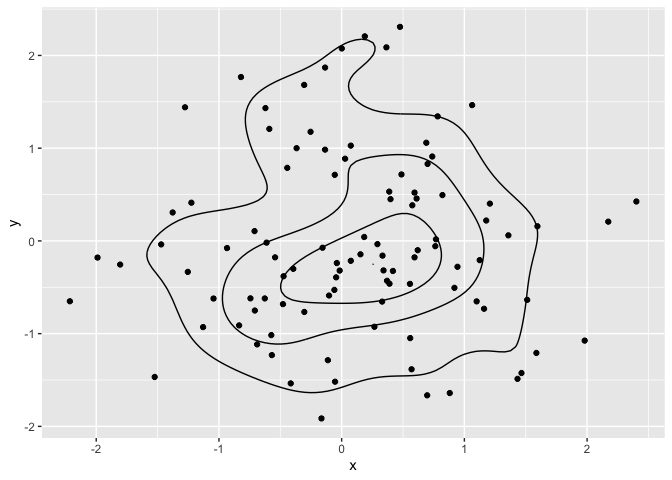

This does make one bin less than expected:

library(ggplot2)

set.seed(1)
n=100
foo <- data.frame(x=rnorm(n, 0, 1), y=rnorm(n, 0, 1))

ggplot() +
  stat_density_2d(data = foo, aes(x, y), bins = 5, color = "black") +
  geom_point(data = foo, aes(x = x, y = y))

^{Created on 2020-05-15 by the reprex package (v0.3.0)}

The following fix results in expected behaviour:
in ggplot2:::contour_breaks, changing bins-1 to "bins" :

contour_breaks2 <-
  function (z_range, bins = NULL, binwidth = NULL, breaks = NULL) {
    if (!is.null(breaks)) {
      return(breaks)
    }
    if (is.null(bins) && is.null(binwidth)) {
      breaks <- pretty(z_range, 10)
    }
    if (!is.null(bins)) {
      binwidth <- diff(z_range)/(bins)
    }
    if (is.null(breaks)) {
      breaks <- fullseq(z_range, binwidth)
    }
    breaks
  }

StatContour$compute_group <- function (data, scales, bins = NULL, binwidth = NULL, breaks = NULL,
                                       na.rm = FALSE)
{
  z_range <- range(data$z, na.rm = TRUE, finite = TRUE)
  breaks <- contour_breaks(z_range, bins, binwidth, breaks)
  isolines <- ggplot2:::xyz_to_isolines(data, breaks)
  path_df <- ggplot2:::iso_to_path(isolines, data$group[1])
  path_df$level <- as.numeric(path_df$level)
  path_df$nlevel <- scales::rescale_max(path_df$level)
  path_df
}

ggplot() +
  stat_density_2d(data = foo, aes(x, y), bins = 5, color = "black") +
  geom_point(data = foo, aes(x = x, y = y))
