[ADD] UI: odoo spreadsheets svg icons #13386

samueljlieber · 2025-05-15T20:10:17Z

Task: #4792034

This PR proposes introducing the o-spreadsheet icons into the Odoo documentation.

How this works

The Spreadsheet library in Odoo contains two QWeb template files for SVG icons:

These were used to generate an SVG sprite file (extensions/odoo_theme/static/img/odoo-spreadsheet-icons.svg), which can then be utilized by the SVG <use>element to call nodes by ID in the sprite.

This SVG sprite file is then included in the main page layout (extensions/odoo_theme/layout.html)

The RST :icon: role was updated to accomodate an os-* icon specifier.

The SVG sprite file can be generated automatically via a simple script outlined in this gist:
https://gist.github.com/samueljlieber/5ae7648a5ca08e0bfc8455861825e2ff

Why?

This PR attempts to scale an earlier method I used, the RST raw-html(raw) role includes the <svg> markup directly in the Global Filters doc (see this diff).

This was/is not scalable, is not usable throughout multiple docs, and will decay over time as the o-spreadsheet library is updated. This PR attempts to find a solution for using o-spreadsheet icons in documentation.

Example

With this implementation, o-spreadsheet icons can be used like so:

This is the :icon:`os-global-filters` :guilabel:`(global filters)` icon!

robodoo · 2025-05-15T20:10:21Z

rugo-odoo

2 little details and we should be good to go 😎

rugo-odoo · 2025-05-21T12:41:59Z

extensions/odoo_theme/__init__.py

@@ -125,7 +126,12 @@ def icon_role(name, rawtext, text, lineno, inliner, options=None, content=None):
        icon_html = f'<i class="oi {text}"></i>'
    elif text.startswith('fa-'):
        icon_html = f'<i class="fa {text}"></i>'
+    elif text.startswith('os-'):
+        icon_html = (
+            f'<svg class="os-icon" aria-hidden="true" role="img">'


Suggested change

f'<svg class="os-icon" aria-hidden="true" role="img">'

'<svg class="os-icon" aria-hidden="true" role="img">'

rugo-odoo · 2025-05-21T12:42:46Z

extensions/odoo_theme/__init__.py

+    elif text.startswith('os-'):
+        icon_html = (
+            f'<svg class="os-icon" aria-hidden="true" role="img">'
+            f'  <use href="#{text[3:]}" />'


A little comment about why text[3:] and not just text will be nice.

samueljlieber · 2025-05-21T19:39:21Z

Hi @rugo-odoo! Thank you for your review 😄 I implemented your helpful suggestions and opened this PR up from draft.

I figured I could manually backport to 18.0 once merged, WDYT? :)

AntoineVDV

I figured I could manually backport to 18.0 once merged, WDYT? :)

You should rather re-target this PR and let the automatic forward-port handle master after.

AntoineVDV · 2025-05-22T08:41:54Z

content/contributing/documentation/rst_guidelines.rst

+
+Follow the icon with its name as a :ref:`contributing/rst/guilabel` in brackets as a descriptor.
+
+.. spoiler:: View supported Odoo Spreadsheets icons


Shouldn't this be hosted at the same place as Odoo UI icons?

I suppose it can be, I wasn't sure of the best place to list the Odoo Spreadsheet (os-*) icons, since they are not part of the Odoo UI (oi-*) font-family.

Adding them to the developer/reference/user_interface/icons page in the same format would be a convenient and logical place. I'll add a header for Odoo Spreadsheet icons :)

AntoineVDV · 2025-05-22T08:45:11Z

extensions/odoo_theme/layout.html

@@ -113,6 +113,7 @@
            {%- else %}
                <article id="o_content" class="doc-body">
                    <div role="main"> {# Beacon used by the Sphinx search to know where to look for a string #}
+                        {% include "static/img/odoo-spreadsheets-icons.svg" %}


Why here in particular? Shouldn't this go in another, assets-dedicated block?

I included the svg sprite file here because I wanted it to be contained within main document body, however, looking at it again there is a better spot– as well the opportunity to create an "assets.html" layout_template to include this and future assets as well :)

samueljlieber · 2025-05-22T20:49:02Z

Thank you @AntoineVDV for your helpful comments!

Changes in 9f9eea4:

re-targeted this PR to 18.0 in prep for FWP to master
Updated the odoo-spreadsheet-icons.svg sprite to 18.0 Odoo Spreadsheet
Created an assets-specific block in extensions/odoo_theme/layout.html to conditionally include the sprite file to address this comment
Added the Spreadsheet icons to the Developer UI icons doc to addresses this comment
- Used this gist to generate the HTML and SVG sprite
Updated the RST guidelines :icon: markup to include these changes

Ready for another look, thanks all! :)

AntoineVDV

@robodoo delegate+

samueljlieber · 2025-05-23T12:30:20Z

@robodoo r+

samueljlieber self-assigned this May 15, 2025

samueljlieber added the technical improvement Technically improve the documentation site label May 15, 2025

AntoineVDV requested a review from rugo-odoo May 19, 2025 08:58

rugo-odoo requested changes May 21, 2025

View reviewed changes

samueljlieber force-pushed the master-ui-icons-spreadsheet-sali branch from 5447d56 to a682396 Compare May 21, 2025 19:20

samueljlieber marked this pull request as ready for review May 21, 2025 19:22

C3POdoo requested review from a team May 21, 2025 19:24

samueljlieber requested a review from rugo-odoo May 21, 2025 19:39

AntoineVDV reviewed May 22, 2025

View reviewed changes

[ADD] UI: odoo spreadsheets svg icons

9f9eea4

samueljlieber force-pushed the master-ui-icons-spreadsheet-sali branch from a682396 to 9f9eea4 Compare May 22, 2025 20:37

samueljlieber changed the base branch from master to 18.0 May 22, 2025 20:37

C3POdoo requested a review from a team May 22, 2025 20:39

AntoineVDV approved these changes May 23, 2025

View reviewed changes

robodoo closed this in a35a208 May 23, 2025

robodoo temporarily deployed to merge May 23, 2025 14:16 Inactive

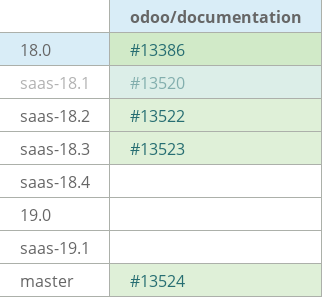

This was referenced May 23, 2025

[FW][ADD] UI: odoo spreadsheets svg icons #13520

Closed

[FW][ADD] UI: odoo spreadsheets svg icons #13522

Closed

[FW][ADD] UI: odoo spreadsheets svg icons #13523

Closed

[FW][ADD] UI: odoo spreadsheets svg icons #13524

Closed

xpl-odoo mentioned this pull request May 26, 2025

[IMP] spreadsheet: expanding functional documentation #12915

Closed
