Add .clang-format file with default Google style #357
Conversation
A lot of IDE's, and editors plugins interface well with clang-tools. This adds the file .clang-format in the top folder (the expected place). It is populated with the default google style. It was generated with the command: ``` clang-format -style=google -dump-config > .clang-format ``` With ``` clang-format --version clang-format version 10.0.0 ``` This should conform with the same style using `cpplint`.
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
This is great! But keep in mind, we have exceptions described here. Specifically, we at least need the equivalent of cpplint.py --linelength=120 --filter=-legal/copyright
. It does not look like clang-format
checks for legal/copyright
, but we need lines, and check other comments below.
Reviewed 1 of 1 files at r1.
Reviewable status: all files reviewed, 17 unresolved discussions (waiting on @aokellermann and @phcerdan)
.clang-format, line 15 at r1 (raw file):
AllowAllConstructorInitializersOnNextLine: true AllowAllParametersOfDeclarationOnNextLine: true AllowShortBlocksOnASingleLine: Never
Should we set this to Empty
? @aokellermann?
.clang-format, line 17 at r1 (raw file):
AllowShortBlocksOnASingleLine: Never AllowShortCaseLabelsOnASingleLine: false AllowShortFunctionsOnASingleLine: All
Should we set this to Empty
as well? Not sure, but sounds like it should be consistent with AllowShortBlocksOnASingleLine
.
.clang-format, line 19 at r1 (raw file):
AllowShortFunctionsOnASingleLine: All AllowShortLambdasOnASingleLine: All AllowShortIfStatementsOnASingleLine: WithoutElse
I think we should set this to Always
because it's dangerous otherwise. We don't want code like this:
if (a) return;
else
return;
because it could easily become before anybody notices:
if (a) return;
else
a = false;
return;
.clang-format, line 21 at r1 (raw file):
AllowShortIfStatementsOnASingleLine: WithoutElse AllowShortLoopsOnASingleLine: true AlwaysBreakAfterDefinitionReturnType: None
The docs say it's deprecated, so we should probably remove it.
.clang-format, line 26 at r1 (raw file):
AlwaysBreakTemplateDeclarations: Yes BinPackArguments: true BinPackParameters: true
Should we set these two to false
to make arguments more obvious? Not sure.
.clang-format, line 27 at r1 (raw file):
BinPackArguments: true BinPackParameters: true BraceWrapping:
This is ignored because BreakBeforeBraces
is not set to BS_Custom
.clang-format, line 53 at r1 (raw file):
BreakAfterJavaFieldAnnotations: false BreakStringLiterals: true ColumnLimit: 80
This should be 120.
.clang-format, line 54 at r1 (raw file):
BreakStringLiterals: true ColumnLimit: 80 CommentPragmas: '^ IWYU pragma:'
If I understand how this works, I think we should set this to '^ NO LINT'
to be consistent with cpplint.py
.
.clang-format, line 61 at r1 (raw file):
Cpp11BracedListStyle: true DeriveLineEnding: true DerivePointerAlignment: true
I think we should set this to false
and make the alignment consistent everywhere.
.clang-format, line 65 at r1 (raw file):
ExperimentalAutoDetectBinPacking: false FixNamespaceComments: true ForEachMacros:
I don't think we need this since we are not using any of those.
.clang-format, line 91 at r1 (raw file):
IndentWrappedFunctionNames: false JavaScriptQuotes: Leave JavaScriptWrapImports: true
I think we should remove the JavaScript*
configs since we don't plan to have any. We can decide on the style if/when we do.
.clang-format, line 100 at r1 (raw file):
ObjCBlockIndentWidth: 2 ObjCSpaceAfterProperty: false ObjCSpaceBeforeProtocolList: true
Same for ObjC*
.
.clang-format, line 122 at r1 (raw file):
CanonicalDelimiter: '' BasedOnStyle: google - Language: TextProto
Same here.
.clang-format, line 155 at r1 (raw file):
SpacesInAngles: false SpacesInConditionalStatement: false SpacesInContainerLiterals: true
I don't think this applies to C++, but if it does, it should be false
.
.clang-format, line 160 at r1 (raw file):
SpacesInSquareBrackets: false SpaceBeforeSquareBrackets: false Standard: Auto
Should we say c++17
explicitly to avoid any potential incorrect detection?
.clang-format, line 161 at r1 (raw file):
SpaceBeforeSquareBrackets: false Standard: Auto StatementMacros:
I don't think we need any of these either.
.clang-format, line 164 at r1 (raw file):
- Q_UNUSED - QT_REQUIRE_VERSION TabWidth: 8
We don't use tabs, so we should either remove it, or at least set it to 2.
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
Reviewable status: all files reviewed, 18 unresolved discussions (waiting on @aokellermann and @phcerdan)
a discussion (no related file):
All those options are used. It would be somehow cleaner to only write the changes that differ from those.
And uncomment BasedOnStyle: Google.
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
Reviewed 1 of 1 files at r2.
Reviewable status: all files reviewed, 6 unresolved discussions (waiting on @aokellermann and @phcerdan)
a discussion (no related file):
Previously, phcerdan (Pablo Hernandez-Cerdan) wrote…
All those options are used. It would be somehow cleaner to only write the changes that differ from those.
And uncomment BasedOnStyle: Google.
I agree, we should do that.
08967db
to
c2ff67b
Compare
c2ff67b
to
510d947
Compare
There was a problem hiding this comment.
Choose a reason for hiding this comment
The reason will be displayed to describe this comment to others. Learn more.
Reviewable status: 0 of 1 files reviewed, 6 unresolved discussions (waiting on @aokellermann, @maxitg, and @phcerdan)
a discussion (no related file):
Previously, maxitg (Max Piskunov) wrote…
I agree, we should do that.

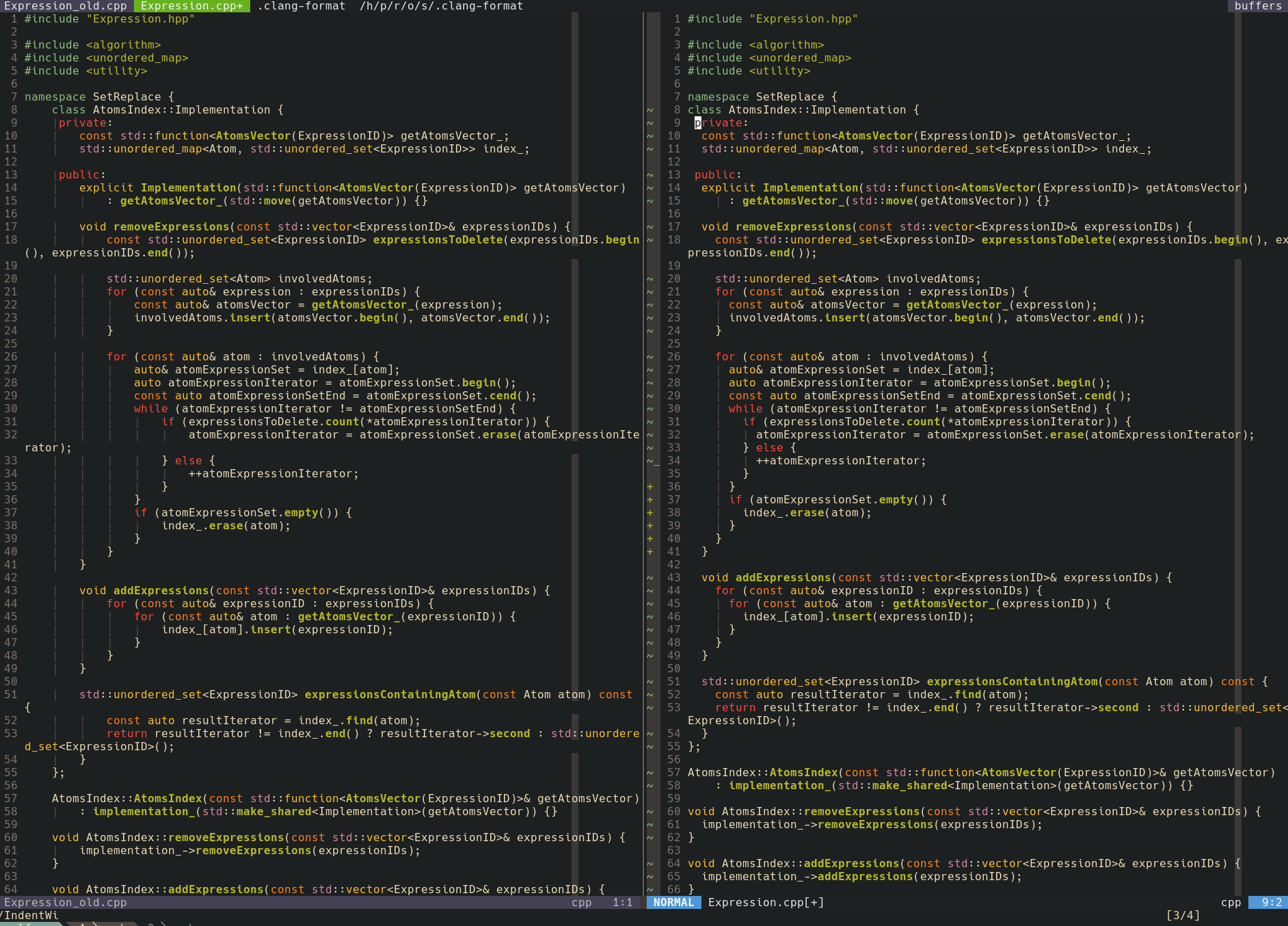

When you completely decide about option, we can commit and apply the clang-format to all files. Right now check an example on these options applied to Expressions.cpp
:
.clang-format, line 53 at r1 (raw file):
Previously, maxitg (Max Piskunov) wrote…
This should be 120.
Done.
.clang-format, line 54 at r1 (raw file):
Previously, maxitg (Max Piskunov) wrote…
If I understand how this works, I think we should set this to
'^ NO LINT'
to be consistent withcpplint.py
.
It seems to be NOLINT:.*
## Changes * This closes the C++ Style Refactor project. * Resolves #316. * Resolves #317. * Resolves #319. * Closes #357. * Reformats all C++ code according to [Google C++ Style Guide]. * Adds `.clang-format` file specifying the exceptions to the Google style guide. * Adds lint.sh script which prints a diff generated by `clang-format` (if any) and the errors generated by `cpplint`, and allows one to apply formatting in place with `./lint.sh -i`. * Adds Lint step to CI before Build. * Updates .gitbub/CONTRIBUTING.md with instructions on how to use lint.sh. * Adds the missing test file to the Xcode project. ## Comments * Linting in CI is not parallelized and is using the same Docker image because it will eventually include linting of the Wolfram Language code as well as described in #247. * Bin packing is now disallowed in addition to the existing style exceptions. * All `cpplint` errors are fixed as well, not just the formatting. * `#include <chrono>` is not allowed by `cpplint` for Chromium-specific reasons, so added `// NOLINT` there. * Renamed `SetTest.cpp` -> `Set_test.cpp` because the suffix appears to be hard-coded to `cpplint`. * Before the formatting, the code was mostly following this style (imperfectly): ``` --- Language: Cpp BasedOnStyle: Google ColumnLimit: 120 BinPackArguments: false BinPackParameters: false AllowShortFunctionsOnASingleLine: Empty IndentWidth: 4 NamespaceIndentation: All AccessModifierOffset: -4 FixNamespaceComments: false SpaceAfterTemplateKeyword: false BreakConstructorInitializers: AfterColon SpacesBeforeTrailingComments: 1 ... ``` ## Examples * Break formatting/code style somewhere in the code, and run `./lint.sh`. For example, we can remove `explicit` on line 22 of Match.cpp, and add a spurious space on the line below: ``` > ./lint.sh --- libSetReplace/Match.cpp +++ formatted @@ -24 +24 @@ - bool operator()(const MatchPtr& a, const MatchPtr& b) const { + bool operator()(const MatchPtr& a, const MatchPtr& b) const { libSetReplace/Match.cpp:22: Single-parameter constructors should be marked explicit. [runtime/explicit] [5] Done processing libSetReplace/Match.cpp Total errors found: 1 ``` * We can run `./lint.sh -i` to fix the space automatically: ``` > ./lint.sh -i --- libSetReplace/Match.cpp +++ formatted @@ -24 +24 @@ - bool operator()(const MatchPtr& a, const MatchPtr& b) const { + bool operator()(const MatchPtr& a, const MatchPtr& b) const { libSetReplace/Match.cpp:22: Single-parameter constructors should be marked explicit. [runtime/explicit] [5] Done processing libSetReplace/Match.cpp Total errors found: 1 ``` * The output is the same, however, if we run `./lint.sh` again, there will be no diff: ``` > ./lint.sh libSetReplace/Match.cpp:22: Single-parameter constructors should be marked explicit. [runtime/explicit] [5] Done processing libSetReplace/Match.cpp Total errors found: 1 ``` * Finally, if we put explicit back in, there will be no output, which means everything is ok: ``` > ./lint.sh ```
## Changes * Changes the order of headers in `Set_test.cpp`, so that `cpplint` does not fail an Mac. * Adds the corresponding rules to `.clang-format` (taken from #357). ## Comments * Apparently, the difference is due to version 1.5.0 that was released 4 days ago. Updating the CI now. ## Examples * Before: ``` ➜ SetReplace git:(master) ./lint.sh libSetReplace/test/Set_test.cpp:5: Found C++ system header after other system header. Should be: Set_test.h, c system, c++ system, other. [build/include_order] [4] Done processing libSetReplace/test/Set_test.cpp Total errors found: 1 ``` * After: ``` ➜ SetReplace git:(fixTestHeaderOrder) ./lint.sh ``` <!-- Reviewable:start --> --- This change is [<img src="https://reviewable.io/review_button.svg" height="34" align="absmiddle" alt="Reviewable"/>](https://reviewable.io/reviews/maxitg/setreplace/373) <!-- Reviewable:end -->
A lot of IDE's, and editors plugins interface well with clang-tools.
This adds the file .clang-format in the top folder (the expected place).
It is populated with the default google style.
It was generated with the command:
With
This should conform with the same style using
cpplint
.See #317
This change is
