@guarin guarin commented Apr 24, 2023

Changes

  • Add benchmarks directory
  • Add code for SimCLR ImageNet benchmark
  • Add linear evaluation code
  • Add knn evaluation code
  • Add online linear evaluation code
  • Add LARS optimizer

Closes #569

How was it tested?

  • Most parts were manually tested
  • Will add unit tests later

Runs

Initial run: https://tensorboard.dev/experiment/VD0GPdaoSLa5uonTp6k6dQ/#scalars

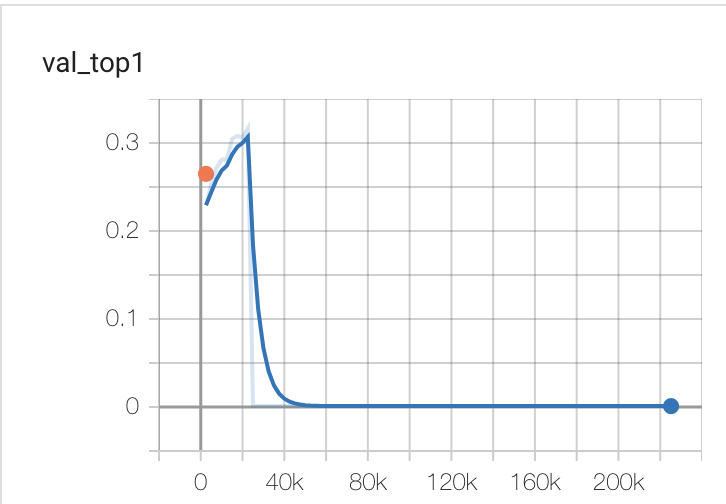

There seems to be an issue with the linear eval validation logic, top1 accuracy collapses after a couple epochs:
Screen Shot 2023-04-27 at 09 38 45

Doesn't happen for train top1 but we get max 51%. I would expect 64% val top1 (https://github.com/facebookresearch/vissl/blob/main/MODEL_ZOO.md#simclr).

Issues:

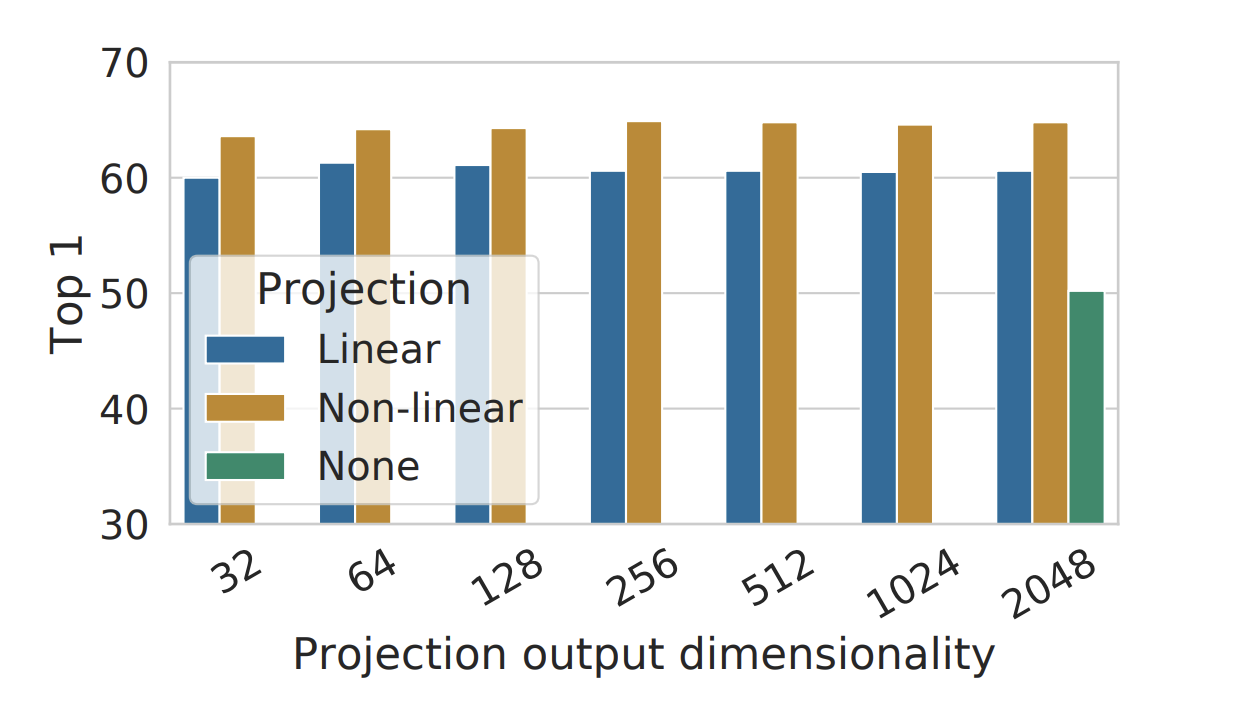

Screen Shot 2023-04-27 at 10 09 05

  • Will check accuracy with pretrained supervised model to check if there is something off with our validation logic, would expect 76% val top1 (https://github.com/facebookresearch/vissl/blob/main/MODEL_ZOO.md#supervised)
    --> Got 73.1% knn val top1 and 76.3% linear eval top1 tensorboard.

  • Verified that ntx_ent_loss is correct for non-distributed training

  • Will check if there if the results differ between distributed and non-distributed training to verify that loss/backprop/sync works as expected

  • Other options are

    • Incorrect training parameters
    • Incorrect augmentations
    • Incorrect collate -> Verified that multi view collate works as expected
    • Incorrect projection head (our implementation slightly differs from solo-learn/vissl in that it has a batch norm layer at the end of the head, but this is the way it is implemented in the authors code).

Edit: Issues fixed in #1175

Final Results

Ran the benchmark again. We get now 63.2% linear eval top1 accuracy, compared to the paper which reports 62.8% for the same settings. Full results:

Imagenet
	max val_online_cls_top1: 	0.6309599876403809
	max val_online_cls_top5: 	0.8507199883460999
	knn val_top1: 			0.44929999113082886
	knn val_top5: 			0.7418799996376038
	max linear val_top1: 		0.6319800019264221
	max linear val_top5: 		0.8527600169181824

Imagenet100
	max val_online_cls_top1: 	0.6898000240325928
	max val_online_cls_top5: 	0.8980000019073486
	knn val_top1: 			0.5752000212669373
	knn val_top5: 			0.8485999703407288
	max linear val_top1: 		0.7233999967575073
	max linear val_top5: 		0.9165999889373779
	max finetune val_top1: 		0.7954000234603882
	max finetune val_top5: 		0.949400007724762

Imagenette
	max val_online_cls_top1: 	0.8166072368621826
	max val_online_cls_top5: 	0.9801324605941772
	knn val_top1: 			0.7763627171516418
	knn val_top5: 			0.9793683290481567
	max linear val_top1: 		0.8494651317596436
	max linear val_top5: 		0.9857361316680908
	max finetune val_top1: 		0.6314314603805542
	max finetune val_top5: 		0.943708598613739

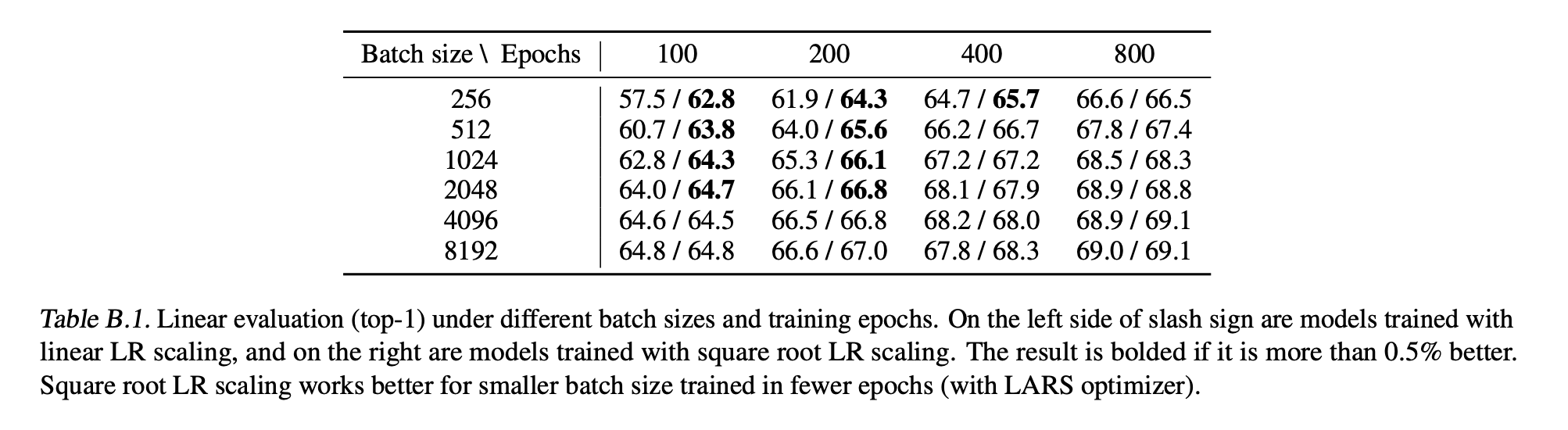

Training was 100 epochs with batch size 256 (=2x128). This corresponds to the first entry in this table:
Screen Shot 2023-05-08 at 13 51 04

guarin and others added 20 commits April 25, 2023 07:34
* Add benchmarking test directory
* Add unit tests for knn.py
* Improve docstring for `mean_topk_accuracy`
* Add tests for `mean_topk_accuracy`
* Add tests for OnlineLinearClassifier
* Add `MetricCallback` tests
* Refactor `MetricCallback` to keep track of metrics after train and validation epochs separately.
* Add tests for `LinearClassifier`
* Pass model parameters to optimizer if model is not frozen
* Encode all views at once. This is how it is implemented in the original paper. It should slightly improve training as the model  cannot use batch norm statistics to differentiate between embeddings from view 1 and 2. Not sure how much it improves though, didn't benchmark it.
* Use square root learning rate scaling. This is recommended by the paper for smaller batch sizes.
* Use 0.9 momentum. Forgot to add this previously. This is why the results are now much better.
guarin and others added 2 commits May 9, 2023 07:34
* Add minimal `README.md` to benchmarks.
* Add Imagenet ResNet50 SimCLR results to readme and docs.
@guarin guarin marked this pull request as ready for review May 9, 2023 10:55
@guarin guarin merged commit 64482ea into master May 10, 2023
@guarin guarin deleted the guarin-lig-3049-add-simclr-imagenet-resnet50-benchmark branch May 10, 2023 11:57
@guarin guarin changed the title Guarin lig 3049 add simclr imagenet resnet50 benchmark Add simclr imagenet resnet50 benchmark May 10, 2023
