- Requests to the kernel to perform some privileged operation
- "A system call is the programmatic way in which a computer program requests a service from the kernel of the operating system it is executed on. This may include hardware-related services (for example, accessing a hard disk drive), creation and execution of new processes, and communication with integral kernel services such as process scheduling. System calls provide an essential interface between a process and the operating system." [Wikipedia - System Call]
- On x86, it is usually performed using the
intinstruction, which generates a software trap, switching the processor to "ring-0" (allows priveleged instructions).- Linux uses
int 0x80
- Linux uses
- Most platforms wrap these system calls in standard libraries, such as libc on *nix systems.
- "A process is an instance of a computer program that is being executed. It contains the program code and its current activity. Depending on the operating system (OS), a process may be made up of multiple threads of execution that execute instructions concurrently" [Wikipedia - Process].
- "A thread of execution is the smallest sequence of programmed instructions that can be managed independently by a scheduler, which is typically a part of the operating system." [Wikipedia - Thread]
- Often, threads of the same process share the same address space and system resources.
- "Concurrent computing is a form of computing in which several computations are executing during overlapping time periods—concurrently—instead of sequentially (one completing before the next starts)." [Wikipedia - Concurrent Computing]
- The most common sources of concurrency are multiprocessing and multithreading.
- Concurrency can significantly improve performance because multiple computations are happening at the same time.
- Unfortunately, concurrency can be a source of nondeterministic bugs that are hard to find or debug.
- Concurrency control primitives, such as locks, are used to ensure that use of common resources by multiple threads or processes is done correctly. Several concurrency control primitives are described below.
- University of Wisconson - Locks
- "A lock or mutex (from mutual exclusion) is a synchronization mechanism for enforcing limits on access to a resource in an environment where there are many threads of execution. A lock is designed to enforce a mutual exclusion concurrency control policy." [Wikiepedia - Lock]
- "A semaphore is a variable or abstract data type that is used for controlling access, by multiple processes, to a common resource in a concurrent system such as a multiprogramming operating system." [Wikipedia - Semaphore]
- "A semaphore is hardware or a software tag variable whose value indicates the status of a common resource. Its purpose is to lock the resource being used" [CareerRide - Semaphore]
- A simple implementation is to have an atomic counter in memory (e.g. using atomic compare and swap assembly instructions provided by most modern architectures).
- The counter begins at some initially value X, signifying that X threads can use the resource at a time.
- When a thread requests the resource, the counter is decremented.
- If the counter is greater than 0, the thread can proceed. Otherwise, it blocks until the counter becomes greater than 0.
- When a thread releases the resource, the counter is incremented.
- A semaphore in which X=1 is a mutex since only one thread can use the resource at a time.
- Wikipedia - Monitor
- "In concurrent programming, a monitor is a synchronization construct that allows threads to have both mutual exclusion and the ability to wait (block) for a certain condition to become true. Monitors also have a mechanism for signalling other threads that their condition has been met. "
- In concurrent programs, there may be executions (resulting from bugs) in which threads cease to make progress. Deadlock and livelock are two such cases.
- Deadlock usually occur in the context of locks.
- A deadlock occurs when two processes become mutually dependent. That is, process A cannot make progress until B finishes, and B cannot make progress until A finishes.
- For example, process A locks access to the printer and tries to get access to file
foo.txt, which it wants to print. Meanwhile, process B locks access to the file and then tries to get access to the printer. Imagine the following sequence of events:- A locks printer
- B locks file
- A attempts to lock file, but blocks because B has already locked it
- B attempts to lock printer, but blocks because A has already locked it
- How to avoid deadlock
- Careful design: if all threads acquire locks in the same order, they cannot deadlock. In the example above, if A and B try to lock the file first, neither can deadlock, though one may block temporarily.
- Detection schemes: Some systems, such as database systems, try to detect deadlocks when they happen. Then, they kill one of the processes deadlocking and release its resources so the others can proceed.
- Dependency graphs can be constructed by representing each thread as a node. If A needs a resource that B has currently, a directed edge is drawn from A to B. If this graph has a cycle the processes in the cycle are deadlocked.

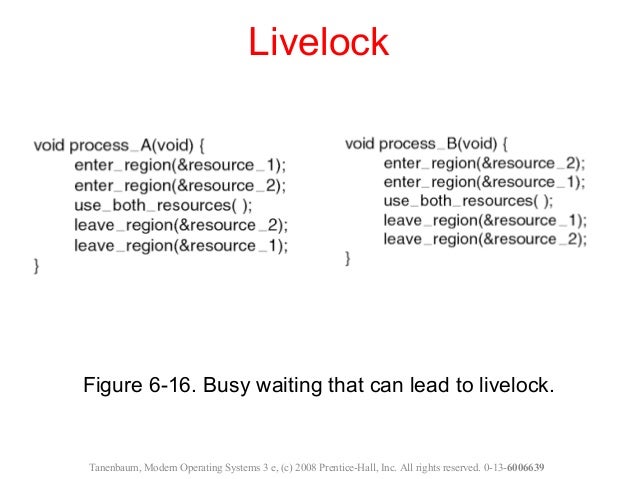

- A livelock occurs when two processes continually change state but do not make progress.
- For example,
- A locks printer
- B locks file
- A attempts to lock file, but cannot because B has already locked it
- B attempts to lock printer, but blocks because A has already locked it
- A releases the printer and waits for the file to be unlocked
- B releases the file and waits for the printer to be unlocked
- A notices that the file is unlocked and tries again
- B notices that the printer is unlocked and tries again
- Repeat forever
- How to avoid livelock
- Variable timeouts
