Fixes #5391, #5392. Add Terminal.Gui.Interop.Spectre with SpectreView and style bridge by Copilot · Pull Request #5393 · gui-cs/Terminal.Gui

Copilot · 2026-05-24T00:16:42Z

Summary

Adds Terminal.Gui.Interop.Spectre — a separate assembly that bridges Spectre.Console rendering into Terminal.Gui applications.

Fixes #5391 — Style/Color conversion bridge
Fixes #5392 — SpectreView for rendering any IRenderable

What's Included

`SpectreView : View`

A read-only View that renders any Spectre.Console IRenderable:

// Render a Spectre Table
spectreView.Renderable = new Table ().AddColumn ("Name").AddRow ("Alice");

// Render Spectre Markup (Markup implements IRenderable)
spectreView.Renderable = new Markup ("[bold red]Hello[/] [green]World[/]");

`SpectreMarkupBridge`

Bidirectional style conversion:

Style.ToAttribute() — Spectre → TG (colors + decorations)
Attribute.ToSpectreStyle() — TG → Spectre (round-trip safe)

UICatalog Scenario

"Spectre" scenario demonstrating Table, Panel, Rule, Tree, BarChart, Calendar, FigletText, and Markup rendering.

Architecture

Separate assembly (Terminal.Gui.Interop.Spectre) — no Spectre dependency in core TG
AOT-compatible, trimmable
NuGet package: Terminal.Gui.Interop.Spectre
Added to Terminal.sln

Tests

10 tests covering: style conversion, reverse conversion, round-trip, default/none colors, Markup rendering, Table/Panel/Rule/Tree/BarChart/FigletText, re-render on change, DimAuto content sizing, integration with Window.

Agent-Logs-Url: https://github.com/gui-cs/Terminal.Gui/sessions/7113b76f-a6aa-4ba6-a74f-c5cdbaf39f4a Co-authored-by: tig <585482+tig@users.noreply.github.com>

tig · 2026-05-24T01:37:36Z

@copilot add a UICatalog scenario that shows this off.

Agent-Logs-Url: https://github.com/gui-cs/Terminal.Gui/sessions/8f20c41f-e3ce-4e4a-a667-bdf8cfbeaabd Co-authored-by: tig <585482+tig@users.noreply.github.com>

Copilot · 2026-05-24T01:43:30Z

@copilot add a UICatalog scenario that shows this off.

Added in commit 18f49b7.

I introduced a new UICatalog scenario: SpectreView Interop (Examples/UICatalog/Scenarios/SpectreViewScenario.cs) and wired UICatalog.csproj to reference Terminal.Gui.Interop.Spectre.

Screenshot: https://github.com/user-attachments/assets/e3cb63b3-0e3d-4cb0-ad22-1841bedd581d

tig · 2026-05-24T01:50:04Z

@copilot use gui-cs/tuirec to record a gif of the new scenario in action and add the gif to docs/images.

Agent-Logs-Url: https://github.com/gui-cs/Terminal.Gui/sessions/f35cf387-5838-43a1-8bd9-28c882fe97af Co-authored-by: tig <585482+tig@users.noreply.github.com>

Copilot · 2026-05-24T01:53:01Z

@copilot use gui-cs/tuirec to record a gif of the new scenario in action and add the gif to docs/images.

Done in c6c6ff7.

I recorded the new SpectreView Interop scenario with gui-cs/tuirec and added the GIF at docfx/images/spectreview-interop.gif.

Preview: https://raw.githubusercontent.com/gui-cs/Terminal.Gui/c6c6ff7/docfx/images/spectreview-interop.gif

tig · 2026-05-24T02:03:06Z

@copilot that video does not show anything. Keep trying. Document what you learned doing it.

Agent-Logs-Url: https://github.com/gui-cs/Terminal.Gui/sessions/b17a0837-992b-4a05-92f2-b1d8b62b83f2 Co-authored-by: tig <585482+tig@users.noreply.github.com>

Copilot · 2026-05-24T02:09:10Z

@copilot that video does not show anything. Keep trying. Document what you learned doing it.

Updated in b7eb9c5 with a new recording at docfx/images/spectreview-interop.gif.

Screenshot/GIF: https://raw.githubusercontent.com/gui-cs/Terminal.Gui/b7eb9c5f1/docfx/images/spectreview-interop.gif

What I learned while retrying:

Recording dotnet run directly produced unusable output because startup/build timing and runtime resolution made captures inconsistent.
Running the scenario through a small dedicated runner that directly executes SpectreViewScenario.Main () produced a stable, visible capture.
I validated the cast before committing by checking it contained expected UI text (Spectre Widget, Preview, and Scenario: SpectreView Interop) and full interaction timing.

tig · 2026-05-24T02:35:27Z

@copilot see the code cleanup .md doc in ./.claude and use it on all touched files.

Agent-Logs-Url: https://github.com/gui-cs/Terminal.Gui/sessions/588b85ed-beb4-452b-9967-f8f75eac4f93 Co-authored-by: tig <585482+tig@users.noreply.github.com>

Copilot · 2026-05-24T02:38:43Z

@copilot see the code cleanup .md doc in ./.claude and use it on all touched files.

Applied the .claude cleanup guidance across touched source/test files in 959e784.

I cleaned the touched files to align with the style checklist (notably brace placement and initializer formatting):

Examples/UICatalog/Scenarios/SpectreViewScenario.cs
Tests/UnitTestsParallelizable/Interop/Spectre/SpectreViewTests.cs

Validation run:

dotnet build Examples/UICatalog/UICatalog.csproj --no-restore /p:DisableGitVersionTask=true
dotnet test --project Tests/UnitTestsParallelizable --filter-class "*SpectreViewTests" /p:DisableGitVersionTask=true

Screenshot/GIF (current scenario preview): https://raw.githubusercontent.com/gui-cs/Terminal.Gui/959e784/docfx/images/spectreview-interop.gif

tig · 2026-05-24T02:42:13Z

@copilot that video does not show anything. Keep trying. Document what you learned doing it.

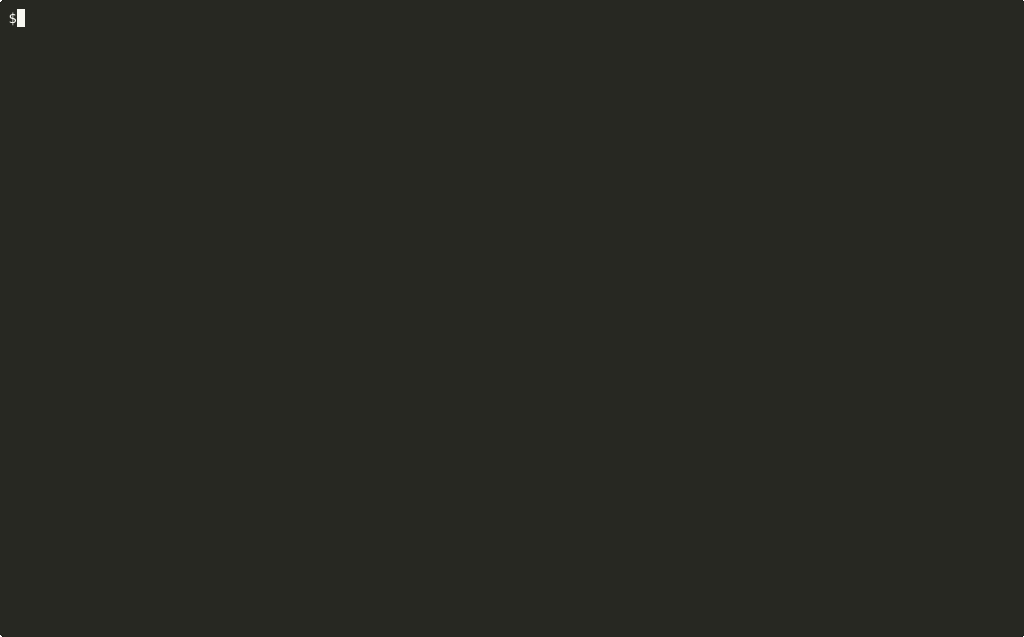

Updated in b7eb9c5 with a new recording at docfx/images/spectreview-interop.gif.

Screenshot/GIF: https://raw.githubusercontent.com/gui-cs/Terminal.Gui/b7eb9c5f1/docfx/images/spectreview-interop.gif

What I learned while retrying:

Recording dotnet run directly produced unusable output because startup/build timing and runtime resolution made captures inconsistent.

Running the scenario through a small dedicated runner that directly executes SpectreViewScenario.Main () produced a stable, visible capture.

I validated the cast before committing by checking it contained expected UI text (Spectre Widget, Preview, and Scenario: SpectreView Interop) and full interaction timing.

@copilot create ./scripts/tuirec.md. In it provide guidance to agents on using tuirec to record TG apps. See ./hero-gif.md and borrow from it as well, simplifying that file so it references tuirec.md.

Agent-Logs-Url: https://github.com/gui-cs/Terminal.Gui/sessions/e51b923f-3781-4315-8458-2ffa6138ea61 Co-authored-by: tig <585482+tig@users.noreply.github.com>

Copilot · 2026-05-24T02:45:56Z

@copilot that video does not show anything. Keep trying. Document what you learned doing it.
...

Implemented in 248df34.

Added:

./scripts/tuirec.md with agent-focused guidance for recording Terminal.Gui apps/scenarios with tuirec, including workflow, validation checklist, and retry guidance.

Simplified:

./hero-gif.md to a minimal pointer to ./scripts/tuirec.md.

GIF preview link: https://raw.githubusercontent.com/gui-cs/Terminal.Gui/248df34/docfx/images/spectreview-interop.gif

Co-authored-by: Copilot <223556219+Copilot@users.noreply.github.com>

- Add SpectreMarkupBridge.ToSpectreStyle() for TG->Spectre conversion - Add NuGet package metadata to interop project - Add project to Terminal.sln - Add tests for round-trip, Markup IRenderable, default/none colors - Rename scenario to 'Spectre' / 'Demonstrates Spectre.Console integration' Co-authored-by: Copilot <223556219+Copilot@users.noreply.github.com>

Cycles through Table, Panel, Rule, Tree, BarChart, Calendar, Figlet, Markup. Co-authored-by: Copilot <223556219+Copilot@users.noreply.github.com>

Co-authored-by: Copilot <223556219+Copilot@users.noreply.github.com>

chatgpt-codex-connector

💡 Codex Review

Here are some automated review suggestions for this pull request.

Reviewed commit: 79cb212af2

ℹ️ About Codex in GitHub

Your team has set up Codex to review pull requests in this repo. Reviews are triggered when you

Open a pull request for review
Mark a draft as ready
Comment "@codex review".

If Codex has suggestions, it will comment; otherwise it will react with 👍.

Codex can also answer questions or update the PR. Try commenting "@codex address that feedback".

chatgpt-codex-connector · 2026-05-24T14:12:59Z

+            if (string.IsNullOrEmpty (segment.Text))
+            {
+                continue;


Ignore control-code segments during rendering

Spectre renderables can emit control segments (IsControlCode == true) that represent ANSI cursor/control instructions rather than displayable text, but this loop only skips line breaks and empty strings. As a result, custom IRenderable implementations that yield control segments will have those escape bytes treated as visible text and will also shift subsequent content width calculations, causing garbled output and misaligned rendering in SpectreView.

Useful? React with 👍 / 👎.

Copilot

Pull request overview

Adds a new Terminal.Gui.Interop.Spectre assembly to embed Spectre.Console renderables inside Terminal.Gui apps, plus a UICatalog scenario and unit tests to validate rendering and style conversion.

Changes:

Introduces SpectreView : View for rendering any Spectre IRenderable and reporting content size for Dim.Auto.
Adds SpectreMarkupBridge extension methods to convert between Spectre Style and Terminal.Gui Attribute (colors + decorations).
Wires the new project into the solution, UICatalog, and the parallelizable test project; adds a UICatalog “Spectre” scenario and corresponding tests.

Reviewed changes

Copilot reviewed 9 out of 10 changed files in this pull request and generated 3 comments.

Show a summary per file

File	Description
Tests/UnitTestsParallelizable/UnitTests.Parallelizable.csproj	References the new interop project from the parallel test suite.
Tests/UnitTestsParallelizable/Interop/Spectre/SpectreViewTests.cs	Adds tests for style conversion and basic render/output behaviors.
Terminal.sln	Adds the new interop project to the solution.
Terminal.Gui.Interop.Spectre/Terminal.Gui.Interop.Spectre.csproj	New project/packaging metadata and Spectre.Console dependency.
Terminal.Gui.Interop.Spectre/SpectreView.cs	Implements the View that renders Spectre segments into Terminal.Gui drawing calls.
Terminal.Gui.Interop.Spectre/SpectreMarkupBridge.cs	Implements Spectre Style ↔ Terminal.Gui Attribute conversion helpers.
Examples/UICatalog/UICatalog.csproj	References the new interop project so scenarios can use it.
Examples/UICatalog/Scenarios/SpectreViewScenario.cs	New scenario demonstrating multiple Spectre widgets rendered via `SpectreView`.
Directory.Packages.props	Adds the centrally-managed Spectre.Console package version.

+            DrawSegment (segment, row, col);
+            col += segment.Text.GetColumns ();
+        }


+    private static (IReadOnlyList<Segment> Segments, int ContentWidth, int ContentHeight) RenderSegments (IRenderable renderable, int maxWidth)
+    {
+        RenderOptions renderOptions = RenderOptions.Create (global::Spectre.Console.AnsiConsole.Console, null);
+        Measurement measurement = renderable.Measure (renderOptions, maxWidth);
+        List<Segment> segments = [.. renderable.Render (renderOptions, maxWidth)];


+  <ItemGroup>
+    <PackageReference Include="Spectre.Console" />
+  </ItemGroup>
+
+  <PropertyGroup>
+    <AssemblyName>Terminal.Gui.Interop.Spectre</AssemblyName>
+    <RootNamespace>Terminal.Gui.Interop.Spectre</RootNamespace>
+    <TargetFramework>net10.0</TargetFramework>
+    <ImplicitUsings>enable</ImplicitUsings>
+    <Nullable>enable</Nullable>
+    <IsTrimmable>true</IsTrimmable>
+    <IsAotCompatible>true</IsAotCompatible>
+    <PackageId>Terminal.Gui.Interop.Spectre</PackageId>
+    <Description>Bridge package for rendering Spectre.Console IRenderable widgets inside Terminal.Gui applications.</Description>
+    <Authors>gui-cs contributors</Authors>
+    <PackageLicenseExpression>MIT</PackageLicenseExpression>
+    <PackageProjectUrl>https://github.com/gui-cs/Terminal.Gui</PackageProjectUrl>
+    <RepositoryUrl>https://github.com/gui-cs/Terminal.Gui</RepositoryUrl>
+    <PackageTags>terminal;gui;console;spectre;interop</PackageTags>
+  </PropertyGroup>


Initial plan

1dd45a9

Copilot AI assigned Copilot and tig May 24, 2026

Copilot started work on behalf of tig May 24, 2026 00:16 View session

Copilot AI linked an issue May 24, 2026 that may be closed by this pull request

Add SpectreView — render any Spectre.Console IRenderable inside a Terminal.Gui app #5392

Open

9 tasks

Add SpectreView interop with rendering and tests

0dc422f

Agent-Logs-Url: https://github.com/gui-cs/Terminal.Gui/sessions/7113b76f-a6aa-4ba6-a74f-c5cdbaf39f4a Co-authored-by: tig <585482+tig@users.noreply.github.com>

Copilot AI changed the title ~~[WIP] Add SpectreView to render IRenderable in Terminal.Gui app~~ Add SpectreView to render Spectre.Console IRenderable inside Terminal.Gui May 24, 2026

Copilot finished work on behalf of tig May 24, 2026 00:35

Copilot AI requested a review from tig May 24, 2026 00:35

Copilot started work on behalf of tig May 24, 2026 01:37 View session

Add UICatalog SpectreView scenario demo

18f49b7

Agent-Logs-Url: https://github.com/gui-cs/Terminal.Gui/sessions/8f20c41f-e3ce-4e4a-a667-bdf8cfbeaabd Co-authored-by: tig <585482+tig@users.noreply.github.com>

Copilot AI changed the title ~~Add SpectreView to render Spectre.Console IRenderable inside Terminal.Gui~~ Add SpectreView interop and UICatalog scenario for Spectre.Console renderables May 24, 2026

Copilot finished work on behalf of tig May 24, 2026 01:44

Copilot started work on behalf of tig May 24, 2026 01:50 View session

Add SpectreView scenario GIF under docfx images

c6c6ff7

Agent-Logs-Url: https://github.com/gui-cs/Terminal.Gui/sessions/f35cf387-5838-43a1-8bd9-28c882fe97af Co-authored-by: tig <585482+tig@users.noreply.github.com>

Copilot AI changed the title ~~Add SpectreView interop and UICatalog scenario for Spectre.Console renderables~~ Add SpectreView interop, UICatalog scenario, and demo GIF for Spectre.Console renderables May 24, 2026

Copilot finished work on behalf of tig May 24, 2026 01:53

Copilot started work on behalf of tig May 24, 2026 02:03 View session

Replace SpectreView scenario GIF with visible tuirec capture

b7eb9c5

Agent-Logs-Url: https://github.com/gui-cs/Terminal.Gui/sessions/b17a0837-992b-4a05-92f2-b1d8b62b83f2 Co-authored-by: tig <585482+tig@users.noreply.github.com>

Copilot AI changed the title ~~Add SpectreView interop, UICatalog scenario, and demo GIF for Spectre.Console renderables~~ Add SpectreView interop, UICatalog scenario, and validated demo GIF for Spectre.Console renderables May 24, 2026

Copilot finished work on behalf of tig May 24, 2026 02:09

Copilot started work on behalf of tig May 24, 2026 02:35 View session

Apply .claude cleanup formatting to SpectreView touched files

959e784

Agent-Logs-Url: https://github.com/gui-cs/Terminal.Gui/sessions/588b85ed-beb4-452b-9967-f8f75eac4f93 Co-authored-by: tig <585482+tig@users.noreply.github.com>

Copilot AI changed the title ~~Add SpectreView interop, UICatalog scenario, and validated demo GIF for Spectre.Console renderables~~ Add SpectreView interop, UICatalog scenario, validated demo GIF, and touched-file cleanup May 24, 2026

Copilot finished work on behalf of tig May 24, 2026 02:39

Copilot started work on behalf of tig May 24, 2026 02:42 View session

Add tuirec recording guide and simplify hero-gif doc

248df34

Agent-Logs-Url: https://github.com/gui-cs/Terminal.Gui/sessions/e51b923f-3781-4315-8458-2ffa6138ea61 Co-authored-by: tig <585482+tig@users.noreply.github.com>

Copilot AI changed the title ~~Add SpectreView interop, UICatalog scenario, validated demo GIF, and touched-file cleanup~~ Add SpectreView interop, UICatalog scenario, validated demo GIF, and tuirec recording guidance docs May 24, 2026

Copilot finished work on behalf of tig May 24, 2026 02:46

tig mentioned this pull request May 24, 2026

Add tuirec recording guide and hero-gif docs #5396

Closed

tig and others added 2 commits May 24, 2026 07:44

Remove hero-gif.md, tuirec.md, and GIF (moved to PR #5396)

ed798ae

Co-authored-by: Copilot <223556219+Copilot@users.noreply.github.com>

tig changed the title ~~Add SpectreView interop, UICatalog scenario, validated demo GIF, and tuirec recording guidance docs~~ Fixes #5391, #5392. Add Terminal.Gui.Interop.Spectre with SpectreView and style bridge May 24, 2026

tig mentioned this pull request May 24, 2026

Fixes #issue. Add Spectre markup interop bridge package, UICatalog scenario, tuirec GIF docs, and cleanup pass #5394

Closed

4 tasks

tig and others added 2 commits May 24, 2026 07:55

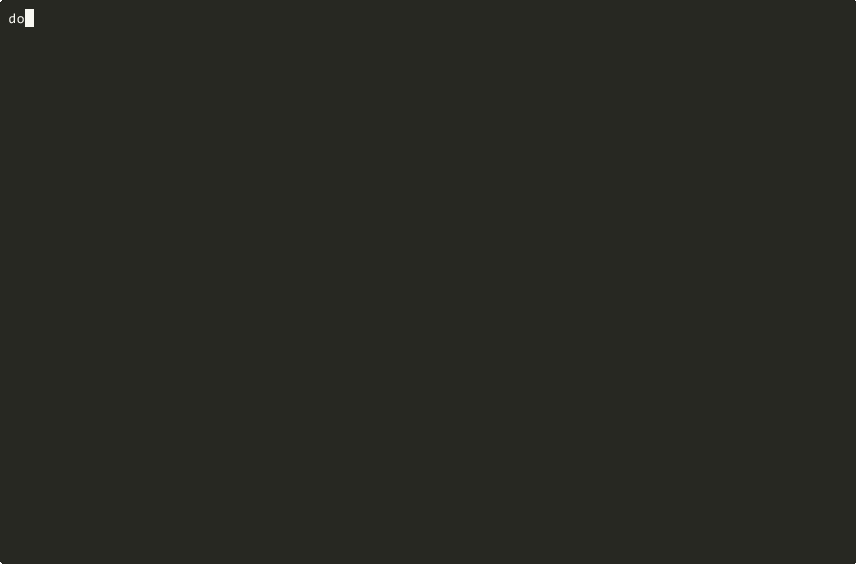

Add SpectreView scenario demo GIF recorded with tuirec

92e2d13

Cycles through Table, Panel, Rule, Tree, BarChart, Calendar, Figlet, Markup. Co-authored-by: Copilot <223556219+Copilot@users.noreply.github.com>

Re-record scenario GIF with Space activation and 1.5x speed

79cb212

Co-authored-by: Copilot <223556219+Copilot@users.noreply.github.com>

tig marked this pull request as ready for review May 24, 2026 14:08

tig requested review from BDisp and Copilot May 24, 2026 14:12

Copilot started reviewing on behalf of tig May 24, 2026 14:12 View session

chatgpt-codex-connector Bot reviewed May 24, 2026

View reviewed changes

Copilot AI reviewed May 24, 2026

View reviewed changes

tig mentioned this pull request May 24, 2026

Spectre.Console + Terminal.Gui: Complementary by Design spectreconsole/spectre.console#2128

Open

Conversation

Copilot AI commented May 24, 2026 • edited by tig Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Summary

What's Included

SpectreView : View

SpectreMarkupBridge

UICatalog Scenario

Architecture

Tests

Uh oh!

tig commented May 24, 2026

Uh oh!

Copilot AI commented May 24, 2026

Uh oh!

tig commented May 24, 2026

Uh oh!

Copilot AI commented May 24, 2026

Uh oh!

tig commented May 24, 2026

Uh oh!

Copilot AI commented May 24, 2026

Uh oh!

tig commented May 24, 2026

Uh oh!

Copilot AI commented May 24, 2026

Uh oh!

tig commented May 24, 2026

Uh oh!

Copilot AI commented May 24, 2026

Uh oh!

chatgpt-codex-connector Bot left a comment

Choose a reason for hiding this comment

💡 Codex Review

Uh oh!

chatgpt-codex-connector Bot May 24, 2026

Choose a reason for hiding this comment

Uh oh!

Copilot AI left a comment

Choose a reason for hiding this comment

Pull request overview

Reviewed changes

Uh oh!

Reviewers

Assignees

Labels

Projects

Milestone

Development

Uh oh!

3 participants

Copilot AI commented May 24, 2026 •

edited by tig

Loading

`SpectreView : View`

`SpectreMarkupBridge`
