EcuBus-Pro

A powerful automotive ECU development tool
Easy of use, Cross platform, Multi dongle, Powerful script ability, CLI support
Document: https://app.whyengineer.com

Introduction

EcuBus-Pro is a free and open source alternative to CAN-OE, designed for automotive ECU development. Our tool offers:

• 🆓 Open source and free
• 🚀 Intuitive user interface
• 💻 Cross-platform compatibility
• 🔌 Multi-vendor USB dongle support (PEAK, Kvaser, ZLG, etc.)
• 📝 TypeScript-based scripting capabilities
• ⌨️ Comprehensive CLI support

Key Features

See our User Manual for detailed documentation.

CAN/CAN-FD	DOIP	UDS	Script	Database
• PEAK • Kvaser • ZLG • Simulation	• PC Adapter	• Over CAN/CAN-FD • Over DoIP	• UDS • CAN • KeyBoard • SerialPort	• LIN LDF (edit and export)

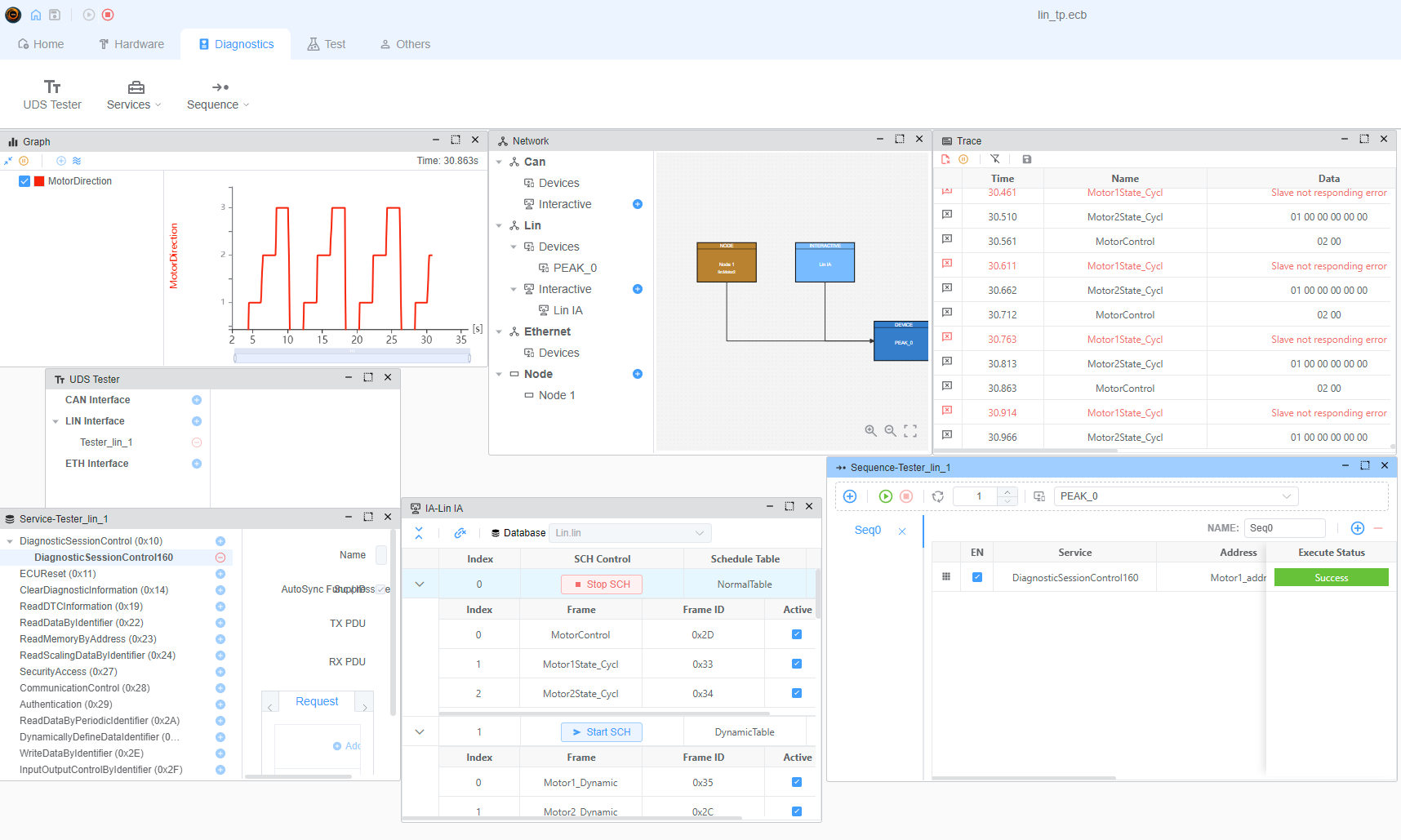

Visual Overview

Script Capabilities

Our script engine leverages Node.js, enabling you to:

• Use standard Node.js functions
• Access EcuBus-Pro's extensive API
• Automate testing and diagnostics

Command Line Interface

Streamline your workflow with CLI support for UDS sequences:

Thanks

This project exists thanks to all the people who have contributed:

Your contributions are always welcome! Please have a look at the contribution guidelines first.

Your logo will show up here with a link to your github profile.

Support this project

Support this project by becoming a sponsor. Your logo will show up here with a link to your website. 🙏

Technical support

You can also consider sponsoring us to get extra technical support services. If you do, you can get access to the ecubus/technical-support repository, which has the following benefits:

• Handling Issues with higher priority
• One-to-one technical consulting service
• Help to write addon code to access 0x27,0x29 dll functions

License

Apache-2.0

---
