[Perf] Linux/x64: 5 Improvements on 10/31/2023 4:24:48 PM

[performanceautofiler]

Run Information

Name	Value
Architecture	x64
OS	ubuntu 22.04
Queue	TigerUbuntu
Baseline	920cd6e2b01d0fbede8882d015329e9b4d448c98
Compare	f4ee321b662068ebf819aec725c2a4fd0eee2bb6
Diff	Diff
Configs	CompilationMode:tiered, LLVM:true, MonoAOT:true, MonoInterpreter:false, RunKind:micro_mono

Improvements in System.Numerics.Tests.Perf_BigInteger

Benchmark	Baseline	Test	Test/Base	Test Quality	Edge Detector	Baseline IR	Compare IR	IR Ratio
Multiply - Duration of single invocation 📝 - Benchmark Source 📈 - ADX Test Multi Config Graph	1.27 ms	1.02 ms	0.80	0.04	False
Multiply - Duration of single invocation 📝 - Benchmark Source 📈 - ADX Test Multi Config Graph	788.83 ns	622.12 ns	0.79	0.04	False
Ctor_ByteArray - Duration of single invocation 📝 - Benchmark Source 📈 - ADX Test Multi Config Graph	93.62 ns	43.52 ns	0.46	0.02	True
Multiply - Duration of single invocation 📝 - Benchmark Source 📈 - ADX Test Multi Config Graph	1.42 μs	1.15 μs	0.81	0.06	False
Multiply - Duration of single invocation 📝 - Benchmark Source 📈 - ADX Test Multi Config Graph	2.10 ms	676.57 μs	0.32	0.04	False

Test Report

Repro

General Docs link: https://github.com/dotnet/performance/blob/main/docs/benchmarking-workflow-dotnet-runtime.md

Repro Steps

Prerequisites (Files either built locally (with build.(sh/cmd) or downloaded from payload above (if same system setup) (in this order))

• Libraries build extracted to runtime/artifacts or build instructions: Libraries README args: -subset libs+libs.tests -rc release -configuration Release -arch $RunArch -framework net8.0
• CoreCLR product build extracted to runtime/artifacts/bin/coreclr/$RunOS.$RunArch.Release, build instructions: CoreCLR README args: -subset clr+libs -rc release -configuration Release -arch $RunArch -framework net8.0
• AOT MONO build extracted to runtime/artifacts/bin/mono/$RunOS.$RunArch.Release, build instructions: MONO README args: -arch $RunArch -os $RunOS -s mono+libs+host+packs -c Release /p:CrossBuild=false /p:MonoLLVMUseCxx11Abi=false
• Dotnet SDK installed for dotnet commands
• Running commands from the runtime folder

Linux

# Set $RunDir to the runtime directory
RunDir=`pwd`

# Set the OS, arch, and OSId
RunOS='linux'
RunOSId='linux'
RunArch='x64'

# Create aot directory
mkdir -p $RunDir/artifacts/bin/aot/sgen
mkdir -p $RunDir/artifacts/bin/aot/pack
cp -r $RunDir/artifacts/obj/mono/$RunOS.$RunArch.Release/mono/* $RunDir/artifacts/bin/aot/sgen
cp -r $RunDir/artifacts/bin/microsoft.netcore.app.runtime.$RunOS-$RunArch/Release/* $RunDir/artifacts/bin/aot/pack

# Create Core Root
$RunDir/src/tests/build.sh release $RunArch generatelayoutonly /p:LibrariesConfiguration=Release

# Clone performance
git clone --branch main --depth 1 --quiet https://github.com/dotnet/performance.git $RunDir/performance

# One line run:
python3 $RunDir/performance/scripts/benchmarks_ci.py --csproj $RunDir/performance/src/benchmarks/micro/MicroBenchmarks.csproj --incremental no --architecture $RunArch -f net8.0 --filter 'System.Numerics.Tests.Perf_BigInteger*' --bdn-artifacts $RunDir/artifacts/BenchmarkDotNet.Artifacts --bdn-arguments="--anyCategories Libraries Runtime  --category-exclusion-filter NoAOT NoWASM --runtimes monoaotllvm --aotcompilerpath $RunDir/artifacts/bin/aot/sgen/mini/mono-sgen --customruntimepack $RunDir/artifacts/bin/aot/pack --aotcompilermode llvm --logBuildOutput --generateBinLog"

# Individual Commands:
# Restore
dotnet restore $RunDir/performance/src/benchmarks/micro/MicroBenchmarks.csproj --packages $RunDir/performance/artifacts/packages /p:UseSharedCompilation=false /p:BuildInParallel=false /m:1

# Build
dotnet build $RunDir/performance/src/benchmarks/micro/MicroBenchmarks.csproj --configuration Release --framework net8.0 --no-restore /p:NuGetPackageRoot=$RunDir/performance/artifacts/packages /p:UseSharedCompilation=false /p:BuildInParallel=false /m:1

# Run
dotnet run --project $RunDir/performance/src/benchmarks/micro/MicroBenchmarks.csproj --configuration Release --framework net8.0 --no-restore --no-build -- --filter System.Numerics.Tests.Perf_BigInteger* --anyCategories Libraries Runtime " --category-exclusion-filter NoAOT NoWASM --runtimes monoaotllvm --aotcompilerpath $RunDir/artifacts/bin/aot/sgen/mini/mono-sgen --customruntimepack $RunDir/artifacts/bin/aot/pack --aotcompilermode llvm --logBuildOutput --generateBinLog " --artifacts $RunDir/artifacts/BenchmarkDotNet.Artifacts --packages $RunDir/performance/artifacts/packages --buildTimeout 1200

Windows

# Set $RunDir to the runtime directory
$RunDir="FullPathHere"

# Set the OS, arch, and OSId
RunOS='windows'
RunOSId='win'
RunArch='x64'

# Create aot directory
mkdir $RunDir\artifacts\bin\aot\sgen
mkdir $RunDir\artifacts\bin\aot\pack
xcopy $RunDir\artifacts\obj\mono\$RunOS.$RunArch.Release\mono $RunDir\artifacts\bin\aot\sgen\ /e /y
xcopy $RunDir\artifacts\bin\microsoft.netcore.app.runtime.$RunOSId-$RunArch\Release $RunDir\artifacts\bin\aot\pack\ /e /y

# Create Core Root
$RunDir\src\tests\build.cmd release $RunArch generatelayoutonly /p:LibrariesConfiguration=Release

# Clone performance
git clone --branch main --depth 1 --quiet https://github.com/dotnet/performance.git $RunDir\performance

# One line run:
python3 $RunDir\performance\scripts\benchmarks_ci.py --csproj $RunDir\performance\src\benchmarks\micro\MicroBenchmarks.csproj --incremental no --architecture $RunArch -f net8.0 --filter 'System.Numerics.Tests.Perf_BigInteger*' --bdn-artifacts $RunDir\artifacts\BenchmarkDotNet.Artifacts --bdn-arguments="--anyCategories Libraries Runtime  --category-exclusion-filter NoAOT NoWASM --runtimes monoaotllvm --aotcompilerpath $RunDir\artifacts\bin\aot\sgen\mini\mono-sgen.exe --customruntimepack $RunDir\artifacts\bin\aot\pack --aotcompilermode llvm --logBuildOutput --generateBinLog"

# Individual Commands:
# Restore
dotnet restore $RunDir\performance\src\benchmarks\micro\MicroBenchmarks.csproj --packages $RunDir\performance\artifacts\packages /p:UseSharedCompilation=false /p:BuildInParallel=false /m:1

# Build
dotnet build $RunDir\performance\src\benchmarks\micro\MicroBenchmarks.csproj --configuration Release --framework net8.0 --no-restore /p:NuGetPackageRoot=$RunDir\performance\artifacts\packages /p:UseSharedCompilation=false /p:BuildInParallel=false /m:1

# Run
dotnet run --project $RunDir\performance\src\benchmarks\micro\MicroBenchmarks.csproj --configuration Release --framework net8.0 --no-restore --no-build -- --filter System.Numerics.Tests.Perf_BigInteger* --anyCategories Libraries Runtime " --category-exclusion-filter NoAOT NoWASM --runtimes monoaotllvm --aotcompilerpath $RunDir\artifacts\bin\aot\sgen\mini\mono-sgen.exe --customruntimepack $RunDir\artifacts\bin\aot\pack -aotcompilermode llvm --logBuildOutput --generateBinLog " --artifacts $RunDir\artifacts\BenchmarkDotNet.Artifacts --packages $RunDir\performance\artifacts\packages --buildTimeout 1200

Payloads

Baseline
Compare

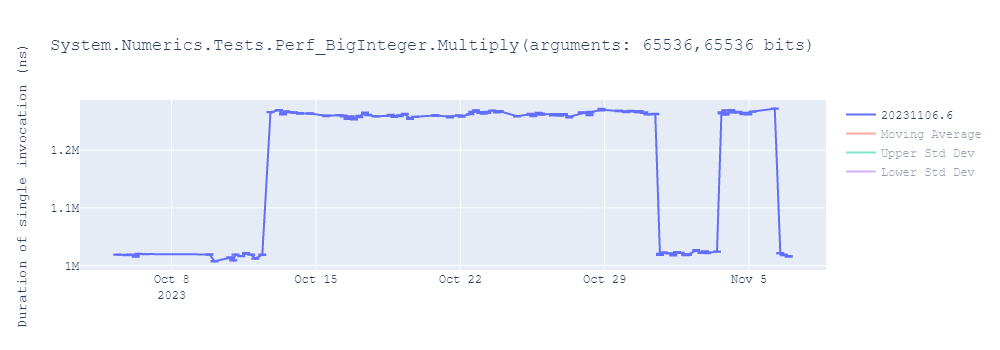

System.Numerics.Tests.Perf_BigInteger.Multiply(arguments: 65536,65536 bits)

ETL Files

Histogram

JIT Disasms

System.Numerics.Tests.Perf_BigInteger.Multiply(arguments: 1024,512 bits)

ETL Files

Histogram

JIT Disasms

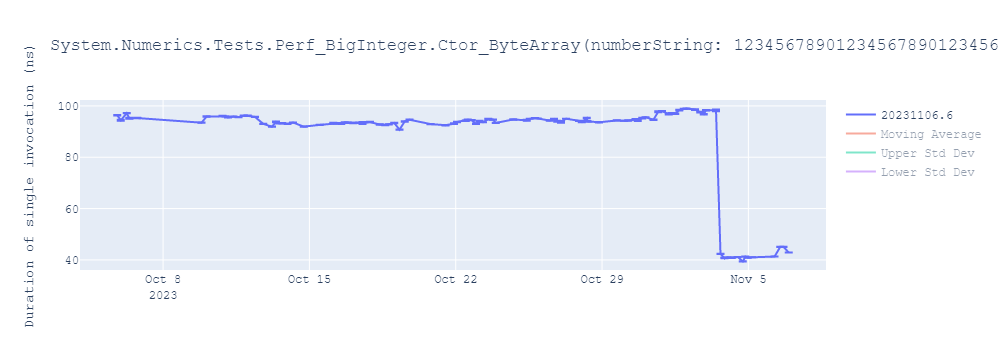

System.Numerics.Tests.Perf_BigInteger.Ctor_ByteArray(numberString: 12345678901234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890)

ETL Files

Histogram

JIT Disasms

System.Numerics.Tests.Perf_BigInteger.Multiply(arguments: 1024,1024 bits)

ETL Files

Histogram

JIT Disasms

System.Numerics.Tests.Perf_BigInteger.Multiply(arguments: 65536,32768 bits)

ETL Files

Histogram

JIT Disasms

Docs

Profiling workflow for dotnet/runtime repository
Benchmarking workflow for dotnet/runtime repository

[matouskozak]

Possibly caused by dotnet/runtime@5becf0f @Rob-Hague. Good Job!

[Rob-Hague]

Indeed for Ctor_ByteArray, thanks 🙂 The Multiply improvements are dotnet/runtime#92208

[matouskozak]

Right, thanks for pointing that out. The Multiply ones are caused by dotnet/runtime#92208 @kzrnm, good job!
