Porting async implementation and adding TPL overrides for SslStream Read/WriteAsync #5541

CIPop · 2016-01-20T02:07:19Z

Porting APM functionality for SslStream's InnerStream
Adding TPL wrappers
Adding the test proposed by @xanather

Fixes #5077

@stephentoub @davidsh @bartonjs @vijaykota PTAL

After review, I'll follow the internal process for RC2.

CIPop · 2016-01-20T18:08:15Z

@benaadams If you have some time, it would be interesting to check if this fixes your issue while we wait for the PR review.

benaadams · 2016-01-20T19:09:10Z

@CIPop can I use as is (e.g. I don't need the other Stream changes in this area) - will give it a go.

CIPop · 2016-01-20T19:47:53Z

@CIPop can I use as is (e.g. I don't need the other Stream changes in this area) - will give it a go.

@benaadams If your code is using a true async stream (e.g. NetworkStream), I don't think you need the Stream enhancements for this to unblock you.

benaadams · 2016-01-20T19:53:44Z

@CIPop its pure async; with the sync being simulated - which is why it interacted quite badly with the previous Stream's async overlay over the sync methods - ended up ticking all the "don't do" boxes of async rather than just the one 😁 e.g. it was sync over async and async over sync at the same time.

davidsh · 2016-01-20T20:00:10Z

src/System.Net.Security/tests/FunctionalTests/SslStreamNetworkStreamTest.cs

+        public async void SslStream_SendReceiveOverNetworkStream_Ok()
+        {
+            X509Certificate2 serverCertificate = TestConfiguration.GetServerCertificate();
+            TcpListener listener = new TcpListener(IPAddress.Any, 4567);


We should change the port from a fixed '4567' to a dynamic port, i.e. '0'. Otherwise, if a single CI machine is running multiple instances of PR validation, this port might be busy running another test.

Good point. I've missed that when I was adapting the test for CI.

benaadams · 2016-01-20T21:26:45Z

@CIPop I'm having trouble building it - though I think its a general corefx thing, so will start from scratch.

As an aside the CI tests can't compile e.g.

Error   CS1061  '_SslStream' does not contain a definition for 'BeginRead' and no extension
method 'BeginRead' accepting a first argument of type '_SslStream' could be found (are you missing a using directive or an assembly reference?)
System.Net.Security.Unit.Tests  I:\Work\GitHub\corefx\src\System.Net.Security\src\System\Net\SecureProtocols\SslStream.cs   446

CIPop · 2016-01-20T21:37:56Z

CI tests can't compile

Thanks @benaadams. Addressed that and will update the PR shortly. (The UT Fakes needed updated.)

benaadams · 2016-01-21T02:26:16Z

@CIPop I can't build, I think I might be between tools; though it starts with this

I:\corefx>build.cmd
Building Native Libraries...
'&' is not recognized as an internal or external command,
operable program or batch file.
'I:\corefx\src\Native\Windows\probe-win.ps1 is not digitally signed. You cannot run this script on the current system. ' is not recognized as an internal or external command,
operable program or batch file.
'For' is not recognized as an internal or external command,
operable program or batch file.
'http:' is not recognized as an internal or external command,
operable program or batch file.
The system cannot find the path specified.
'+   ~~~~~~~~~~~~~~~' is not recognized as an internal or external command,
operable program or batch file.
The filename, directory name, or volume label syntax is incorrect.
The filename, directory name, or volume label syntax is incorrect.
'""' is not recognized as an internal or external command,
operable program or batch file.
Native component build failed see nativebuild.log for more details.
  Restoring all packages...

It does build some stuff though. If you could put the dll and pdb somewhere I could give it a go.

stephentoub · 2016-01-21T13:24:42Z

src/System.Net.Security/src/System/Net/SecureProtocols/SslStreamInternal.cs

+        private static AsyncProtocolCallback _resumeAsyncWriteCallback = new AsyncProtocolCallback(ResumeAsyncWriteCallback);
+        private static AsyncProtocolCallback _resumeAsyncReadCallback = new AsyncProtocolCallback(ResumeAsyncReadCallback);
+        private static AsyncProtocolCallback _readHeaderCallback = new AsyncProtocolCallback(ReadHeaderCallback);
+        private static AsyncProtocolCallback _readFrameCallback = new AsyncProtocolCallback(ReadFrameCallback);


Nit: These could all be readonly. They should also have an s_ prefix.

Thanks! Fixed.

stephentoub · 2016-01-21T13:38:04Z

LGTM

stephentoub · 2016-01-21T13:38:14Z

The two Windows_NT failures are:

14:20:38      System.Net.Security.Tests.SslStreamStreamToStreamTest.SslStream_StreamToStream_Successive_ClientWrite_Sync_Success [FAIL]
14:20:38         Handshake completed.
14:20:38         Expected: True
14:20:38         Actual:   False
14:20:38         Stack Trace:
14:20:38            d:\j\workspace\dotnet_corefx\windows_nt_debug_prtest\src\System.Net.Security\tests\FunctionalTests\SslStreamStreamToStreamTest.cs(76,0): at System.Net.Security.Tests.SslStreamStreamToStreamTest.SslStream_StreamToStream_Successive_ClientWrite_Sync_Success()
14:20:38      System.Net.Security.Tests.ClientAsyncAuthenticateTest.ClientAsyncAuthenticate_ServerNoEncryption_NoConnect [FAIL]
14:20:38         Assert.Throws() Failure
14:20:38         Expected: typeof(System.IO.IOException)
14:20:38         Actual:   typeof(Xunit.Sdk.TrueException): Timed Out
14:20:38         Expected: True
14:20:38         Actual:   False
14:20:38         Stack Trace:
14:20:38            d:\j\workspace\dotnet_corefx\windows_nt_debug_prtest\src\System.Net.Security\tests\FunctionalTests\ClientAsyncAuthenticateTest.cs(172,0): at System.Net.Security.Tests.ClientAsyncAuthenticateTest.<ClientAsyncSslHelper>d__18.MoveNext()
14:20:38            --- End of stack trace from previous location where exception was thrown ---
14:20:38               at System.Runtime.CompilerServices.TaskAwaiter.ThrowForNonSuccess(Task task)
14:20:38               at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task)

CIPop · 2016-01-22T00:54:30Z

@stephentoub

The two Windows_NT failures are

Since they are intermittent, I believe these are #4467. I found a few issues with both the test patterns and the Mock infra.

CIPop · 2016-01-22T00:56:43Z

I can't build, I think I might be between tools; though it starts with this

@benaadams I don't see these errors but I think you're using PoshGit. Try to open a cmd command prompt instead.

…ppers and a simple test proposed by the community.

davidsh · 2016-01-22T18:33:46Z

LGTM

Porting async implementation and adding TPL overrides for SslStream Read/WriteAsync

CIPop · 2016-01-22T18:35:31Z

Thanks for the review!

benaadams · 2016-01-26T17:41:38Z

@CIPop still having a lock up post this fix; debugging into it (need to determine cause using v4.0.0-rc2-23722)

benaadams · 2016-01-26T20:14:01Z

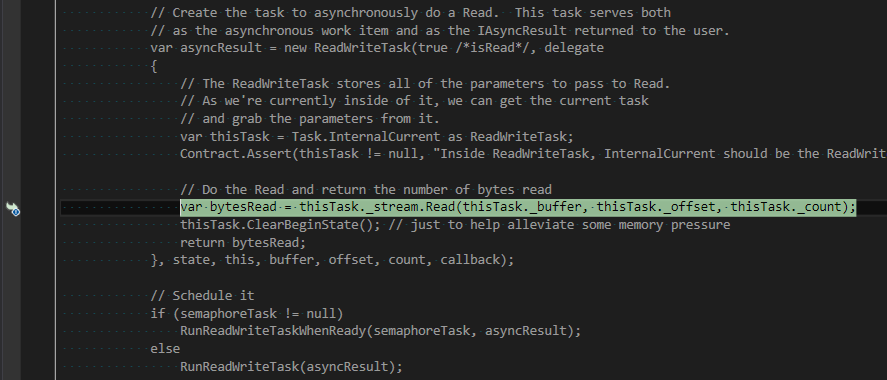

@CIPop still seem to be dropping into a System.IO.Stream Sync read in BeginReadInternal when running on framework net451 framework

benaadams · 2016-01-26T20:20:47Z

Call stack

CIPop · 2016-01-26T20:35:25Z

@benaadams This fix is only for corefx. net451 would use .Net Desktop implementations. Can you repro this on CoreFX?

benaadams · 2016-01-26T21:48:38Z

Trying

benaadams · 2016-01-27T01:14:17Z

Yes; on 32-bit DNXCore 5.0 though trying to workout how to get some debug info to find out what's going on; might be a different cause - will keep you posted.

The current clr/coreclr I'm using is:

#if DOTNET5_4
     return WriteAsyncAwaited(buffer, cancellationToken);
#else
     Write(buffer);
     return TaskUtilities.CompletedTask;
#endif

CIPop · 2016-01-27T01:22:14Z

@benaadams For visibility and tracking purposes it would be best to open a different issue and add the details there. It appears that the requirements are different for your issue to repro compared to #5077.

If creating a small repro project isn't practical (and for your current debugging), try collecting ETW logs: https://github.com/dotnet/corefx/blob/master/Documentation/debugging/windows-instructions.md

Porting async implementation and adding TPL overrides for SslStream Read/WriteAsync Commit migrated from dotnet/corefx@fac18d8
