[Xamarin.Android.Build.Tasks] Special Char Support (#6273)

What would we like?  The ability for Xamarin.Android projects to
reside in directories containing non-ASCII characters.

The problem(s)?  For starters, many Android SDK utilities don't
support non-ASCII characters when running on Windows, e.g.:

  * https://issuetracker.google.com/issues/188679588

Android Studio (kinda/sorta) "enforces" this, showing a warning
message when **Save location** contains non-ASCII characters:

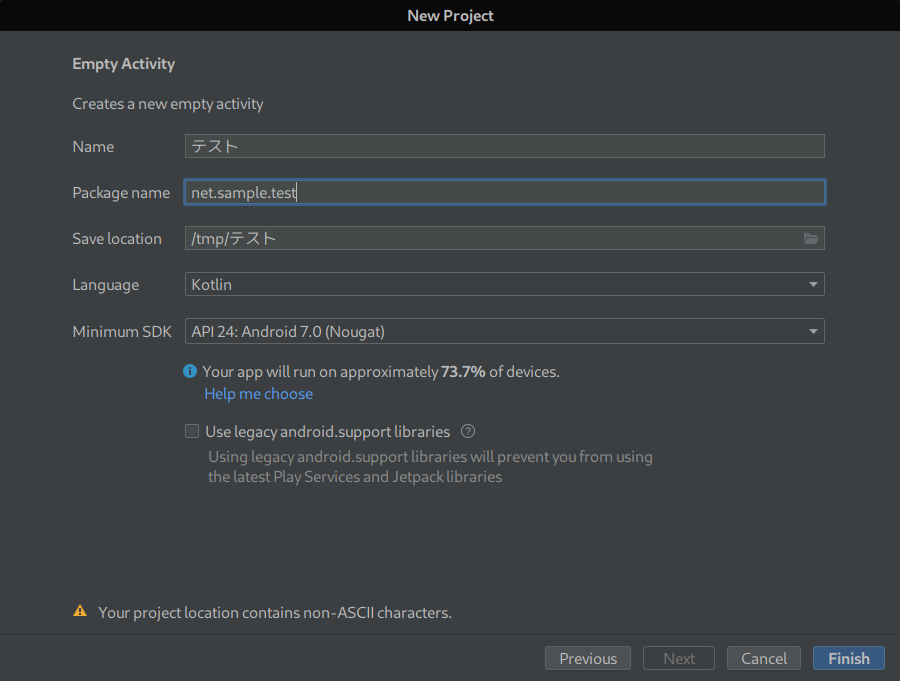

![Android Studio New Project dialog with non-ASCII characters](https://user-images.githubusercontent.com/184788/134550831-b5c5335a-11ca-4296-b30c-cb54e3302917.png)

> Save location: /tmp/テスト
> …
> ⚠️ Your project location contains non-ASCII characters.

These are not particularly encouraging foundations.

Improve support for non-ASCII characters by updating various parts
of our build system to:

 1. Prefer *relatives* paths when possible, as we can ensure
    ASCII-only paths this way, and

 2. "Otherwise" change *how* we invoke Android tools to avoid their
    use of full paths and directory traversal.

Additionally, we've long used GNU Binutils to build `libxamarin-app.so`
(commit decfbcc, fc3f028, others), and we discovered that
Binutils 2.36 introduced [code][0] to deal extra long path names on
Windows which makes compilation (in our case using `as`) and linking
to break if the source/object files reside in a directory which has
non-ASCII characters (in our case they were `テスト`):

	Xamarin.Android.Common.targets(1887,3): error XA3006: Could not compile native assembly file: typemaps.armeabi-v7a.s [SmokeTestBuildWithSpecialCharactersFalse\テスト\テスト.csproj]
	  [aarch64-linux-android-as.EXE stderr] Assembler messages: (TaskId:187)
	  [aarch64-linux-android-as.EXE stderr] Fatal error: can't create typemaps.arm64-v8a.o: Invalid argument (TaskId:187)

Downgrade to Binutils 2.35.2, which doesn't contain the offending
code block and will work for us, so long as we use relative paths.
It will **still** break with full paths if the path contains special
characters, but since our use case involves only relative paths,
this is fine.

There is also a bug in [`aapt2`][1] which stops it processing a
directory which has certain special characters on Windows.  This will
only appear on projects which have library resources, such as
Xamarin.Forms.  The problem only appears when processing a directory
into a `.flata` archive.  Oddly it works fine when processing a file
directly.  In order to work around this we now generate a resource
only `res.zip` file when we extract the library resources.
`res.zip` is then used during the generation of the `.flata` archive.
Weirdly, this works where directory transversal does not.

Additionally it seems to be slightly quicker during incremental builds:

  * Before

        581 ms  Aapt2Compile                               1 calls

  * After

        366 ms  Aapt2Compile                               1 calls

So the time taken to generate the `res.zip` is offset by the quicker
execution of `aapt2 compile`.

Finally, Java tooling such as `zipalign` and `apksigner` also failed
with the special characters.  This was because we were using full
paths to the files we were signing/aligning. Switching over to use
relative paths fixes this particular problem.

Add a set of Unit tests to make sure we can handle the special characters.

[0]: https://sourceware.org/git/?p=binutils-gdb.git;a=blob;f=bfd/bfdio.c;h=463b3879c52ba6beac47190f8eb0810b0c330e65;hb=HEAD#l124
[1]: https://issuetracker.google.com/issues/188679588

Author: dellis1972

build-tools/xaprepare/xaprepare/ConfigAndData/Configurables.cs

@@ -15,7 +15,7 @@ namespace Xamarin.Android.Prepare
 	//
 	partial class Configurables
 	{
-		const string BinutilsVersion                = "2.37-XA.1";
+		const string BinutilsVersion                = "2.35.2-XA.1";

 		const string MicrosoftOpenJDK11Version      = "11.0.10";
 		const string MicrosoftOpenJDK11Release      = "9.1";

src/Xamarin.Android.Build.Tasks/Tasks/Aapt2Compile.cs

@@ -15,7 +15,7 @@
 using Microsoft.Android.Build.Tasks;

 namespace Xamarin.Android.Tasks {
-
+
 	public class Aapt2Compile : Aapt2 {
 		public override string TaskPrefix => "A2C";

@@ -37,8 +37,8 @@ public class Aapt2Compile : Aapt2 {

 		protected override int GetRequiredDaemonInstances ()
 		{
-			return Math.Min ((ResourcesToCompile ?? ResourceDirectories).Length, DaemonMaxInstanceCount);
-		}
+			return Math.Min ((ResourcesToCompile ?? ResourceDirectories)?.Length ?? 1, DaemonMaxInstanceCount);
+		}

 		public async override System.Threading.Tasks.Task RunTaskAsync ()
 		{
@@ -56,6 +56,7 @@ public async override System.Threading.Tasks.Task RunTaskAsync ()
 		void ProcessDirectory (ITaskItem item, object lockObject)
 		{
 			var flatFile = item.GetMetadata ("_FlatFile");
+			bool isArchive = false;
 			bool isDirectory = flatFile.EndsWith (".flata", StringComparison.OrdinalIgnoreCase);
 			if (string.IsNullOrEmpty (flatFile)) {
 				FileAttributes fa = File.GetAttributes (item.ItemSpec);
@@ -65,9 +66,13 @@ void ProcessDirectory (ITaskItem item, object lockObject)
 			string fileOrDirectory = item.GetMetadata ("ResourceDirectory");
 			if (string.IsNullOrEmpty (fileOrDirectory) || !isDirectory)
 				fileOrDirectory = item.ItemSpec;
+			if (isDirectory && !Directory.Exists (fileOrDirectory)) {
+				LogWarning ($"Ignoring directory '{fileOrDirectory}' as it does not exist!");
+				return;
+			}
 			if (isDirectory && !Directory.EnumerateDirectories (fileOrDirectory).Any ())
 				return;
-
+
 			string outputArchive = isDirectory ?  GetFullPath (FlatArchivesDirectory) : GetFullPath (FlatFilesDirectory);
 			string targetDir = item.GetMetadata ("_ArchiveDirectory");
 			if (!string.IsNullOrEmpty (targetDir)) {
@@ -83,14 +88,20 @@ void ProcessDirectory (ITaskItem item, object lockObject)
 					filename = $"{filename}.flata";
 				outputArchive = Path.Combine (outputArchive, filename);
 				expectedOutputFile = outputArchive;
+				string archive = item.GetMetadata (ResolveLibraryProjectImports.ResourceDirectoryArchive);
+				if (!string.IsNullOrEmpty (archive) && File.Exists (archive)) {
+					LogDebugMessage ($"Found Compressed Resource Archive '{archive}'.");
+					fileOrDirectory = archive;
+					isArchive = true;
+				}
 			} else {
 				if (IsInvalidFilename (fileOrDirectory)) {
 					LogDebugMessage ($"Invalid filename, ignoring: {fileOrDirectory}");
 					return;
 				}
 				expectedOutputFile = Path.Combine (outputArchive, flatFile);
 			}
-			RunAapt (GenerateCommandLineCommands (fileOrDirectory, isDirectory, outputArchive), expectedOutputFile);
+			RunAapt (GenerateCommandLineCommands (fileOrDirectory, isDirectory, isArchive, outputArchive), expectedOutputFile);
 			if (isDirectory) {
 				lock (lockObject)
 					archives.Add (new TaskItem (expectedOutputFile));
@@ -100,7 +111,7 @@ void ProcessDirectory (ITaskItem item, object lockObject)
 			}
 		}

-		protected string[] GenerateCommandLineCommands (string fileOrDirectory, bool isDirectory, string outputArchive)
+		protected string[] GenerateCommandLineCommands (string fileOrDirectory, bool isDirectory, bool isArchive, string outputArchive)
 		{
 			List<string> cmd = new List<string> ();
 			cmd.Add ("compile");
@@ -111,7 +122,7 @@ protected string[] GenerateCommandLineCommands (string fileOrDirectory, bool isD
 				cmd.Add (GetFullPath (ResourceSymbolsTextFile));
 			}
 			if (isDirectory) {
-				cmd.Add ("--dir");
+				cmd.Add (isArchive ? "--zip" : "--dir");
 				cmd.Add (GetFullPath (fileOrDirectory).TrimEnd ('\\'));
 			} else
 				cmd.Add (GetFullPath (fileOrDirectory));

src/Xamarin.Android.Build.Tasks/Tasks/AndroidApkSigner.cs

@@ -102,7 +102,7 @@ protected override string GenerateCommandLineCommands ()
 			if (!string.IsNullOrEmpty (AdditionalArguments))
 				cmd.AppendSwitch (AdditionalArguments);

-			cmd.AppendSwitchIfNotNull (" ", Path.GetFullPath (ApkToSign));
+			cmd.AppendSwitchIfNotNull (" ", ApkToSign);

 			return cmd.ToString ();
 		}

src/Xamarin.Android.Build.Tasks/Tasks/CollectNonEmptyDirectories.cs

@@ -107,6 +107,7 @@ public override bool RunTask ()
 						}
 						var fileTaskItem = new TaskItem (file, new Dictionary<string, string> () {
 							{ "ResourceDirectory", directory.ItemSpec },
+							{ ResolveLibraryProjectImports.ResourceDirectoryArchive, directory.GetMetadata (ResolveLibraryProjectImports.ResourceDirectoryArchive) },
 							{ "StampFile", generateArchive ? stampFile : file },
 							{ "FilesCache", filesCache},
 							{ "Hash", stampFile },

src/Xamarin.Android.Build.Tasks/Tasks/JavaToolTask.cs

@@ -14,10 +14,10 @@ namespace Xamarin.Android.Tasks
 	public abstract class JavaToolTask : AndroidToolTask
 	{
 		/*
-		Example Javac output for errors. Regex Matches on the first line, we then need to
+		Example Javac output for errors. Regex Matches on the first line, we then need to
 		process the second line to get the column number so the IDE can correctly
-		mark where the error is.
-
+		mark where the error is.
+
 		TestMe.java:1: error: class, interface, or enum expected
 		public classo TestMe { }
 		^
@@ -28,7 +28,7 @@ 2 errors
 		*/
 		const string CodeErrorRegExString = @"(?<file>.+\.java):(?<line>\d+):(?<error>.+)";
 		/*
-
+
 		Sample OutOfMemoryError raised by java. RegEx matches the java.lang.* line of the error
 		and splits it into an exception and an error

@@ -80,6 +80,8 @@ at com.android.dx.command.Main.main(Main.java:106)

 		public virtual string DefaultErrorCode => null;

+		public string WorkingDirectory { get; set; }
+
 		protected override string ToolName {
 			get { return OS.IsWindows ? "java.exe" : "java"; }
 		}
@@ -100,6 +102,13 @@ protected override bool HandleTaskExecutionErrors ()
 			return base.HandleTaskExecutionErrors ();
 		}

+		protected override string GetWorkingDirectory ()
+		{
+			if (!string.IsNullOrEmpty (WorkingDirectory))
+				return WorkingDirectory;
+			return base.GetWorkingDirectory ();
+		}
+
 		protected override string GenerateFullPathToTool ()
 		{
 			return Path.Combine (ToolPath, ToolExe);
@@ -155,7 +164,7 @@ bool ProcessOutput (string singleLine)
 					return true;
 				}
 				errorText.AppendLine (singleLine);
-			}
+			}
 			return true;
 		}

@@ -173,7 +182,7 @@ protected override void LogEventsFromTextOutput (string singleLine, MessageImpor
 				Log.LogMessage (MessageImportance.High, singleLine);
 				errorLines.Add (singleLine);
 				return;
-			}
+			}
 			base.LogEventsFromTextOutput (singleLine, messageImportance);
 		}
 	}

src/Xamarin.Android.Build.Tasks/Tasks/ResolveLibraryProjectImports.cs

@@ -61,9 +61,12 @@ public class ResolveLibraryProjectImports : AndroidTask

 		internal const string OriginalFile = "OriginalFile";
 		internal const string AndroidSkipResourceProcessing = "AndroidSkipResourceProcessing";
+
+		internal const string ResourceDirectoryArchive = "ResourceDirectoryArchive";
 		static readonly string [] knownMetadata = new [] {
 			OriginalFile,
-			AndroidSkipResourceProcessing
+			AndroidSkipResourceProcessing,
+			ResourceDirectoryArchive
 		};

 		AssemblyIdentityMap assemblyMap = new AssemblyIdentityMap();
@@ -177,6 +180,7 @@ void Extract (
 				string importsDir = Path.Combine (outDirForDll, ImportsDirectory);
 				string nativeimportsDir = Path.Combine (outDirForDll, NativeImportsDirectory);
 				string resDir = Path.Combine (importsDir, "res");
+				string resDirArchive = Path.Combine (resDir, "..", "res.zip");
 				string assetsDir = Path.Combine (importsDir, "assets");

 				// Skip already-extracted resources.
@@ -194,6 +198,7 @@ void Extract (
 					if (Directory.Exists (resDir)) {
 						var taskItem = new TaskItem (Path.GetFullPath (resDir), new Dictionary<string, string> {
 							{ OriginalFile, assemblyPath },
+							{ ResourceDirectoryArchive, Path.GetFullPath (resDirArchive)},
 						});
 						if (bool.TryParse (assemblyItem.GetMetadata (AndroidSkipResourceProcessing), out skip) && skip)
 							taskItem.SetMetadata (AndroidSkipResourceProcessing, "True");
@@ -290,8 +295,11 @@ void Extract (
 							// which resulted in missing resource issue.
 							// Here we replaced copy with use of '-S' option and made it to work.
 							if (Directory.Exists (resDir)) {
+								CreateResourceArchive (resDir, resDirArchive);
 								var taskItem = new TaskItem (Path.GetFullPath (resDir), new Dictionary<string, string> {
-									{ OriginalFile, assemblyPath }
+									{ OriginalFile, assemblyPath },
+									{ ResourceDirectoryArchive, Path.GetFullPath (resDirArchive)},
+
 								});
 								if (bool.TryParse (assemblyItem.GetMetadata (AndroidSkipResourceProcessing), out skip) && skip)
 									taskItem.SetMetadata (AndroidSkipResourceProcessing, "True");
@@ -335,6 +343,7 @@ void Extract (
 				string outDirForDll = Path.Combine (OutputImportDirectory, aarIdentityName);
 				string importsDir = Path.Combine (outDirForDll, ImportsDirectory);
 				string resDir = Path.Combine (importsDir, "res");
+				string resDirArchive = Path.Combine (resDir, "..", "res.zip");
 				string assetsDir = Path.Combine (importsDir, "assets");

 				bool updated = false;
@@ -357,6 +366,7 @@ void Extract (
 						resolvedResourceDirectories.Add (new TaskItem (Path.GetFullPath (resDir), new Dictionary<string, string> {
 							{ OriginalFile, Path.GetFullPath (aarFile.ItemSpec) },
 							{ AndroidSkipResourceProcessing, skipProcessing },
+							{ ResourceDirectoryArchive, Path.GetFullPath (resDirArchive)},
 						}));
 					}
 					if (Directory.Exists (assetsDir))
@@ -406,13 +416,15 @@ void Extract (
 					}
 				}
 				if (Directory.Exists (resDir)) {
+					CreateResourceArchive (resDir, resDirArchive);
 					var skipProcessing = aarFile.GetMetadata (AndroidSkipResourceProcessing);
 					if (string.IsNullOrEmpty (skipProcessing)) {
 						skipProcessing = "True";
 					}
 					resolvedResourceDirectories.Add (new TaskItem (Path.GetFullPath (resDir), new Dictionary<string, string> {
 						{ OriginalFile, aarFullPath },
 						{ AndroidSkipResourceProcessing, skipProcessing },
+						{ ResourceDirectoryArchive, Path.GetFullPath (resDirArchive)},
 					}));
 				}
 				if (Directory.Exists (assetsDir))
@@ -422,6 +434,16 @@ void Extract (
 			}
 		}

+		void CreateResourceArchive (string resDir, string outputFile)
+		{
+			var fileMode = File.Exists (outputFile) ? FileMode.Open : FileMode.CreateNew;
+			Files.ArchiveZipUpdate (outputFile, f => {
+				using (var zip = new ZipArchiveEx (f, fileMode)) {
+					zip.AddDirectory (resDir, "res");
+				}
+			});
+		}
+
 		static void AddJar (IDictionary<string, ITaskItem> jars, string destination, string path, string originalFile = null)
 		{
 			var fullPath = Path.GetFullPath (Path.Combine (destination, path));

src/Xamarin.Android.Build.Tasks/Tests/Xamarin.Android.Build.Tests/AndroidUpdateResourcesTest.cs

@@ -830,6 +830,7 @@ public string GetFoo () {
 					rawToDelete,
 				},
 			};
+			libProj.SetProperty ("Deterministic", "true");
 			var appProj = new XamarinAndroidApplicationProject () {
 				IsRelease = true,
 				ProjectName = "App1",

src/Xamarin.Android.Build.Tasks/Tests/Xamarin.Android.Build.Tests/BuildTest.cs

@@ -23,6 +23,27 @@ namespace Xamarin.Android.Build.Tests
 	[Parallelizable (ParallelScope.Children)]
 	public partial class BuildTest : BaseTest
 	{
+		[Test]
+		[Category ("SmokeTests")]
+		public void SmokeTestBuildWithSpecialCharacters ([Values (false, true)] bool forms)
+		{
+			var testName = "テスト";
+
+			var rootPath = Path.Combine (Root, "temp", TestName);
+			var proj = forms ?
+				new XamarinFormsAndroidApplicationProject () :
+				new XamarinAndroidApplicationProject ();
+			proj.ProjectName = testName;
+			proj.IsRelease = true;
+			if (forms) {
+				proj.PackageReferences.Clear ();
+				proj.PackageReferences.Add (KnownPackages.XamarinForms_4_7_0_1142);
+			}
+			using (var builder = CreateApkBuilder (Path.Combine (rootPath, proj.ProjectName))){
+				Assert.IsTrue (builder.Build (proj), "Build should have succeeded.");
+			}
+		}
+
 		public static string GetLinkedPath (ProjectBuilder builder, bool isRelease, string filename)
 		{
 			return Builder.UseDotNet && isRelease ?

src/Xamarin.Android.Build.Tasks/Xamarin.Android.Common.targets

@@ -2237,7 +2237,7 @@ because xbuild doesn't support framework reference assemblies.
 		<_JarSignerSuffix Condition=" '$(AndroidPackageFormat)' == 'aab' ">-Signed</_JarSignerSuffix>
 	</PropertyGroup>
 	<AndroidSignPackage Condition=" '$(AndroidUseApkSigner)' != 'true' "
-		UnsignedApk="%(ApkAbiFilesIntermediate.FullPath)"
+		UnsignedApk="%(ApkAbiFilesIntermediate.Identity)"
 		SignedApkDirectory="$(OutDir)"
 		FileSuffix="$(_JarSignerSuffix)"
 		KeyStore="$(_ApkKeyStore)"
@@ -2257,7 +2257,7 @@ because xbuild doesn't support framework reference assemblies.
 	</ItemGroup>
 	<Delete Files="%(ApkAbiFilesSigned.FullPath)" Condition=" '$(AndroidUseApkSigner)' == 'true' "/>
 	<AndroidZipAlign Condition=" '$(AndroidUseApkSigner)' == 'true' "
-		Source="%(ApkAbiFilesIntermediate.FullPath)"
+		Source="%(ApkAbiFilesIntermediate.Identity)"
 		DestinationDirectory="$(OutDir)"
 		ToolPath="$(ZipAlignToolPath)"
 		ToolExe="$(ZipalignToolExe)"
@@ -2268,7 +2268,7 @@ because xbuild doesn't support framework reference assemblies.
 	</ItemGroup>
 	<AndroidApkSigner Condition=" '$(AndroidUseApkSigner)' == 'true' "
 		ApkSignerJar="$(ApkSignerJar)"
-		ApkToSign="%(ApkAbiFilesAligned.FullPath)"
+		ApkToSign="%(ApkAbiFilesAligned.Identity)"
 		KeyStore="$(_ApkKeyStore)"
 		KeyAlias="$(_ApkKeyAlias)"
 		KeyPass="$(_ApkKeyPass)"
@@ -2292,7 +2292,7 @@ because xbuild doesn't support framework reference assemblies.
 	</ItemGroup>
 	<Message Text="Unaligned android package '%(ApkAbiFilesUnaligned.FullPath)'"  Condition=" '$(AndroidUseApkSigner)' != 'True' And '$(AndroidPackageFormat)' != 'aab' "/>
 	<AndroidZipAlign Condition=" '$(AndroidUseApkSigner)' != 'True' And '$(AndroidPackageFormat)' != 'aab' "
-		Source="%(ApkAbiFilesUnaligned.FullPath)"
+		Source="%(ApkAbiFilesUnaligned.Identity)"
 		DestinationDirectory="$(OutDir)"
 		ToolPath="$(ZipAlignToolPath)"
 		ToolExe="$(ZipalignToolExe)"

src/Xamarin.Android.Build.Tasks/Xamarin.Android.EmbeddedResource.targets

@@ -56,6 +56,10 @@ This file is used by all project types, including binding projects.
       <Output TaskParameter="ResolvedEnvironmentFiles" ItemName="LibraryEnvironments" />
       <Output TaskParameter="ResolvedResourceDirectoryStamps" ItemName="_LibraryResourceDirectoryStamps" />
     </ReadLibraryProjectImportsCache>
+    <ItemGroup>
+      <FileWrites Include="@(ResolvedResourceDirectories->'%(ResourceDirectoryArchive)')"
+          Condition=" '%(ResolvedResourceDirectories.ResourceDirectoryArchive)' != '' And Exists ('%(ResolvedResourceDirectories.ResourceDirectoryArchive)')" />
+    </ItemGroup>
   </Target>

   <Target Name="_BuildLibraryImportsCache"
