Example on Deconvolution Layer's Configuration

[tmquan]

Dear mxnet community,

The current documentation on Deconvolution layer is somehow difficult to catch up.

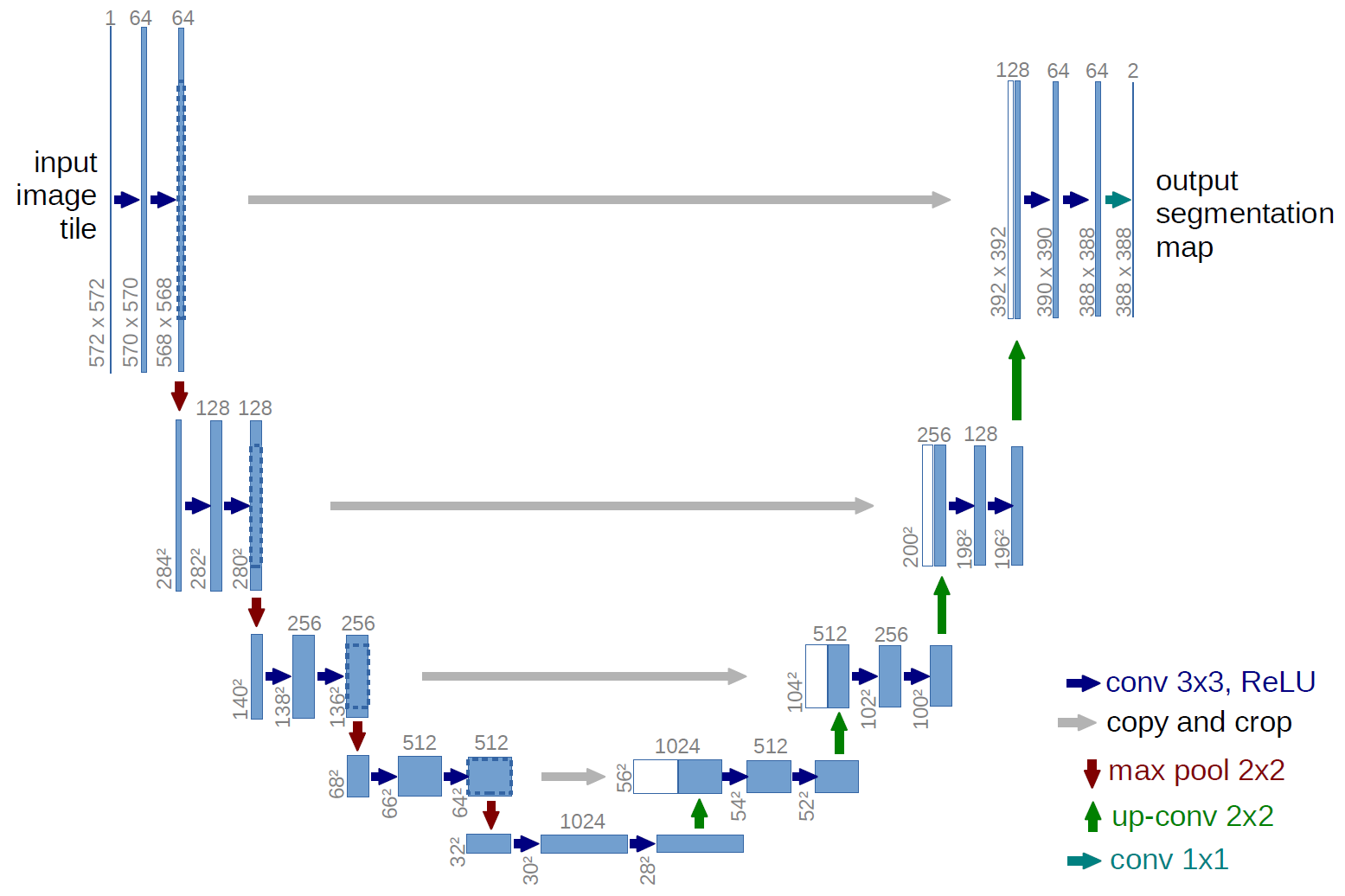

In particular, I want to reproduce u-net (for image segmentation purpose) available at http://lmb.informatik.uni-freiburg.de/people/ronneber/u-net/

I stopped by the example https://github.com/dmlc/mxnet/blob/master/example/fcn-xs/symbol_fcnxs.py
and its utilization is still fuzzy, too.

Could you give me some direction (or example) how to use Deconvolution layer for such image segmentation task as follows:
I have a collection of n training volume images (t+xy) and their associative segmentation
(n, 64, 128, 128) ~> (n, 64, 128, 128)
where n is number of training instances, 64 is the temporal dimension, 128 is the spatial dimension.
How to construct a simple fully convolutional network using mxnet on this problem?
data ~> convolutional layer ~> pooling (downsample by 2) ~> deconvolutional layer ~> Upsampling by 2 ~> segmentation?

Thanks a lot

[piiswrong]

deconvolution with 2x upsampling can be done like this:

scale = 2
pred1 = mx.symbol.Deconvolution(data=pred1, kernel=(2*scale, 2*scale), stride=(scale, scale), pad=(scale/2, scale/2), num_filter=33, no_bias=True, workspace=workspace, name=prefix+'deconv_pred1')

[tmquan]

Thanks @piiswrong ,
I have another question regarding to the prediction.
My prediction is a segmented image (256x256) which has 2 classes (membrane at value 0 and non-membrane at value 255). In this case, how to write a softmax layer? (as the network can output the right image)

I appreciate your helps a lot.

Sincerely,

[ascust]

I think you should define your label as 0 and 1, where 0 is membrane and 1 is not. It is not a good option to use 255 unless you want this label to be ignored. @tmquan

[tmquan]

@ascust
Thank you for response in this thread.
Actually, I tried that too as following:
I set the output from the network as (30,2,512,512) where (30,:0:,512,512) is the label of non-membrane and (30,:1:,512,512) for membrane classification.

Then I set the deconvolutional output as a LogisticRegressionOutput as following:
sm = mx.symbol.LogisticRegressionOutput(data=deconv_out, name="softmax")

In contrast, the example on fcn-xs folder said that I should use the SoftmaxOutput layer to make a prediction on entire segmentation.

It confused me and I am struggling with that issue quite a bit.

Best regards,

[ascust]
