🔬Aignostics Python SDK

Note

The Aignostics Python SDK is in alpha, with Atlas H&E-TME and the Aignostics Platform in early access. Watch or star this repository to receive updates on new features and improvements of the SDK.

---

Introduction

The Aignostics Python SDK includes multiple pathways to interact with the Aignostics Platform:

1. Use the Aignostics Launchpad to analyze whole slide images with advanced computational pathology applications like Atlas H&E-TME directly from your desktop. View your results by launching popular tools such as QuPath and Python Notebooks with one click. The app runs on Mac OS X, Windows, and Linux.
2. Use the Aignostics Command-line interface (CLI) to run applications directly from your terminal or shell scripts. THe CLI lets you query public datasets from the NCI Image Data Commons (IDC), process both public and private whole slide images, and easily download results. The CLI is available for Mac OS X, Windows, and Linux.
3. Use the included example notebooks as starting points to run applications directly from your preferred notebook environment. We support Marimo and Jupyter based notebooks environments including Google Collab.
4. Use the Aignostics Client Library to seamlessly integrate the Aignostics Platform with your enterprise image management systems and scientific workflows. The client provides a simple way to access the Aignostics Platform API from your Python codebase. We support Python 3.11 and above.

We take quality and security seriously

We know you take quality and security as seriously as we do. That's why the Aignostics Python SDK is built following best practices and with full transparency. This includes (1) making the complete source code of the SDK available on GitHub, maintaining a (2) A-grade code quality with high test coverage in all releases, (3) achieving A-grade security with active scanning of dependencies, and (4) providing extensive documentation. Read more about how we achieve operational excellence and security.

Quick Start

Note

See as follows for a quick start guide to get you up and running with the Aignostics Python SDK as quickly as possible. If you first want to learn bout the basic concepts and components of the Aignostics Platform skip to that section below. The further reading section points you to reference documentation listing all available CLI commans, methods and classes provided by the SDK, how we achieve operational excellence and security, and more. If you are not familiar with terminology please check the glossary at the end of this document.

Aignostics Launchpad: Run your first computational pathology analysis in 10 minutes from your desktop

The Aignostics Launchpad is a graphical desktop application that allows you to run applications on whole slide images (WSIs) from your computer, and inspect results with QuPath and Python Notebooks with one click. It is designed to be user-friendly and intuitive, for use by Research Pathologists and Data Scientists.

The Launchpad is available for Mac OS X, Windows, and Linux, and can be installed easily:

1. Visit the Quick Start page in the Aignostics Console.
2. Copy the installation script and paste it into your terminal - compatible with MacOS, Windows, and Linux.
3. Launch the application by running uvx aignostics launchpad.
4. Follow the intuitive graphical interface to analyze public datasets or your own whole slide images with Atlas H&E-TME and other computational pathology applications.

Aignostics CLI: Manage datasets and application runs from your terminal

The Aignostics Python SDK includes the Aignostics CLI, a Command-Line Interface that allows you to interact with the Aignostics Platform directly from your terminal or shell script.

See as follows for a simple example where we download a sample dataset for the Atlas H&E-TME application, submit an application run, and download the results.

# Download a sample dataset from the NCI Image Data Commons (IDC) portal to your current working directory
# As the dataset id refers to the TCGA LUAD collection, this creates a directory tcga_luad with the DICOM files
uvx aignostics dataset idc download 1.3.6.1.4.1.5962.99.1.1069745200.1645485340.1637452317744.2.0 .
# Prepare the metadata for the application run by creating a metadata.csv, extracting
# the required metadata from the DICOM files. We furthermore add the required
# information about the tissue type and disease. TODO (Helmut): Update
uvx aignostics application run prepare he-tme:v0.50.0 tcga_luad/metadata.csv tcga_luad
# Edit the metadata.csv to insert the required information about the tissue type and disease
nano tcga_luad/metadata.csv # Adapt to your favourite editor
# Upload the metadata.csv and referenced whole slide images to the Aignostics Platform
uvx aignostics application run upload he-tme:v0.50.0 tcga_luad/metadata.csv
# Submit the application run and print tha run id
uvx aignostics application run submit he-tme:v0.50.0 tcga_luad/metadata.csv
# Check the status of the application run you triggered
uvx aignostics application run list
uvx aignostics application run result dowload APPLICATION_RUN_ID # Fill in the application run id

The CLI provides extensive help:

uvx aignostics --help                        # list all spaces such as application, dataset, bucket and system,
uvx aignostics application --help            # list subcommands in the application space
uvx aignostics application run --help.       # list subcommands in the application run sub-space
uvx aignostics application run list --help   # show help for specific command

Check out our CLI reference documentation to learn about all commands and options available.

Example Notebooks: Interact with the Aignostics Platform from your Python Notebook environment

Important

Before you get started, you need to set up your authentication credentials if you did not yet do so! Please visit your personal dashboard on the Aignostics Platform website and follow the steps outlined in the Use in Python Notebooks section.

We provide Jupyter and Marimo notebooks to help you get started with the SDK. The notebooks showcase the interaction with the Aignostics Platform using our test application. To run one them, please follow the steps outlined in the snippet below to clone this repository and start either the Jupyter (examples/notebook.ipynb) or Marimo (examples/notebook.py) notebook:

# clone the `python-sdk` repository
git clone https://github.com/aignostics/python-sdk.git
# within the cloned repository, install the SDK and all dependencies
uv sync --all-extras
# show jupyter example notebook in the browser
uv run jupyter notebook examples/notebook.ipynb
# show marimo example notebook in the browser
uv run marimo edit examples/notebook.py

Note

You can as well run a notebook within the Aignostics Launchpad. To do so, select the Run you want to inspect in the left sidebar, and click the button "Open in Python Notebook".

Aignostics Client Library: Call the Aignostics Platform API from your Python scripts

Important

Before you get started, you need to set up your authentication credentials if you did not yet do so! Please visit your personal dashboard on the Aignostics Platform website and follow the steps outlined in the Enterprise Integration section.

Next to using the Launchpad, CLI and notebooks, you can also use the Python SDK in your codebase. The following sections outline how to install the SDK and interact with it.

Installation

The Aignostics Python SDK is available via the Adding Aignostics Python SDK to your codebase as a dependency is easy. You can directly add the dependency via your favourite package manager:

Install with uv: If you don't have uv installed follow these instructions.

# add SDK as dependency to your project
uv add aignostics

Install with pip

# add SDK as dependency to your project
pip install aignostics

Usage

The following snippet shows how to use the Python SDK to trigger an application run:

from aignostics import platform

# initialize the client
client = platform.Client()
# trigger an application run
application_run = client.runs.create(
   application_version="two-task-dummy:v0.35.0",
   items=[
      platform.InputItem(
         reference="slide-1",
         input_artifacts=[
            platform.InputArtifact(
               name="user_slide",
               download_url="<a signed url to download the data>",
               metadata={
                  "checksum_crc32c": "AAAAAA==",
                  "base_mpp": 0.25,
                  "width": 1000,
                  "height": 1000,
               },
            )
         ],
      ),
   ],
)
# wait for the results and download incrementally as they become available
application_run.download_to_folder("path/to/download/folder")

Please look at the notebooks in the example folder for a more detailed example and read the client reference documentation to learn about all classes and methods.

Defining the input for an application run

Next to the application_version of the application you want to run, you have to define the input items you want to process in the run. The input items are defined as follows:

platform.InputItem(
    reference="1",
    input_artifacts=[
        platform.InputArtifact(
            name="user_slide", # defined by the application version input_artifact schema
            download_url="<a signed url to download the data>",
            metadata={ # defined by the application version input_artifact schema
                "checksum_crc32c": "N+LWCg==",
                "base_mpp": 0.46499982,
                "width": 3728,
                "height": 3640,
            },
        )
    ],
),

For each item you want to process, you need to provide a unique reference string. This is used to identify the item in the results later on. The input_artifacts field is a list of InputArtifact objects, which defines what data & metadata you need to provide for each item. The required artifacts depend on the application version you want to run - in the case of test application, there is only one artifact required, which is the image to process on. The artifact name is defined as user_slide.

The download_url is a signed URL that allows the Aignostics Platform to download the image data later during processing.

Self-signed URLs for large files

To make the whole slide images you want to process available to the Aignostics Platform, you need to provide a signed URL that allows the platform to download the data. Self-signed URLs for files in google storage buckets can be generated using the generate_signed_url (code).

We expect that you provide the required credentials for the Google Storage Bucket

Platform

Overview

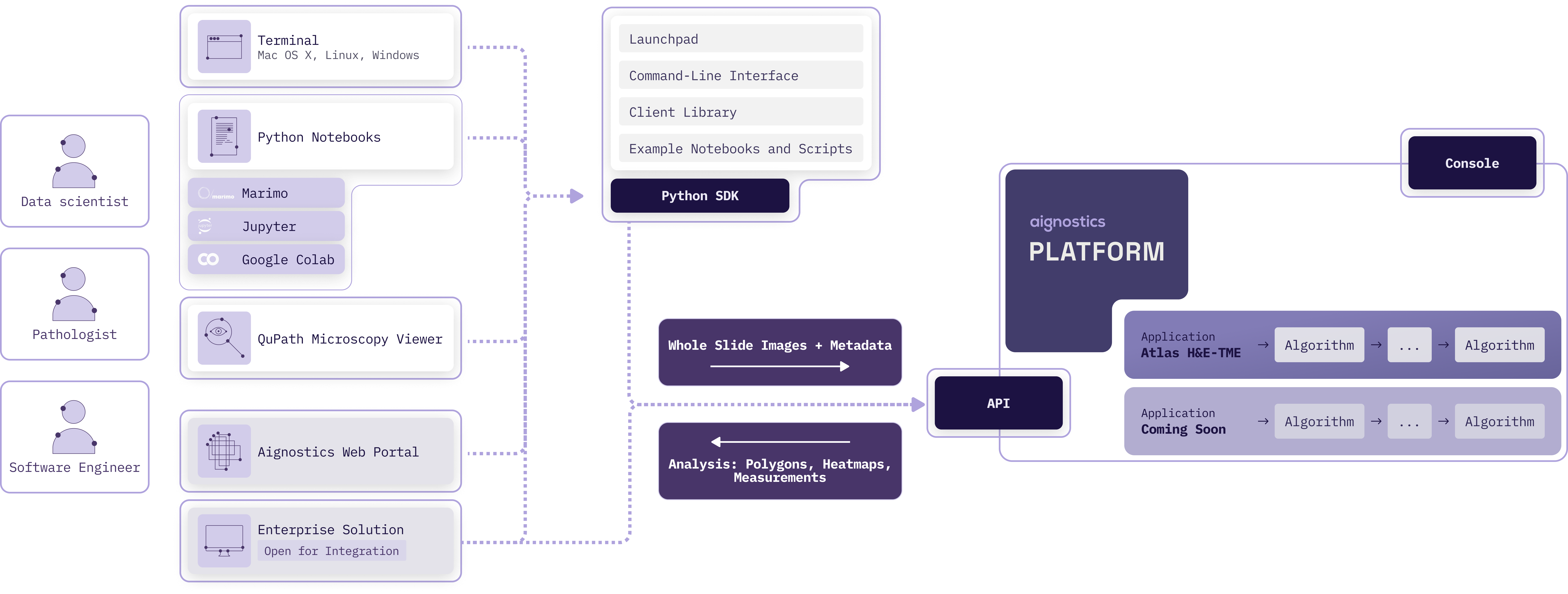

The Aignostics Platform is a comprehensive cloud-based service that allows organizations to leverage advanced computational pathology applications without the need for specialized expertise or complex infrastructure. Via its API it provides a standardized, secure interface for accessing Aignostics' portfolio of advanced computational pathology applications. These applications perform machine learning based tissue and cell analysis on histopathology slides, delivering quantitative measurements, visual representations, and detailed statistical data.

Key Features

Aignostics Platform offers key features designed to maximize value for its users:

1. Run Aignostics applications: Run Aignostics advanced computational pathology applications like Atlas H&E-TME on your whole slide images (WSIs) and receive results in a easy to inspect formats.
2. Multiple Access Points: Interact with the platform via various pathways, from Aignostics Launchpad (desktop application for MacOS, Windows and Linux), Aignostics CLI (command-line interface for your terminal or shell scripts), Example Notebooks (we support Jupyter and Marimo), Aignostics Client Library (for integration with your Python codebase), or directly through the API of the Aignostics Platform (for integration with any programming language). Contact your business partner at Aignostics if you are interested to discuss a direct integration with your Imaging Management Systems (IMS) and Laboratory Information Management Systems (LIMS).
3. Secure Data Handling: Maintain control of your slide data through secure self-signed URLs. Results are automatically deleted after 30 days, and can be deleted earlier by the user.
4. High-throughput processing with incremental results delivery: Submit up to 500 whole slide images (WSI) in one batch request. Access results for individual slides as they completed processing, without having to wait for the entire batch to finish.
5. Standard formats: Support for commonly used image formats in digital pathology such as pyramidal DICOM, TIFF, and SVS. Results provided in standard formats like QuPath GeoJSON (polygons), TIFF (heatmaps) and CSV (measurements and statistics).

Registration and User Access

To start using the Aignostics Platform and its advanced applications, your organization must be registered by our business support team:

1. Access to the Aignostics Platform requires a formal business agreement. Once an agreement is in place between your organization and Aignostics, we proceed with your organization's registration. If your organization does not yet have an account, please contact your account manager or email us at support@aignostics.com to express your interest.
2. To register your organization, we require the name and email address of at least one employee, who will be assigned the Administrator role for your organisation. Your organisation's Administrator can invite and manage additional users.

Important

1. All user accounts must be associated with your organization's official domain. We do not support the registration of private or personal email addresses.
2. For security, Two-Factor Authentication (2FA) is mandatory for all user accounts.
3. We can integrate with your IDP system (e.g. SAML, OIDC) for user authentication. Please contact us to discuss the integration.
4. Registering your organistation typically takes 2 business days depending on the complexity of the signed business agreement and specific requirements.

Aignostics Console

The web-based Console of the Aignostics Platform is a user-friendly interface that allows you to manage your organization, applications, quotas, and users. It provides a centralized location for accessing all features and functionalities of the platform.

1. The Console is available to users registered for your organisation to manage their profile and monitor usage of their quota.
2. Administrators of your organization can invite additional users, manage the organisation and user specific quotas and monitor usage.
3. Both roles can trigger application runs.

Applications

An application is a fully automated advanced machine learning based workflow composed of one or more specific tasks (e.g. Tissue Quality Control, Tissue Segmentation, Cell Detection, Cell Classification and predictive analysis). Each application is designed for a particular analysis purpose (e.g. Tumor Micro Environment analysis or biomarker scoring). For each application we define input requirements, processing tasks and output formats.

As contracted in your business agreement with Aignostics your organisation subscribes to one or more applications. The applications are available for your organization in the Aignostics Platform. You can find the list of available applications in the Console of the Aignostics Platform.

Each application can have multiple versions. Please make sure you read dedicated application documentation to understand its specific constraints regarding acceptable formats, staining method, tissue types and diseases.

Once registered to the Platform, your organization will automatically gain access to the "Test Application". This application can be used to configure the workflow and to make sure that the integration works correctly.

Application run

To trigger the application run, users can use the Aignostics Launchpad, Aignostics CLI, Example Notebooks, our Client Library, or directly call the REST API. The platform expects the user payload, containing the metadata and the signed URLs to the whole slide images (WSIs). The detailed requirements of the payload depend on the application and are described in the documentation, and accessible via the Info button in the Launchpad, as well as via the CLI and /v1/applications endpoint in the API.

When the application run is created, it can be in one of the following states:

1. received: the application run received from the client
2. scheduled: the application run request is valid and is scheduled for execution
3. running: the application run execution started
4. completed: the application run execution is done and all outputs are available for download
5. completed: the application run execution is done, but some items end up in the failed state
6. rejected: the application run request is rejected before it is scheduled
7. cancelled by the system: the application run failed during the execution with the number of errors higher than the threshold
8. cancelled by the user: the application run is cancelled by the user before it is finished

The status and operations of an application run are private to the user who triggered the run.

Results

When the processing of whole slide image is successfully completed, the resulting outputs become available for download. To assess specifics of application outputs please consult our application specific documentation, which you can find in the Console. Please note that you access to documentation is restricted to those applications your organisation subscribed to.

Application run outputs are automatically deleted 30 days after the application run has completed. However, the owner of the application run (the user who initiated it) can use the API to manually delete outputs earlier, once the run has reached a final state - completed, cancelled by the system or cancelled by the user. The Launchpad and CLI provide enable to delete results with one click resp. command.

Quotas

Every organization has a limit on how many WSIs it can process in a calendar month. The following quotas exist:

1. Per organization: as defined in your business agreement with Aignostics
2. Per user: defined by your organization Admin

When the per month quota is reached, an application run request is denied.

Other limitations may apply to your organization:

1. Allowed number of users an organization can register
2. Allowed number of images user can submit per application run
3. Allowed number of parallel application runs for the whole organization

Additionally, we allow organization Admin to define following limitations for its users:

1. Maximum number of images the user can process per calendar month.
2. Maximum number of parallel application runs for a given user

Visit the Console to check your current quota and usage. The Console provides a clear overview of the number of images processed by your organization and by each user, as well as the remaining quota for the current month.

API

The Aignostics Platform API is a RESTful web service that allows you to interact with the platform programmatically. It provides endpoints for submitting whole slide images (WSIs) for analysis, checking the status of application runs, and retrieving results.

You can interact with the API using the Python client, which is a wrapper around the RESTful API. The Python client simplifies the process of making requests to the API and handling responses. It also provides convenient methods for uploading WSIs, checking application run status, and downloading results.

For integration with programming languages other than Python, you can use the RESTful API directly. The API is designed to be language-agnostic, meaning you can use any programming language that supports HTTP requests to interact with it. This includes languages like Java, Kotlin, C#, Ruby, and Typescript.

Cost

Every WSI processed by the Platform generates a cost. Usage of the "Test Application" is free of charge for any registered user. The cost for other applications is defined in your business agreement with Aignostics. The cost is calculated based on the number of slides processed. When an application run is cancelled, either by the system or by the user, only processed images incur a cost.

Read the API reference documentation or use our Interactive API Explorer to dive into details of all operations and parameters.

Further Reading

1. Inspect our security policy with detailed documentation of checks, tools and principles.
2. Inspect how we achieve operational excellence with information on our modern toolchain and software architecture.
3. Check out the CLI reference with detailed documentation of all CLI commands and options.
4. Check out the library reference with detailed documentation of public classes and functions.
5. Check out the API reference with detailed documentation of all API operations and parameters.
6. Our release notes provide a complete log of recent improvements and changes.
7. We gratefully acknowledge the numerous open source projects that this project builds upon. Thank you to all these wonderful contributors!

Glossary

A

Administrator Role
A user role within an organization that has permissions to invite and manage additional users, define user-specific quotas, and monitor organizational usage.

Aignostics CLI
Command-Line Interface that allows interaction with the Aignostics Platform directly from terminal or shell scripts, enabling dataset management and application runs.

Aignostics Client Library
Python library for seamless integration of the Aignostics Platform with enterprise image management systems and scientific workflows.

Aignostics Console
Web-based user interface for managing organizations, applications, quotas, users, and monitoring platform usage.

Aignostics Launchpad
Graphical desktop application (available for Mac OS X, Windows, and Linux) that allows users to run computational pathology applications on whole slide images and inspect results with QuPath and Python Notebooks.

Aignostics Platform
Comprehensive cloud-based service providing standardized, secure interface for accessing advanced computational pathology applications without requiring specialized expertise or complex infrastructure.

Aignostics Platform API
RESTful web service that allows programmatic interaction with the Aignostics Platform, providing endpoints for submitting WSIs, checking application run status, and retrieving results.

Aignostics Python SDK
Software Development Kit providing multiple pathways to interact with the Aignostics Platform, including the Launchpad, CLI, Client Library, and example notebooks.

Application
Fully automated advanced machine learning workflow composed of specific tasks (e.g., Tissue Quality Control, Tissue Segmentation, Cell Detection, Cell Classification) designed for particular analysis purposes.

Application Run
The execution instance of an application on submitted whole slide images, which can be in various states: received, scheduled, running, completed, rejected, cancelled by system, or cancelled by user.

Application Version
Specific version of an application with defined input requirements, processing tasks, and output formats. Each application can have multiple versions.

Atlas H&E-TME
Advanced computational pathology application for Hematoxylin and Eosin-stained Tumor Microenvironment analysis.

B

Base MPP (Microns Per Pixel)
Metadata parameter specifying the resolution of whole slide images, indicating the physical distance represented by each pixel.

Business Agreement
Formal contract between an organization and Aignostics required for platform access, defining quotas, applications, and terms of service.

C

Checksum CRC32C
Cyclic Redundancy Check used to verify data integrity of uploaded whole slide images.

Client
The main class in the Aignostics Python SDK used to initialize connections and interact with the platform API.

Computational Pathology
Field combining digital pathology with artificial intelligence and machine learning to analyze histopathology slides quantitatively.

Aignostics Console
Web-based user interface for managing organizations, applications, quotas, users, and monitoring platform usage.

D

DICOM (Digital Imaging and Communications in Medicine)
Standard format for medical imaging data, supported by the Aignostics Platform for whole slide images.

Download URL
Signed URL that allows the Aignostics Platform to securely download image data during processing.

G

GeoJSON
Standard format used by QuPath for representing polygonal annotations and results.

Google Storage Bucket
Cloud storage service where users can store whole slide images and generate signed URLs for platform access.

H

H&E (Hematoxylin and Eosin)
Common histological staining method for tissue visualization, used in Atlas H&E-TME application.

Heatmaps
Visual representations of analysis results provided in TIFF format showing spatial distribution of measurements.

I

IDC (NCI Image Data Commons)
Public repository of medical imaging data that can be queried and downloaded through the Aignostics CLI.

IMS (Imaging Management Systems)
Enterprise systems for managing medical imaging data that can be integrated with the Aignostics Platform.

Input Artifact
Data object required for application processing, including the actual data file and associated metadata.

Input Item
Individual unit of processing in an application run, containing one or more input artifacts with a unique reference identifier.

Interactive API Explorer
Tool for exploring and testing API endpoints and parameters interactively.

J

Jupyter
Popular notebook environment supported by the Aignostics Platform for interactive analysis and visualization.

L

LIMS (Laboratory Information Management Systems)
Laboratory systems that can be integrated with the Aignostics Platform for workflow automation.

M

Marimo
Modern notebook environment supported by the Aignostics Platform as an alternative to Jupyter.

Metadata
Descriptive information about whole slide images including dimensions, resolution, tissue type, and disease information required for processing.

MPP (Microns Per Pixel)
See Base MPP.

N

NCI Image Data Commons (IDC)
See IDC.

O

Operational Excellence
Aignostics' commitment to high-quality software development practices including A-grade code quality, security scanning, and comprehensive documentation.

P

Pyramidal
Multi-resolution image format that stores the same image at different zoom levels for efficient viewing and processing.

Python SDK
Software Development Kit providing multiple pathways to interact with the Aignostics Platform through Python programming language.

Q

QuPath
Open-source software for bioimage analysis that can be launched directly from the Aignostics Launchpad to view results.

Quota
Limit on the number of whole slide images an organization or user can process per calendar month, as defined in business agreements.

R

Reference
Unique identifier string for each input item in an application run, used to match results with original inputs.

Results
Output data from application processing, including measurements, statistics, heatmaps, and annotations, automatically deleted after 30 days.

RESTful API
Architectural style for web services that the Aignostics Platform API follows, enabling language-agnostic integration.

S

Self-signed URLs
Secure URLs with embedded authentication that allow the platform to access user data without exposing credentials.

SVS
Aperio ScanScope Virtual Slide format, commonly used for whole slide images and supported by the platform.

T

Test Application
Free application automatically available to all registered organizations for workflow configuration and integration testing.

TIFF (Tagged Image File Format)
Standard image format supported for both input whole slide images and output heatmaps.

Tissue Segmentation
Computational process of identifying and delineating different tissue regions within histopathology slides.

TME (Tumor Microenvironment)
The cellular environment surrounding tumor cells, analyzed by the Atlas H&E-TME application.

Two-Factor Authentication (2FA)
Mandatory security requirement for all user accounts on the Aignostics Platform.

U

UV
Modern Python package manager used for dependency management and project setup in the SDK documentation.

UVX
Tool for running Python applications directly without explicit installation, used to execute Aignostics CLI commands.

W

Whole Slide Image (WSI)
High-resolution digital image of an entire histopathology slide, the primary input format for computational pathology applications.

Workflow
Sequence of automated processing steps within an application that transform input images into analytical results.
