ScanOps

scanops

Project Overview

ScanOps is an automated container security pipeline that builds, scans, and promotes Docker images based on their vulnerability status. Leveraging GitHub Actions (CI/CD), Trivy, AWS ECR, and S3, it ensures only safe containers are pushed to production. For vulnerability and compliance tracking, SBOMs (Software Bill of Materials) are generated and alerts are triggered on vulnerable builds.

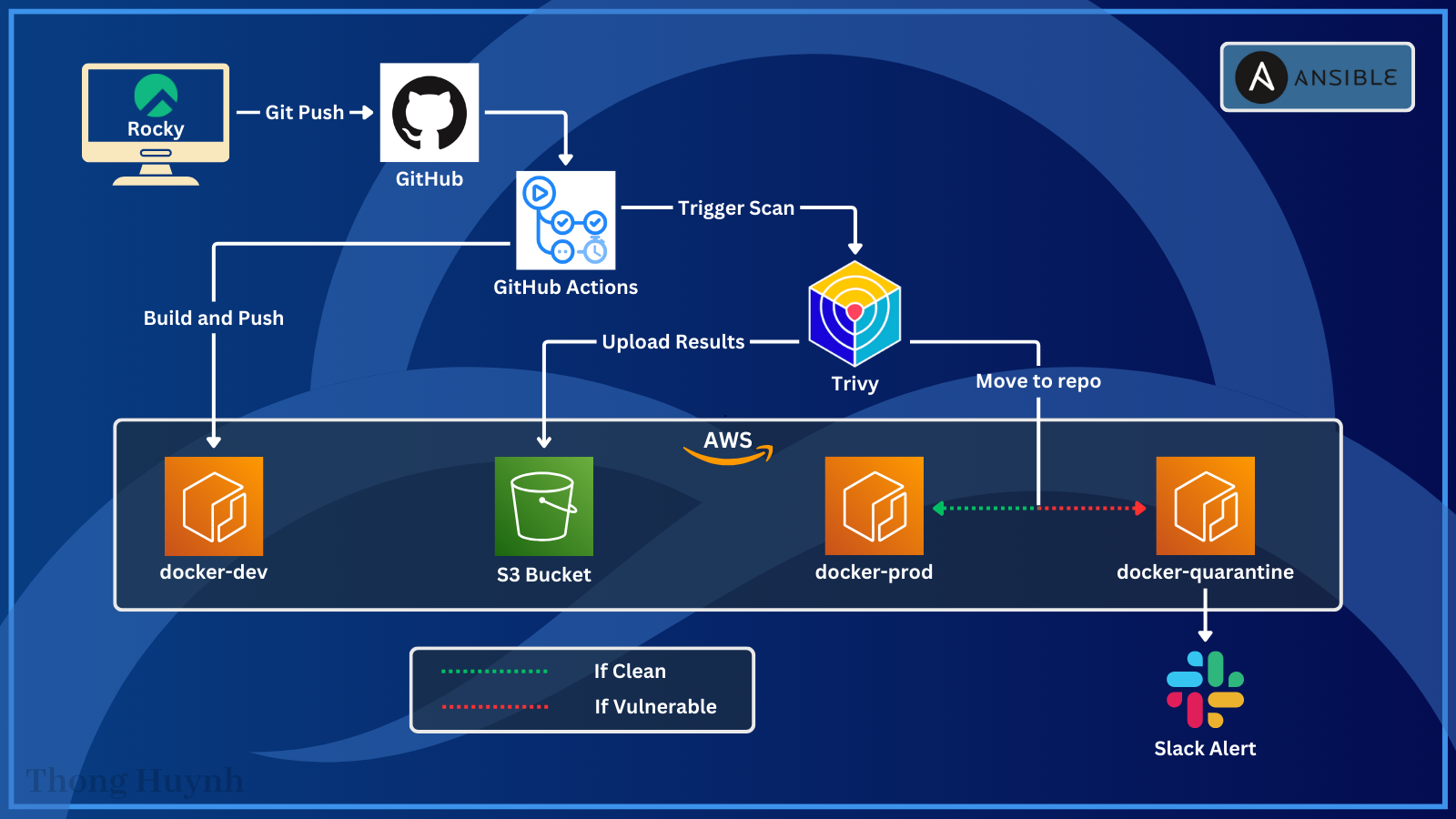

Architecture

GitHub Actions
   ├── Build & Push → AWS ECR (docker-dev)
   └── Trivy Scan
         ├── If clean → ECR (docker-prod)
         ├── If vulnerable → ECR (docker-quarantine)
         ├── Generate SBOM (CycloneDX)
         └── Upload Scan Results & SBOM → S3
             └── Slack Alert (if vulnerable)
  • ECR Repos:
    • docker-dev: Initial staging
    • docker-prod: Production-ready images
    • docker-quarantine: Vulnerable images
  • Trivy Scanning: Checks for CRITICAL and HIGH vulnerabilities
  • Slack Alerts: Summarized scan results for visibility

Versions

Component Version Component Version
Python 3.11.10 Ansible Latest
AWS CLI Latest Trivy 0.60.0
Flask 3.1.0 Node.js 20.14.0
Nginx 1.26.3 Alpine 3.16.0

Prerequisites

  • Rocky Linux VM
    • Rocky Linux with Ansible and Git installed
    • Allocate sufficient resources: 2 CPUs, 4GB RAM
  • AWS Account
    • An AWS account with provisioned access-key and secret-key
  • GitHub Account
    • A GitHub account with an existing repository and GitHub Actions enabled
    • SSH key configured and authorized:
      • SSH key pair generated on the Rocky Linux VM
      • Public key added to your GitHub account under SSH and GPG keys
      • Allows passwordless git pull and git push access
  • Slack Incoming Webhook URL
    • A Slack Incoming Webhook URL for sending alerts or messages

Environment Setup

Fork this repository

🔁 Click the “Fork” button on the top-right of the GitHub repo page to copy it to your own GitHub account. This ensures that GitHub Actions will run under your account and can access your secrets.

Clone repo and install required Ansible collections

git clone git@github.com:<your-github-username>/scanops.git
cd scanops
ansible-galaxy install -r requirements.yaml

Configure Variables and Repo Secrets

Update variable file for Ansible playbook runs:

cp vars.yaml.example vars.yaml
vim vars.yaml
  • Update the values in vars.yaml with your actual AWS and Slack credentials
  • Keep the sensitive file local. Be sure it's listed in .gitignore to avoid committing sensitive info.

Configure GitHub Secrets for CI/CD:

Secret Name Description
AWS_ACCOUNT_ID Your AWS account ID
AWS_ACCESS_KEY_ID IAM access key ID
AWS_SECRET_ACCESS_KEY IAM secret access key
AWS_REGION AWS region (e.g., us-east-1)
SLACK_WEBHOOK_URL Slack webhook for notifications

To add these:

  • Go to your repository on GitHub
  • Click Settings → Secrets and variables → Actions
  • Click "New repository secret" and enter the name and value

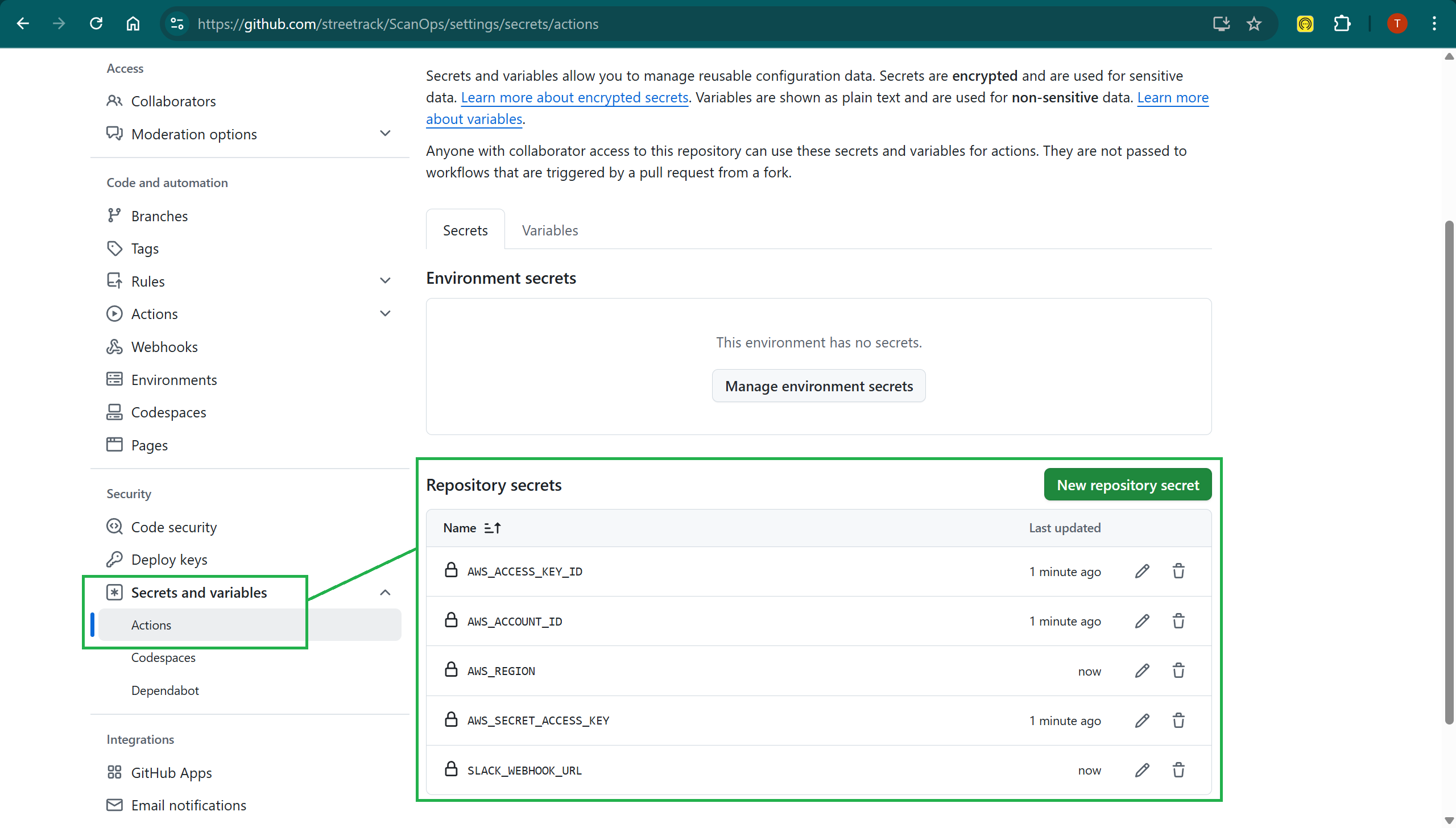

Image Results

scanops

  • These secrets are accessed by the GitHub Actions workflow to authenticate with AWS and send alerts to Slack

Run Ansible setup playbook

ansible-playbook infra.yaml -vv

This playbook will:

  • Installs system packages and dependencies
  • Installs AWS CLI if not present
  • Configures AWS CLI with provided credentials
  • Setup ECR repositories (docker-dev, docker-prod, docker-quarantine)
  • Create S3 bucket for SBOMs and scan results

Confirm Successful Execution:

ansible --version
podman --version
aws configure list
aws sts get-caller-identity
aws ecr describe-repositories --no-cli-pager
aws s3 ls

Image Results

scanops scanops scanops

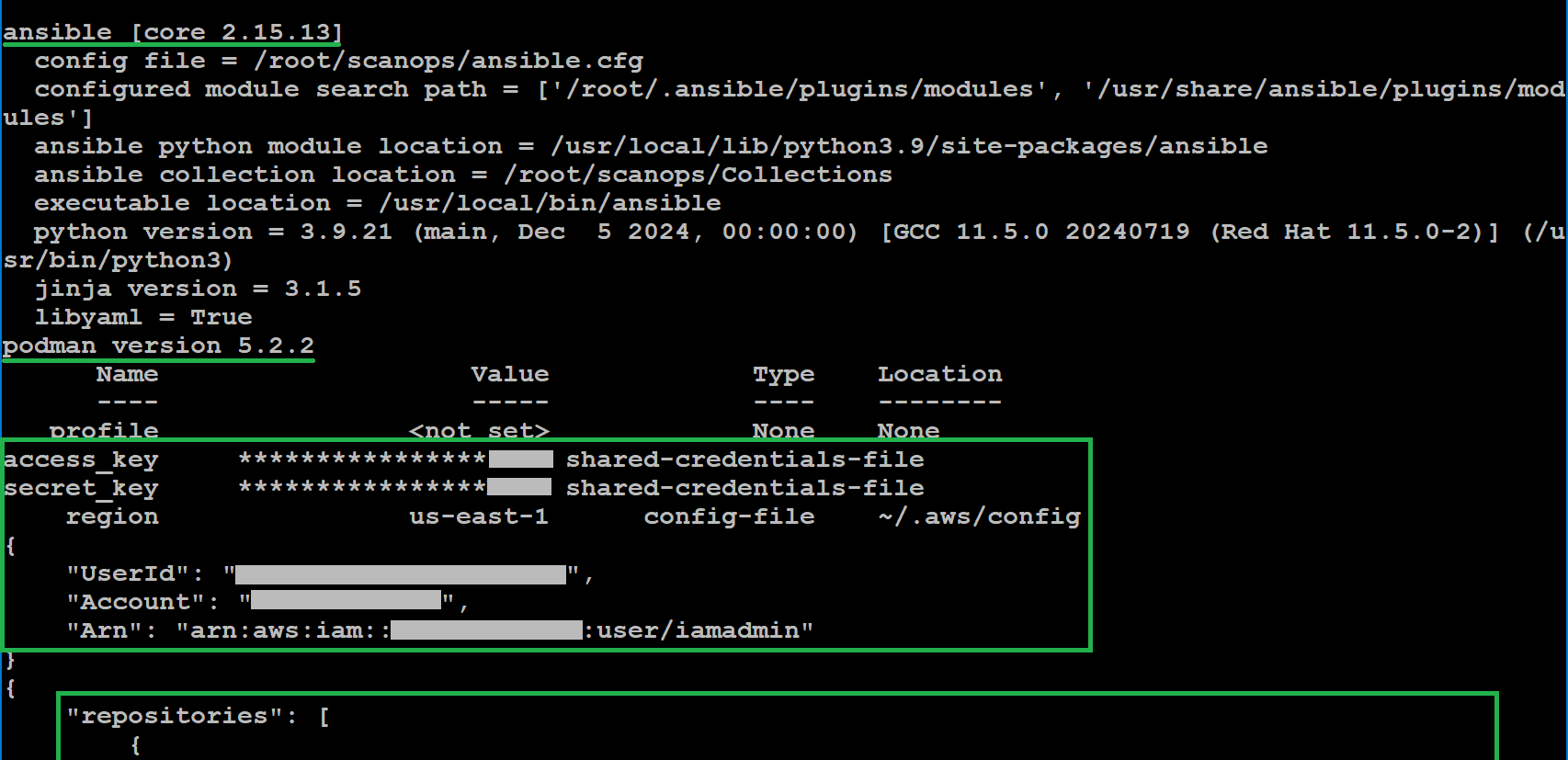

  • AWS CLI Configuration:
    • AWS credentials are set up using a shared credentials file, and the region is configured as us-east-1
    • The IAM user is verified via sts get-caller-identity, confirming its UserId, Account, and ARN

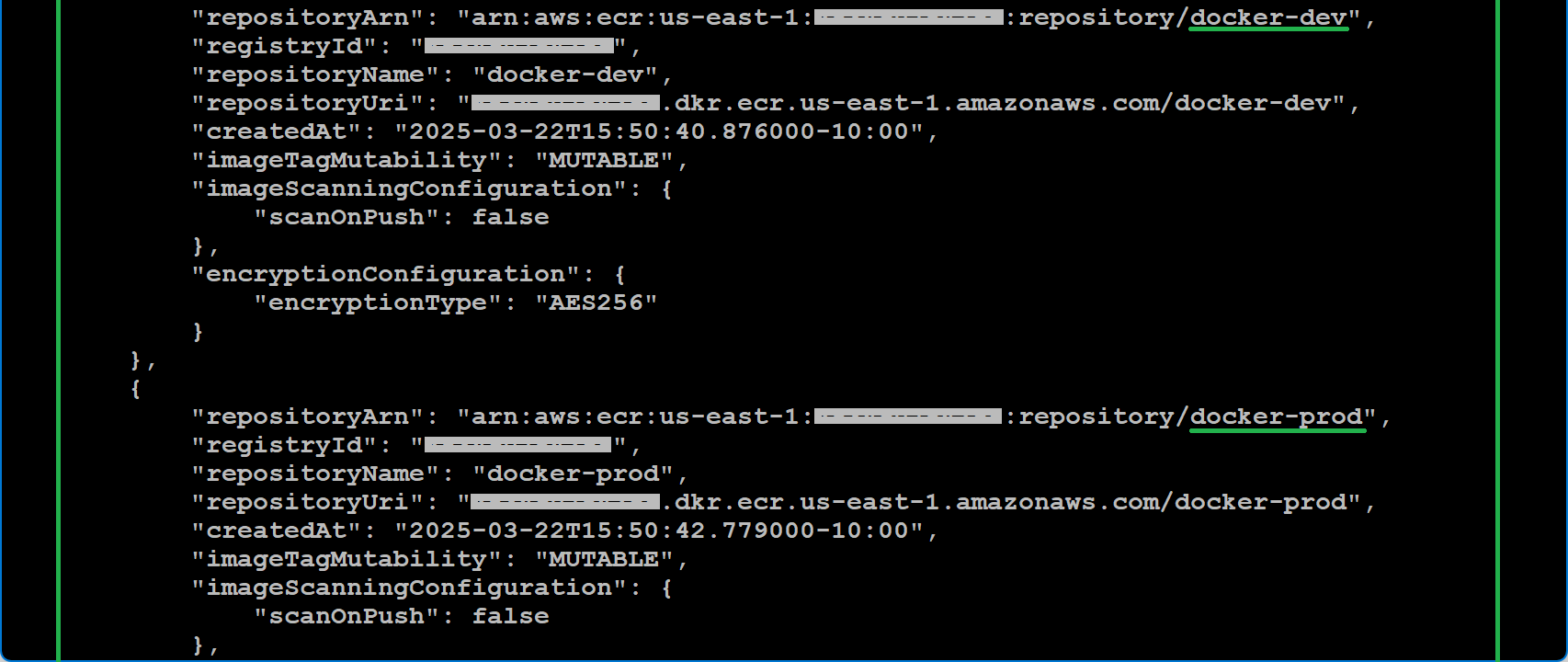

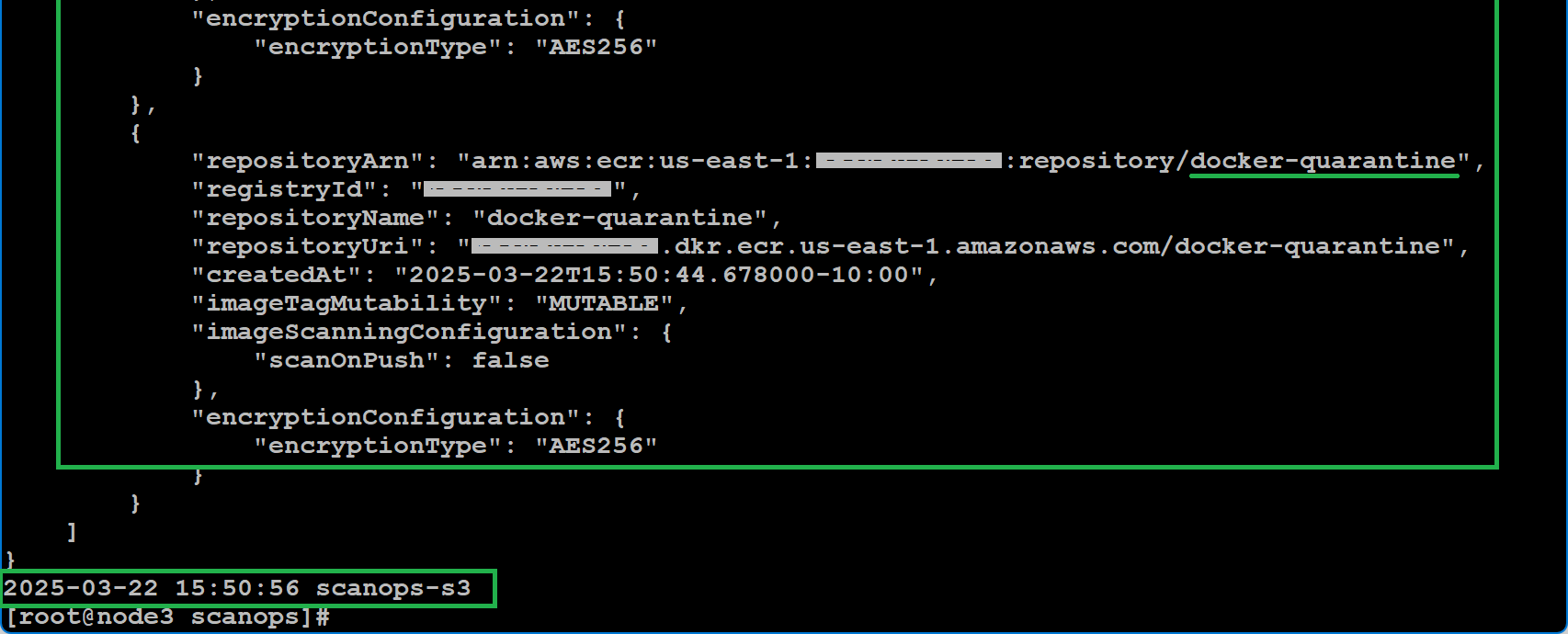

  • Output confirms the three ECR repos are created:
    • docker-dev
    • docker-prod
    • docker-quarantine
  • Verifies successful provisioning of S3 storage

scanops scanops

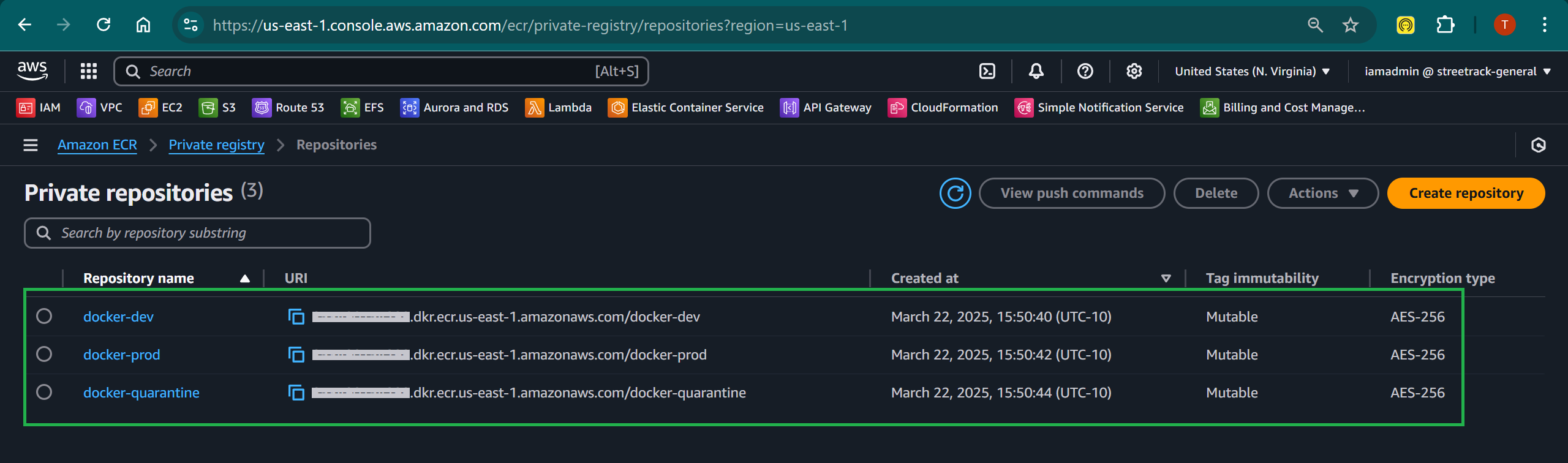

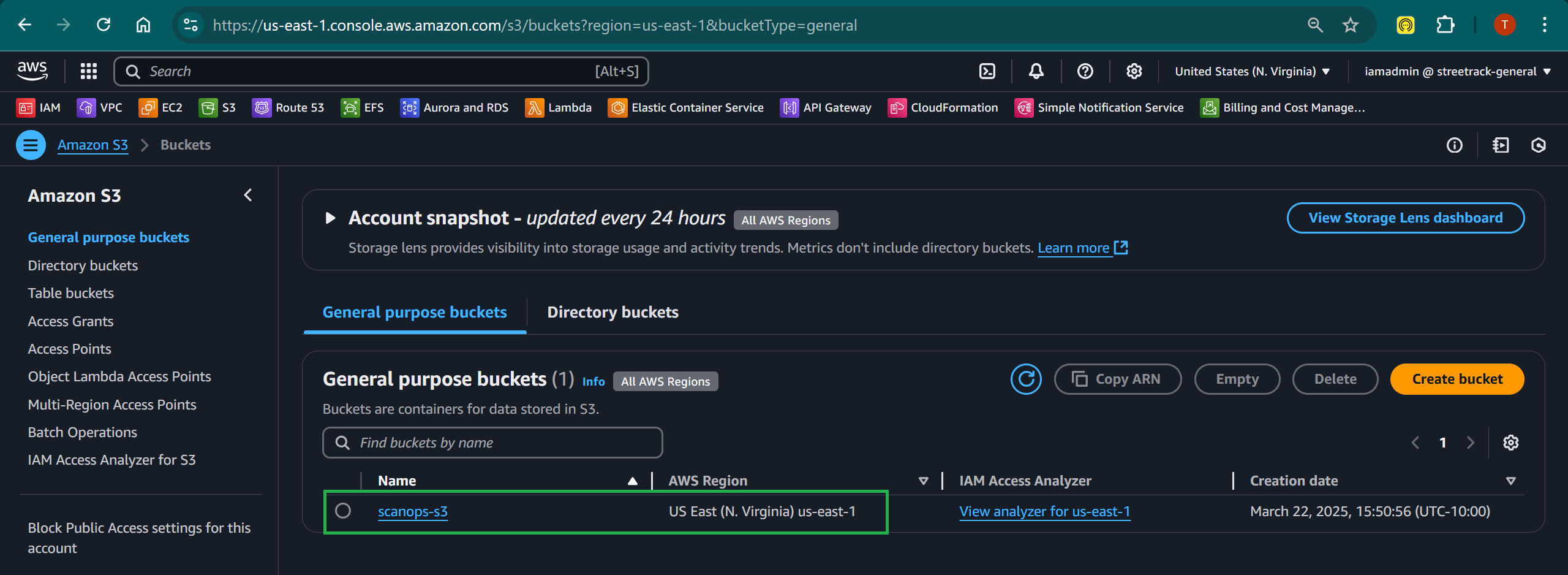

  • Confirmed in AWS web console:
    • All three repositories created
    • S3 storage provisioned

Deployment

Create Sample Docker Apps

ansible-playbook setup_docker_apps.yaml -vv

This playbook generates:

  • 4 sample apps:
    • Nginx
    • Alpine
    • Node.js
    • Python (Flask)
  • Corresponding Dockerfiles and placeholder app files

Confirm Successful Execution:

cat docker/nginx/Dockerfile
cat docker/alpine/Dockerfile
cat docker/nodejs/Dockerfile
cat docker/python/Dockerfile

Image Results

scanops

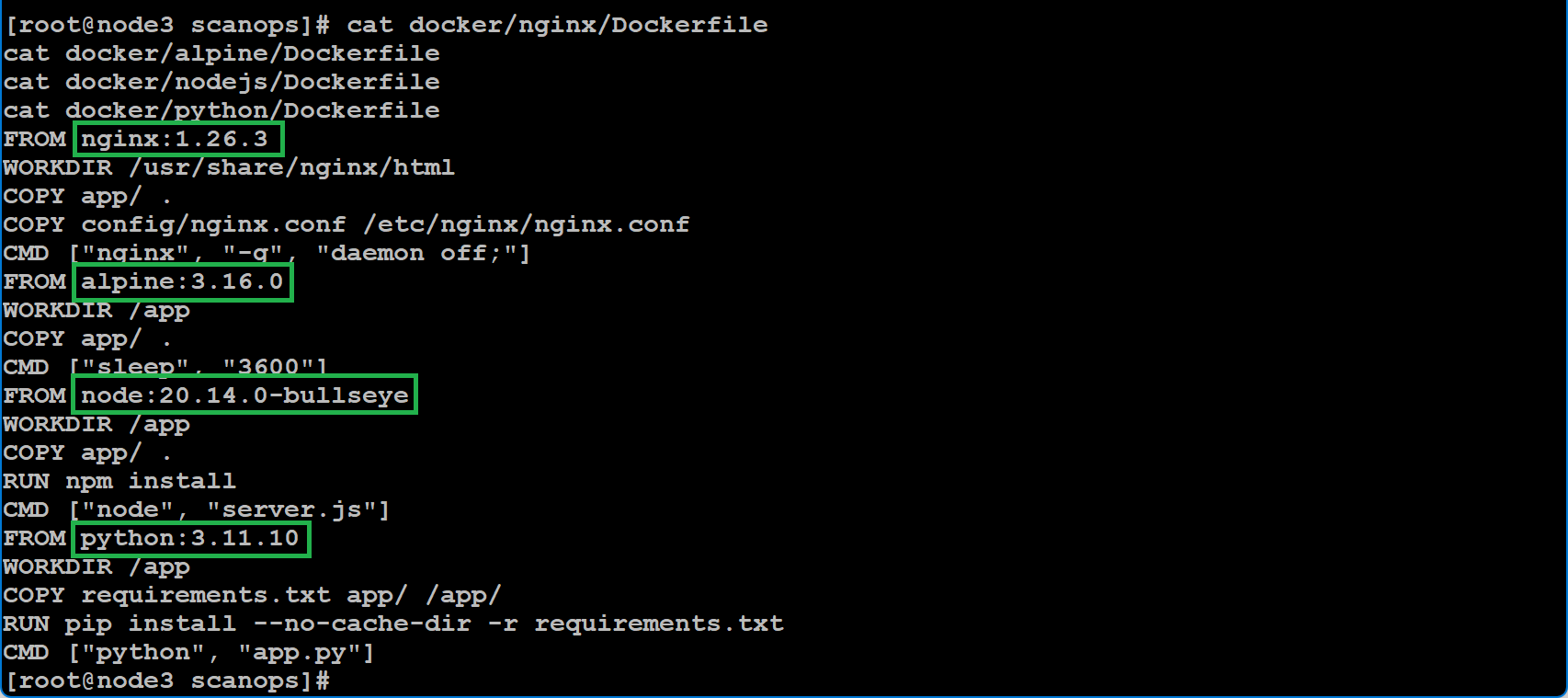

  • Output of sample Dockerfile creation from setup_docker_apps.yaml playbook
  • Confirmed four Docker apps:
    • Alpine
    • Nginx
    • Python
    • Node.js

Deploy GitHub Actions Workflow

ansible-playbook setup_pipeline.yaml -vv

This workflow runs on every push or pull request affecting files in the docker/ directory. It uses a matrix strategy to iterate over 4 Docker images: alpine, nginx, python, and nodejs.

Job 1: build-and-push

  • Purpose:
    • Build each Docker image and push it to the docker-dev ECR repository
  • Main Tasks:
    • Checkout the repo
    • Configure AWS credentials
    • Log in to ECR
    • Generate a timestamped image tag
    • Build the Docker image
    • Push the image to docker-dev
    • Save the image tag for the next job

Job 2: scan-move

  • Depends on: build-and-push
  • Purpose:
    • Scan the image with Trivy, generate an SBOM (Software Bill of Materials), and move the image based on scan results
  • Main Tasks:
    • Download the image tag
    • Install and run Trivy scanner
    • Upload scan results and SBOM to S3
    • If vulnerabilities are found:
      • Move image to docker-quarantine
      • Send Slack alert
    • If clean:
      • Promote image to docker-prod

Trigger Pipeline

git add -A
git commit -m "Trigger pipeline with sample apps"
git push

This kicks off:

  • Image build & push to ECR (docker-dev)
  • Trivy scan
  • SBOM and scan results upload to S3
  • Image promotion or quarantine based on scan
  • Slack alert if CRITICAL or HIGH vulnerabilities found

Image Results

scanops

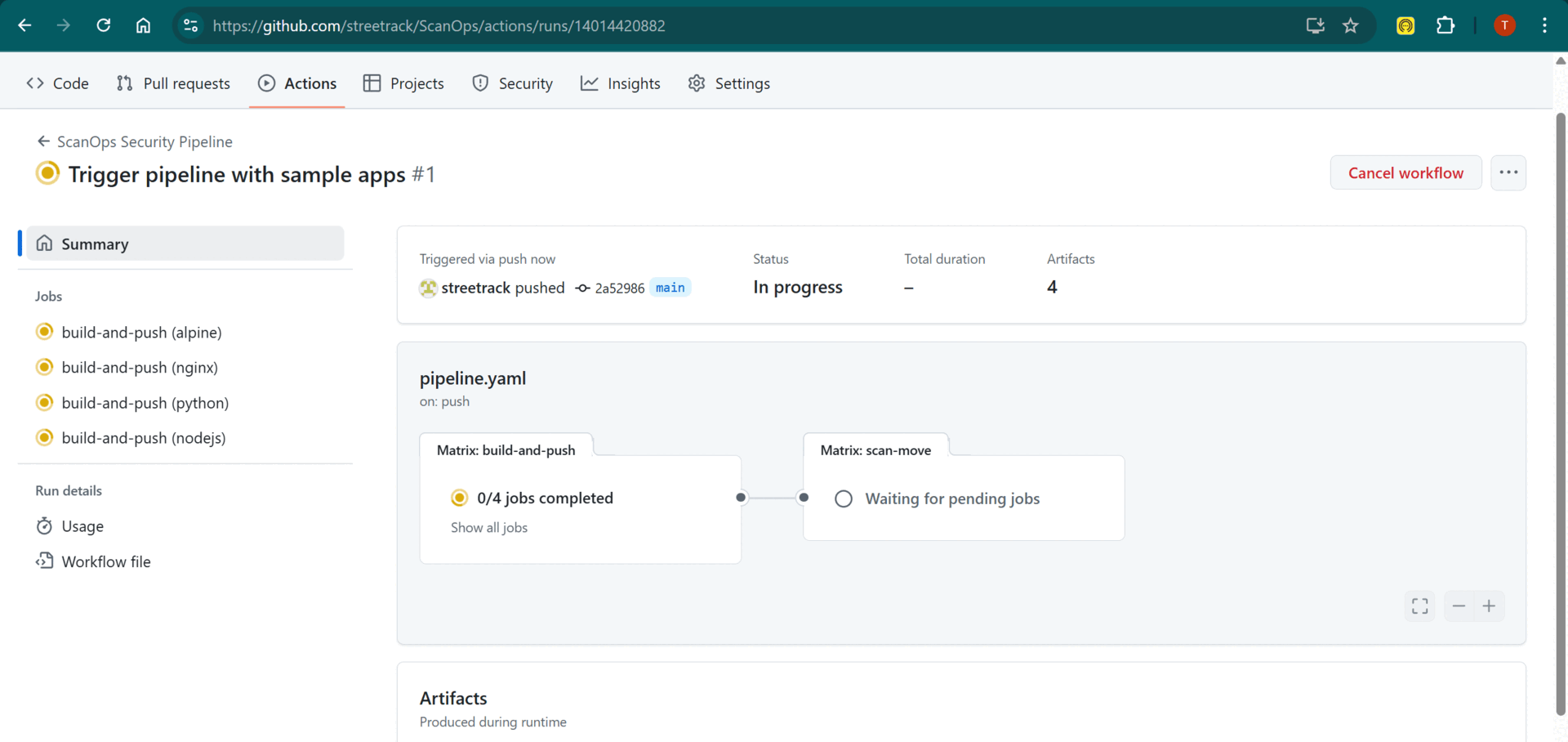

  • Matrix strategy kicks off 4 parallel build-and-push jobs:
    • alpine
    • nginx
    • python
    • nodejs
  • Scan-move matrix is queued then completes build jobs with no errors

scanops

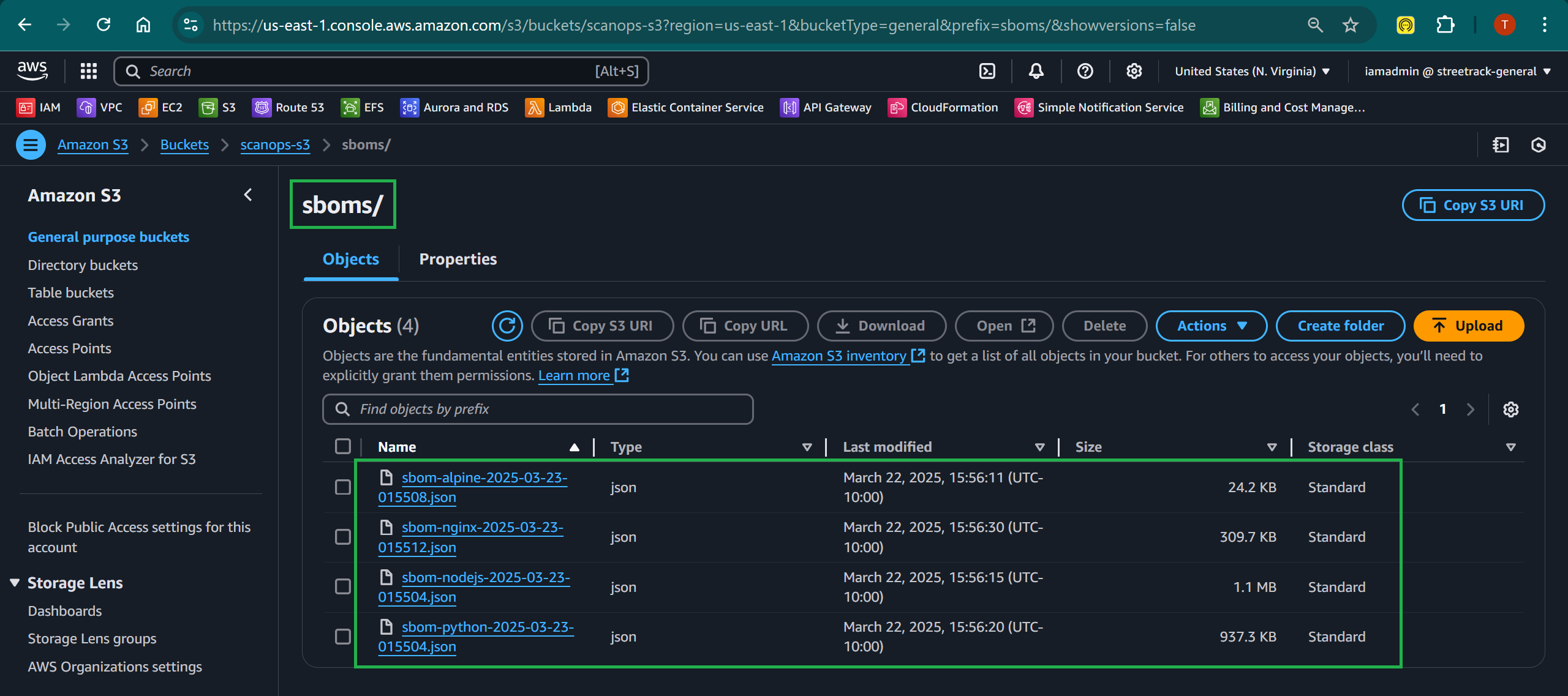

  • SBOMs for all four sample apps were successfully generated and uploaded to the scanops-s3 bucket

scanops

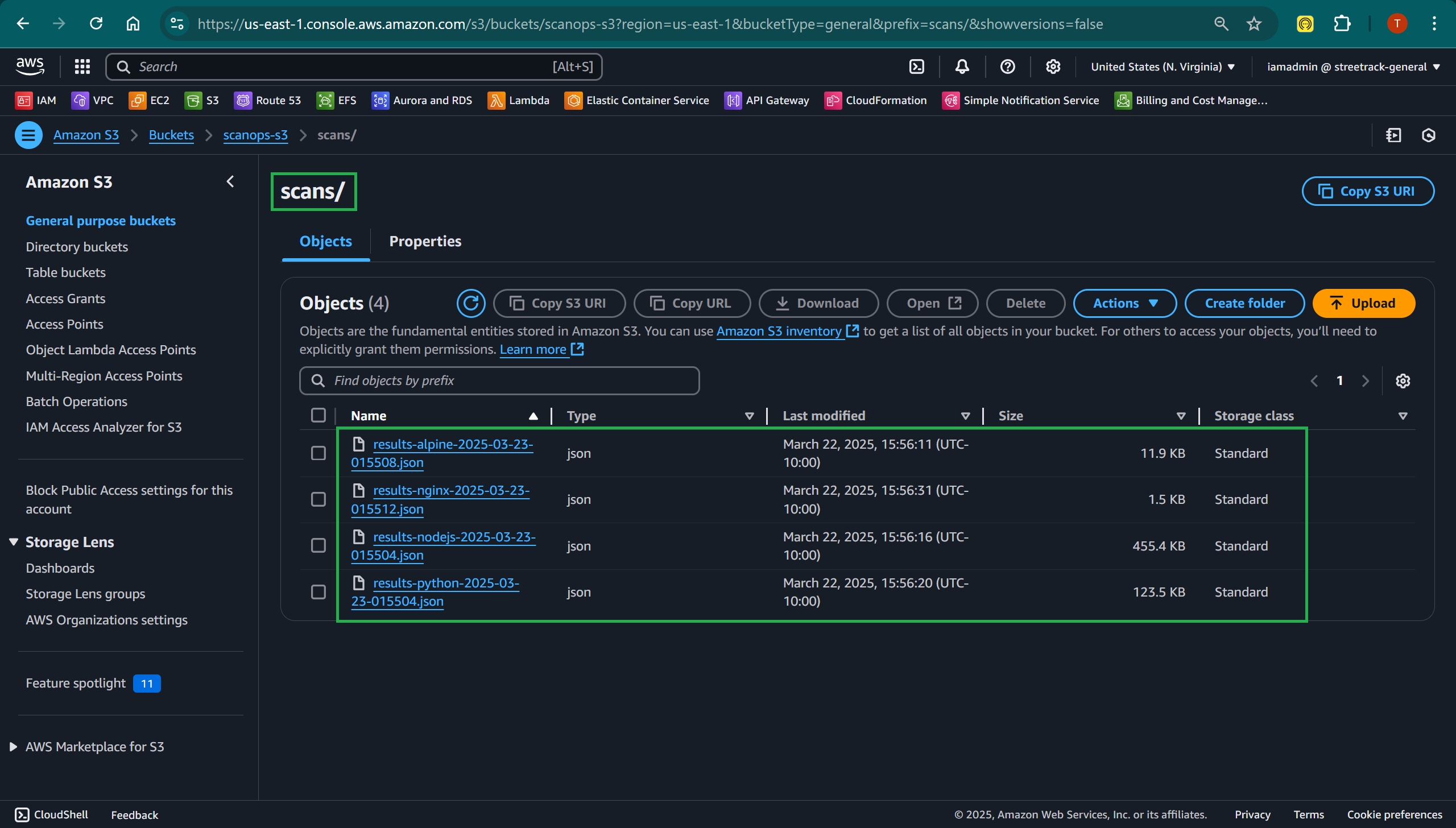

  • Trivy scan results were also successfully uploaded to the scanops-s3 bucket

scanops

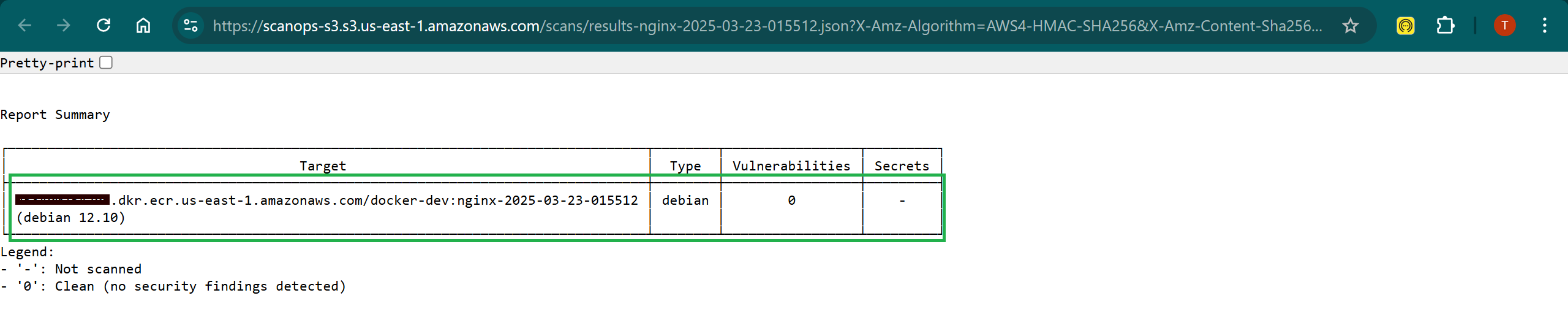

  • Trivy scan for the nginx image returned 0 vulnerabilities, marking it as clean

scanops

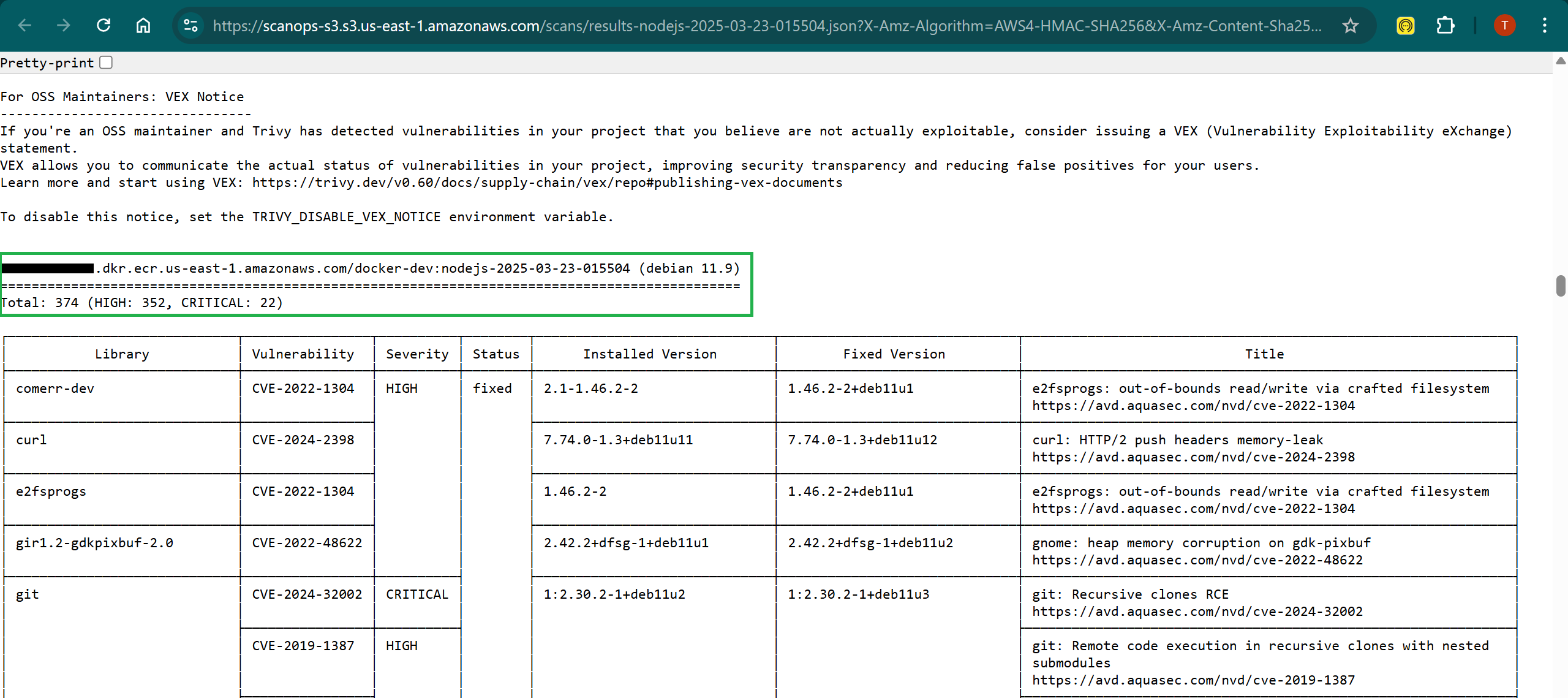

  • Scan for the nodejs image detected 374 total vulnerabilities, including 22 CRITICAL and 352 HIGH severity issues

scanops

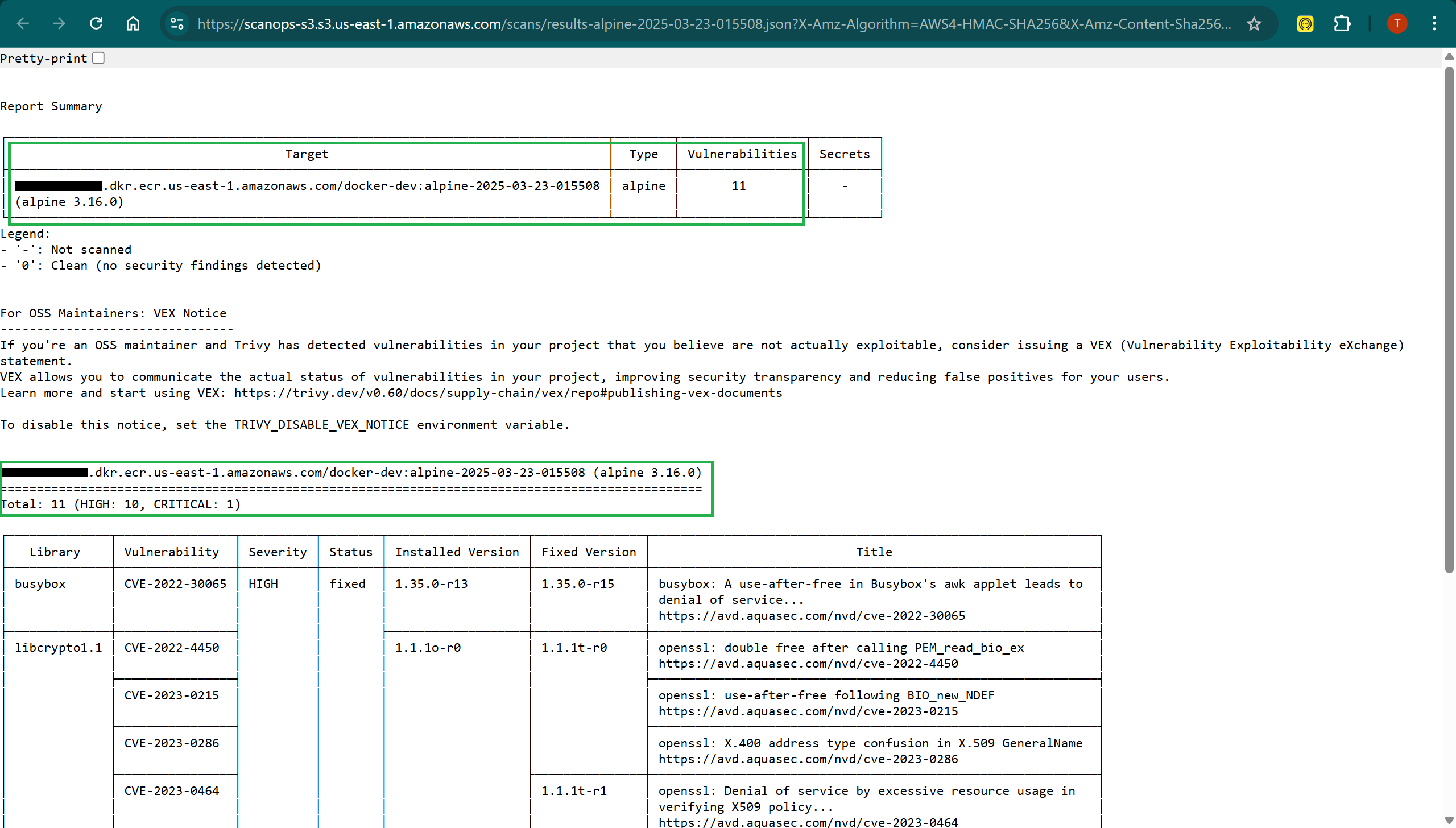

  • Trivy scan for the alpine image found 11 vulnerabilities, including 1 CRITICAL and 10 HIGH severity

scanops

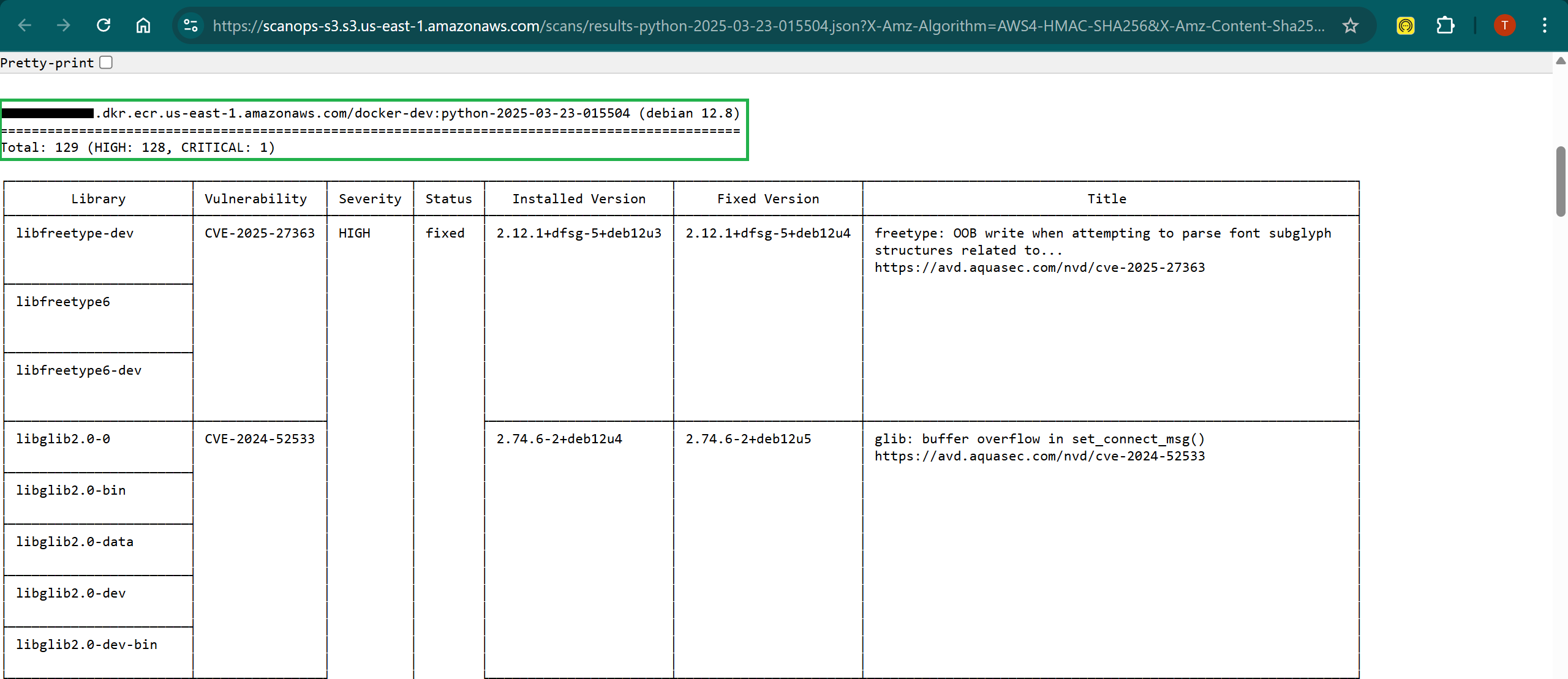

  • The python image scan revealed 129 total vulnerabilities, with 1 marked CRITICAL and 128 categorized as HIGH severity

scanops

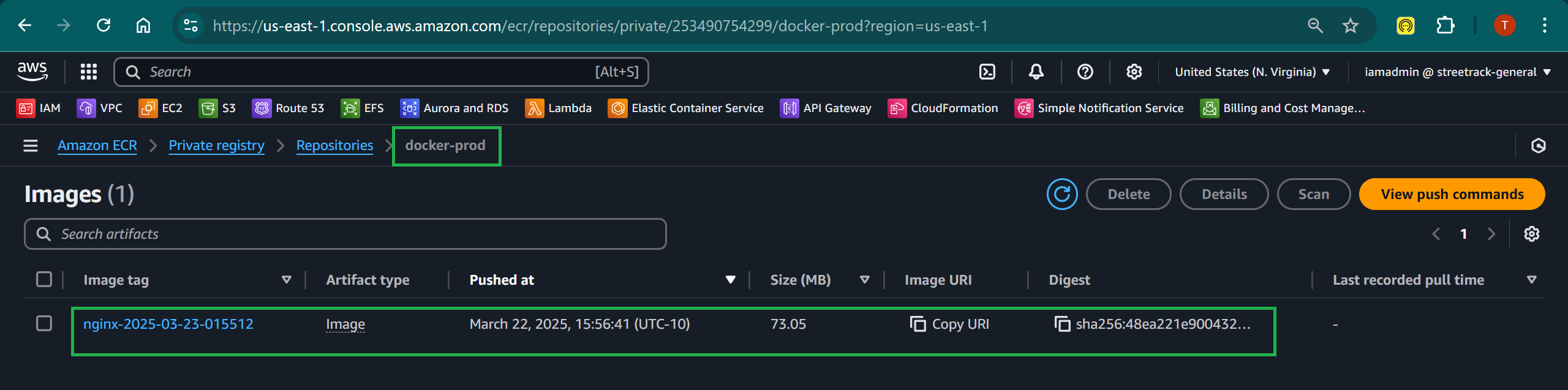

  • The nginx image passed the Trivy scan and was successfully promoted to the docker-prod ECR repository

scanops

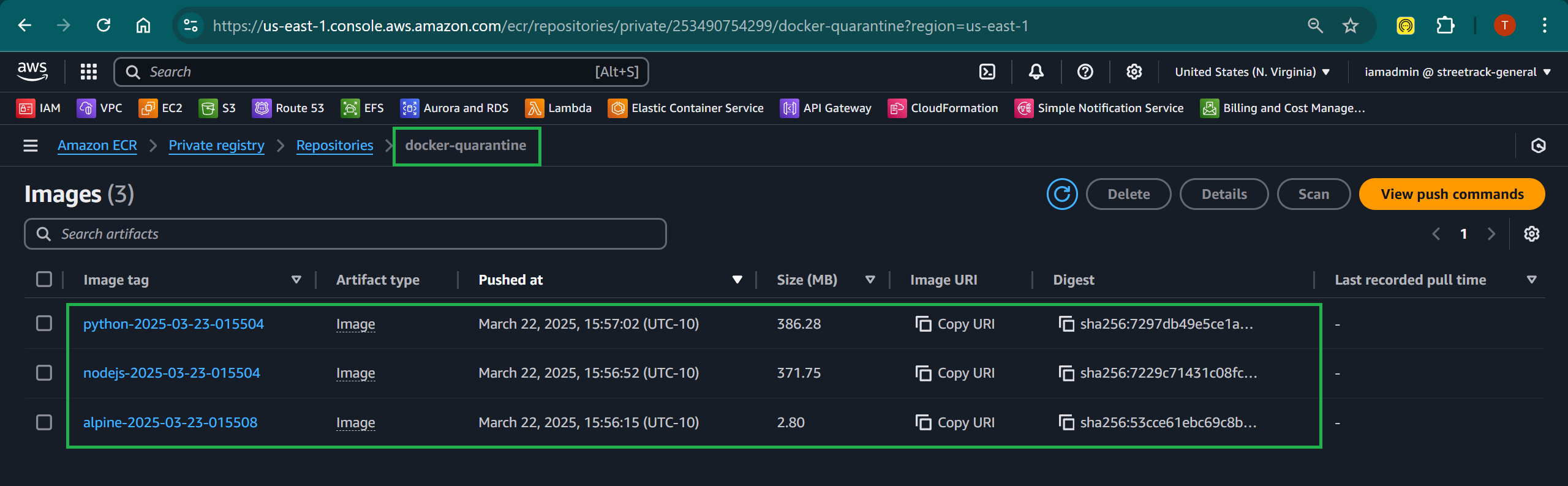

  • The python, nodejs, and alpine images were pushed to the docker-quarantine ECR repository for isolation

scanops

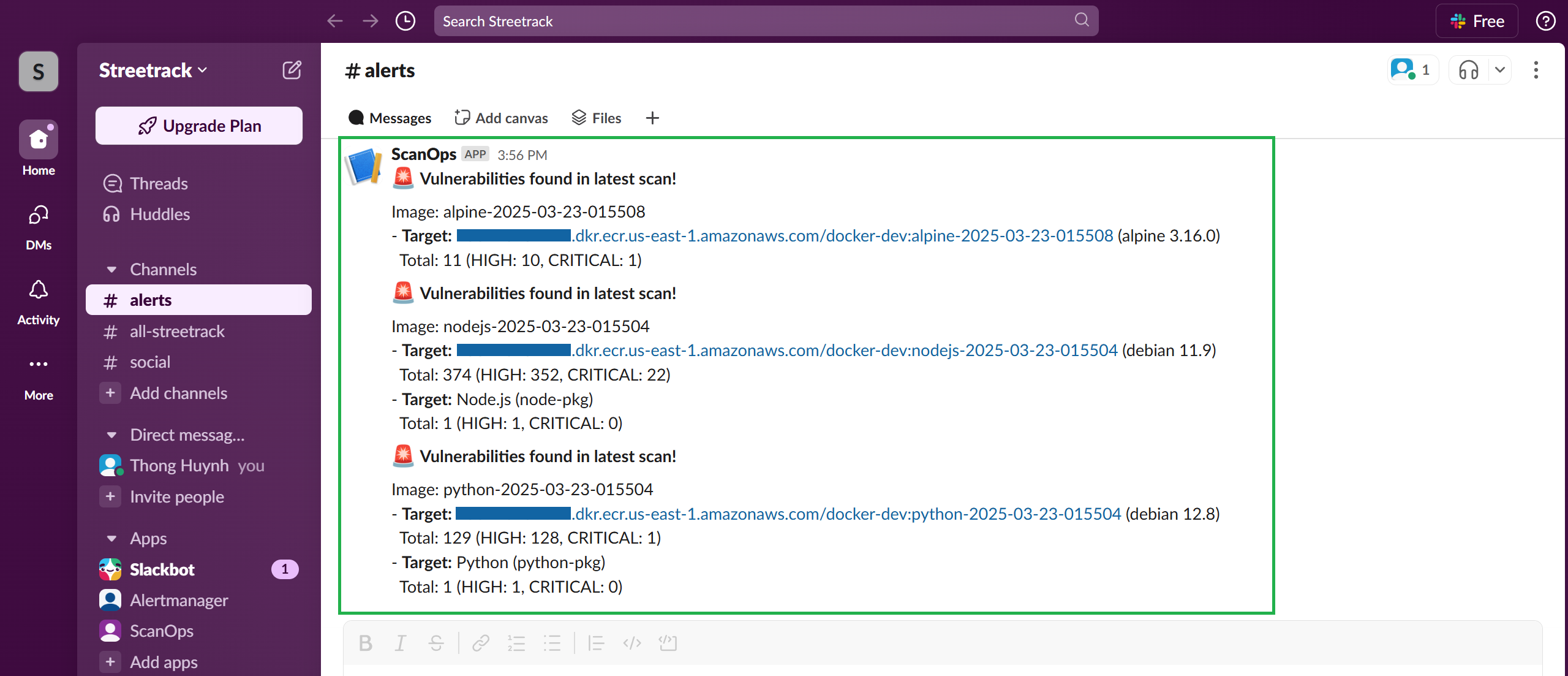

  • Slack alert triggered by ScanOps, reporting vulnerability summaries for alpine, nodejs, and python images

Conclusion

Building ScanOps was an awesome experience. After diving deep into docs, tweaking YAML, and troubleshooting countless CI/CD runs, seeing everything come together was worth it.

We now have a pipeline that automatically builds, scans, and sorts containers using GitHub Actions, Trivy, and AWS. Clean images go to production, vulnerable ones get quarantined—with SBOMs in S3 and Slack alerts keeping us in the loop.

It’s simple, scalable, and something I’m proud of.

Note: Run cleanup.yaml playbook to delete all AWS resources
