ReactMagnifier v0.0.4

ReactMagnifier is a simple and highly configurable react plugin to perform image magnification. This is a UMD module, so it can be used isomorphically.

Note: The name of the npm package is @sandeepv68/react-magnifier

Features

• Light weight (18 KB minified)
• Written in Typescript
• Highly customizable
• Supports touch screens as well
• Supports event listeners
• Supports all kinds of images and image urls, high resolutions as well
• Supports custom css styles
• Supports client-side react apps as well as server-side rendered react apps
• No jQuery

Table of Contents

• About
• Features
• Demo
• Installation
• Sample Usage
• Dependency
• Changelog
  • v0.0.4
  • v0.0.3
• API Documentation
  • Props
  • Events
• Contributing
• Tests
• Technologies Used
• License
• Acknowledgements

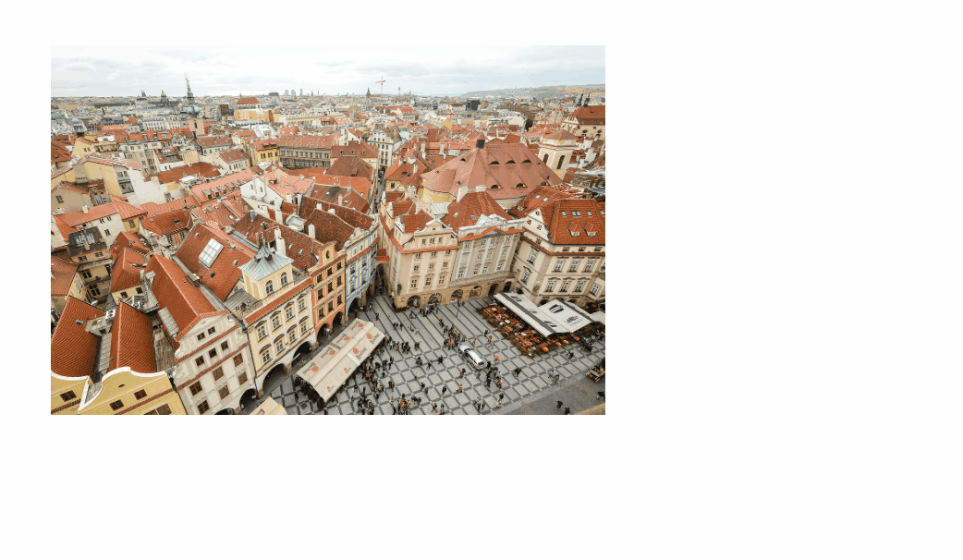

Demo

More examples and demos can be found in example folder in the root of the repo.

Installation

Install the package from NPM using:

npm i @sandeepv68/react-magnifier

Sample Usage

Add the component to your project using:

import ReactMagnifier from "@sandeepv68/react-magnifier";
import image from "./path/image";

 <ReactMagnifier
      imageUrl={image}
      zoomSize={3}
      imageAltText={"Some text"}
      imageHeight={400}
      imageWidth={600}
      magnifierHeight={200}
      magnifierWidth={200}
      magnifierRadius={50}
      magnifierBorderColor={"white"}
      magnifierBorderStyle={"solid"}
      magnifierBorderWidth={2}
      magnifierShadow={true}
      cursor={"none"}
      getMagnifier={showEvent}
      customImgStyles={'myClass'}
      customContainerStyles={'aClass'}
   />

Dependency

This component requires the following node modules as its dependency:

• react - The react js core library, version (16.12.0) is used here.
• react-dom - The react js dom library, version(16.12.0) is used here.

Changelog

v0.0.4

• Refactored and optimized code
• Unbind event listeners on component un-mount
• package size reduced

v0.0.3

• Initial stable build
• Includes all essential features and cuistomizations

API Documentation

Props

The following table gives all the possible input props and its default values and customizations.

Props	Type	Required	Default	Description
imageUrl	String	yes	empty	Url string for the image to be displayed and magnified.This is a mandatory prop. If not supplied, the component will throw ReactMagnifier Error: Image url is missing!. <ReactMagnifier imageUrl={url}/> is required. error in console, but will not break your apps ui.
imageAltText	String	no	react-magnifier-image	The alt text value for the image
imageHeight	Number	no	auto	Height of the image. If no value is provided, it preserves auto.
imageWidth	Number	no	auto	Width of the image. If no value is provided, it preserves auto.
magnifierHeight	Number	no	100	Height of the magnifier
magnifierWidth	Number	no	100	Width of the magnifier
magnifierRadius	Number	no	50	Border radius of the magnifier
magnifierBorderColor	String	no	#000	Border color of the magnifier
magnifierBorderStyle	String	no	solid	Border style of the magnifier
magnifierBorderWidth	Number	no	3	Border width of the magnifier
magnifierShadow	Boolean	no	true	Box shadow for the magnifier
cursor	String	no	none	Type of mouse cursor on magnifier
zoomSize	Number	no	2	Magnification factor
getMagnifier	Function	no	empty	Get reference to the image under magnification. The function prop returns the html element. It also includes custom events fired inside the component.
customImgStyles	String	no	empty	White space separated CSS class names in a single string format. It can be used to override the styles of react magnifier, example : myClass newClass ..
customContainerStyles	String	no	empty	White space separated CSS class names in a single string format. It can be used to override the styles of react magnifier, example : myClass newClass ..

Events

The following events are available on the ReactMagnifier component. These are available on the element returned from getMagnifier function prop

Event	Type	Description
magnifier-initialized	CustomEvent	This event is triggered when the magnifier is initialized for the first time. This event is triggered only once
magnfier-moved	CustomEvent	This event is triggered anytime the magnifier is moved
magnifier-visible	CustomEvent	This event is triggered when the magnifier is visible when hovered over the image
magnifier-invisible	CustomEvent	This event is triggered when the magnifier is invisible when moved out of the image

These events can be used to trigger custom logic in your app when magnifier is initialized and used.

Contributing

All suggestions and pull requests are welcome. Please read the CODE_OF_CONDUCT and CONTRIBUTING files before contributing.

You can clone the repo from the following url:

git clone https://github.com/SandeepVattapparambil/react-magnify.git

Then in the repo root, you have the following npm scripts available in order of execution:

• Install all the dependencies for development

npm i

• Run the project

npm start

• Run tests

npm run test

• Create production build for react source

npm run build

• Build typescript files

npm run build-tsc

• Create development build

npm run build-dev

• Create production build

npm run build-prod

You need to have Nodejs ,npm in your system as development dependency.

Tests

This project includes unit tests written in Jest testing library. Tests can be run by the npm script

npm run test

Technologies Used

License

MIT License

Copyright (c) 2020 Sandeep Vattapparambil http://www.sandeepv.in

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

Acknowledgements

This project is inspired from Blowup.js, but not copied or does not include any or part of it in this project.

Made with ❤️ by Sandeep Vattapparambil.

All images used in demos and documentations are from Unsplash.com
