Naya Studio

A sign-up experience for designers and makers, where they are asked several question and the data is stored in a Database. The frontend of the website is designed using Bootstrap 4 to make it fully responsive.

Getting Started

Prerequisites

You should have the following installed on your local machine:

NodeJs
npm
MongoDB
Terminal
POSTMAN
Web Browser

Below are the download links for the same:

• NodeJs and npm
• MongoDB
• POSTMAN

Install them and then move to the next step.

Installing

• Download and extract repo
• Start terminal and change working directory to the extracted repo.
• Make sure your current working directory contains the file named index.js
• To install the required dependencies, inside the terminal, run command npm install

Running and Testing

• Using the terminal run command nodemon index.js
• Make sure that in the terminal you get the message: Sever is on port 3000
• This ensures that the application is running properly.

---

The application can be tested using POSTMAN or using a Web browser through which we can send requests.

POSTMAN

• Setting up environment.

  • Open POSTMAN application, name your collection as Naya-Studio. And click this button on the top left. *

  • Name the request as create Designer.

  • Now change the Request type from GET to POST

  • Add two more POST request with names Create Maker and Create DesignMaker

• We have 3 different POST routes in this application

  • To create a Designer: localhost:3000/designer
  • To create a Maker: localhost:3000/maker
  • To create a DesignerMaker: localhost:3000/designerMaker

• Add the urls accordingly and click save each time.

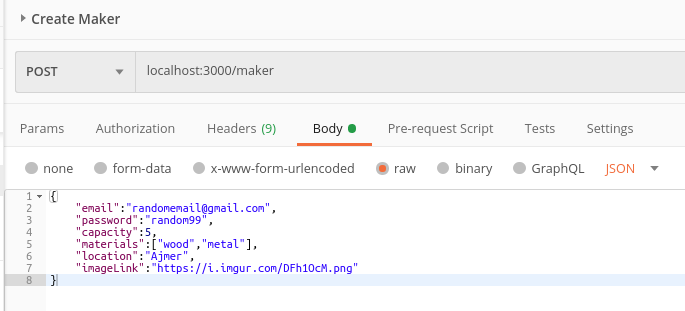

• Now we are ready for adding JSON data for our post requests using the body tab, also switch text to JSON and choose raw from the radio buttons. The window should look like this:

• The body for 3 of them should look like:

  • Maker:

   {
   "email":"randomemail@gmail.com",
   "password":"random99",
   "capacity":5,
   "materials":["wood","metal"],
   "location":"Ajmer",
   "imageLink":"https://i.imgur.com/DFh1OcM.png"
   }


  • Designer:

   {
   "email":"randomemail@gmail.com",
   "password":"random99",
   "capacity":5,
   "category":"interior designer",
   "training":"String",
   "imageLink":"https://i.imgur.com/DFh1OcM.png"
   }


  • DesignerMaker:

   {
   "email":"randomemail@gmail.com",
   "password":"randonjacb",
   "makerCapacity":"9",
   "designerCapacity":"3.5",
   "category":"designer maker",
   "material":["wood"],
   "training":"design",
   "location":"Ajmer",
   "imageLink":"https://i.imgur.com/DFh1OcM.png"
   }


• Click Save and then Send, to send the request.

• You can now see the request status, to check whether it is a success or failure.

• On a success code, the User has been added to your database. You can check the nayaStudio collection in MongoDB using terminal or using Robo3t GUI. You can see that passwords are secured by hashing.

• In case of wrong input(we'll discuss the allowed inputs very soon) you'll get an error message in the POSTMAN. Example:

• This is all about POSTMAN. For any queries feel free to Email me at mehul170104047@iitg.ac.in

BROWSER

• Well, this one is quite easy. Open Google Chrome or any other Browser (preferably latest).
• In the address bar type: localhost:3000 and press enter.
• There you go, you can now choose from the options available on the screen accordingly which will redirect you to the correct form for you.
• I have added a really nice feature which displays a flash message on successful submission of the form.

Validations in mongoose

I have added the following validations for 3 of the following models:

Maker model

• email should be of valid format.
• Length of password should be between 6-1000. It should not contain the term "password", in any form.
• capacity must be an integer greater than or equal to 1.
• materials should be an array of String elements. And should contain items only from:['wood','metal','plastic','glass','concrete','other']
• imageLink should be a URL in correct format.

Designer model

Common fields have same validations. Different ones are discussed below:

• category of designer should be a String element. And should be only from from:['furniture designer','architect','interior designer','industrial designer','designer maker','other']
• No need to worry about the lowercase/uppercase, I've made sure that input changes to lowercase before validation and getting saved.
• capacity of designer should be a number greater than zero (yes, we accept decimals too).

designerMaker model

The validations of above two models are used in it.

Built With

• NodeJs
• Express
• MongoDb
• npm dependencies used:

  • "bcryptjs": "^2.4.3" : To hash the password.

  • "body-parser": "^1.19.0" : Parsing the JSON body.

  • "connect-flash": "^0.1.1": Displaying flash message on success.

  • "cookie-parser": "^1.4.5",

  • "ejs": "^3.0.2": For rendering.

  • "express": "^4.17.1": Framework.

  • "express-session": "^1.17.0",

  • "mongoose": "^5.9.7": ODM library for MongoDB and nodeJS.

  • "multer": "^1.4.2"

  • "path": "^0.12.7"

  • "sharp": "^0.25.2"

  • "validator": "^13.0.0": For some super cool validations

Authors

• Mehul Chaturvedi

Acknowledgments

This task served as a really intresting and fun project for me. Building everything from scratch, going through errors,looking for solutions, solving them, implementing new ideas helped me learn a lot of cool stuff. Also, I tried to make this README as detailed as possible. If you have any queries you can E-mail me at mehul170104047@iitg.ac.in or mehul355180@gmail.com.
