🧠 MindGlide

The Universal Brain MRI Segmentation Tool for Multiple Sclerosis

Any Sequence. Any Quality. Zero Preprocessing.

Built with PyTorch + MONAI | Trained on >23,000 real-world scans | Published in Nature Communications

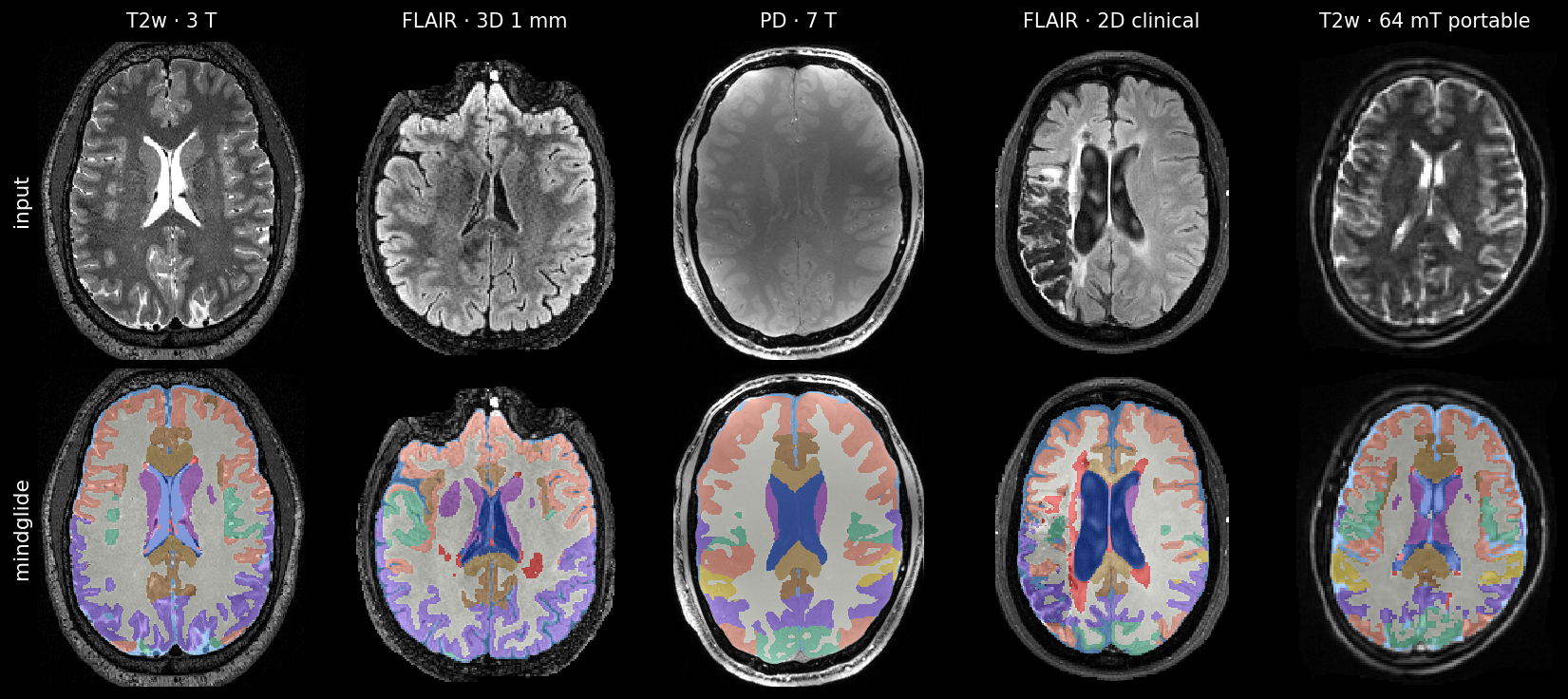

One model, no preprocessing, no retuning — from a 64 mT portable scanner to 7 T, research-grade 3D to thick-slice clinical 2D. Openly licensed public scans; unedited MindGlide output.

✨ Why MindGlide?

• 🚀 Zero Preprocessing: Feed it raw NIfTI files. No skull-stripping, no bias correction, no registration, no reorienting needed.
• 💻 Dead Simple: One command to segment a single scan or an entire folder.
• ⚡ Lightning Fast: Seconds per scan on a GPU, or just a few minutes on a CPU.
• 🏥 Robust: Handles clinical archives out-of-the-box, no matter how old or unusual the sequence.

---

🚀 Get Started in 3 Seconds

You are just one command away from segmented scans.

# 1. Install
pip install mindglide

# 2. Run
mindglide -i scan.nii.gz -o scan_seg.nii.gz

That's it! The model (~123 MB) downloads and caches automatically on the first run.

📂 Process an entire folder instantly

Got an archive of scans? MindGlide handles it gracefully:

mindglide -i scans/ -o segs/   # writes segs/<name>_seg.nii.gz for every scan

Prefer zero installs? Try it in your browser on Colab →

🧠 No scan at hand? Try the public MNI152 template:

curl -O https://templateflow.s3.amazonaws.com/tpl-MNI152NLin2009cAsym/tpl-MNI152NLin2009cAsym_res-01_T1w.nii.gz
mindglide -i tpl-MNI152NLin2009cAsym_res-01_T1w.nii.gz -o mni_seg.nii.gz

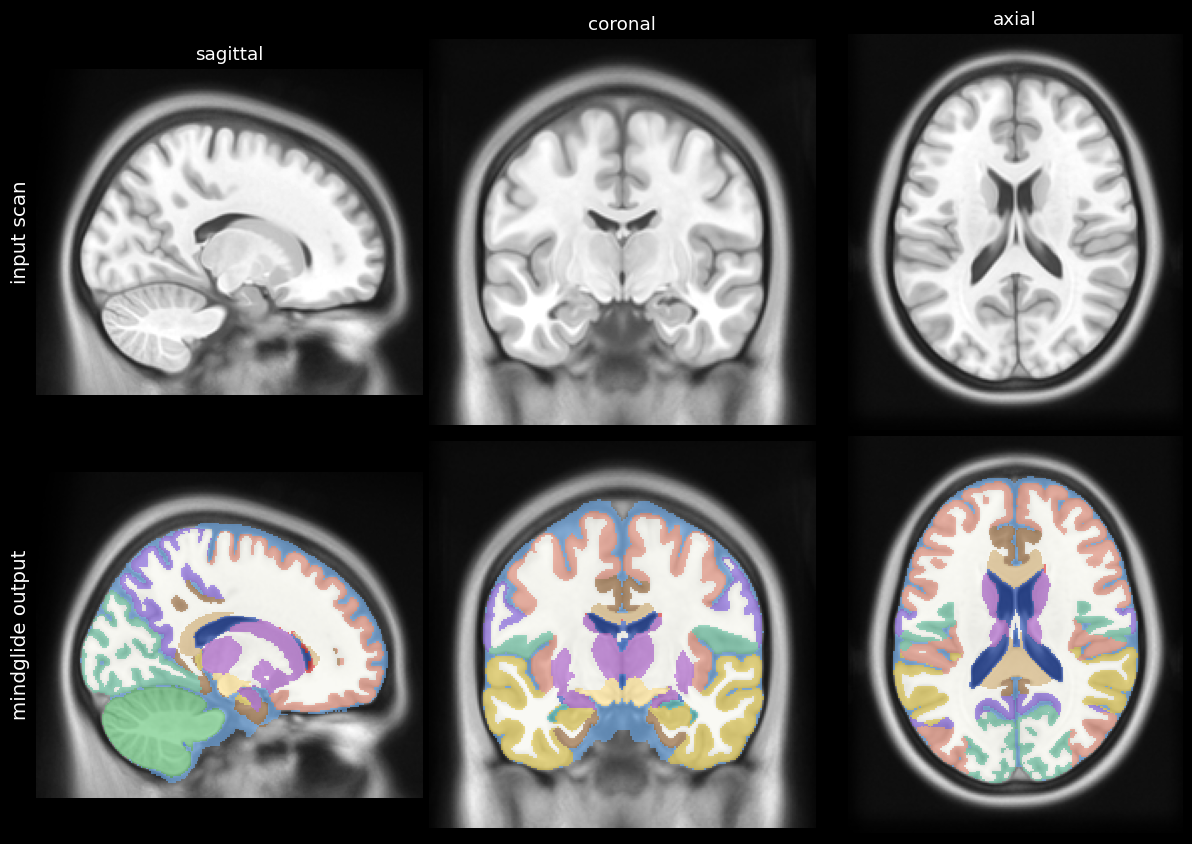

The command above produces the segmented MNI152 template.

---

🛠️ Seamless Python API

Integrate MindGlide directly into your workflow. It uses the same engine as the CLI, guarantees byte-identical outputs, and provides clean exceptions (mindglide.UsageError) instead of exit codes.

from mindglide import segment, volumes_dataframe

# Segment a single scan
seg_path = segment("scan.nii.gz")            # writes scan_seg.nii.gz

# Instantly get region volumes in mm³
df = volumes_dataframe(seg_path)

# Or process a whole folder
segment("scans_dir/", "segs_dir/")

---

📊 From Scans to Statistics

Segment a cohort, then get one CSV for the whole study:

mindglide -i scans/ -o segs/ --resume        # resumable folder-mode segmentation
mindglide-volumes segs/ --out-csv cohort.csv # one long-format table for all scans

import pandas as pd
df = pd.read_csv("cohort.csv")               # columns: Scan, Label_ID, Region_Name, Volume_mm3
lesions = df[df.Region_Name == "Lesion"]     # e.g. lesion volume per scan

Options

Option	Meaning
--device {auto,cpu,cuda,mps}	Compute device (default: auto — a working GPU if present, else CPU).
--sw-batch-size N	Sliding-window batch size (default 4). Lower it if the GPU runs out of memory.
--model-path FILE	Use a local .pt checkpoint instead of the automatic download (offline use).
--resume	Skip scans whose segmentation already exists at the output location.
--no-klc	Keep all connected components (skip largest-component cleanup).
--no-reorient	Skip internal RAS re-orientation. Output always matches the input scan's grid.
--labels	Print the label code / region name table and exit.

Output labels

19 regions + background (mindglide --labels prints this table):

Code	Structure	Code	Structure
0	Background	10	Optic_chiasm
1	CSF	11	Cerebellar_vermis
2	Ventricles_3_4_5	12	Corpus_callosum
3	DGM	13	White_matter
4	Pons	14	Frontal_lobe_GM
5	Brainstem	15	Limbic_cortex_GM
6	Cerebellum	16	Parietal_lobe_GM
7	Temporal_lobe	17	Occipital_lobe_GM
8	Temporal_horn_lateral_ventricle	18	Lesion
9	Lateral_ventricle	19	Ventral_diencephalon

See named, colored regions in your viewer — ready-made colormaps live in labels/:

fsleyes scan.nii.gz scan_seg.nii.gz -ot label -l labels/mindglide_fsleyes.lut
freeview -v scan.nii.gz scan_seg.nii.gz:colormap=lut:lut=labels/mindglide_freesurfer.txt
# ITK-SNAP: Segmentation > Label Editor > Actions > Import label descriptions

What can I feed it?

• Any single MRI sequence — T1, T2, FLAIR, PD, post-contrast; one image per scan (no multi-channel input needed).
• Any quality — designed for real-world clinical archives: 2D thick-slice acquisitions, anisotropic voxels, and older scans, as well as research-grade 3D images. Resampling and reorientation happen internally; the output always lands back on the input scan's grid.
• Validated in the Nature Communications study on tens of thousands of scans from MS clinical archives and trials, where it measured established treatment effects from scans conventional pipelines cannot process.

Intended use: research only. MindGlide is not a medical device and must not be used for clinical decision-making.

Speed (measured): seconds per scan on a modern CUDA GPU (~10 s including model load on a 2016-era Quadro P6000); ~1.5 min for a 2 mm scan and a few minutes for a 1 mm scan on a multi-core CPU.

Troubleshooting & FAQ

Do I need to skull-strip / bias-correct / register first? — No. Feed the raw NIfTI.

"Warning: not using the GPU — … this PyTorch build cannot run on it" — the default pip PyTorch wheels no longer include kernels for older GPUs (e.g. Pascal cards: GTX 10xx, Quadro P series). MindGlide falls back to CPU automatically. To use such a GPU, install a compatible PyTorch first:

pip install "torch==2.6.0+cu118" --index-url https://download.pytorch.org/whl/cu118
pip install mindglide

GPU out of memory — try --sw-batch-size 1, or --device cpu.

Apple Silicon — auto uses MPS when available. If an operation is unsupported, run with --device cpu or set PYTORCH_ENABLE_MPS_FALLBACK=1.

Offline / air-gapped machines — download the checkpoint once and pass --model-path /path/to/model.pt (or set MODEL_PATH).

Model cache location — the auto-downloaded model lives in the Hugging Face cache (~/.cache/huggingface by default); set HF_HOME to move it.

Can I fine-tune it? — The original container-based training/fine-tuning pipeline is preserved at the legacy-container tag. Open a Discussion if you're interested.

Docker / Apptainer

Prebuilt images (model weights baked in — works offline; ~8 GB with the CUDA runtime) are published on every release:

docker pull ghcr.io/ms-pinpoint/mindglide:latest

# run on a folder ( --user keeps output files owned by you; drop --gpus all on CPU-only hosts )
docker run --gpus all --ipc=host --user $(id -u):$(id -g) -v /data:/data \
  ghcr.io/ms-pinpoint/mindglide:latest -i /data/scan.nii.gz -o /data/scan_seg.nii.gz

For Apptainer/Singularity on HPC:

apptainer pull mindglide.sif docker://ghcr.io/ms-pinpoint/mindglide:latest
apptainer run --nv -B /data:/data mindglide.sif -i /data/scan.nii.gz -o /data/scan_seg.nii.gz

To build the image yourself instead: git clone this repo and docker build -t mindglide .

Model weights

The checkpoint (_20240404_conjurer_trained_dice_7733.pt) is downloaded automatically from Hugging Face: MS-PINPOINT/mindglide on first run, pinned to an exact revision for reproducibility. Additional and legacy checkpoints are archived in the same repository. Models were trained on the datasets described in the paper.

From a source checkout you can also fetch the weights as a git submodule (requires Git LFS):

git submodule update --init --recursive
git submodule foreach 'git lfs pull'

Development & tests

git clone https://github.com/MS-PINPOINT/mindGlide.git
cd mindGlide
pip install -e ".[test]"

pytest                          # fast unit tests (seconds, no model download)
MINDGLIDE_RUN_SLOW=1 pytest -v  # + end-to-end on a public MNI scan (CPU, and GPU if present)

See CONTRIBUTING.md. Changes to the numerical path must produce byte-identical segmentations (the e2e tests check real outputs on public data).

Citation

If you use MindGlide, please cite (or use GitHub's Cite this repository button):

Goebl P, Wingrove J, Abdelmannan O, et al. Enabling new insights from old scans by repurposing clinical MRI archives for multiple sclerosis research. Nature Communications. 2025;16(1):3149. doi:10.1038/s41467-025-58274-8

BibTeX

@article{Goebl2025,
    author = {Goebl, Philipp and Wingrove, Jed and Abdelmannan, Omar and {Brito Vega}, Barbara and Stutters, Jonathan and Ramos, {Silvia Da Graca} and Kenway, Owain and Rossor, Thomas and Wassmer, Evangeline and Arnold, Douglas L. and Collins, Louis and Hemingway, Cheryl and Narayanan, Sridar and Chataway, Jeremy and Chard, Declan and Iglesias, {Juan Eugenio} and Barkhof, Frederik and Parker, Geoffrey J. M. and Oxtoby, Neil P. and Hacohen, Yael and Thompson, Alan and Alexander, Daniel C. and Ciccarelli, Olga and Eshaghi, Arman},
    title = {Enabling new insights from old scans by repurposing clinical {MRI} archives for multiple sclerosis research},
    journal = {Nature Communications},
    volume = {16},
    number = {1},
    pages = {3149},
    year = {2025},
    month = apr,
    doi = {10.1038/s41467-025-58274-8},
    pmid = {40195318},
    pmcid = {PMC11976987}
}

Acknowledgements

This study/project is funded by the UK National Institute for Health and Social Care (NIHR) Advanced Fellowship to Arman Eshaghi (Award ID: NIHR302495). The views expressed are those of the author(s) and not necessarily those of the NIHR or the Department of Health and Social Care.
