Another LDAP authentication

LDAP Authentication for Nginx, Kubernetes ingress controller (Nginx), HAProxy (haproxy-auth-request) or any webserver/reverse proxy with authorization based on the result of a subrequest.

Another LDAP Authentication is an implementation of the ldap-auth-daemon services described in the official blog from Nginx in the following article.

Another LDAP Authentication it's prepared to run inside a Docker container, also you can run the Python script without the Docker container. Supports ldap and ldaps and provide a simple cache.

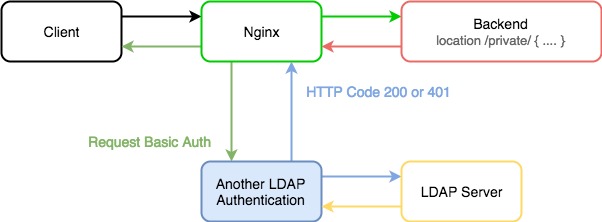

Diagram

Installation and configuration

The easy way to use Another LDAP Authentication is running as a Docker container and set the parameters via environment variables.

Step 1 - Run as a Docker container

Change the environment variables with your setup.

docker run -d \
        -e LDAP_ENDPOINT='ldaps://testmyldap.com:636' \
        -e LDAP_MANAGER_DN_USERNAME='CN=john-service-user,OU=Administrators,DC=TESTMYLDAP,DC=COM' \
        -e LDAP_MANAGER_PASSWORD='MasterpasswordNoHack123' \
        -e LDAP_SERVER_DOMAIN='TESTMYLDAP.COM' \
        -e LDAP_SEARCH_BASE='DC=TESTMYLDAP,DC=COM' \
        -e LDAP_SEARCH_FILTER='(sAMAccountName={username})' \
        -p 9000:9000 \
        --name another_ldap_auth \
        dignajar/another-ldap-auth:latest

Another LDAP Authentication now is running on http://localhost:9000.

Step 2 - Nginx configuration

Nginx use the module ngx_http_auth_request_module to do the subrequest.

The following example shows how to configure Nginx which is running in the same machine as Another LDAP Authentication. The backend /private/ includes the authentication request to /another_ldap_auth.

location /private/ {
    auth_request /another_ldap_auth;
    # ...
    # Here you private site
}

location = /another_ldap_auth {
    internal;
    proxy_pass_request_body off;
    proxy_set_header Content-Length "";
    proxy_pass http://localhost:9000;
}

Deploy in Kubernetes with Nginx ingress controller

Another LDAP Auth deployment manifest, another-deployment.yaml.

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: another-ldap-auth
  namespace: ingress-nginx
  labels:
    app: another-ldap-auth
spec:
  replicas: 1
  selector:
    matchLabels:
      app: another-ldap-auth
  template:
    metadata:
      labels:
        app: another-ldap-auth
    spec:
      containers:
        - image: dignajar/another-ldap-auth:latest
          name: another-ldap-auth
          ports:
            - name: http
              containerPort: 9000
          env:
            - name: LDAP_ENDPOINT
              value: "ldaps://testmyldap.com:636"
            - name: LDAP_MANAGER_DN_USERNAME
              value: "CN=john-service-user,OU=Administrators,DC=TESTMYLDAP,DC=COM"
            - name: LDAP_SERVER_DOMAIN
              value: "TESTMYLDAP"
            - name: LDAP_SEARCH_BASE
              value: "DC=TESTMYLDAP,DC=COM"
            - name: LDAP_SEARCH_FILTER
              value: "(sAMAccountName={username})"
            - name: LDAP_MANAGER_PASSWORD
              valueFrom:
                secretKeyRef:
                  name: another-ldap-auth
                  key: LDAP_MANAGER_PASSWORD

Another LDAP Auth secret manifest, another-secret.yaml.

---
apiVersion: v1
kind: Secret
metadata:
  name: another-ldap-auth
  namespace: ingress-nginx
type: Opaque
data:
  LDAP_MANAGER_PASSWORD: <your-password-in-base64>

Another LDAP Auth service manifest, another-service.yaml.

---
kind: Service
apiVersion: v1
metadata:
  name: another-ldap-auth
  namespace: ingress-nginx
spec:
  type: ClusterIP
  selector:
    app: another-ldap-auth
  ports:
    - name: another-ldap-auth
      port: 80
      protocol: TCP
      targetPort: 9000

Ingress manifest for the application you want to add authentication. You can remove the un-comment and send headers as variables such as Required groups.

---
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: demo-webserver
  namespace: demo
  annotations:
    nginx.ingress.kubernetes.io/auth-url: http://another-ldap-auth.ingress-nginx.svc.cluster.local
    # nginx.ingress.kubernetes.io/auth-snippet: |
    #   proxy_set_header Ldap-Required-Groups "<SOME GROUP>";
spec:
  rules:
  - host: demo.local
    http:
      paths:
      - path: /
        backend:
          serviceName: demo-webserver
          servicePort: 80

Available configurations parameters

The parameters can be sent via environment variables or via HTTP headers, also you can combine them.

The parameters LDAP_SEARCH_FILTER and LDAP_AUTH_FILTER supports variable expansion with the username, you can do something like this (sAMAccountName={username}) and {username} is going to be replaced by the username typed in the login form.

Environment variables

• LDAP_ENDPOINT LDAP URL with the port number. Ex: ldaps://testmyldap.com:636
• LDAP_MANAGER_DN_USERNAME Username to bind and search in the LDAP tree. Ex: CN=john-service-user,OU=Administrators,DC=TESTMYLDAP,DC=COM
• LDAP_MANAGER_PASSWORD Password for the bind user.
• LDAP_SEARCH_BASE Ex: DC=TESTMYLDAP,DC=COM
• LDAP_SEARCH_FILTER Filter to search, for Microsoft Active Directory usually you can use sAMAccountName. Ex: (sAMAccountName={username})
• LDAP_SERVER_DOMAIN (Optional), for Microsoft Active Directory usually need the domain name for authenticate the user. Ex: TESTMYLDAP.COM
• LDAP_REQUIRED_GROUPS (Optional), required groups are case insensitive (DevOps is the same as DEVOPS), you can send a list separated by commas, try first without required groups. Ex: 'DevOps', 'DevOps_QA'
• LDAP_AUTH_FILTER (Optional) Filter to apply to username before authentication.
• CACHE_EXPIRATION (Optional, default=5) Expiration time in minutes for the cache. Ex: 10

HTTP headers

• Ldap-Endpoint
• Ldap-Manager-Dn-Username
• Ldap-Manager-Password
• Ldap-Search-Base
• Ldap-Search-Filter
• Ldap-Server-Domain (Optional)
• Ldap-Required-Groups (Optional)
• Ldap-Auth-Filter (Optional)

Known limitations

• Parameters via headers need to be escaped, for example, you can not send parameters such as $1 or $test because Nginx is applying variable expansion.
